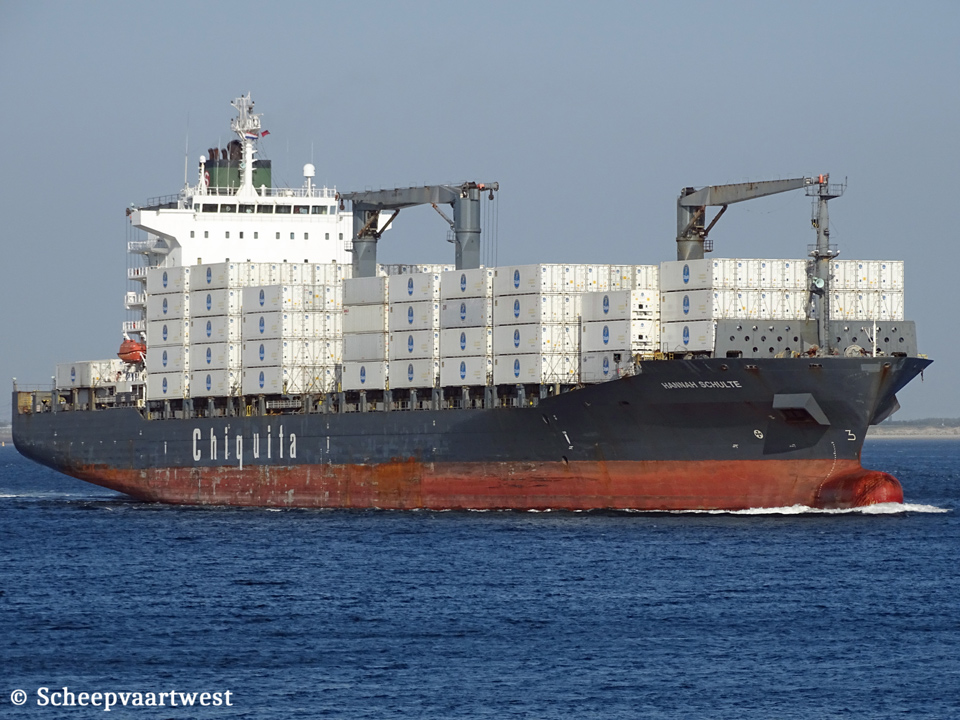

Hannah Schulte IMO 9301938 01

Westerschelde 26 June 2019



Name

HANNAH SCHULTE

Previous names

2006 Launch as: Hannah Schulte

10/2006 - 02/2015 Maersk Needham

Type

Cellular containership - Feedermax

IMO-number

9301938

Previous classification

DNV GL

Call sign

9VEZ2

Flag

Republic of Singapore

Port of registry

Singapore City

GT

26.671 t

DWT

Summer: 34.704 t

NT

12.679 t

Number of 20ft containers

On deck: 1.524

In hold: 1.078

Total: 2002

Container capacity 14t

1.854

Reefer capacity

600

Length

210,00 m overall

Breadth

30,10 m

Draught

Summer: 11,52 m

Reg. dimensions L x B x D

200,35 x 30,10 x 16,70 m

Rule dimensions L x B x D

198,80 x 30,10 x 16,70 m

Freeboard

Summer: 5.140 mm

Depth

16,70 m

Speed

Max: 23,3 knots

Service: 22,1 knots

Built

2006

Keel laid

29/05/2006

Launch date

31/07/2006

Date of completion

19/10/2006

Builder

STX Offshore & Shipbuilding Co., Ltd.

Jinhae

South Korea

Yard number

1181

Hull material

Steel

Continuous decks

1

Main engine

1x MAN-B&W 8S70MC-C - 2 stroke single acting 8 cylinder 700 x 2.800 mm combustion engine 24.841 kW / 33.774 hp at 91,0 rpm

Build: 04/2006

Builder: STX Engine Co., Ltd., Changwon - South Korea

Propellers

1x Fixed pitch propeller - aft at 91,0 rpm

Boilers

1x Auxiliary boiler CPB

Pressure: 6,9 kg/cm²

Heating surface: 476 m³

Build: 05/2006

Builder: Kangrim Heavy Industrial Co., Ltd., Changwon - South Korea

Generators

4x MAN-B&W 8L28/32H - 8 cylinder diesel engines each 1.700 kW connected with generators each 1.600 kW - 450 Volt

Bow thruster

1x Tunnel thruster 1.000 kW / 1.360 bhp, forward

Tank capacities

Fuel oil: 4.005,9 m³

Diesel oil: 130 m³

Fresh water: 274,2 m³

Water ballast: 9.466,0 m³

Cargo gear

4x Deck cranes - SWL 45,0 t each

Crew size

18

Manager

Bernhard Schulte Shipmanagement (Hellas) SPLLC

6-8, Kifisias Avenue

Marousi, 151 25 Athens

Greece

Registered owner

Fort Park Shipping Co., Pte Ltd.

Republic of Singapore

Latest data adjustment

31 January 2021
