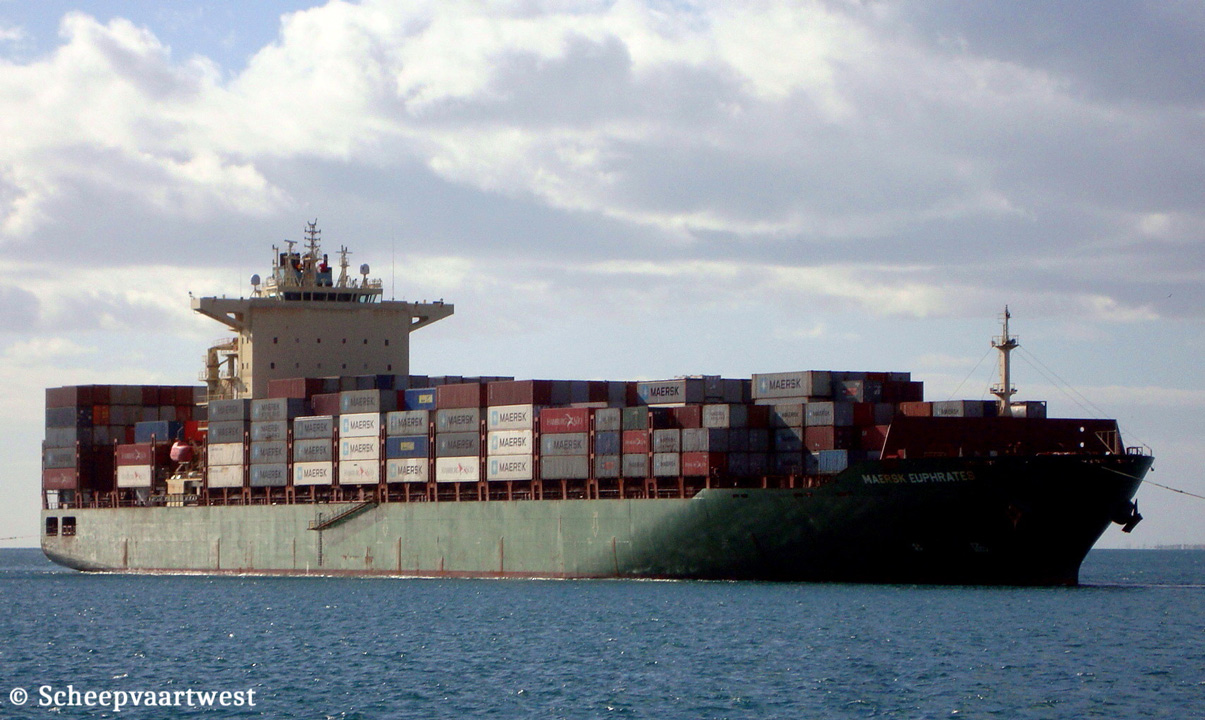

Maersk Euphrates IMO 9694567 01

Malaga, Spain 26 December 2020



Name

MAERSK EUPHRATES

Previous names

2014 build as: Wide Echo

Type

Cellular containership

IMO-number

9694567

Call sign

V7GQ5

Flag

Marshall Islands

Port of registry

Majuro

GT

51.872 t

DWT

65.165 t

NT

29.415 t

Number of 20ft containers

5.466

Container capacity 14t

3.680

Reefer capacity

650

Length

255,00 m overall

244,00 m between perpendiculars

Breadth

37,30 m extreme

Draught

Summer: 13,90 m

Freeboard

3.360 mm

Depth

22,00 m

Speed

Max: 21,3 knots

Built

2014

Keel laid

23/01/2014

Launch date

30/04/2014

Date of completion

02/10/2014

Builder

HHIC - Hanjin Heavy Industries And Construction Philippines, Inc.

Subic Bay

Philippines

Yard number

P0108

Hull material

Steel

Main engine

1x MAN-B&W 6G80ME-C9.2 - 6 cylinder combustion engine 24.680 kW

Propellers

1x Mono-block proppeller

Manufacturer: Hyundai Heavy Industries

Boilers

1x Auxiliary boiler, composite Aalborg OC-Tci

Manufacturer: Alfa Laval Aalborg A/S

Generators

3x Hyundai/Himsen 7H25/33 main diesel generatorsets each 2.090 kW

1x Hyundai/Himsen 6H25/33 main diesel generatorset 1.600 kW

Number of holds

7

Tank capacities

Ballast: 19.556,84 m³

Anchor equipment

Length: 744,60 m

Diameter: 95 mm

Cargo gear

Gearless

Crew

20

Manager

OSM Ship Management Pte. Ltd.

Registered owner

Wide Echo Ltd.

Ajeltake Island

Majuro

Marshall islands

Latest data adjustment

05 January 2021
