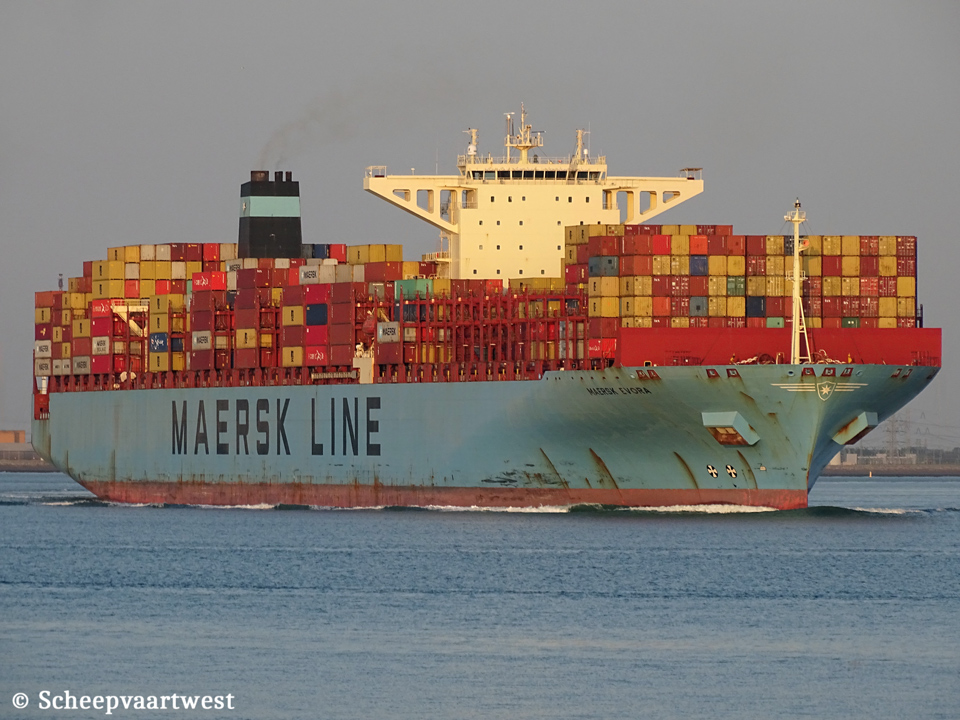

Maersk Evora IMO 9458080 02

Westerschelde 21 August 2019

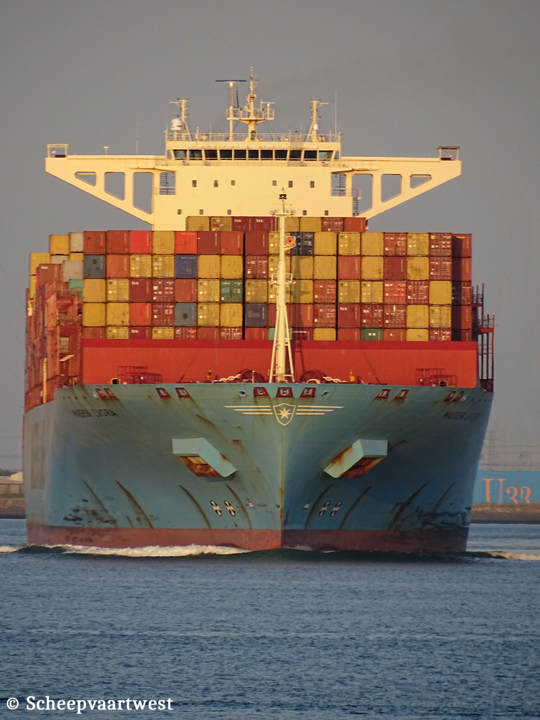

Maersk Evora IMO 9458080 01
WS 21/08/19











Name

MAERSK EVORA

Previous names

2011 Build as: Tauro Rickmers

Type

Cellular Containership

IMO-number

9458080

Call sign

OXVS2

Flag

Denmark

Port of registry

København

Previous flags

2011 - 2017 Marshall Islands, Majuro Call sign: V7WI7

GT

141.716 t

DWT

Summer: 142.105 t

NT

59.810 t

Number of 20ft containers

13.092

Container capacity 14t

9.144

Reefer capacity

800

Length

366,43 m overall

353,64 m registered

Breadth

48,20 m registered

Draught

Summer: 15,50 m

Depth

29,85 m moulded

Speed

Max: 24,7 knots

Built

2011

Keel laid

08/12/2010

Launch date

01/04/2011

Date of completion

01/06/2011

Builder

Hyundai Heavy Industries Co. Ltd.

Ulsan

South Korea

Yard number

2172

Hull material

Material Shipbuilding steel (standard)

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

12

Continuous decks

2

Main engine

1x Wärtsilä 12RT-Flex96C-B - 2 stroke 12 Cylinder 960 x 2.500 mm combustion engine 68.640 kW at 102,0 rpm

Build: 2010

Manufacturer: Hyundai Heavy Industries Co., Ltd.

Propellers

1x Solid propeller (keyless) - aft at 102,0 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 73,4 m²

1x Steam boiler, exhaust gas heated - 12,0 bar

Heating surface: 484,0 m

Build: 2011

Manufacturer: KangRim Industries Co., Ltd. (3rd Factory)

Electric installations

1x Plant 6.600 V - 3.600 kW

1x Plant 6.600 V - 3.600 kW

1x Plant 6.600 V - 3.600 kW

1x Plant 6.600 V - 3.600 kW

1x Plant 6.600 V - 3.600 kW

1x Plant 450 V - 375 kVA

2x Plants each 24 V - 7 Ah

1x Plant 24 V - 12 Ah

12x Plants each 24 V - 200 Ah

12x Plants each 24 V - 300 Ah

Shaft generator

1x Diesel generatorset 375 kVA

Generators

5x HimSen 6H32/40 main diesel generatorsets each 3.600 kW

Batteries

12x Batteries for UPS navigation each 300 Ah

12x Batteries for UPS radio each 200 Ah

1x Battery for automation 12 Ah

2x Batteries for start emergency engine each 7 Ah

Compressed air receivers

2x Receivers each 16.800 litres - 32,4 bar

1x Receiver 480 litres - 32,4 bar

1x Receiver 300 litres - 8,0 bar

1x Receiver 2.000 litres - 7,8 bar

Bow thruster

2x Transverse thruster each 1.800 kW, forward

Anchor equipment

3x Anchors weight each 24.500 kg

Chain Length: 770,00 m

Crew

27

Operator

Maersk Line

Owner

Maersk A/S

1263 Esplanaden 50

København K

Denmark

Registered owner

Minsheng Financial leasing Co. Ltd.

C/o A.P. Miller- Maersk

Latest data adjustment

20 April 2021
