Westerschelde 22 June 2017 |
 |
 |
 |
 |
 |
 |
|||||

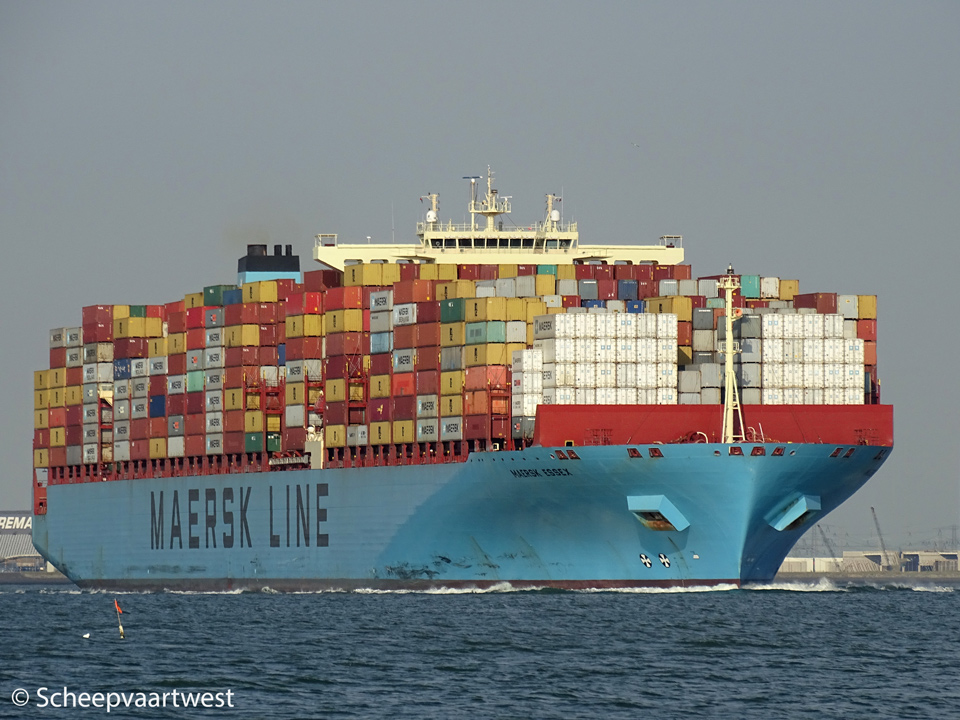

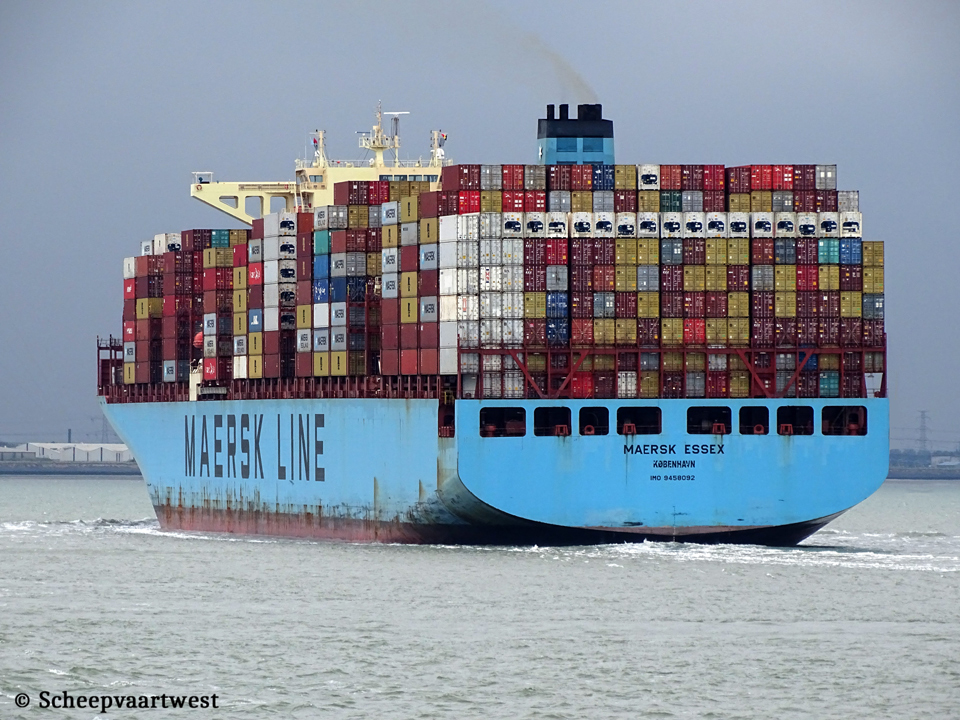

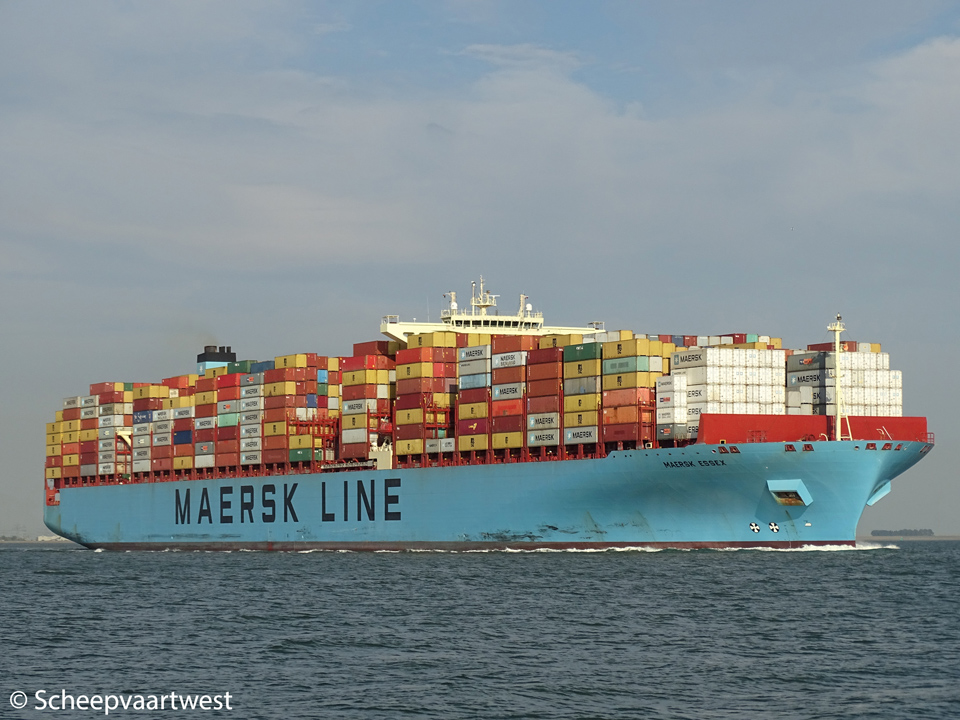

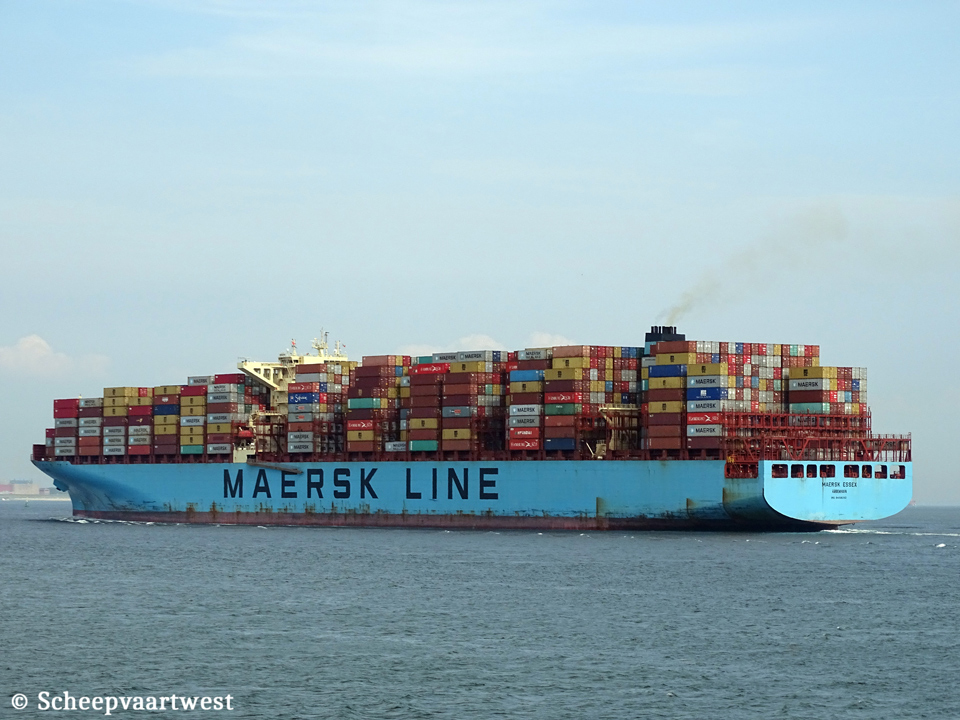

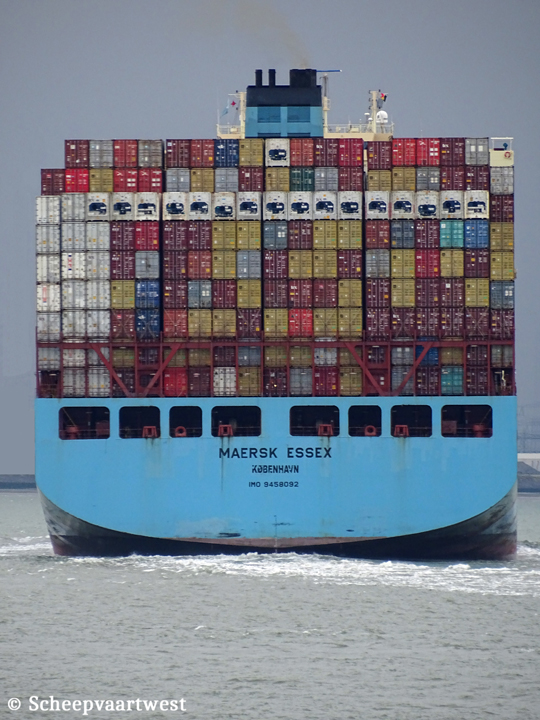

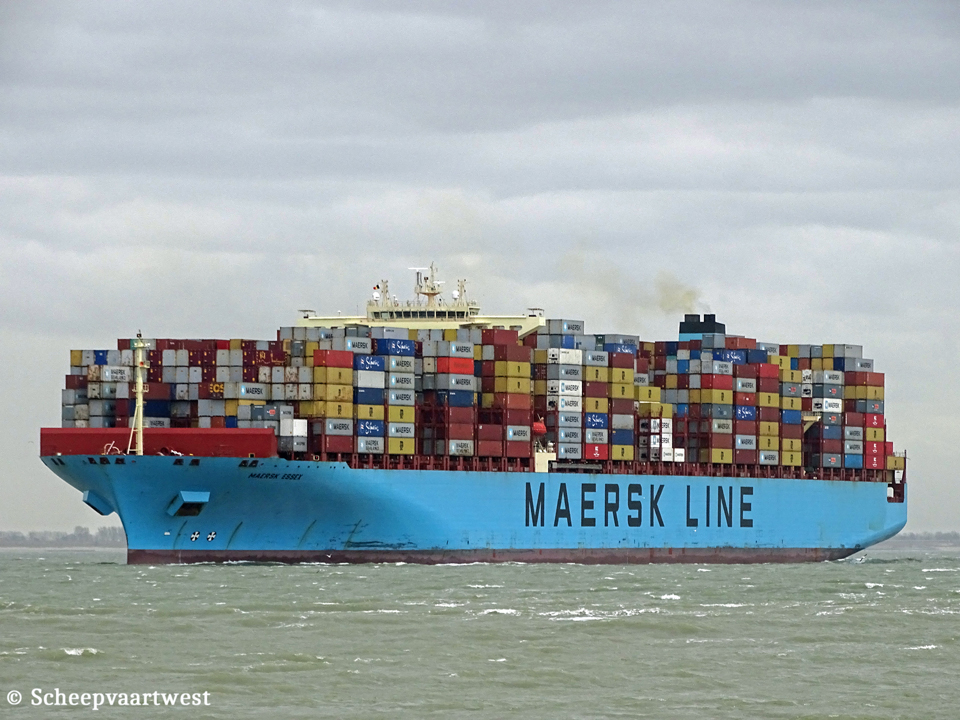

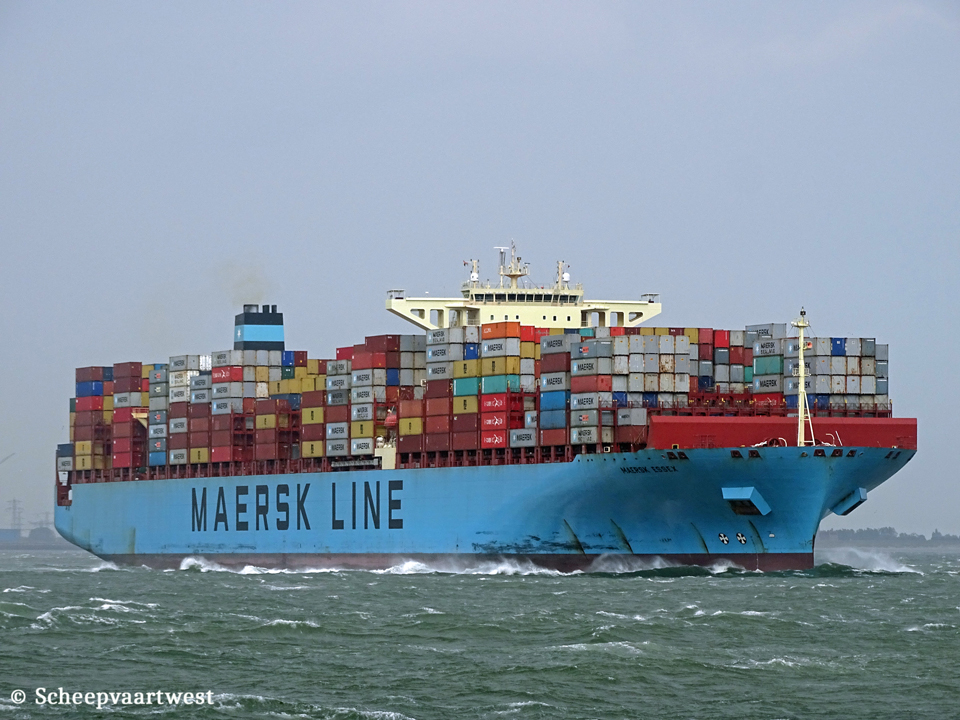

| Westerschelde 24/07/16 | Westerschelde 24/07/16 | Westerschelde 24/06/19 | Westerschelde 21/10/19 | WS 21/10/19 | Westerschelde 24/07/16 | |||||
|
Name |
MAERSK ESSEX |
|
Previous names |
Libra Rickmers |
|
Type |
Cellular containership |
|
IMO-number |
9458092 |
|
Call sign |
OXSQ2 |
|
Flag |
Denmark |
|
Port of registry |
København |
|
Previous flags |
2011 - 2017 Marshall Islands, Majuro- Call sign: V7WJ2 |
|
GT |
141.716 |
|
DWT |
148.723 t |
|
NT |
63.729 |
|
Number of 20ft containers |
13.092 |
|
Reefer capacity |
800 |
|
Length |
366,44 m overall 350,00 m between perpendiculars 353,64 m registered |
|
Breadth |
48,26 m extreme |
|
Draught |
Max: 15,50 m |
|
Depth |
29,85 m moulded |
|
Speed |
Max: 24,7 knots |
|
Built |
2011 |
|
Keel laid |
22/12/2010 |
|
Launch date |
07/06/2011 |
|
Date of completion |
22/07/2011 |
|
Builder |
Hyundai Heavy Industries Co., Ltd. Ulsan South Korea |
|
Yard number |
2173 |
|
Hull material |
Steel |
|
Hull type |
Single hull Double bottom, continuous from peak to peak bulkhead |
|
Watertight bulkheads |
12 |
|
Continuous decks |
1 |
|
Main engine |
1x Sulzer 12RT-Flex96C-B - 2 stroke 12 cylinder 960 x 2.500 mm combustion engine 68.640 kW at 102,0 rpm Built: 2011 Manufacturer: Hyundai Heavy Industries Co., Ltd. |
|
Propellers |
1x Solid propeller (keyless) - aft at 102,0 rpm |
|
Boilers |
1x Steam boiler, oil fired - 8,83 bar Heating surface 73,4 m² 1x Steam boiler, exhaust gas heated - 12,23 bar Heating surface 484,0 m² Year of Manufacture; 2010 Manufacturer; KangRim Industries Co., Ltd. (3rd Factory) |
|
Electric installations |
1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 6.600 V - 3.600 kVA 1x Plant 450 V - 370 kVA 2x Plants each 24 V - 7 Ah 1x Plant 24 V - 12 Ah 12x Plants each 24 V - 200 Ah 12x Plants each 24 V - 300 Ah |
|
Generators |
5x Hyundai/HimSen 6H32/40 main diesel generatorsets each 2.880 kW / 3.600 kVA |
|
Emergency generator |
1x Diesel generator 370 kVA |
|
Batteries |
12x Batteries for UPS navigation each 300 Ah 12x Batteries for UPS radio each 200 Ah 1x Battery for automation 12 Ah 2x Batteries for start emergency engine each 7 Ah |
|
Compressed air receivers |
2x Receivers each 16.800 litres - 29,4 bar 1x Receiver 480 litres - 29,4 bar 1x Receiver 300 litres - 8,8 bar 1x Receiver 2.000 litres - 8,6 bar |
|
Bow thruster |
2x Transverse thruster each 1.800 kW, forward |
|
Anchor equipment |
3x Anchors weight each 24.500 kg Chain Length 770,00 m |
|
Cargo gear |
Gearless |
|
Crew size |
36 |
|
ISM & commercial manager |
Maersk Line A/S Esplanaden 50 1263 København K Denmark |
|
Registered owner |
Ocean Hun Shipping Ltd. Care of Maersk A/S Esplanaden 50 1263 Copenhagen, K Denmark |
|
Latest data adjustment |
21 July 2022 |
