Phoenix J IMO 9504047 15

Westerschelde 01 October 2019

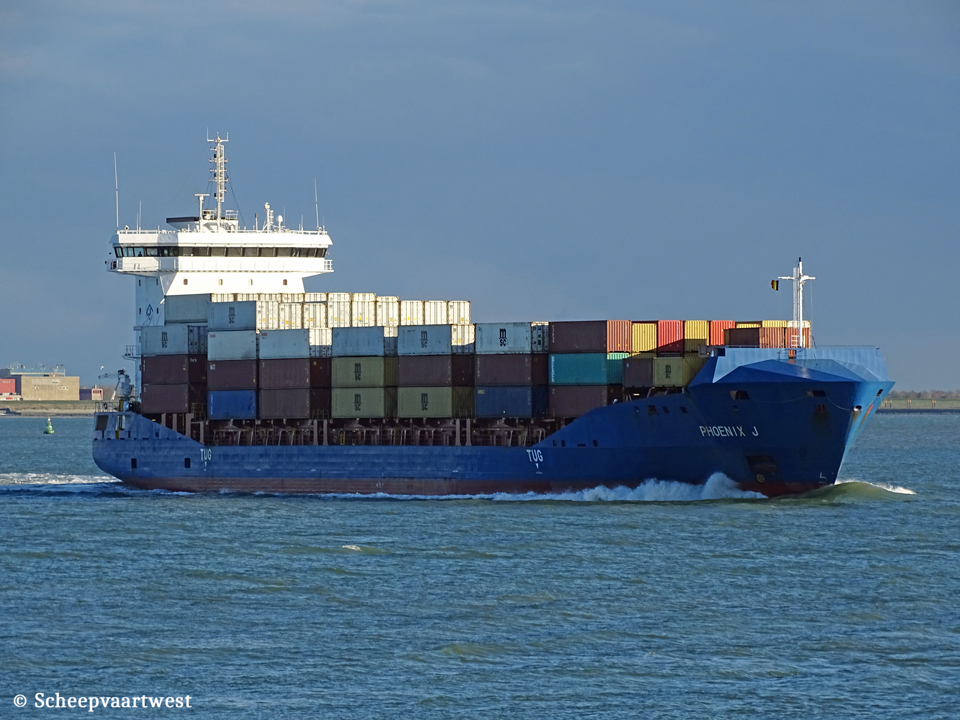

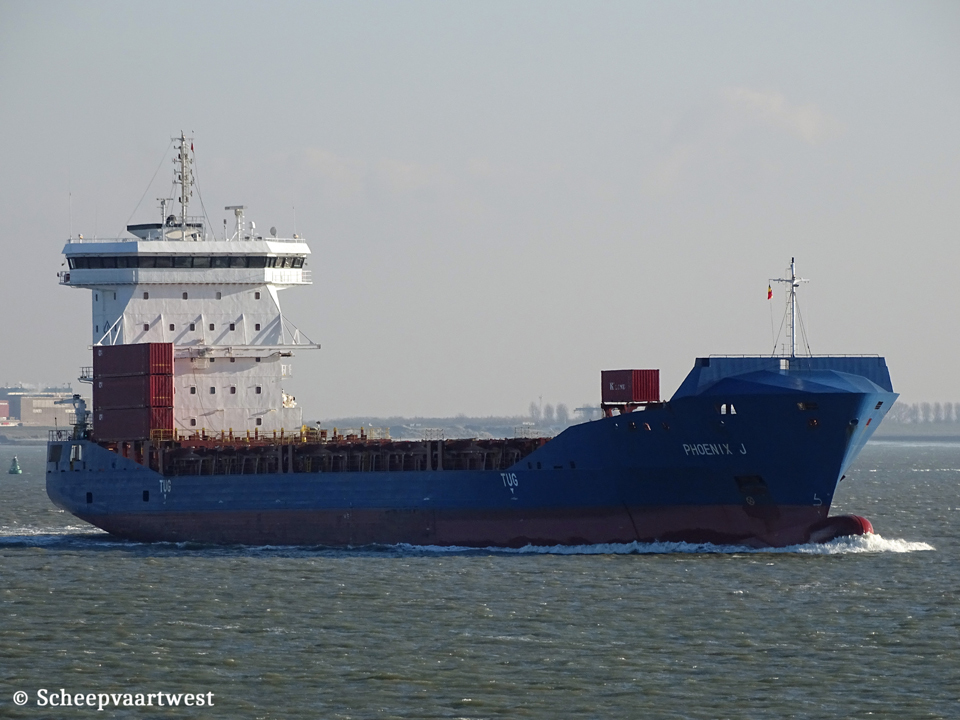

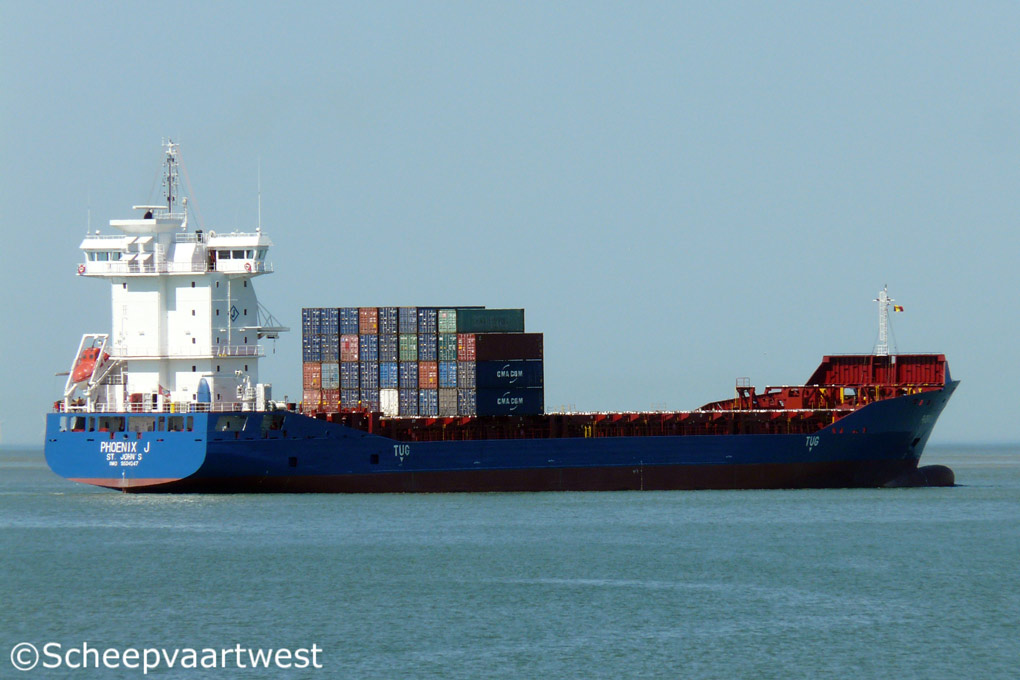

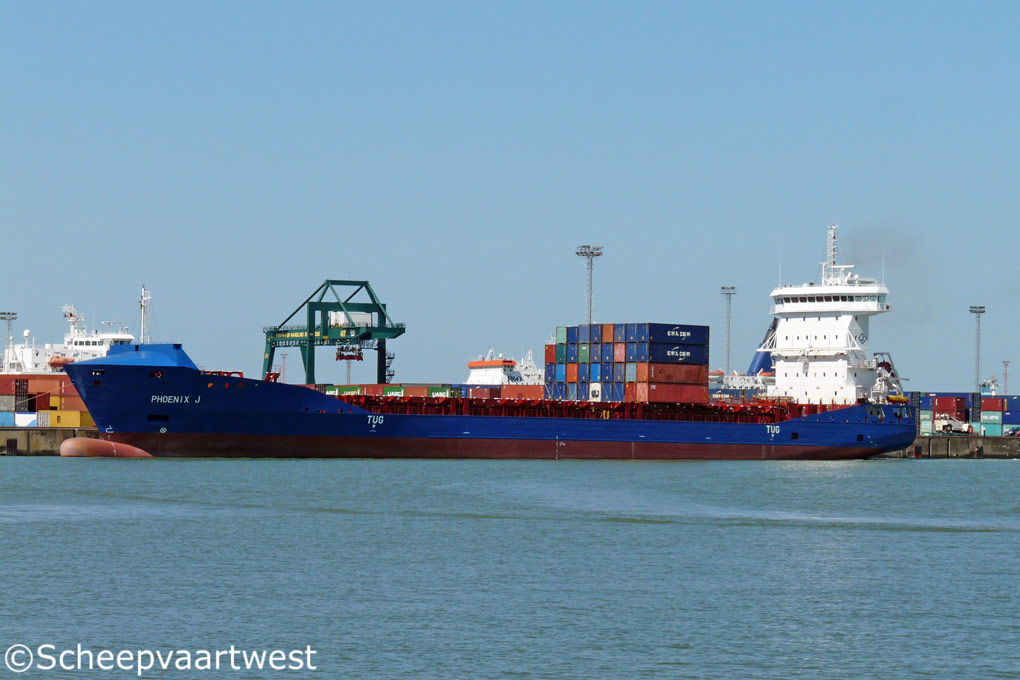

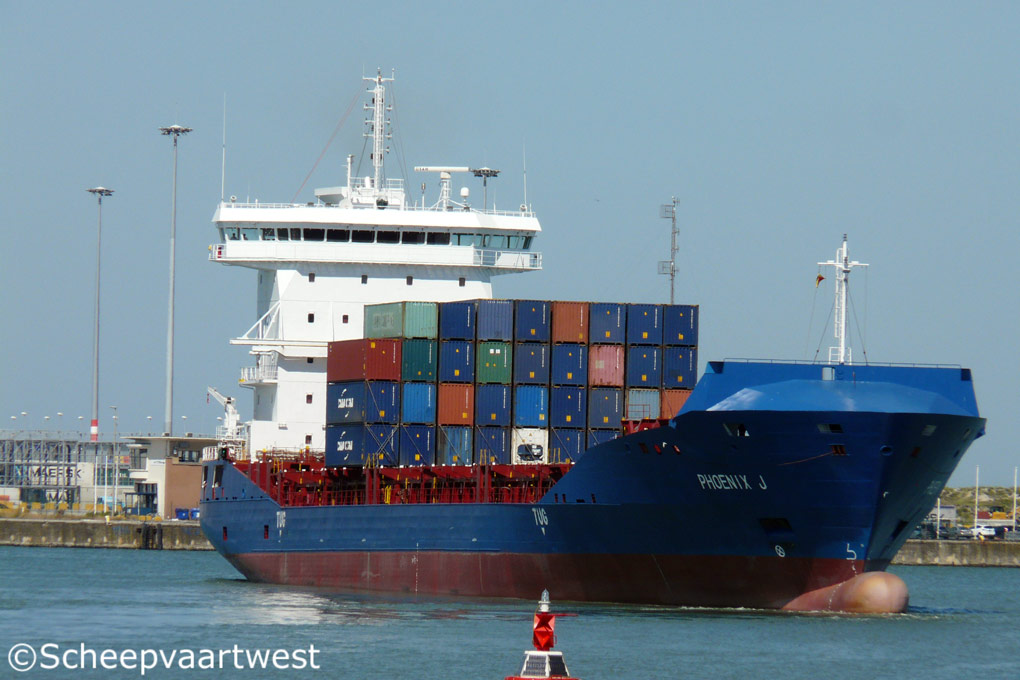

Phoenix J IMO 9504047 10   Phoenix J IMO 9504047 11   Phoenix P IMO 9504047 13   Phoenix J 07   Phoenix J 04   Phoenix J 01
Westerschelde 11/06/20   Westerschelde 13/12/18   Westerschelde 19/11/19 Zeebrugge 18/08/12 Zeebrugge 18/08/12 Zeebrugge 18/08/12

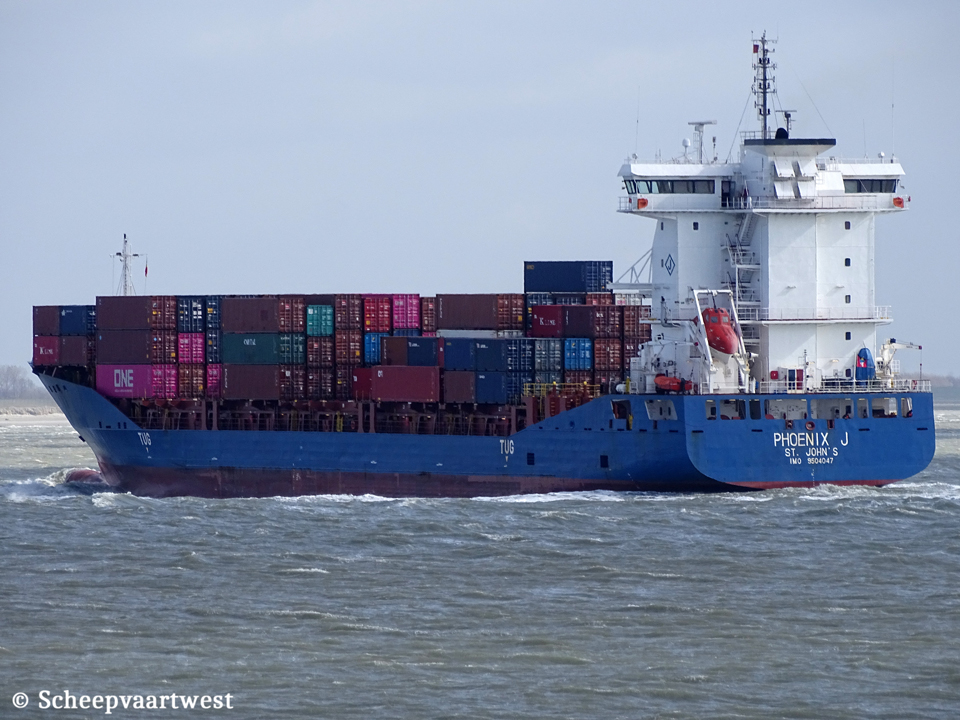

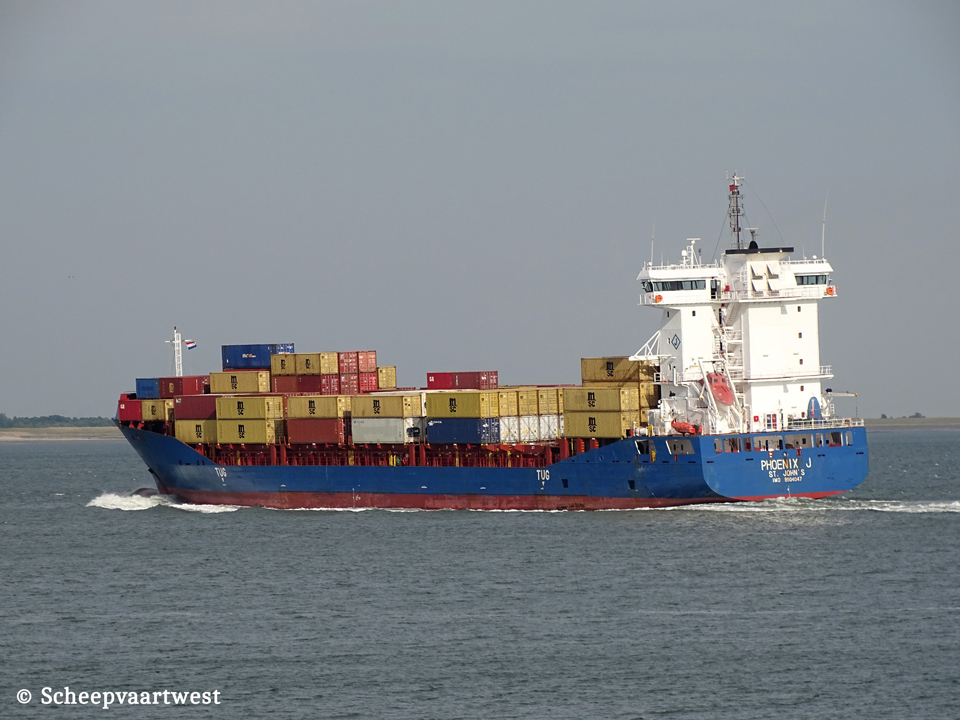

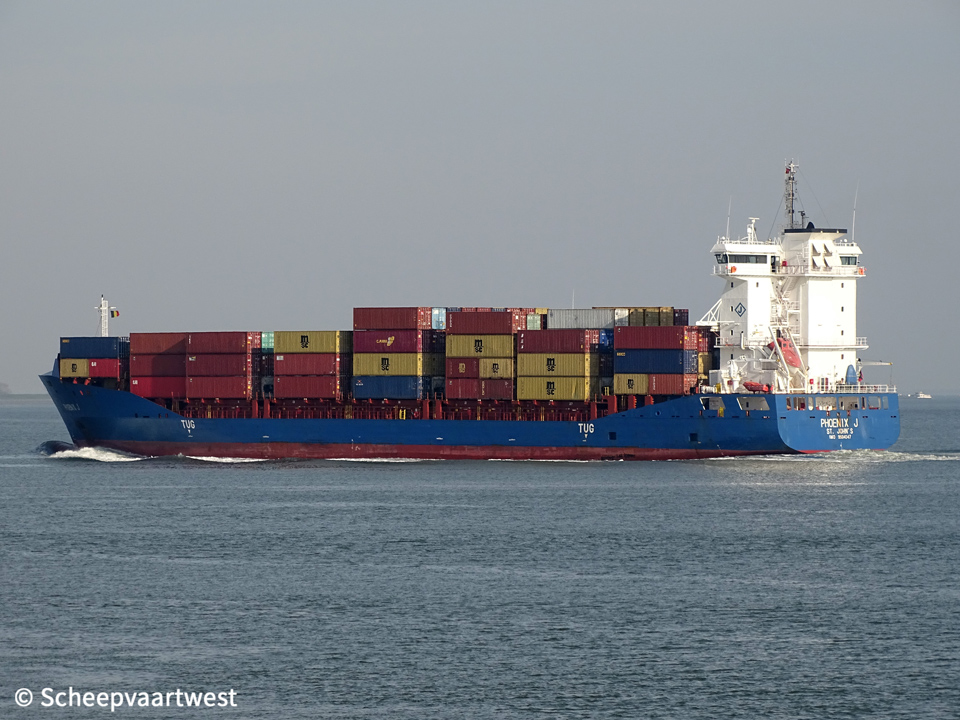

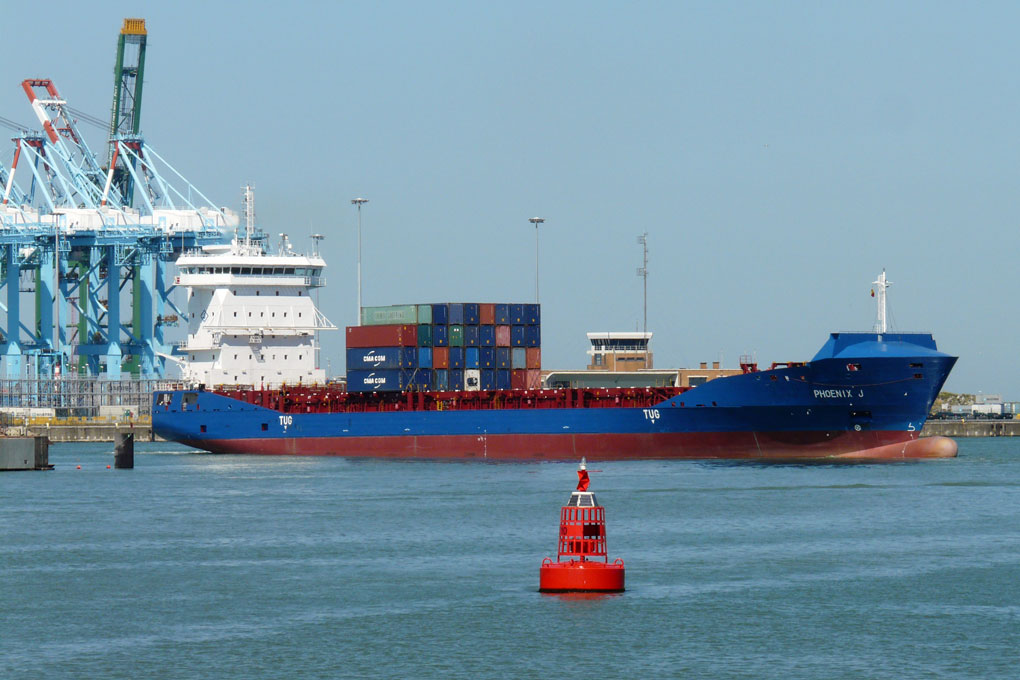

Phoenix J IMO 9504047 12   Phoenix J 09   Phoenix J IMO 9504047 14   Phoenix J 05
Westerschelde 11/03/19   Westerschelde 15/04/20   Westerschelde 01/06/20    Zeebrugge 18/08/12


Name

PHOENIX J

Type

Containership

IMO-number

9504047

Call sign

V2FE2

Flag

Antigua & Barbuda

Port of registry

St. John's

GT

10.585 t

DWT

13.200 t

NT

5.372 t

Number of 20ft containers

1.036

Reefer points

250

Length

151,72 m overall

142,42 m registered

Breadth

23,40 m registered

Draught

Summer: 8,50 m

Keel to mast end

43,66 m

Depth

11,75 m moulded

Speed

18,5 knots

Built

2010

Keel laid

11/01/2008

Launch date

18/06/2009

Date of completion

28/09/2010

Builder

CSC Jiangdong Shipyard

9, Jiangdong Road

241001 Wuhu 110

People's Republic of China

Yard number

JD1000TEU-3

Hull material

Shipbuilding steel (standard)

Hull type

Partly double bottom (e.g. interrupted in way of machinery space)

Watertight bulkheads

7

Continuous decks

2

Main engine

1x MaK 9M43C - 4 stroke 9 cylinder 430 x 610 mm combustion engine 6.885 kW / 9.361 hp at 500 rpm

Year of manufacture: 2009

Manufacturer: Caterpillar Motoren Rostock GmbH

Werftallee 13

18119 Rostock

Federal Republic of Germany

Propellers

1x Controllable pitch propeller - aft at 120 rpm

Boilers

1x Steam boiler, oil fired - 9,0 bar

Heating surface: 15,0 m²

1x Steam boiler, exhaust gas heated - 9,0 bar

Heating surface: 135,0 m²

Year of manufacture: 2008

Manufacturer: Aalborg Industries Ltd.

86, Guangzhou Road North Jiaozhou

266300 Qingdao 120

People's Republic of China

Electric installations

3x Plants each 450 V - 712 kVA

1x Plant 450 V - 2.125 kVA

1x Plant 450 V - 394 kVA

Shaft generator

1x 2.125 kVA

Generators

3x MAN D2842LE301 Main diesel generatorsets each 712 kVA

Emergency generator

1x MAN D2876LE201 Diesel generatorset 394 kVA

Compressed air receivers

2x Receivers each 1.000 litres - 33,0 bar

1x Receiver 100 litres - 33,0 bar

1x Receiver 500 litres - 10,0 bar

Bow thruster

1x 800 kW, forward

Number of holds

3

Anchor Equipment

3x Anchors weight each 6.000 kg

Chain length: 577,50 m

Diameter: 60 mm

Gear

Gearless

Crew

15

ISM & commercial manager

Jüngerhans Maritime Services GmbH & Co. KG

Boschstraße 31

49733 Haren/Ems

Federal Republic of Germany

Registered owner

MS "PHOENIX J" New Shipping UG (haftungsbeschränkt) & Co. KG

Care of Jungerhans Maritime Services GmbH & Co KG

Boschstrasse 31

49733 Haren (Ems)

Germany

Latest data adjustment

09 October 2022
