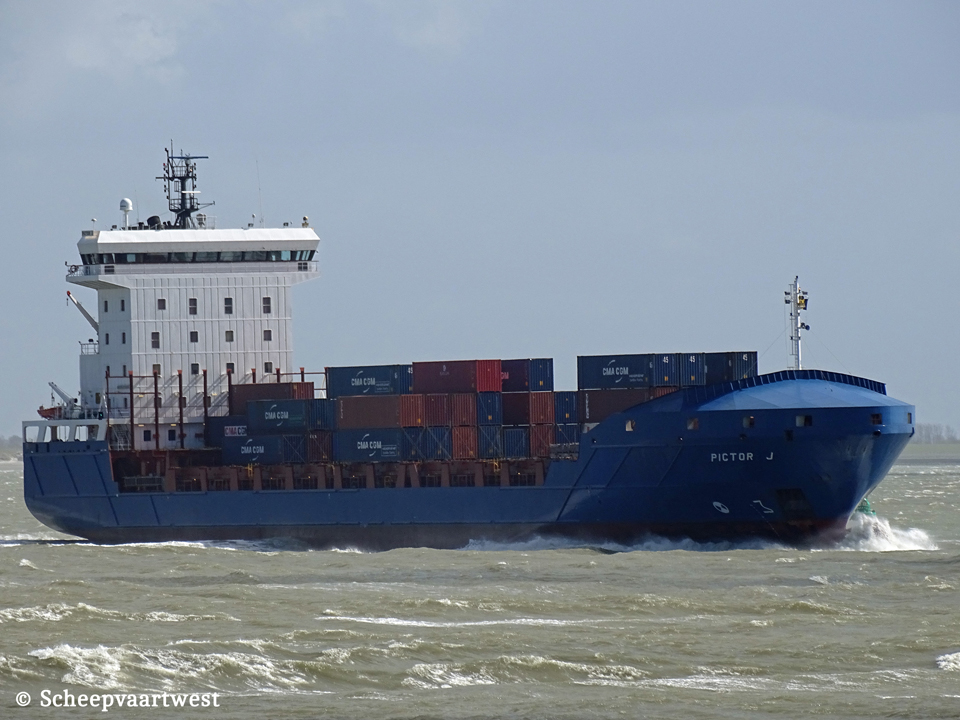

Westerschelde 28 August 2016 |
 |
 |
 |
 |
 |
||||

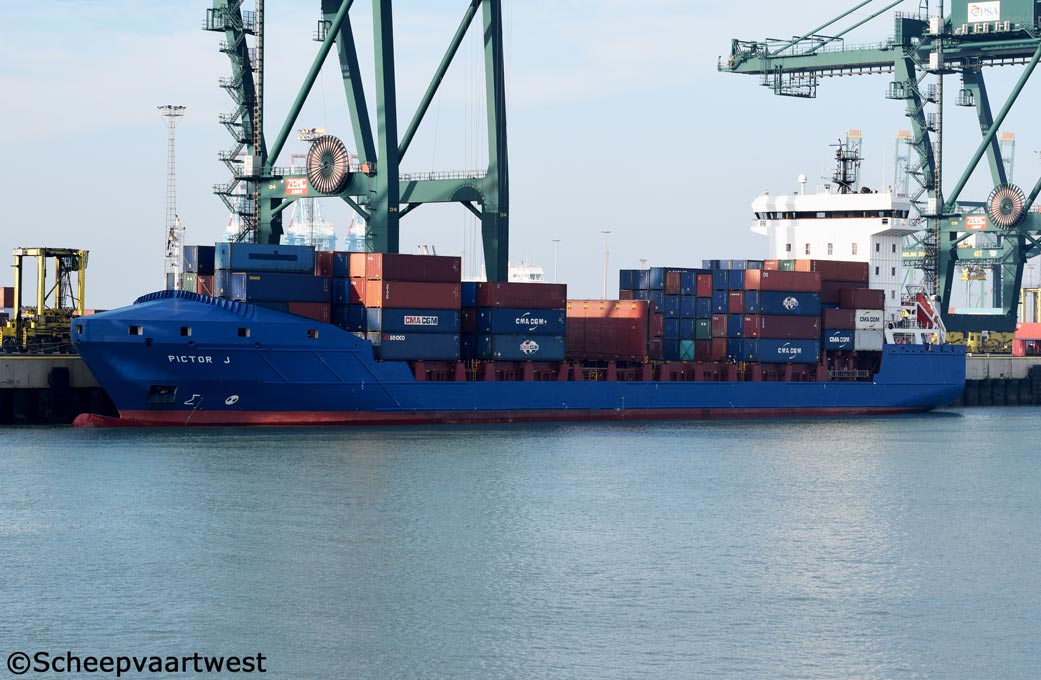

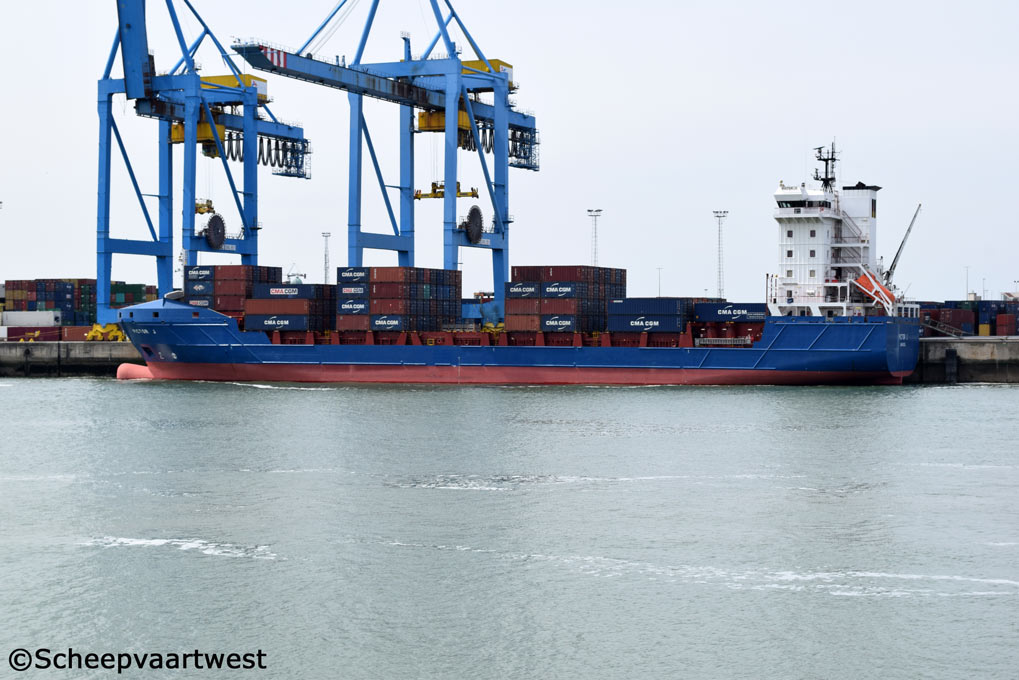

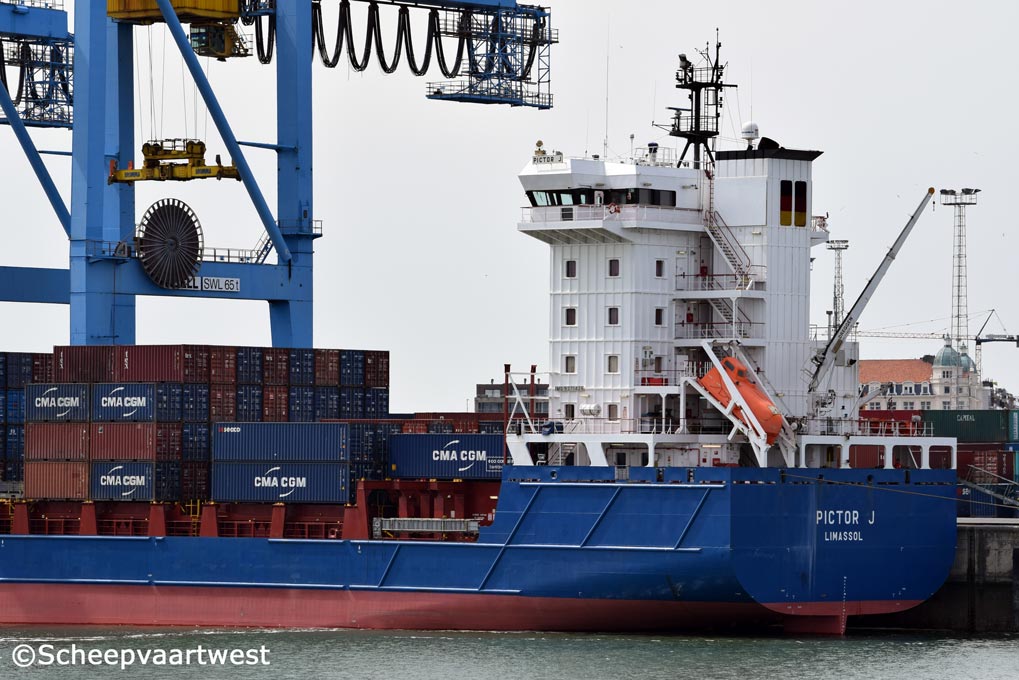

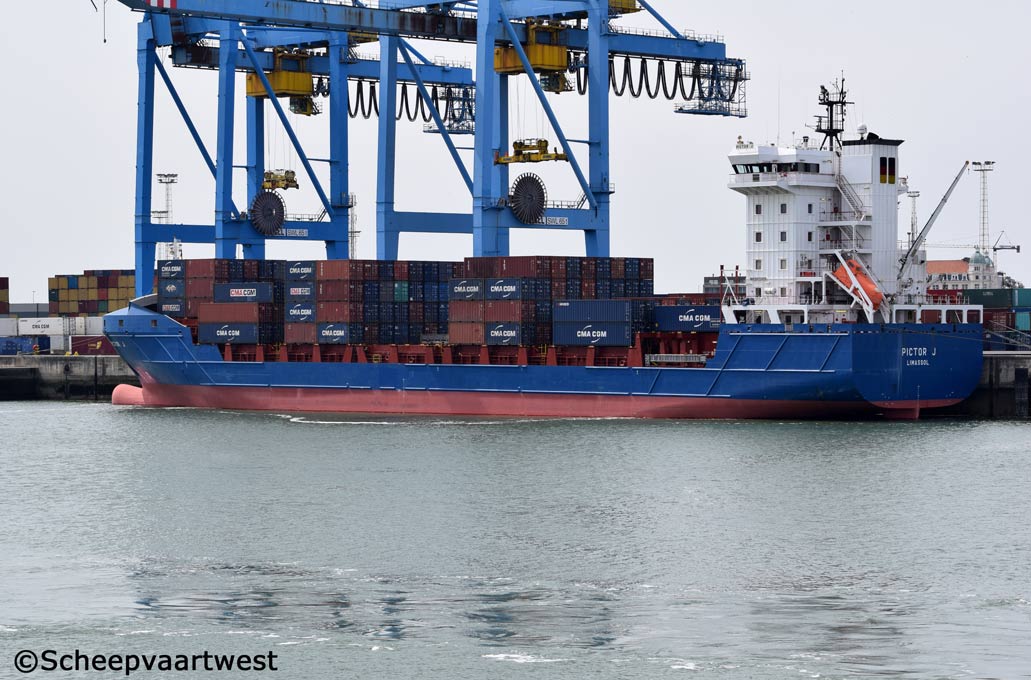

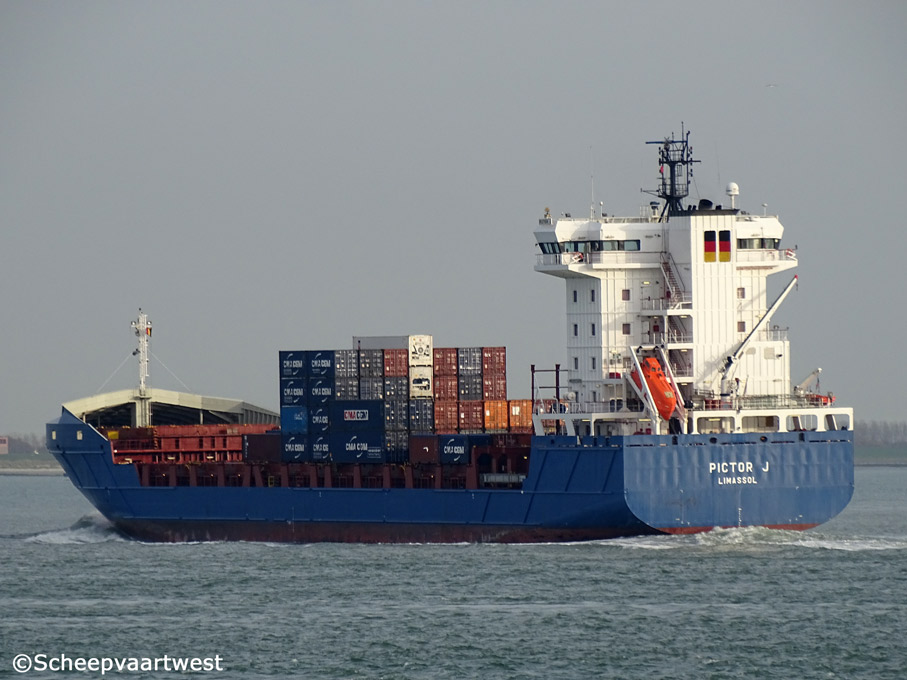

| Zeebrugge 04/05/14 | Zeebrugge 04/05/14 | Zeebrugge 04/05/14 | Zeebrugge 29/11/14 | Westerschelde 08/11/15 | ||||
|
Name |
PICTOR J |
|
Type |
Cellular containership |
|
IMO-number |
9371426 |
|
Call sign |
5BEE3 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
Previous flags |
2009 - 2011 Germany |
|
GT |
10.965 t |
|
DWT |
Summer: 12.640 t |
|
NT |
4.714 t |
|
Number of 20ft containers |
On deck: 631 In hold: 294 Total: 925 |
|
Number of 40ft containers |
456 |
|
Container capacity 14t |
639 |
|
Reefer capacity |
200 whereof 64 in hold |
|
Length |
140,33 m overall 130,94 m between perpendiculars 132,52 m registered |
|
Breadth |
22,80 m registered 23,07 m extreme |
|
Draught |
Summer: 8,70 m |
|
Freeboard |
3.220 mm |
|
Depth |
11,90 m moulded |
|
Speed |
18,28 knots |
|
Service |
CMA CGM Baltic Feeder |
|
Built |
2009 |
|
Keel laid |
10/01/2007 |
|
Launch date |
11/03/2008 |
|
Date of completion |
15/01/2009 |
|
Builder |
Naval Gijon, S.A. C/ Mariano Pola, 34 33212 Gijon, (Asturias) Barcelona Spain |
|
Yard number |
703 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Partly double bottom (e.g. interrupted in way of machinery space) |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAN-B&W 8L48/60B - 4 stroke 8 cylinder 480 x 600 mm combustion engine 9.600 kW at 500 rpm Year of manufacture: 2007 Manufacturer: MAN Diesel & Turbo SE Stadtbachstr. 1 86153 Augsburg Federal Republic of Germany |
|
Propellers |
1x Controllable pitch propeller - aft at 122 rpm |
|
Boilers |
1x Steam boiler, oil fired - 9,0 bar Heating surface: 13,0 m² 1x Steam boiler, exhaust gas heated - 9,0 bar Heating surface: 84,0 m² Year of manufacture: 2007 Manufacturer: Alfa Laval Aalborg A/S Gasvaerksvej 24 9100 Aalborg Kingdom of Denmark |
|
Electric installations |
2x Plants each 450/440 V - 937,5 kVA 1x Plant 450 V - 1.250 kVA 1x Plant 450 V - 625 kVA 1x Plant 24 V - 50 Ah 1x Plant 24 V - 85 Ah 1x Plant 24 V - 135 Ah 1x Plant 24 V - 140 Ah |
|
Shaft generator |
1x 1.250 kVA / 1.000 kW |
|
Generators |
2x Yanmar 6N21L-EV main diesel generatorsets each 937,5 kVA / 750 kW |
|
Emergency generator |
1x Yanmar 6N18L-EV diesel generatorset 625 kVA / 500 kW |
|
Batteries |
1x Battery for diesel control 140 Ah 1x Battery for UPS radio 135 Ah 1x Battery for diesel control 85 Ah 1x Battery for automation 50 Ah |
|
Compressed air receivers |
2x Receivers each 710 litres - 30,0 bar 1x Receiver 200 litres - 30,0 bar 2x Receivers each 150 litres - 30,0 bar 1x Receiver 1.000 litres - 8,0 bar |
|
Bow thruster |
1x Transverse thruster 700 kW, forward |
|
Number of holds |
6 |
|
Number of hatches |
6 |
|
Hatch type |
Hydraulic folding type |
|
Anchor equipment |
Length: 577,50 m Diameter: 60 mm |
|
Cargo gear |
Gearless |
|
Crew |
12 |
|
Crew size |
21 |
|
Manager |
Jüngerhans Maritime Services GmbH & Co. KG Boschstr. 31 49733 Haren/Ems Federal Republic of Germany |
|
Previous managers |
2009 - 2009 Komrowski Befrachtungskontor KG (GmbH & Co.) |
|
Registered owner |
MS "PICTOR J" Schiffahrtsges. UG (haftungsbeschränkt) & Co. KG Boschstr. 31 49733 Haren/Ems Federal Republic of Germany |
|
Previous owners |
2009 - 2009 Ernst Komrowski Reederei KG (GmbH & Co.) 2009 - 2011 Caixa D'Estalvis i Pensions de Barcelona |
|
Renamed |
2020 Pictor 08/2020 - 10/2020 Marchal Islands - Call sign: V7A4283 10/2020 - 09/2021 Portugal - Call sign: CQEG2 Owner & Manager: Pictor Atlantic Feeder UG, Hamburg - Germany 09/2021 Vivienne Sheri D Antigua& Barbuda, St. John’s - Call sign: V2QW7 Owner: Doornekamp Shipping Ltd. Manager: FL Schifffahrt GmbH & Co. KG, Lübeck - Germany |
|
Latest data adjustment |
30 January 2022 |
