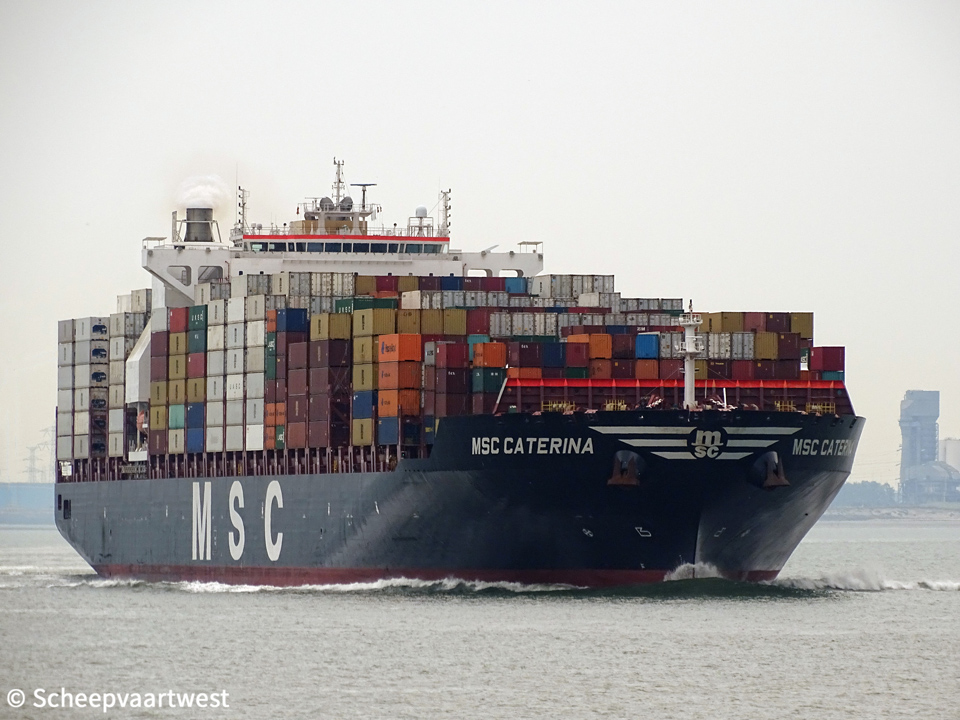

MSC Caterina 01

Westerschelde 26 June 2020

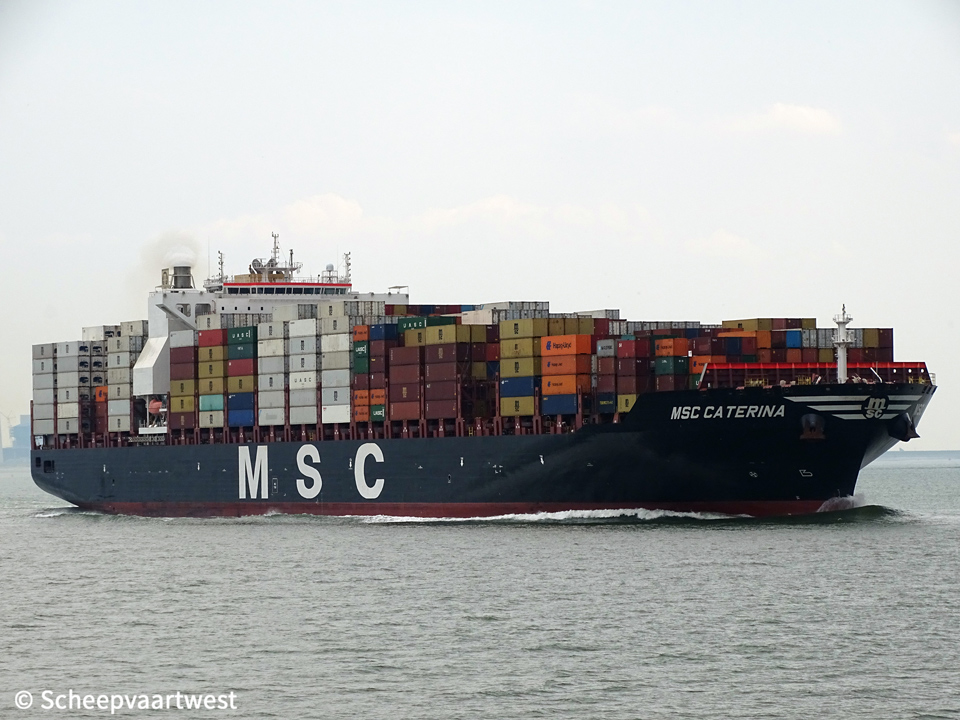

MSC Caterina 02
Westerschelde 26/06/20













Name

MSC CATERINA

Type

Cellular containership

IMO-number

9705005

Call sign

3ELQ3

Flag

Republic of Panama

Port of registry

Panama City

GT

96.333 t

DWT

Summer: 109.581 t

NT

56.898 t

Number of 20ft containers

8.800

Container capacity 14t

7.000

Reefer capacity

700

Length

300,00 m overall

286,00 m between perpendiculars

Breadth

48,23 m extreme

Draught

Summer: 14,50 m

Depth

34,60 m

Speed

Max: 22,0 knots

Built

2015

Keel laid

29/12/2014

Launch date

05/06/2015

Date of completion

12/06/2015

Builder

New Times Shipbuilding Co. Ltd.

Jingjiang

P.R. China

Yard number

0208805

Hull material

Steel

Hull type

Double hull

Number of decks

1

Main engine

1x MAN-B&W 9S90ME-C 10.2 - 2 stroke single acting 9 cylinder 900 x 3.260 mm combustion engine 47.430 kW / 64.486 hp at 78,0 rpm

Propellers

1x 1x Fixed pitch propeller - aft at 78,0 rpm

Boilers

3x Auxiliary boiler, exhaust gas heated Aalborg XS-2V (A/E1)

1x Auxiliary boiler, oil/gas fired Aalborg OS-TCI

Generators

2x MAN 9L32/40 - 9 cylinder main diesel engine each 4.500 kW connected with generators each 4.345 ekW / 6.000/450 Volt

2x MAN 8L32/40 - 8 cylinder main diesel engine each 4.000 kW connected with generators each 3.860 ekW / 6.000/450 Volt

Emergency generator

1x Scania DI16 075M diesel generatorset

Bow thruster

1x Tunnel thruster 3.000 kW / 4.079 bhp, forward

Tank capacities

Ballast: 31.669,93 m³

Anchor equipment

Length: 770,00 m

Diameter: 111 mm

Cargo gear

Gearless

Manager

MSC Shipmanagement Limited

Chemin Rieu, 12-14

1208 Geneva

Switzerland

Operator

MSC - Mediterranean Shipping Company

Registered owner

Super Precise Limited

Care of MSC Shipmanagement Limited

Chemin Rieu, 12-14

1208 Geneva

Switzerland

Latest data adjustment

22 October 2020
