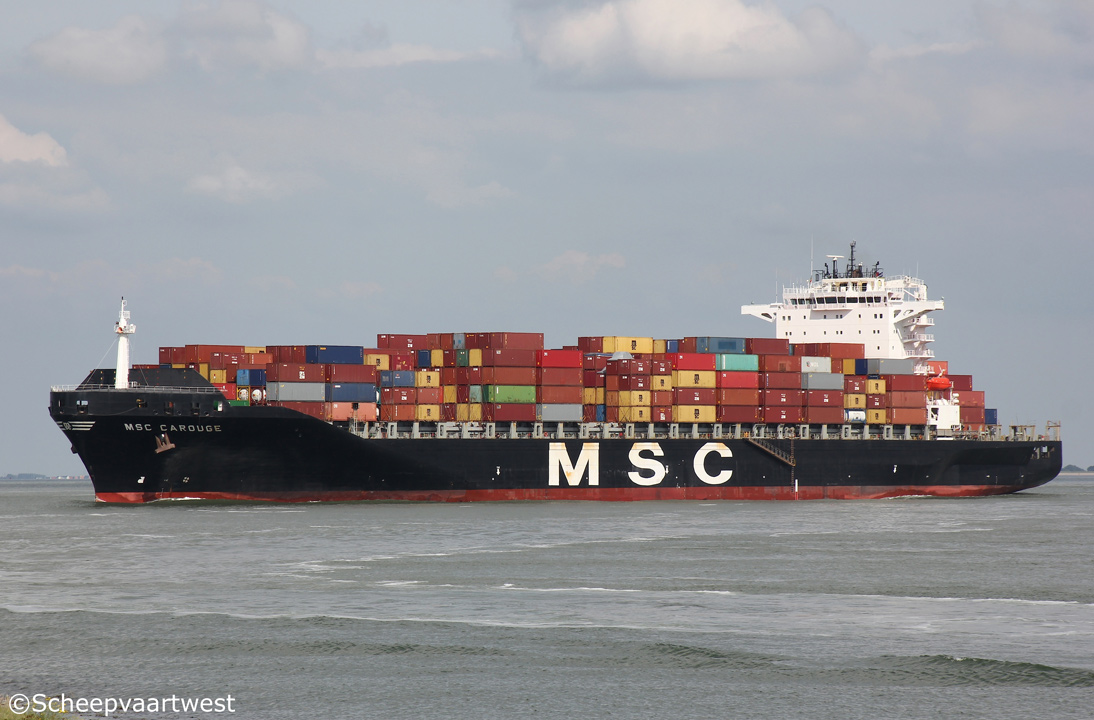

MSC Carouge 04

Terneuzen 21 August 2017

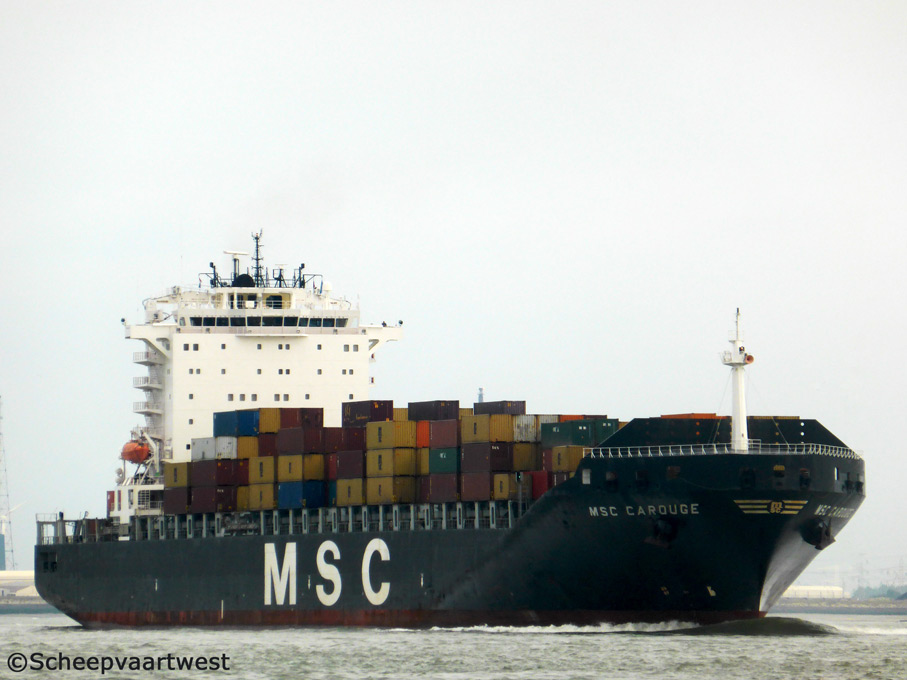

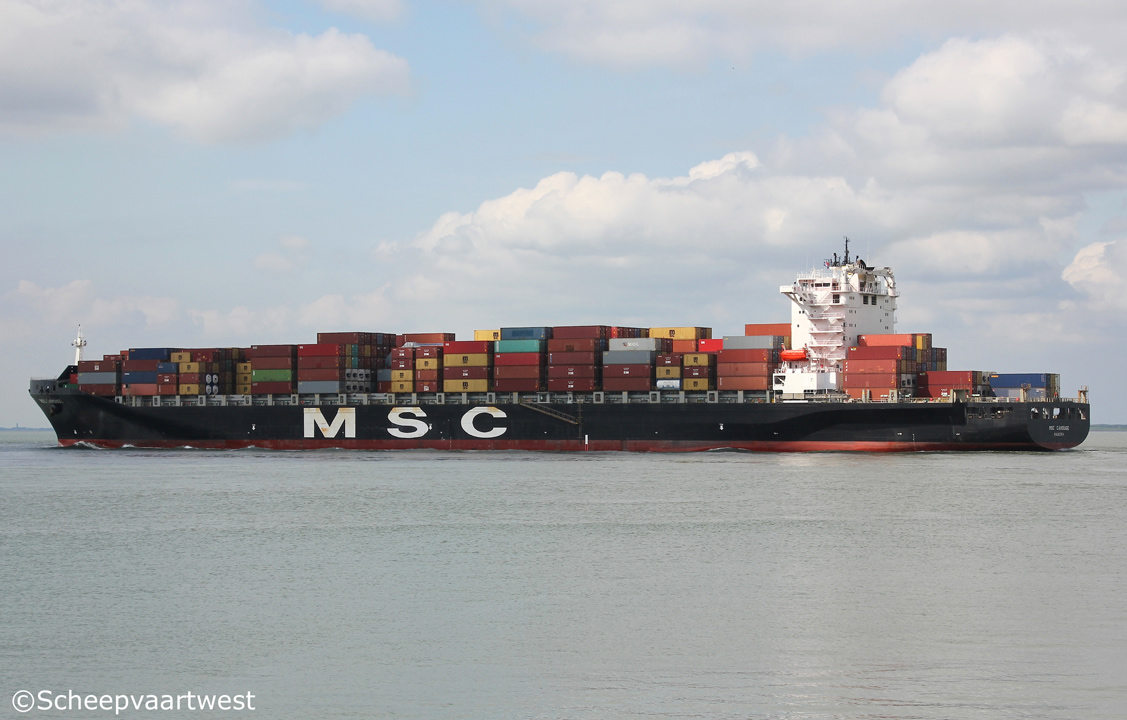

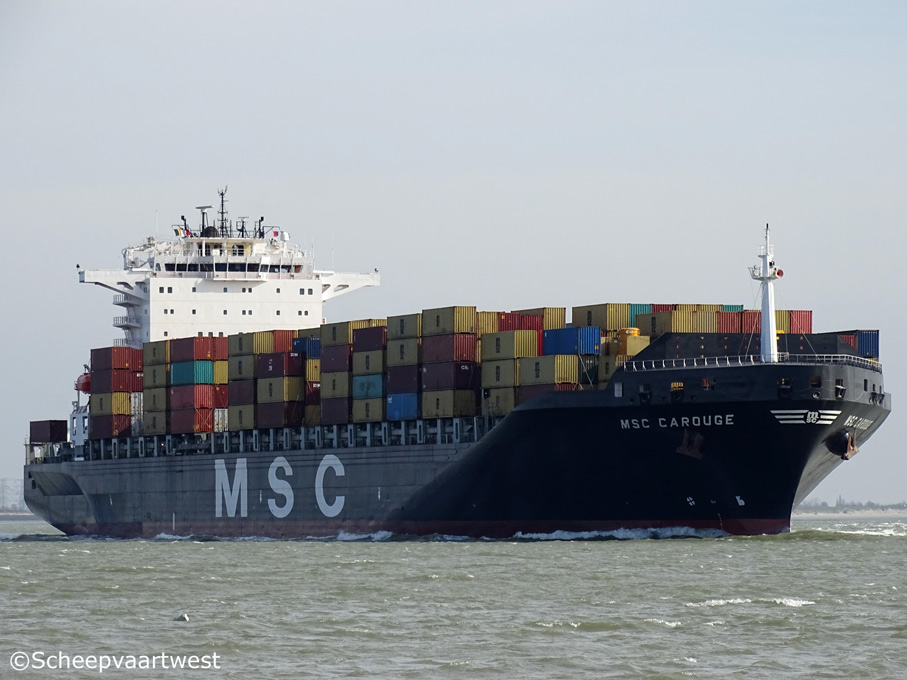

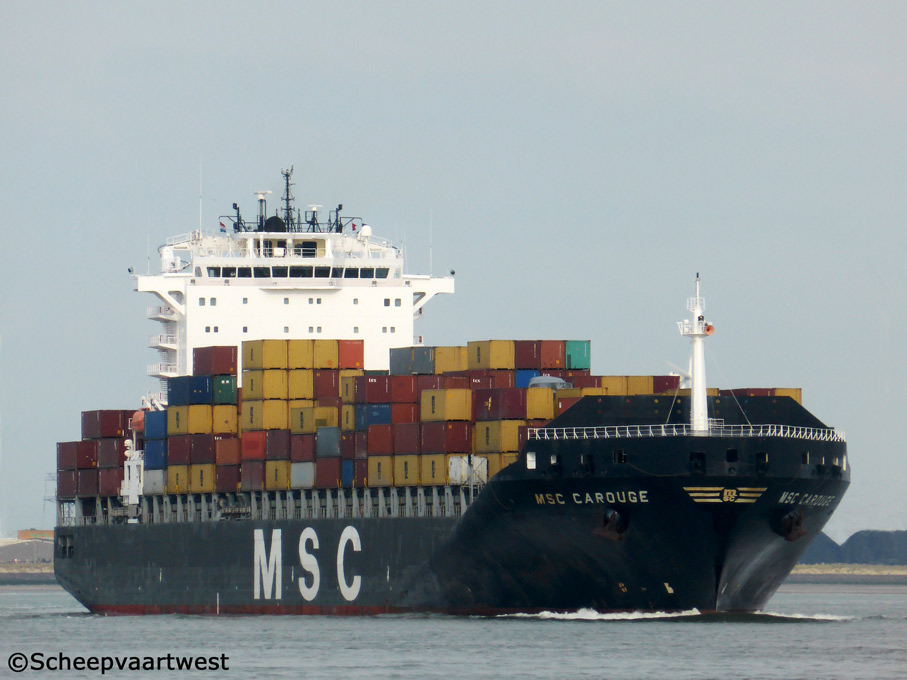

MSC Carouge 05   MSC Carouge 01   MSC Carouge 02   MSC Carouge 03
Terneuzen 21/08/17 Westerschelde 25/05/14 Westerschelde 25/07/14 Westerschelde 28/02/16

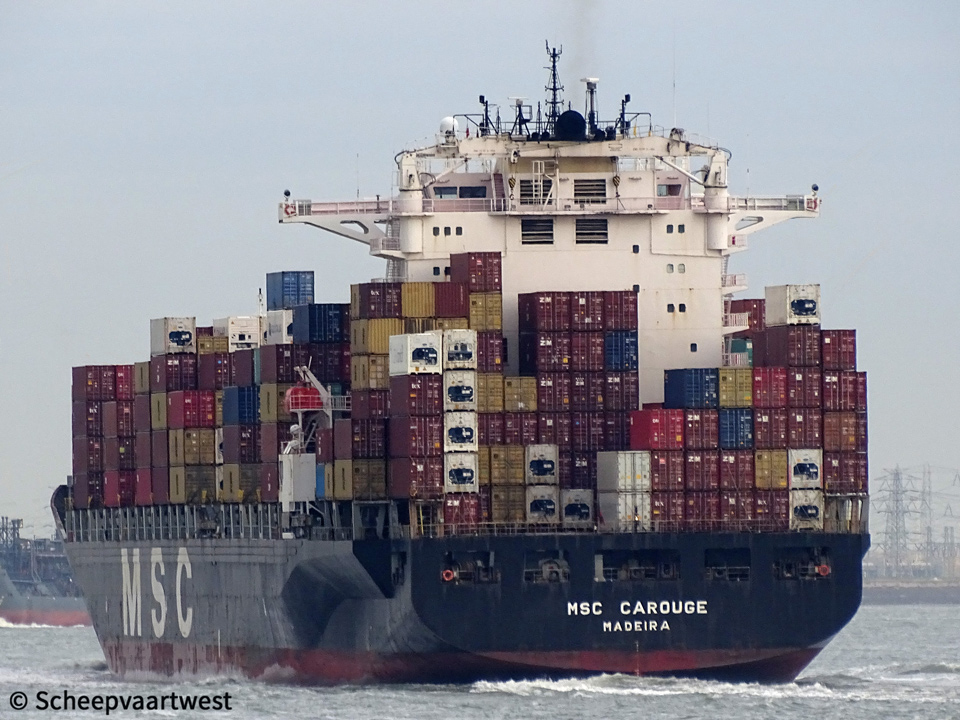

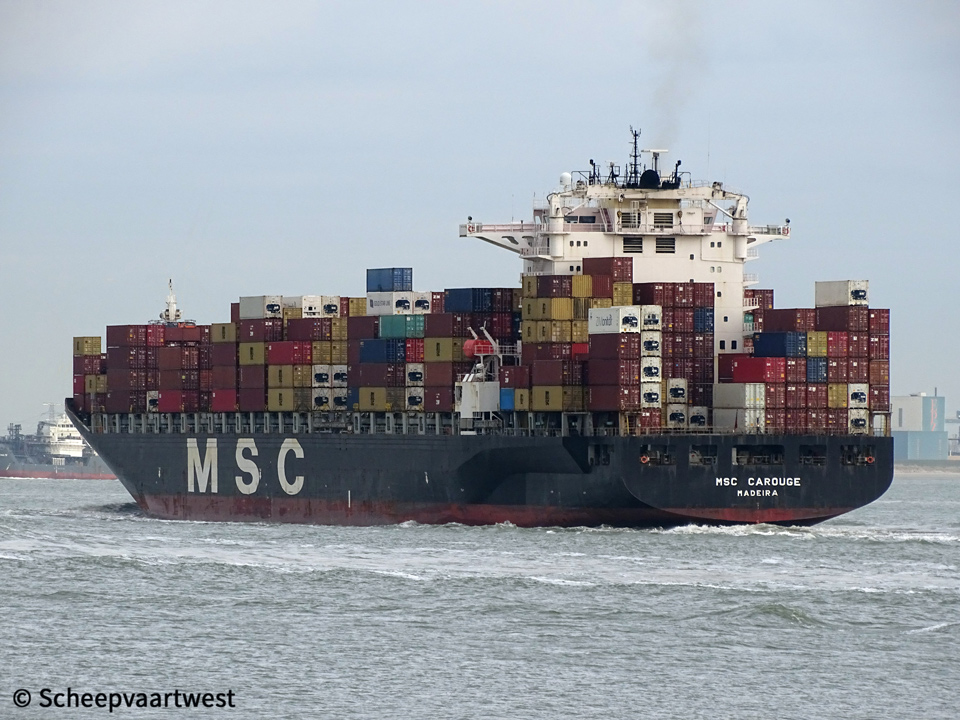

MSC Carouge 06   MSC Carouge 07   MSC Carouge 08
Westerschelde 02/04/20   Westerschelde 02/04/20   Westerschelde 10/09/18













Name

MSC CAROUGE

Previous names

2007 Launch as: Buxpost

Type

Cellular containership

IMO-number

9320441

Call sign

CQFP

Flag

Portugal

Port of registry

Madeira

Previous flag

2007 - 2014 Germany, Hamburg - Call sign: DDJG2

GT

50.963 t

DWT

63.428 t

NT

30.224 t

Number of 20ft containers

On deck: 2.850

In hold: 2.022

Total: 4.872

Container capacity 14t

3.109

Reefer capacity

On deck: 400

In hold: 160

Total: 560

Length

274,98 m overall

262,82 m registered

Breadth

32,20 m registered

Draught

13,50 m

Forecastle

131,22 m

Bridge

107,57 m

Quarterdeck

9,49 m

Freeboard

3.858 mm

Depth

21,50 m to main deck

Speed

24,0 knots

Built

2007

Keel laid

05/06/2006

Launch date

28/12/2006

Date of completion

28/02/2007

Builder

Daewoo Mangalia Heavy Industries S.A.

Strada Portului 1

905500 Mangalia, Constanta

Romania

Yard number

4054

Hull material

Shipbuilding steel (standard)

Higher tensile steel

Hull type

Double bottom, continuous from peak to peak bulkhead

Watertight bulkheads

9

Continuous decks

1

Main engine

1x MAN-B&W 7K98MC-C - 2 stroke 7 cylinder 980 x 2.400 mm combustion engine 39.970 kW at 104,0 rpm

Year of manufacture: 2006

Manufacturer: HSD Engine Co., Ltd.

69 Sinchon-dong

Changwon, Kyungnam 641-370

Republic of Korea

Propellers

1x Solid propeller (keyless), aft at 104,0 rpm

Boilers

1x Steam boiler, oil fired - 10,0 bar

Heating surface: 36,0 m²

1x Steam boiler, exhaust gas heated - 10,0 bar

Heating surface: 637,0 m²

Year of manufacture: 2006

Manufacturer: Alfa Laval Aalborg A/S

Gasvaerksvej 24

9100 Aalborg

Kingdom of Denmark

Electric installations

4x Plants each 450/225 V - 2.437,5 kVA

1x Plant 450 V - 668 kVA

1x Plant 24 V - 200 Ah

1x Plant 24 V - 300 Ah

Generators

4x MAN-B&W 7L27/38 main diesel generatorsets each 2.437,5 kVA / 1.950 kW

Emergency generator

1x 1D81Z diesel generatorset 668 kVA / 550 kW

Batteries

1x Battery for automation 300 Ah

1x Battery for UPS radio 200 Ah

Compressed air receivers

2x Receivers each 15.000 litres - 30,0 bar

1x Receiver 500 litres - 30,0 bar

1x Receiver 300 litres - 30,0 bar

1x Receiver 350 litres - 7,7 bar

Bow thruster

1x Transverse thruster 1.500 kW, forward

Tank capacities

Heavy fuel oil: 6.479 m³

Marine diesel oil: 232 m³

Fresh water: 350 m³

Ballast water: 16.997 m³

Anchor equipment

3x Anchors weight each 12.900 kg

Chain length: 715,00 m

Diameter: 87 mm

Cargo gear

None

Crew size

30

Manager

NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG

Harburger Str. 47-51

21614 Buxtehude

Federal Republic of Germany

ISM manager

NSB Niederelbe Schiffahrtsgesellschaft mbH & Co. KG

Harburger Str. 47-51

21614 Buxtehude

Federal Republic of Germany

Operator

MSC - Mediterranean Shipping Company S.A.

Registered owner

Beteiligungs-KG MS "BUXWIND" Verwaltungs- und Bereederungs GmbH & Co.

Harburger Str. 47-51

21614 Buxtehude

Federal Republic of Germany

Latest data adjustment

28 August 2020
