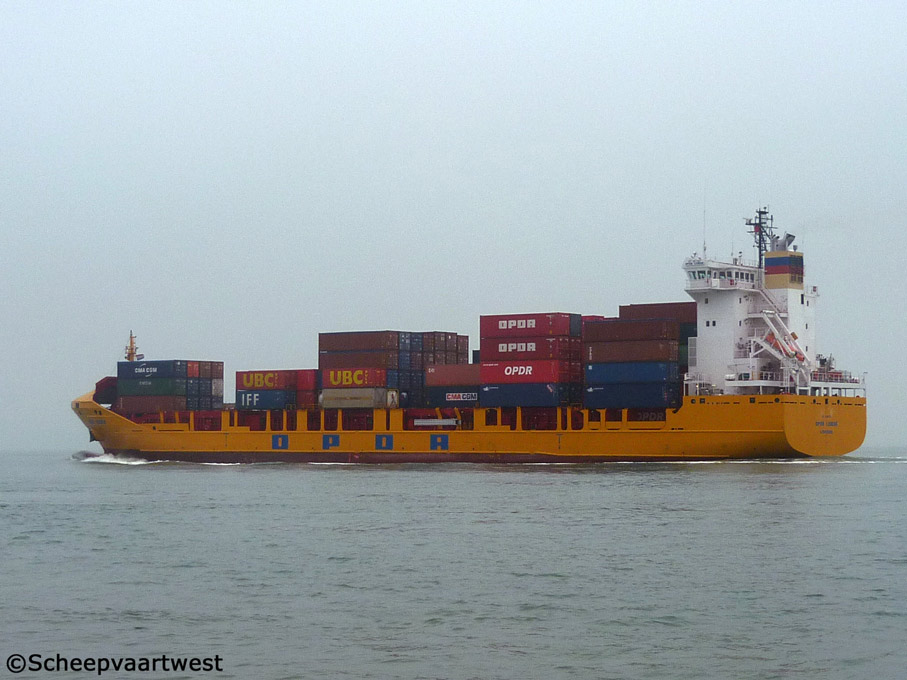

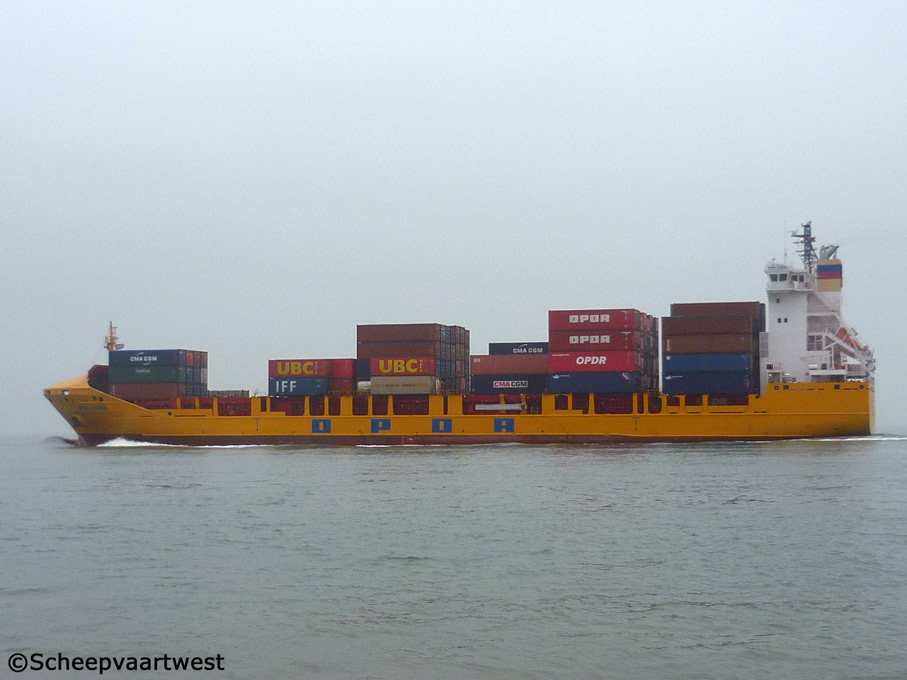

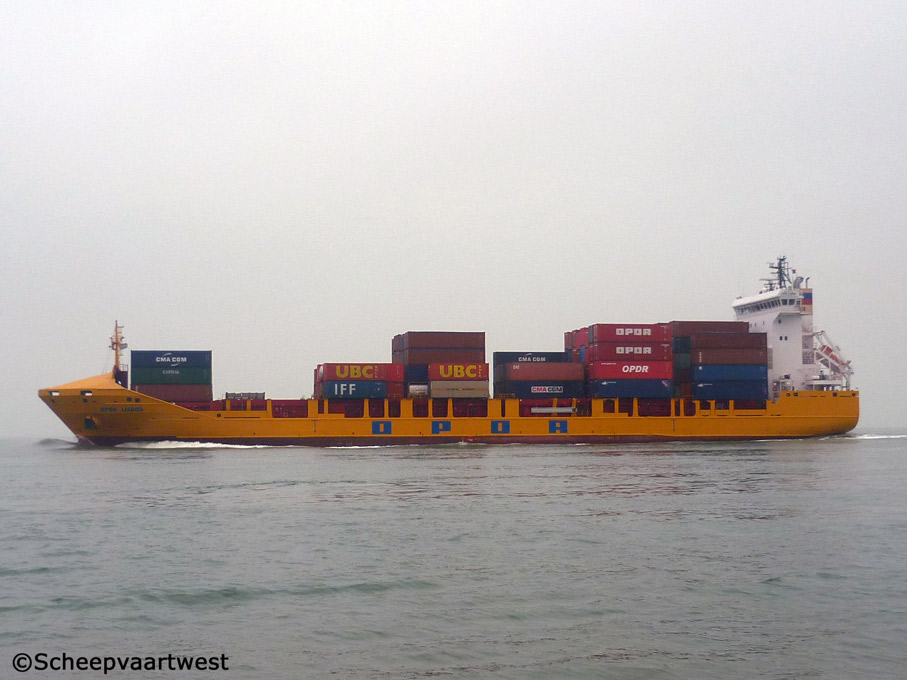

Westerschelde 02 March 2012 |
 |
 |
 |
||

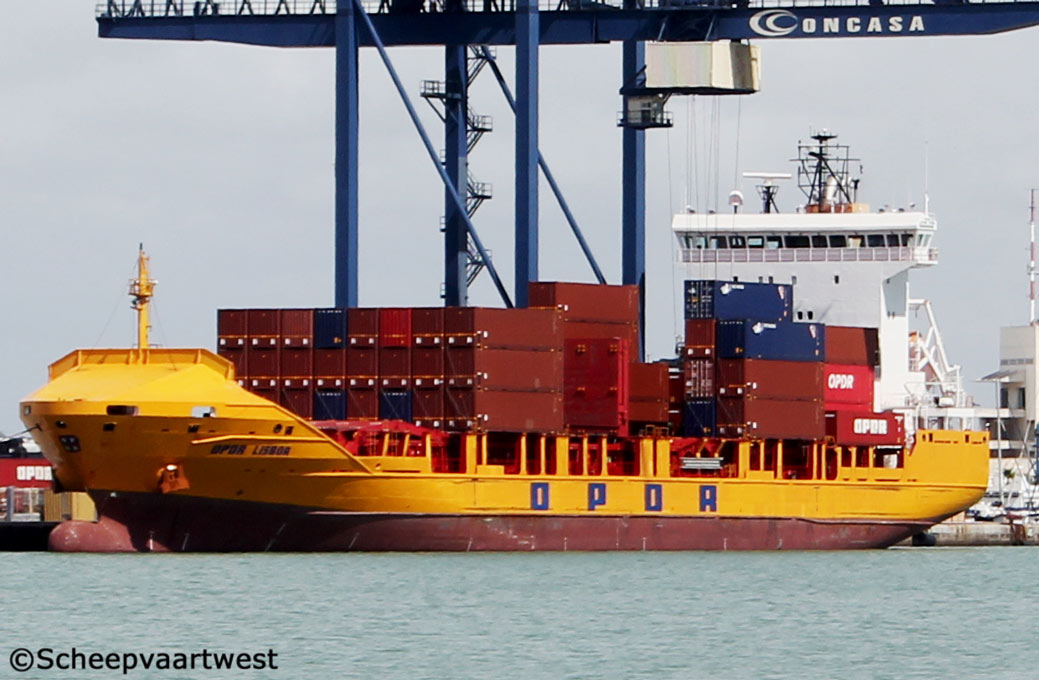

| Westerschelde 02/03/12 | Westerschelde 02/03/12 | Cadiz, Spain 19/09/14 |
|
Name |
OPDR LISBOA |
|
Previous names |
Until 12.2007 OPDR Sankt Petersburg |
|
Type |
Containership |
|
IMO-number |
9389291 |
|
Call sign |
5BAG2 |
|
Flag |
Cyprus |
|
Port of registry |
Limassol |
|
GT |
7.545 t |
|
DWT |
Summer: 8.149 t |
|
NT |
3.165 t |
|
Number of 20ft containers |
698 |
|
Container capacity 14t |
437 |
|
Reefer plugs |
On deck: 86 In holds: 34 |
|
Length |
129,59 m overall 120,34 m between perpendiculars 121,24 m registered |
|
Breadth |
20,60 m registered |
|
Draught |
7,40 m |
|
Forecastle |
8,81 m |
|
Poop |
10,00 m |
|
Freeboard |
3.412 mm |
|
Depth |
10,80 moulded |
|
Speed |
17,5 knots |
|
Built |
2007 |
|
Keel laid |
16.06.2007 |
|
Launch date |
23.09.2007 |
|
Date of completion |
11.12.2007 |
|
Builder |
Fujian Mawei Shipbuilding Ltd. |
|
Yard number |
VMW437-28 |
|
Hull material |
Shipbuilding steel (standard) Higher tensile steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x MAK 7M43C - 4 stroke 7 cylinder 430 x 610 mm diesel engine - 7.000 kW at 500 rpm Year of manufacture: 2007 Manufacturer: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
1x Controllable pitch propeller - aft at 148 rpm |
|
Boilers |
1x Thermal oil heater, oil fired - 10,0 bar Heating surface: 49.5 m² 1x Thermal oil heater, exhaust gas heated - 10,0 bar Heating surface: 141,7 m² Year of manufacture: 2007 Manufacturer: Göteborgs Energy Systems AB |
|
Electric installations |
3x Plants each 450 V - 620 kVA 1x Plant 450 V - 1.250 kVA 1x Plant 450 V - 220 kVA 1x Plant 24 V - 56 Ah 1x Plant 24 V - 143 Ah 1x Plant 24 V - 200 Ah |
|
Shaft generator |
1x 1.250 kVA |
|
Generators |
3x Main diesel generatorsets each 620 kVA |
|
Emergency generator |
1x Diesel generatorset 220 kVA |
|
Batteries |
1x Battery for automation 200 Ah 1x Battery for UPS radio 143 Ah 1x Battery for start emergency engine 56 Ah |
|
Compressed air receivers |
2x Receivers each 500 litres - 30,0 bar 1x Receiver 20 litres - 30,0 bar |
|
Bow thruster |
1x Transverse thruster 600 kW, forward |
|
Anchor equipment |
3x Anchors weight each 4.590 kg Chain length: 550,00 m |
|
Cargo gear |
Gearless |
|
Manager |
Bernhard Schulte Shipmanagement (Deutschland) GmbH & Co. KG |
|
Operator |
Oldenburg-Portugiesische Dampfschiffs-Rhederei GmbH & Co. KG |
|
Registered owner |
Oldenburg-Portugiesische Dampfschiffs-Rhederei GmbH & Co. KG |
|
Latest data adjustment |
28 October 2014 |
