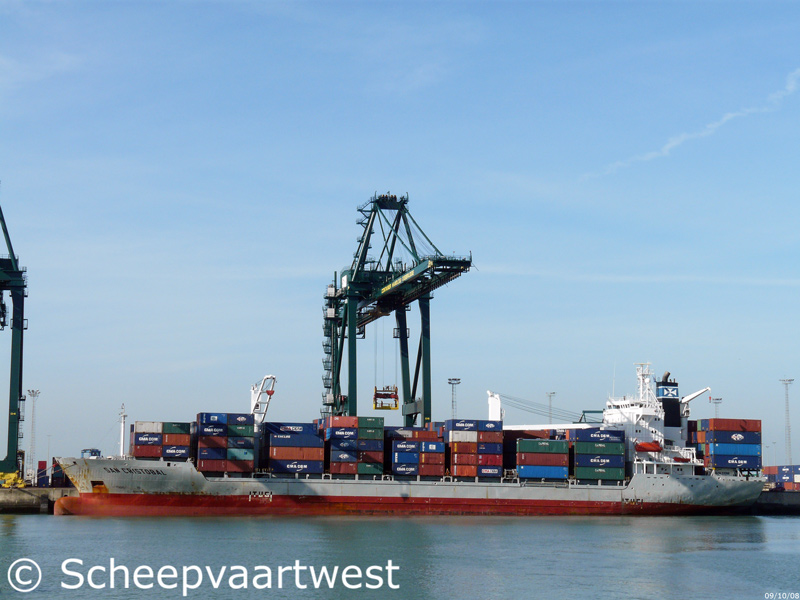

| Zeebrugge 09 October 2008 |
|
Name |
SAN CRISTOBAL |
|
Previous names |
1995 - 1997 Equinox 1997 - 1998 CGM Saint Exupery 1998 - 1999 San Cristobal 1999 - 2001 Lykes Hawk 2001 - 2001 San Cristobal 2001 - 2004 Maersk Abidjan 2004 San Cristobal |
|
Type |
Cellular containership |
|
IMO-number |
9081021 |
|
Call sign |
ELVB6 |
|
Flag |
Liberia |
|
Previous flag |
1995-1998 Germany |
|
Port of registry |
Monrovia |
|
GT |
15.859 t Suez: 16.672,69 t |
|
DWT |
Summer: 20.116 t |
|
NT |
8.023 t Suez: 14.185,59 t |
|
Number of 20ft containers |
1.512 |
|
Container capacity at 14t |
1.189 |
|
Reefer point |
150 |
|
Length |
165,85 m overall 156,70 m between perpendiculars 156,68 m registered |
|
Breadth |
27,40 m overall |
|
Draught |
Summer: 9,60 m |
|
Forecastle |
24,18 m |
|
Poop |
26,48 m |
|
Freeboard |
3.600 mm |
|
Depth |
13,20 m moulded |
|
Speed |
19,65 knots |
|
Built |
1995 |
|
Keel laid |
28.03.1995 |
|
Launch date |
29.09.1995 |
|
Date of completed |
12.1995 |
|
Builder |
Thyssen Nordseewerke GmbH |
|
Yard number |
510 |
|
Hull material |
Shipbuilding steel |
|
Hull type |
Double bottom |
|
Watertight bulkheads |
7 |
|
Number of continuous decks |
2 |
|
Main engine |
1x Mitsubishi 7 UEC 60 LS - 2 stroke single acting 7 cylinder diesel engine - 12.355 kW Year of manufacture: 1995 Manufacturer:Mitsubishi Heavy Industries, Ltd. Yokohama Dockyard & Machinery Works Kanazawa Works |
|
Propeller |
1x Controllable pitch propeller - aft |
|
Electric installations |
1x 440/220 V with 1800 kV 1x 440 V with 1625 kVA 1x 440 V with 163 kVA |
|
Shaft generator |
1.300 kW / 1.625 kVA |
|
Auxiliary power |
2x Yanmar M220AL-SN main diesel generatorsets each 720 kW / 900 kVA |
|
|
|
|
Emergency generator |
1x Diesel generatorset 163 kVA |
|
Boiler |
1x Blohm + Voss AG Boiler type: Steam boiler, oil fired / exhaust gas heated Year of Manufacture: 1994 Max. working pressure: 10 bar |
|
Bow thruster |
1x Lips - 800 kW forward |
|
Compressed air receivers |
2x Receivers 3.500 litres - 25,0 bar 1x Receiver750 litres - 8,0 bar |
|
Anchor equipment |
3x Anchors weight each 6.900 kg Length: 605,00 m |
|
Tank capacities |
Ballast water: 5.746 m³ Bunker: 1.697 t Fuel: 1.731 m³ |
|
Cargo gear |
2x Cranes - SWL 40,0 t each 1x Crane - SWL 10,0 t |
|
Crew |
15 |
|
Managing owners |
Reederei Claus-Peter Offen GmbH & Co. KG Bleichenbrücke 10 |
|
Operator |
Delmas |
|
Owner |
KG MS "SAN CRISTOBAL" Contrans Beteiligungsges. mbH & Co Zum Zungenkai |
