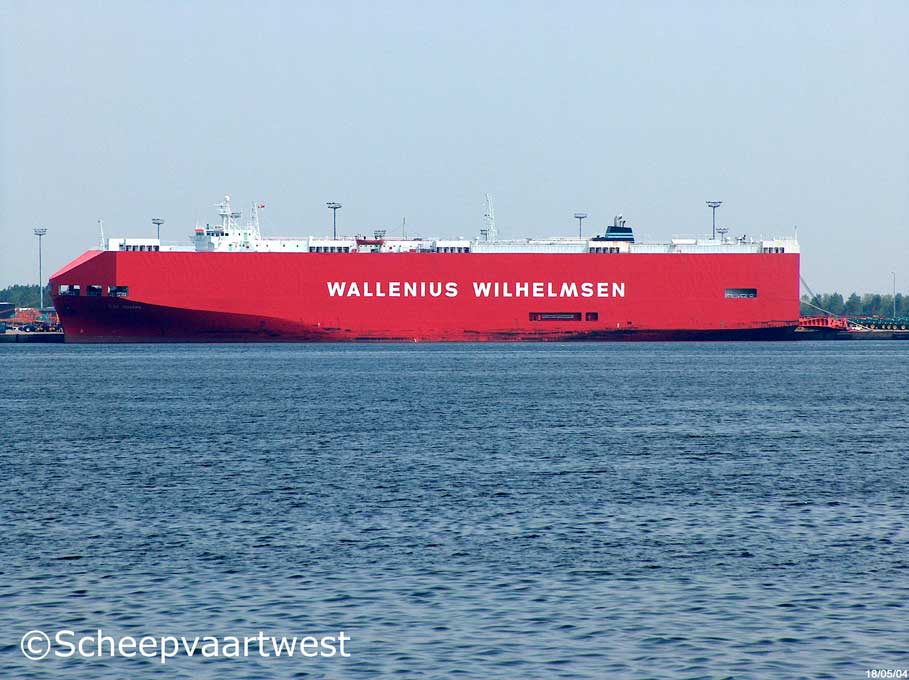

| Zeebrugge 18 May 2004 |
|
Name |
TAI SHAN |
|
Previous name |
1986-1996 Nosac Tai Shan |
|
Type |
Vehicles Carrier |
|
IMO-number |
8513560 |
|
Call sign |
LAZP4 |
|
Flag |
Norway |
|
Previous flag |
1996 Liberia |
|
Port of registry |
Tønsberg |
|
GT |
48.676 t |
|
DWT |
15.577 t at maximum draft |
|
NT |
14.603 t |
|
Length |
190,05 m overall |
|
Breadth |
32,29 m overall 32,26 m moulded |
|
Draught |
Summer: 8,916 m |
|
Air draft |
46,24 m |
|
Freeboard |
4.090 mm |
|
Depth |
31,05 m to upperdeck |
|
Speed |
18,0 knots |
|
Built |
1986 |
|
Keel laid |
19.06.1986 |
|
Launch Date |
11.10.1986 |
|
Date of completion |
15.12.1986 |
|
Builder |
Sumitomo Heavy Industries Marine & Engineering Co. Ltd. |
|
Yard number |
1139 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Sulzer 7RTA58 with an output of 8.750 kW at 110,0 rpm |
|
Propeller |
1x Aerofoil - 5 blades fixed propeller with diameter 5,80 meter (mono block) |
|
Boilers |
1x Exhaust gas water tube economizer - Mitsubishi |
|
Generators |
3x Brushless main diesel generatorsets with an output of 580 kW each |
|
Emergency generators |
1x GH5678 Brushless diesel generatorset |
|
Bow thruster |
1.170 kW |
|
Stern ramp |
Width: 7,00 m Capacity: 100 t |
|
Number of decks |
13 of which 4 are hoist able |
|
Capacity car units |
5.930 cars (RT43) or 552 trucks |
|
Ballast capacity |
7.990 m³ |
|
Basic complement |
21 |
|
Manager |
Wilhelmsen Ship Management (Norway) AS Strandveien 20 |
|
Owner |
Caiano Shipping AS |
|
Previous owner |
1986-2005 Capital Bank Public Limited Company 2005-2007 Actinor Shipping AS |
