| Zeebrugge 01 January 2006 |
|
Name |

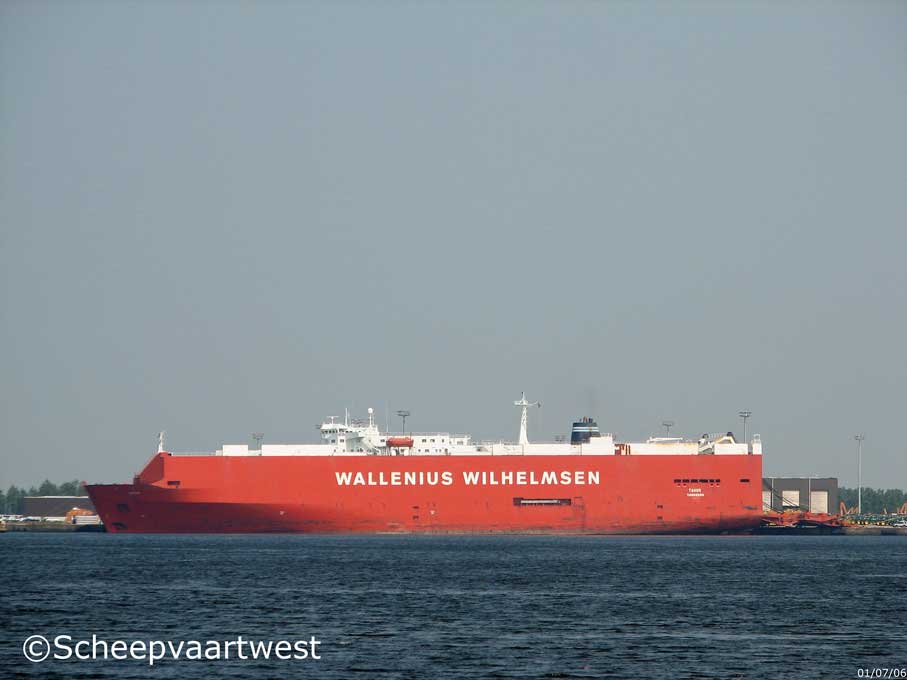

TAGUS |
|
Previous name |
1985-1996 Nosac Express |
|
Type |
Vehicles Carrier |
|
IMO-number |
8309579 |
|
Call sign |
LAZA2 |
|
Flag |
Norway |
|
Previous flags |
1987 Norway |
|
Port of registry |
Tønsberg |
|
GT |
48.357 t |
|
DWT |
21.900 t at max. draft |
|
NT |
16.723 t |
|
Number of 20ft containers |
1935 |
|
Length |
195,30 m overall |
|
Breadth |
32,03 m overall |
|
Draught |
Summer: 11,02 m |
|
Air Draft |
50,75 m |
|
Freeboard |
18.980 mm |
|
Depth |
30,95 m to upper deck |
|
Speed |
19,0 knots |
|
Built |
1985 |
|
Keel laid |
12.01.1984 |
|
Launch date |
01.09.1984 |
|
Date of completed |
01.03.1985 |
|
Builder |
Daewoo Okpo Shipyard Ltd. (Daewoo Shipbuilding § Heavy Machines Ltd.) |
|
Yard number |
4402 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Main engine |
1x Burmeister & Wain 6L80GB output of 14.168 kW at 96,5 rpm |
|
Propeller |
Mono-block LIPS |
|
Boilers |
1x Exhaust gas water tube EGB I |
|
Shaft generator |
Siemens Type DK 4640 – 6 AZ 08 - 800 kW |
|
Generators |
2x BMW type KRGB-9 main diesel generatorsets each 1.270 kW |
|
Emergency generator |
1x Detroit Diesel 6MC diesel generatorset |
|
Bow thruster |
1x Liaaen TT-83/56-250 thruster installed with an output of 1.130 kW |
|
Ballast capacity |
4.358 m³ |
|
Car capacity |
5.550 cars (RT43) or 651 trucks 1 RT43 unit=7,38975 m² |
|
Number of decks |
12, of which 6 are hoist able |
|
Stern ramp width |
10,50 m |
|
Stern ramp capacity |
112 t |
|
Basic complement |
15 |
|
Manager |
Wilhelmsen Lines Car Carriers Ltd. |
|
Previous managers |
1985-2005 Barber Ship Management AS |
|
Operator |
WWL - Wilh. Wilhelmsen Lines Group |
|
Owner |
Wilhelmsen Lines Shipowning AS |
