Westerschelde 09 October 2014 |
|
Name |

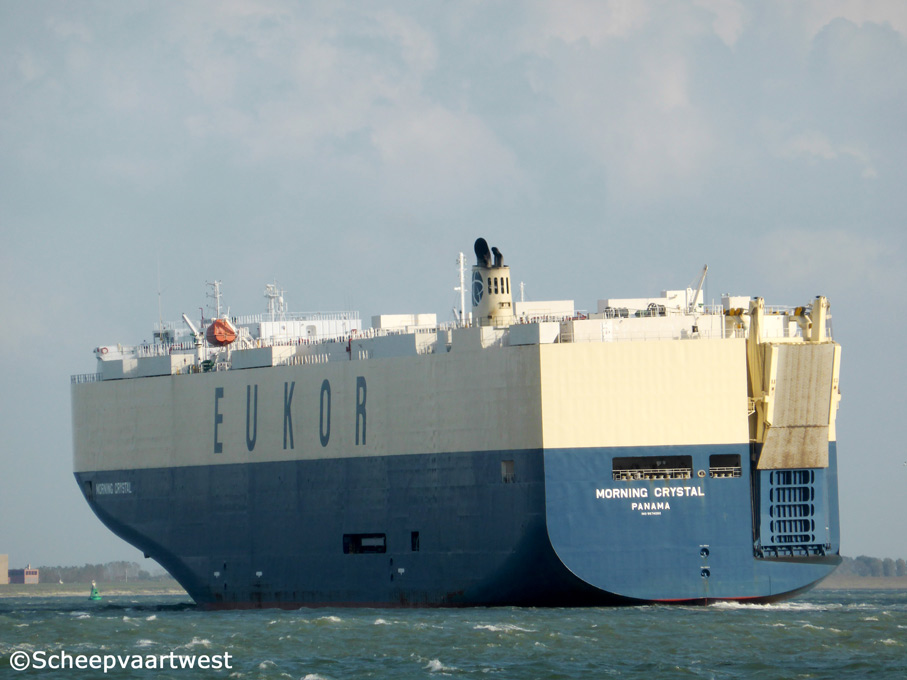

MORNING CRYSTAL |
|
Type |
Roll-On/Roll-Off car vessel PCTC - Pure Car and Truck Carrier |
|
IMO-number |
9574080 |
|
Call sign |
3FKJ9 |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
59.524 |
|
DWT |
Summer: 18.918 t |
|
NT |
19.148 |
|
Length |
199,97 m overall |
|
Breadth |
32,26 m moulded |
|
Draught |
Summer: 10,02 m |
|
Moulded L x B x D |
192,00 x 32,26 x 14,70 m |
|
Registered L x B x D |
194,14 x 32,26 x 21,31 m |
|
Freeboard |
Summer: 4.714 mm |
|
Depth |
14,70 m moulded |
|
Speed |
Service: 20,0 knots Max.: 21,8 knots |
|
Built |
2011 |
|
Keel laid |
30/06/2010 |
|
Launch date |
09/02/2011 |
|
Date of completion |
14/04/2011 |
|
Builder |
Imabari Shipbuilding Co Ltd. Marugame KG (Marugame Shipyard) Japan |
|
Yard number |
1530 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 8UEC60LSII - 2 stroke single acting 8 cylinder 600 x 2.300 combustion engine 13.260 kW / 18.028 hp at 100,0 rpm Builder: Kobe Hatsudoki KK - Japan |
|
Propeller Shaft |
1x Oil lubrication shaft with monitoring device Diameter: 630 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 100,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 8,0 bar Evaporation: 4,04 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
4x Generatorsets total 4.275 kW |
|
Number of cars |
6.215 |
|
Tank capacities |
Fuel oil: 2.815 m³ Fresh water: 659 m³ Water ballast: 9.327 m³ |
|
Commercial manager |
EUKOR Car Carriers Incorporated 28th Floor, Lotte World Tower, 300, Olympic-ro, Songpa-gu Seoul, 05551 South Korea |
|
ISM manager |
Fleet Ship Management Pte Ltd. 31-01, MTower, 460, Alexandra Road Singapore 119963 Republic of Singapore |
|
Operator |
EUKOR car carriers Seoul South Korea |
|
Registered owner |
Los Halillos Shipping Co., S.A. c/o Shoei Kisen Kaisha Ltd (Shoei Kisen KK) 4-52, Kora-cho 1-chome, Imabari-shi, Ehime-ken, 799-2111 Japan |
|
Latest data adjustment |
08 July 2025 |
