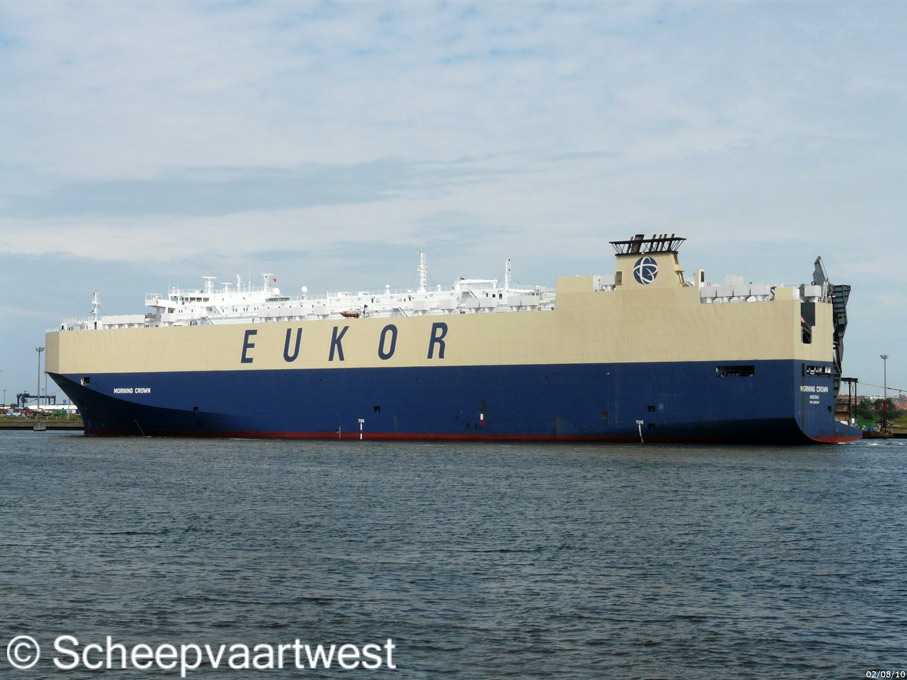

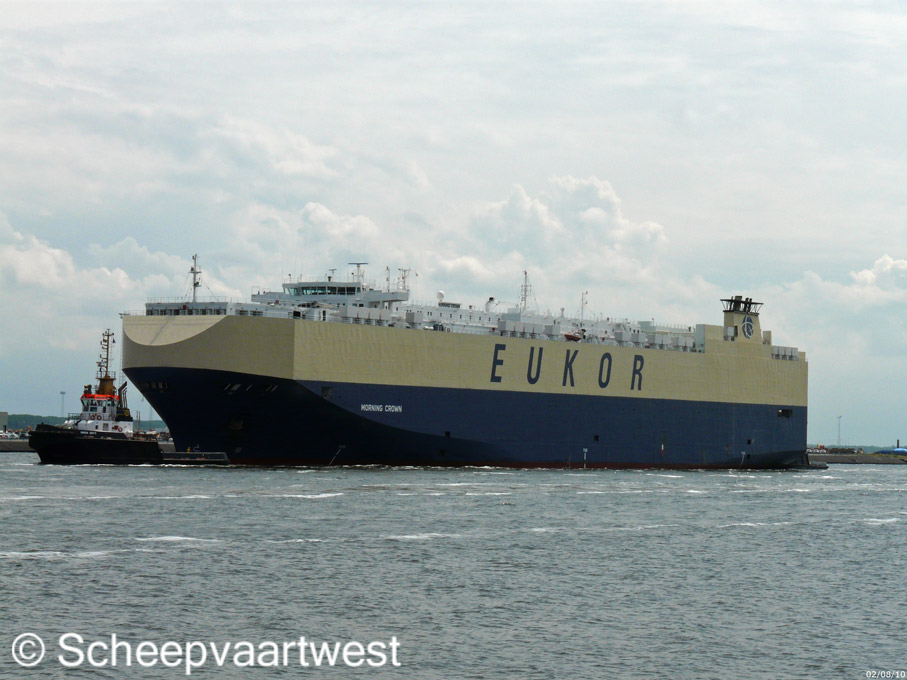

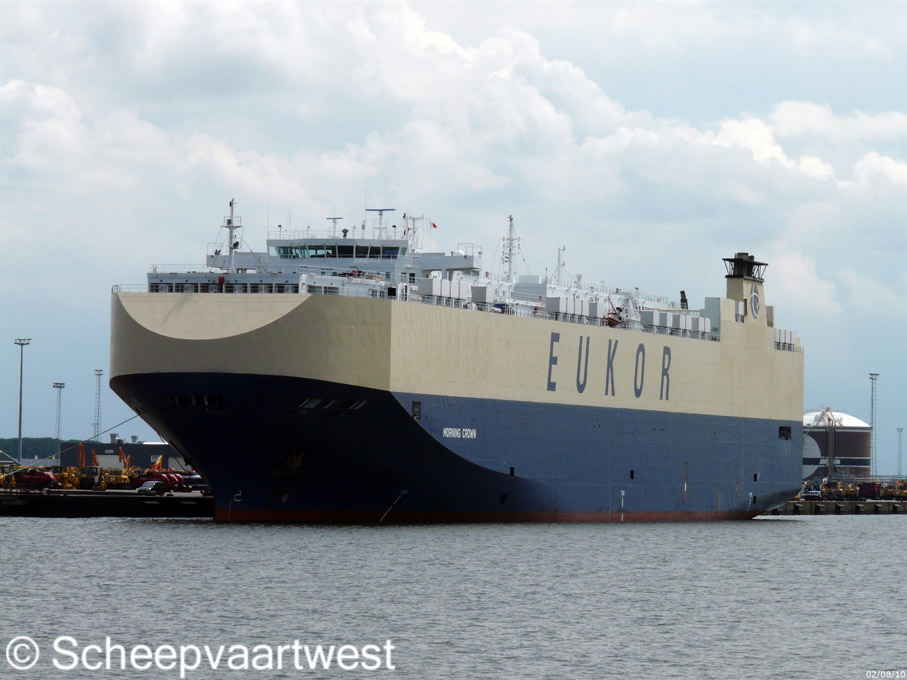

| Zeebrugge 02 August 2010 |
 |
 |
 |
 |
|||

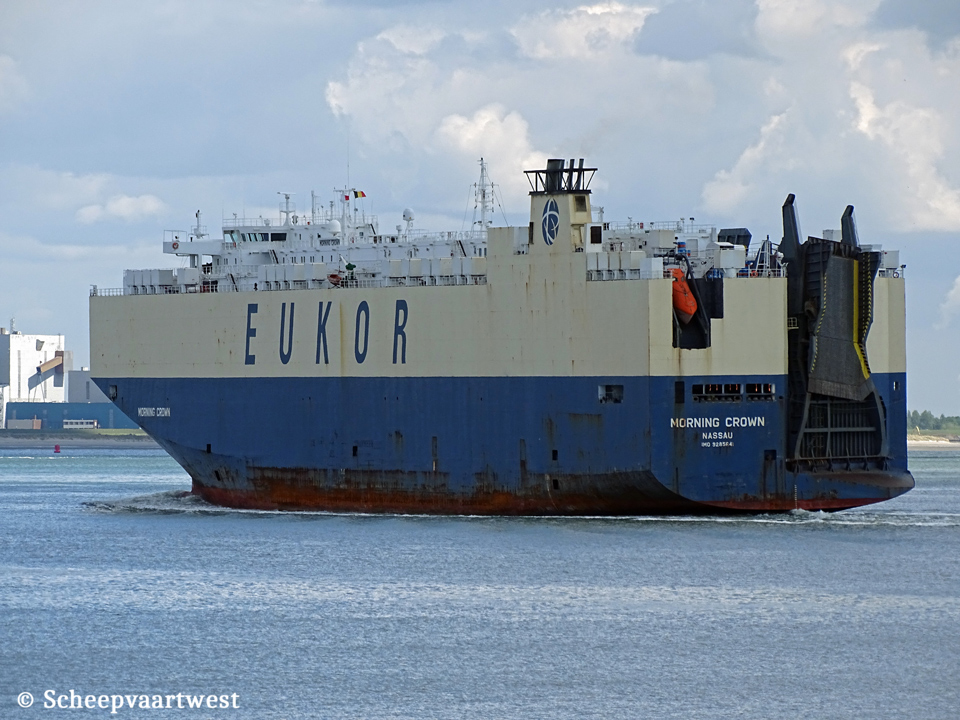

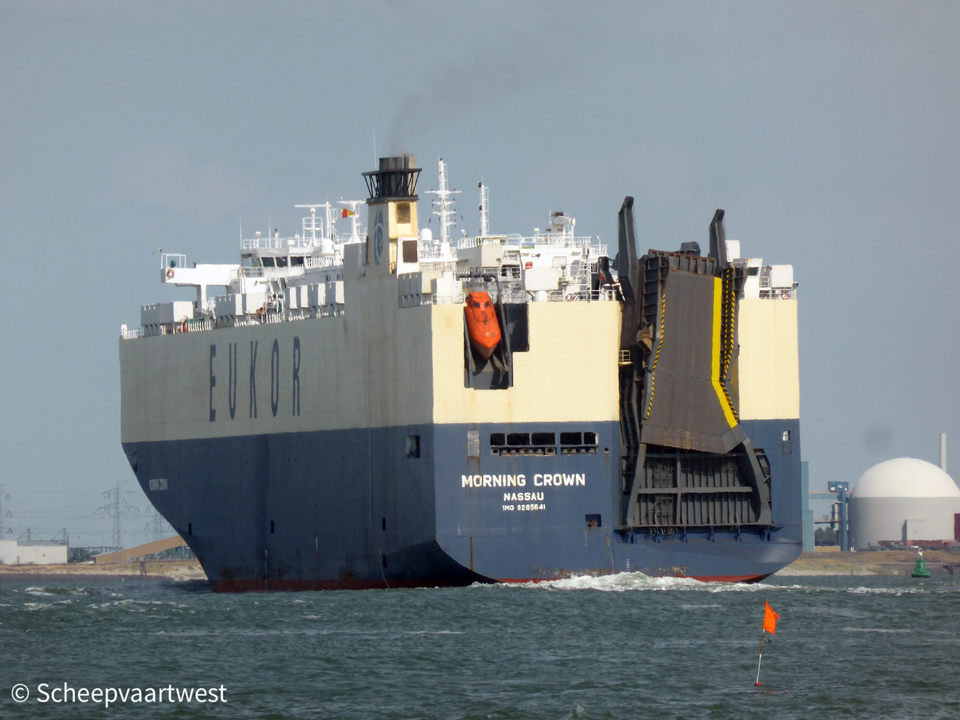

| Zeebrugge 02/08/10 | Zeebrugge 02/08/10 | Westerschelde 18/07/15 | Westerschelde 12/05/20 | |||
|
Name |
MORNING CROWN |
|
Type |
Roll-On/Roll-Off vehicles carrier PCC - Pure Car and Carrier |
|
IMO-number |
9285641 |
|
Call sign |
C6TM6 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
57.692 |
|
DWT |
21.053 t |
|
NT |
21.037 |
|
Length |
199,98 m overall |
|
Breadth |
32,28 m over all 32,26 m registered |
|
Draught |
Summer: 10,02 m |
|
Reg. Dimensions L x B x D |
191,50 x 32,26 x 19,98 m |
|
Rule Dimensions L x B x D |
188,35 x 32,26 x 19,98 m |
|
Freeboard |
3.639 mm |
|
Depth |
19,98 m |
|
Speed |
20,0 knots |
|
Built |
2005 |
|
Keel laid |
22/06/2004 |
|
Launch date |
06/11/2004 |
|
Date of completion |
01/02/2005 |
|
Builder |
Stocznia Gdynia ul. Czechoslowacka 3 81-963 Gdynia Poland |
|
Yard number |
8168/09 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Bulkheads |
Transverse: 3 |
|
Main engine |
1x MAN-B&W/Cegielski 7S60MC-C - 2 stroke single acting 7 cylinder 600 x 2.400 mm combustion engine 15.820 kW / 21.509 hp at 105,0 rpm Manufacture: MAN B&W Diesel A/S (H.Cegielski-Poznan S.A.) |
|
Propeller |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary boiler, exhaust gas water (Economiser) type AV-7 - 9,0 bar Heating surface: 231,0 m² 1x Auxiliary boiler, vertical shell type Mission OS - 9,0 bar Heating surface: 17,4 m² Manufacture: Aalborg Industries A/S |
|
Diesel generators |
3x MAN 7L28/32H Main diesel generatorsets each 1.750 kVA - 450 Volt Manufacturer: MAN B&W Diesel AB |
|
Emergency generator |
1x MAN D2866LXE30 diesel generatorset Manufacture: MAN Nutzfahrzeuge AG |
|
Bow thruster |
1x Brunvoll FU 80 LTC 2250 - 1.300 kW Manufacture: Brunvoll AS |
|
Number of decks |
14 |
|
Car capacity |
6.658 |
|
Car deck area |
Total: 54.900 m² Hoistable: 17.000 m² |
|
Ro/Ro ramps |
1x Starboard: 25,0 0x 7,00 m - 22,0 t 1x Starboard aft: 38,00 x 7,00 - 150,0 t |
|
Tank capacities |
Fuel oil: 3.350 m³ Diesel oil: 130 m³ Lub oil: 150 m³ Fresh water: 259,4 m³ Water ballast: 7.956,7 m³ |
|
Anchor |
Length: 660 m Diameter: 78 mm |
|
Lifting equipment |
1x Crane - SWL 5,0 t |
|
Crew size |
29 |
|
Commercial manager |
Ray Shipping Ltd. 32, Hamasger Street 67211, Tel-Aviv Israel |
|
ISM manager |
Wilhelmsen Ship Management Sdn Bhd 18th Floor, 1 Sentral, Kuala Lumpur Sentral, Jalan Travers 50470, Kuala Lumpur Malaysia |
|
Operator |
EUKOR Car Carriers Inc. |
|
Owner |
Crown Maritime Limited c/o Ray Shipping Ltd. 32, Hamasger Street 67211, Tel-Aviv Israel |
|
Latest data adjustment |
08 July 2025 |
