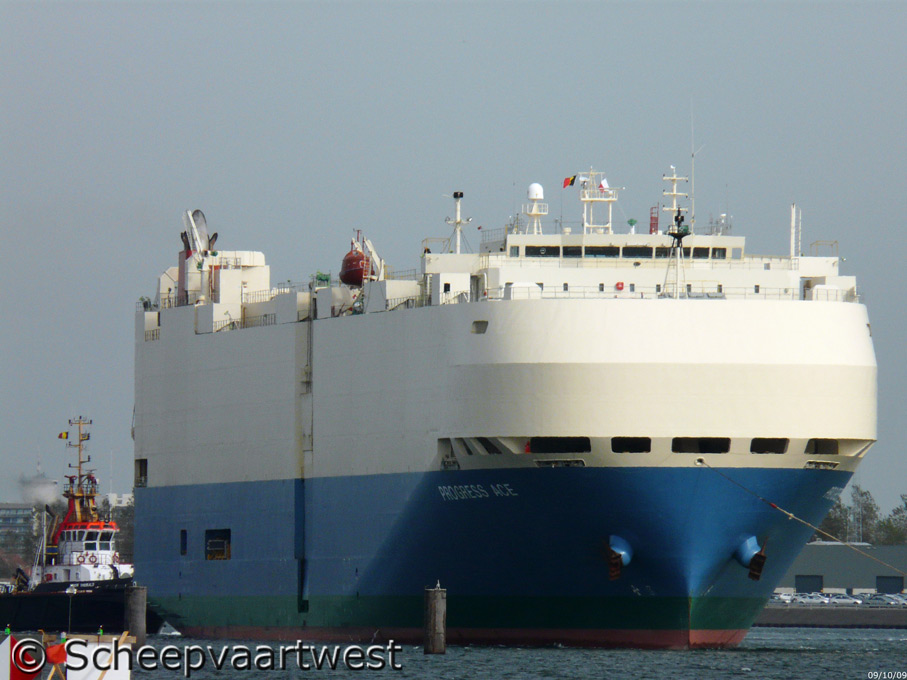

Progress Ace 03
Zeebrugge 09 October 2009

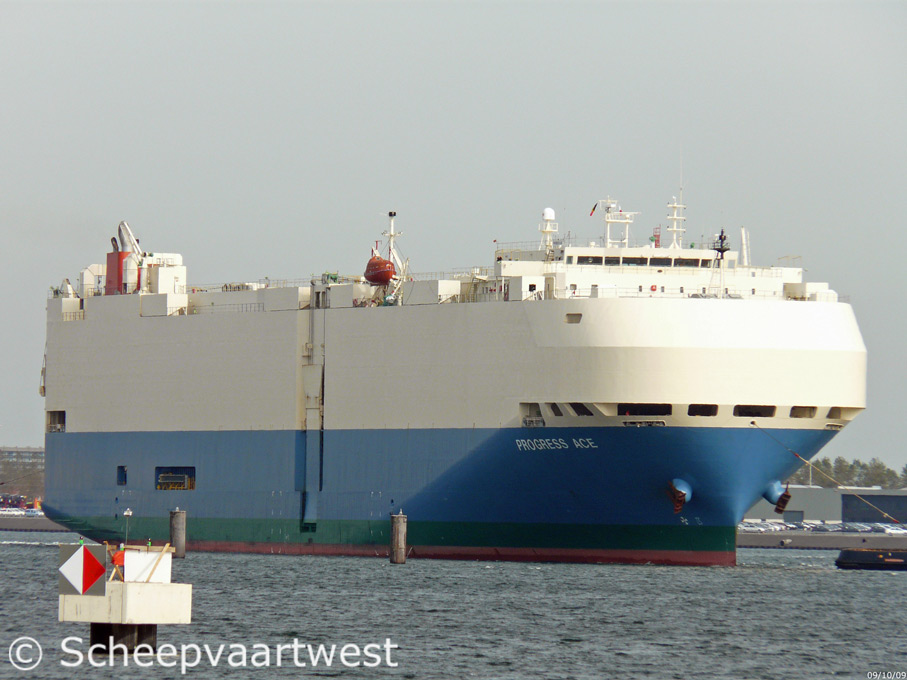

Progress Ace 04
09/10/09



Name

PROGRESS ACE

Type

Vehicles carrier

IMO-number

9267687

Call sign

HPQI

Flag

Republic of Panama

Port of registry

Panama City

GT

57.789 t registered

DWT

19.512 t

NT

18.114 t registered

Length

199,54 m overall

190,00 m between perpendiculars

Breadth

32,26 m

Moulded L x B x D

190,00 x 32,26 x 14,60 m

Registered L x B x D

192,46 x 32,26 x 21,12 m

Draught

Summer: 9,725 m

Freeboard

Summer: 4.915 mm

Speed

Service: 20,0 knots

Trial: 21,9 knots

Built

2003

Keel laid

03.06.2002

Launch date

28.08.2003

Date of completion

28.11.2003

Builder

Toyohashi Shipbuilding Co., Ltd.
Toyohashi
Japan

Yard number

3562

Hull type

Single hull

Main engine

1x Kobe diesel - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.160 kW at 100 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propellers

1

Boiler

1x Auxiliary Vertical boiler - 6,9 bar

Evaporation: 3,44 t/h

Manufacturer: Miura Co., Ltd.

Generators

4x Main diesel generatorsets each 3.900 kVA

Car capacity

5.342

Tank capacities

Fuel oil: 3.101 m³

Fresh water: 405 m³

Water ballast: 8.388 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Crew

21

Manager

MMS Co., Ltd.

Owner

Bright Century Maritime S.A.

Registered owner

Bright Ocean Maritime S.A.
