Zeebrugge 08 September 2014 |
|
Name |

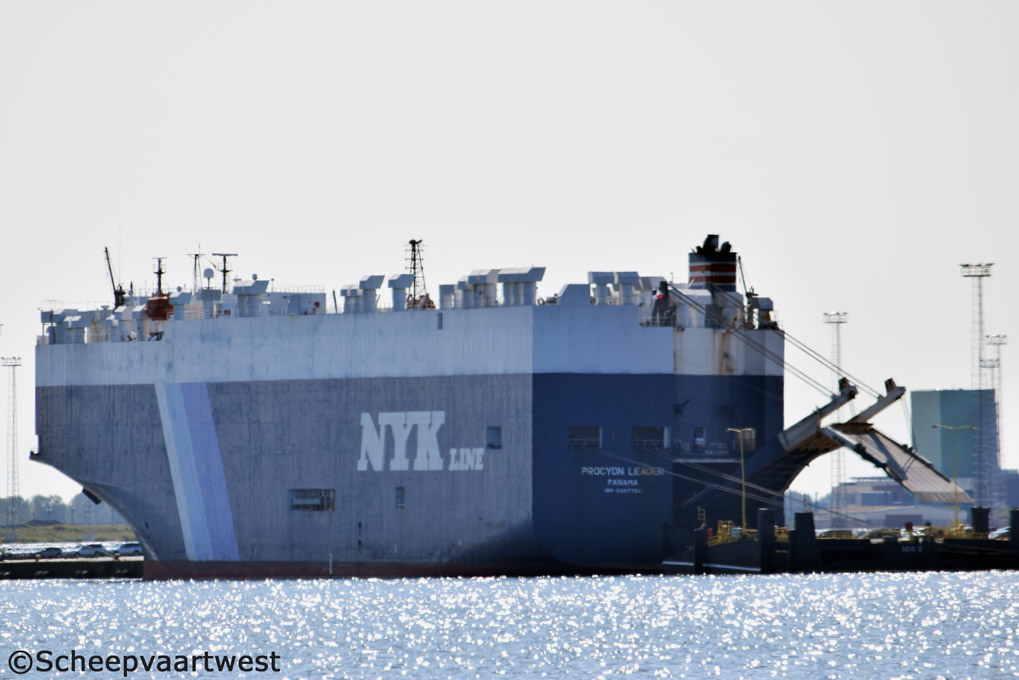

PROCYON LEADER |
|
Type |
Roll-On/Roll-Off vessel - Vehicles Carrier |
|
IMO-number |
9207754 |
|
Call sign |
H3BZ |
|
Flag |
Republic of Panama |
|
Port of registry |
Panama City |
|
GT |
53.581 t |
|
DWT |
16.898 t |
|
NT |
16.075 t |
|
Length |
179,90 m overall |
|
Breadth |
32,20 m |
|
Draught |
Summer: 9,62 m |
|
Moulded L x B x D |
170,00 x 32,20 x 15,07 m |
|
Registered L x B x D |
174,01 x 32,20 x 21,62 m |
|
Freeboard |
5.485 mm |
|
Depth |
15,07 m moulded |
|
Speed |
Service: 19,30 knots Max.: 21,1 knots |
|
Built |
2000 |
|
Keel laid |
02.08.1999 |
|
Launch date |
24.11.1999 |
|
Date of completion |
17.03.2000 |
|
Builder |
Tsuneishi Shipbuilding Co., Ltd. |
|
Yard number |
1159 |
|
Hull material |
Steel |
|
Main engine |
1x Mitsubishi 8UEC60LS - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.121 kW / 19.202 hp at 100,0 rpm Manufacturer: Mitsubishi Heavy Industries, Ltd. |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 610 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 100,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 6,9 bar Evaporation: 3,29 t/h Manufacturer: Osaka Boiler Mfg., Co., Ltd. |
|
Generators |
4x Generators 4.625 kVA |
|
Number of cars |
4.666 |
|
Tank capacities |
Fuel oil: 3.260 m³ Fresh water: 440 m³ Water ballast: 7.500 m³ |
|
Crew |
22 |
|
Manager |
Wallem Shipmanagement Limited |
|
Operator |
NYK-Line - Nippon Yusen Kaisha |
|
Registered owner |
Marbel Shipholding S.A. |
|
Latest data adjustment |
09 October 2014 |
