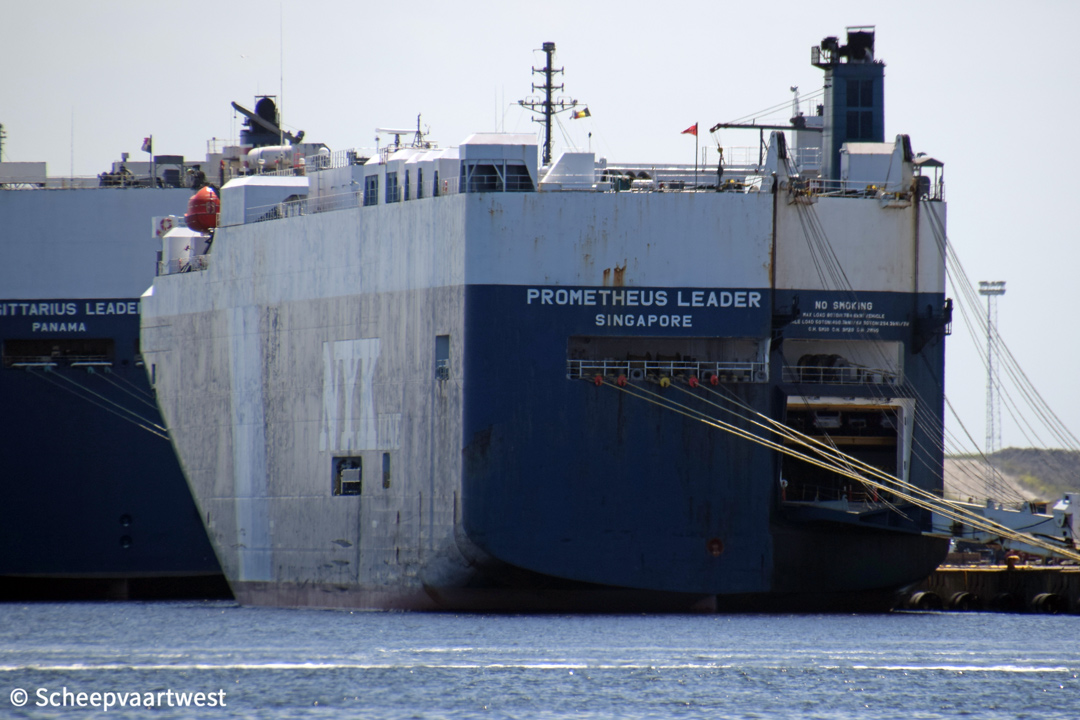

Prometheus Leader 02

Zeebrugge 22 June 2020



Name

PROMETHEUS LEADER

Type

Roll-On/Roll-Off carrier

PCC - Pure Car Carrier

IMO-number

9338888

Call sign

9VHE9

Flag

Republic of Singapore

Port of registry

Singapore City

GT

41.886 t registered

DWT

Summer: 14.382 t

NT

12.566 t registered

Length

190,03 m overall

Breadth

28,20 m moulded

Draught

Summer: 9,33 m

Moulded L x B x D

182,00 x 28,20 x 14,32 m

Registered L x B x D

184,08 x 28,20 x 20,76 m

Freeboard

Summer: 5.034 mm

Depth

14,32 m moulded

Speed

Max: 21,3 knots

Service: 19,5 knots

Built

2008

Keel laid

07/09/2007

Launch date

11/01/2008

Date of completion

26/03/2008

Builder

Shin Kurushima Dockyard Co., Ltd.

Onishi

Japan

Yard number

5502

Hull material

Steel

Main engine

1x Mitsubishi/Kobe Hatsudoki 7UEC52LSE - 2 stroke single acting 7 cylinder 520 x 2.000 mm combustion engine 11.335 kW - 15.400 hp at 125,0 rpm

Manufacturer: Kobe Diesel Co., Ltd.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Diameter: 625 mm

Propellers

1x Fixed propeller

Boilers

1x Auxiliary vertical boiler - 7,9 bar

Evaporation: 2,91 t/h

Manufacturer: Tortoise Engineering Co., Ltd.

Generators

3x Main diesel generatorsets each 900 kW

Bow thruster

1x 1.100 kW

Number of cars

3.305

Tank capacities

Fuel oil: 2.579 m³

Fresh water: 504 m³

Crew

22

Manager

Wilhelmsen Ship Management SDN. BHD.

17th & 18th Floors Sentral

Jalan Travers

50470 Kuala Kumpur

Operator

NYK-Line

Tokyo

Japan

Registered owner

Bacchus Shipping Pte Ltd.

Care of Wilhelmsen Ship Management

17th & 18th Floors Sentral

Jalan Travers

50470 Kuala Kumpur

Malaysia

Latest data adjustment

10 September 2020
