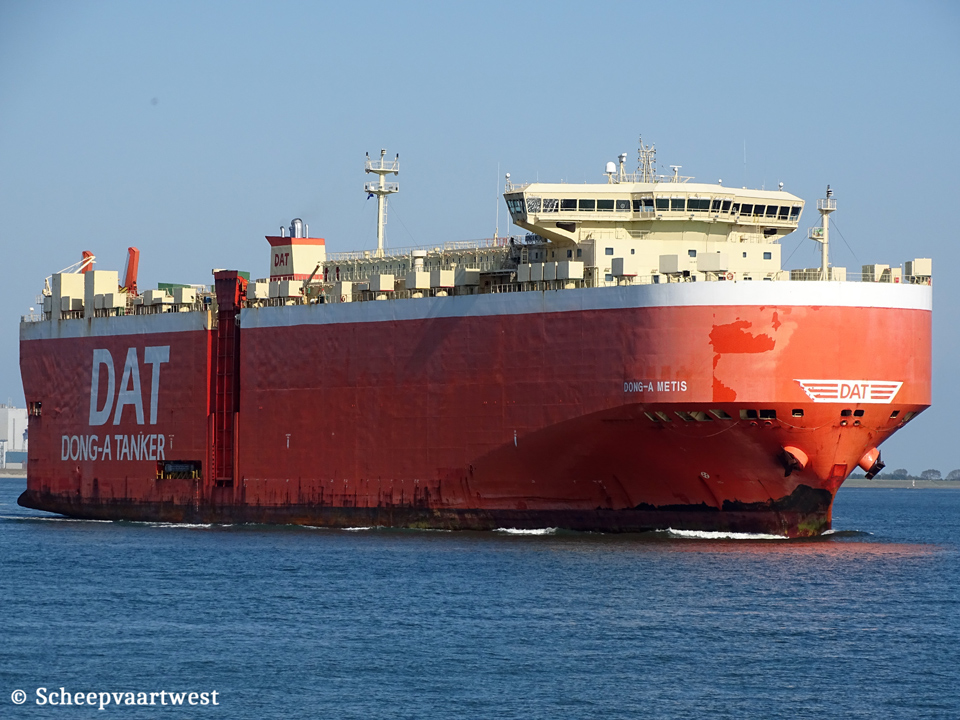

Dong A Metis IMO 9419747 03

Westerschelde 25 May 2020

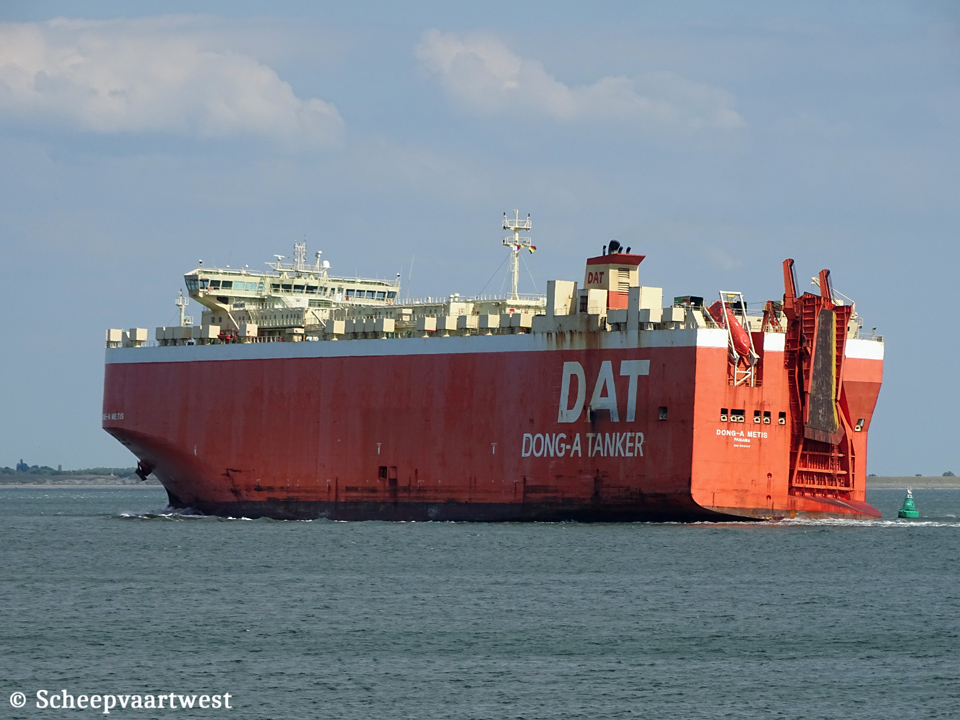

Dong A Metis IMO 9419747 01   Dong A Metis IMO 9419747 02
Westerschelde 03/07/19 Westerschelde 03/07/19









Name

DONG-A METIS

Previous names

2010 Launch as: STX Condor

06/2010 - 10/2013 STX Changxing Rose

Type

Roll-On/Roll-Off carrier

PCTC - Pure Car and Truck Carrier

IMO-number

9419747

Call sign

3FIR7

Flag

Republic of Panama

Port of registry

Panama City

Previous flags

2010 - 2010 South Korea - Call sign: DSQT2

GT

60.396 t registered

DWT

Summer: 22.582 t

NT

27.647 t registered

Length

199,10 m overall

190,50 m between perpendiculars

Breadth

32,26 m

Draught

11,22 m

Reg. dimensions L x B x D

192,89 x 32,26 x 19,65 m

Rule dimensions L x B x D

190,50 x 32,26 x 14,30 m

Freeboard

Summer: 3.115 mm

Depth

14,30 m

Speed

Max: 20,4 knots

Built

2010

Keel laid

05/12/2008

Launch date

02/02/2010

Date of completion

30/06/2010

Builder

STX Dalian Shipbuilding Co.,Ltd.

Dalian

China

Yard number

D1001

Hull material

Steel

Watertight bulkheads

Transverse: 4

Number of decks

7

Main engine

1x MAN-B&W/STX 6S60MC-C - 2 stoke single acting 6 cylinder 600 x 2.400 mm combustion engine 14.280 kW / 19.415 hp at 105,0 rpm

Build: 2009

Manufacturer: STX Heavy Industries Co., Ltd., Changwon - South Korea

Propellers

1x Fixed pitch propeller

Boilers

1x Auxiliary water tube Boiler - 9,0 kg/cm²

Heating surface: 76,2 m²

2x Economizer EGE - 12,0 kg/cm²

Heating surface: 304,0 m²

Build: 02/2009

Manufacturer: Kangrim Heavy Industrial Co., Ltd, Changwon - South Korea

Generators

3x MAN-B&W 7L21/31 - 4 stroke 7 cylinder 210 x 301 mm diesel engines each 1.400 kW connected with generators each 1.625 kVA - 450 Volt

Bow thruster

1x 1.500 kW

Number of cars

6.700

Number of ramps

2

Tank capacities

Fuel oil: 4.070,03 m³

Fresh water: 265,8 m³

Water ballast: 7.757,3 m³

Crew

22

Commercial manager

Dong-A Tanker Corporation

9th Floor, Dongyang Building, 18, Gwangbok-ro 97beon-gil, Jung-gu,

Busan, 600-022

South Korea

ISM manager

Synergy Maritime Private Limited

4th Floor, AKDR Tower, 3/381, Rajiv Gandhi Salai (OMR), Mettukuppam

Chennai, 600097

India

Registered owner

Dat Metis Maritime SA

Care of Dong-A Tanker Corp , 9th Floor, Dongyang Building, 18, Gwangbok-ro 97beon-gil, Jung-gu,

Busan, 600-022

South Korea

Latest data adjustment

01 February 2022
