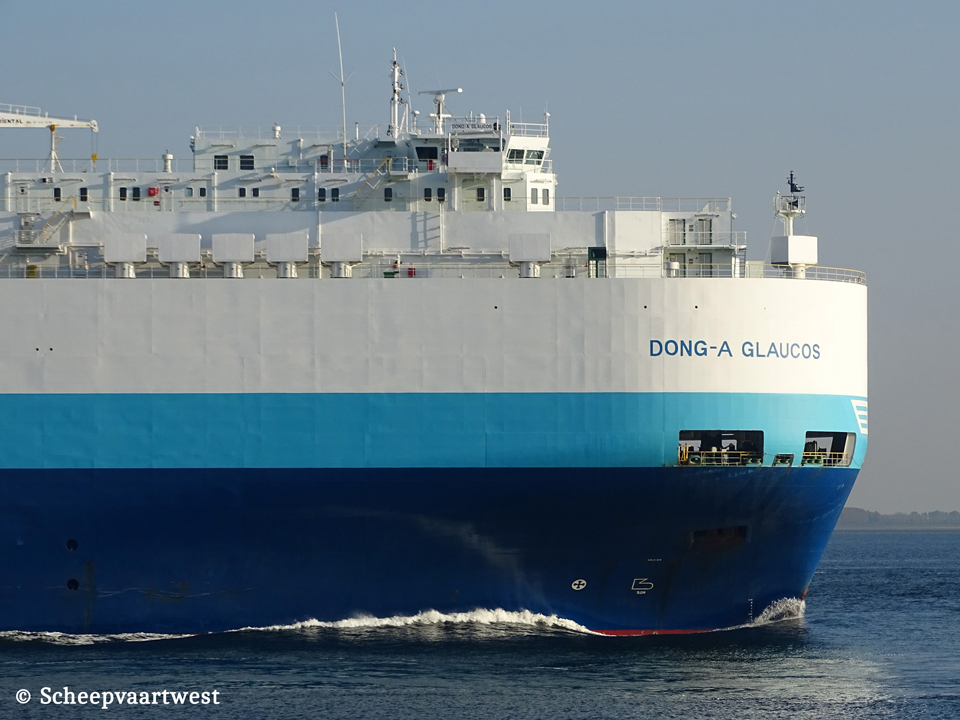

Westerschelde 20 April 2017 |
 |
 |
 |
 |
 |
 |
|||||

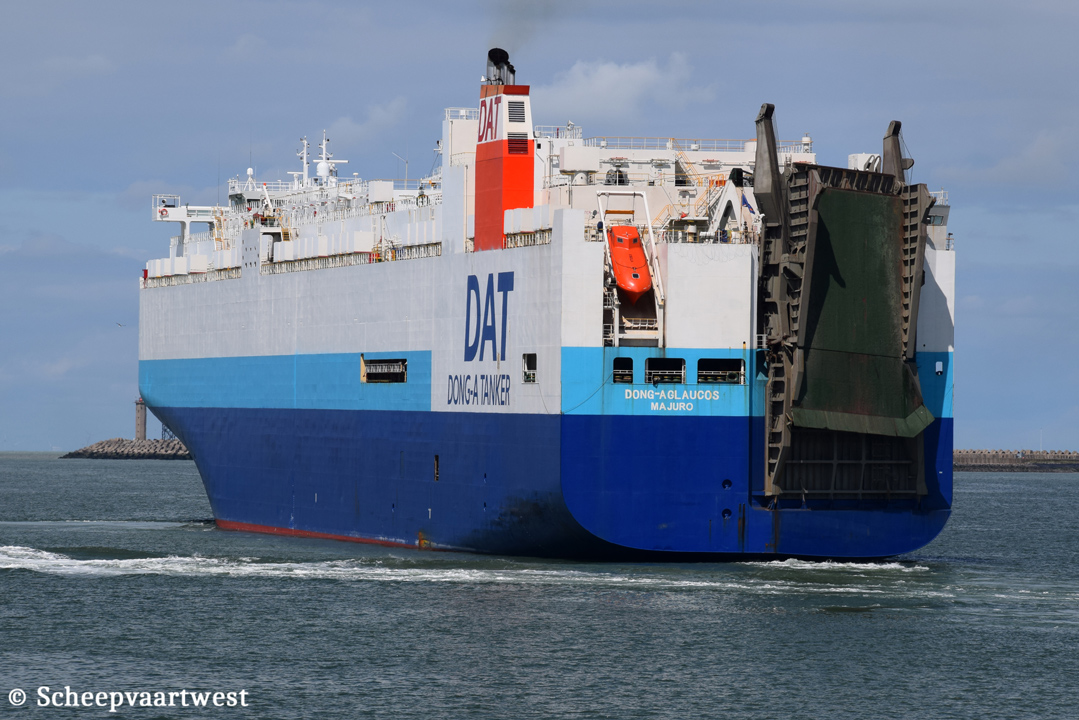

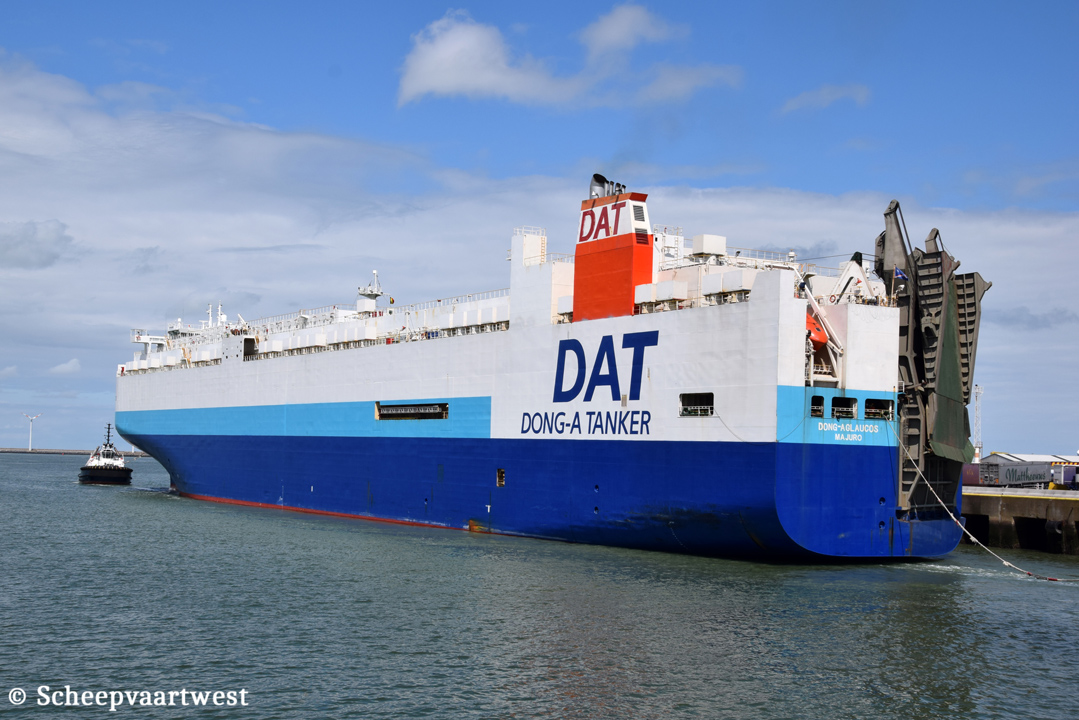

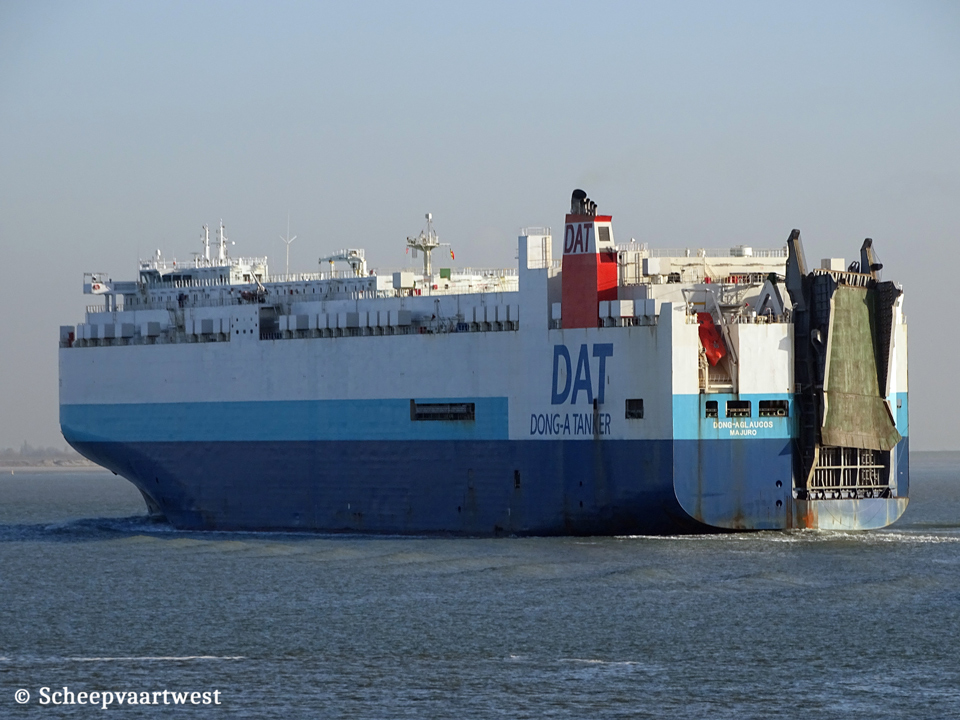

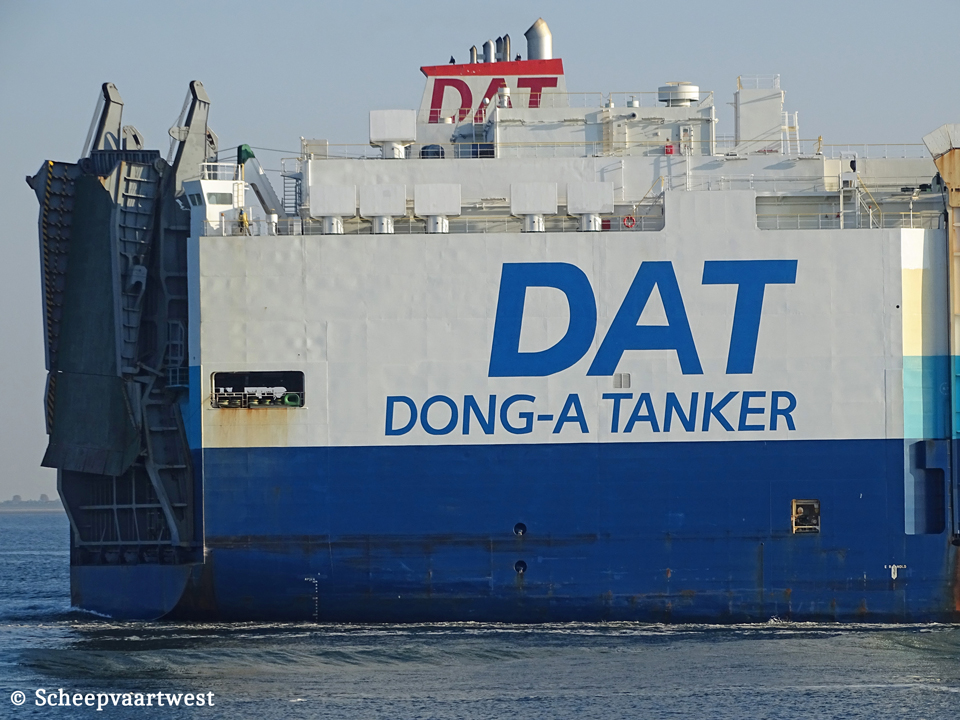

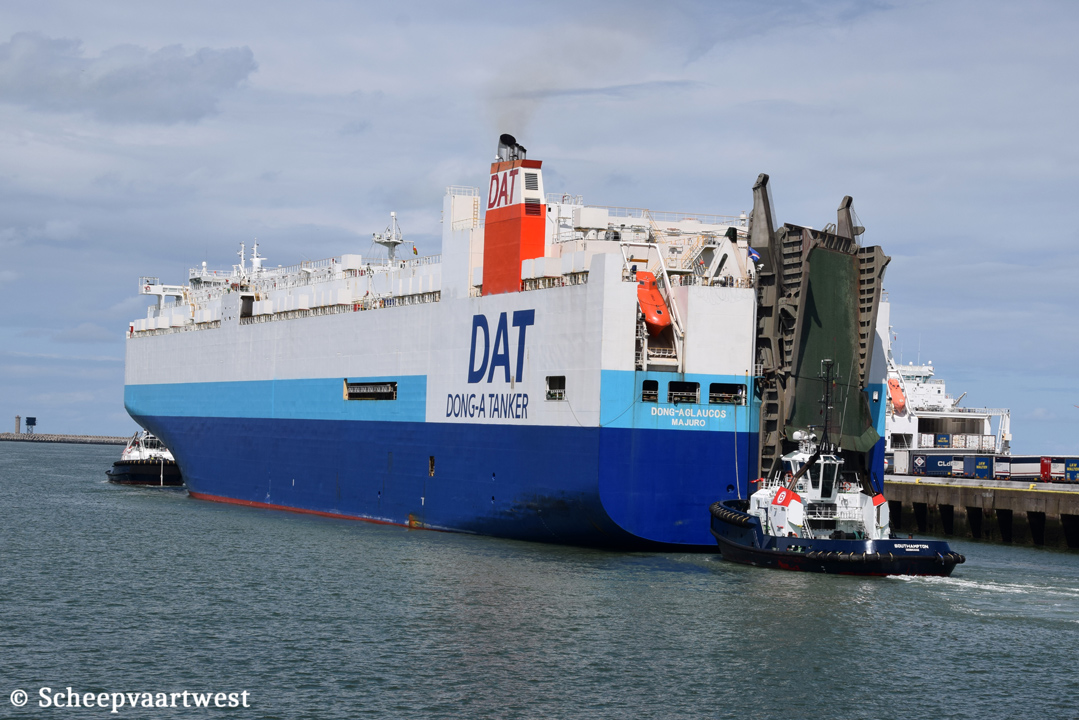

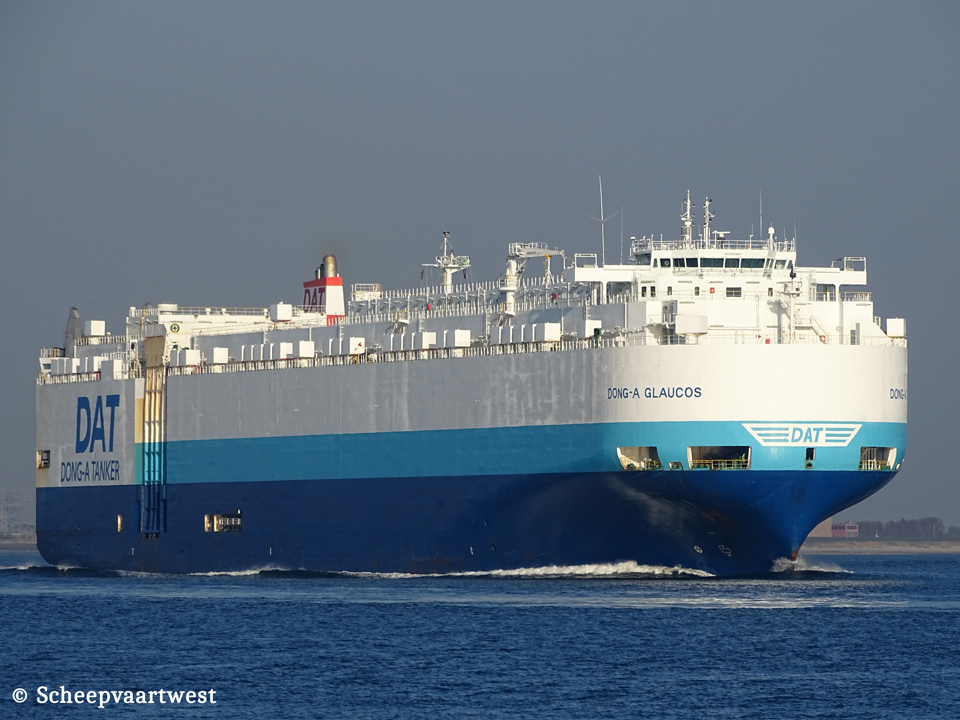

| Westerschelde 20/04/17 | Westerschelde 20/04/17 | Zeebrugge 02/08/2021 | Zeebrugge 02/08/2021 | Zeebrugge 02/08/2021 | Westerschelde 12/12/18 | |||||
|
Name |
DONG-A GLAUCOS |
|
Previous names |
2011 - 05/2014 A Ladybug |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9441867 |
|
Call sign |
V7DB3 |
|
Flag |
Marshall Islands |
|
Port of registry |
Majuro |
|
Previous flags |
2011 - 2014 Republic of Panama, Panama City - Call sign: HP6290 |
|
GT |
72.408 t |
|
DWT |
Summer: 26.985 t |
|
NT |
26.226 t |
|
Length |
232,37 m overall |
|
Breadth |
32,26 m |
|
Draught |
Summer: 10,02 m |
|
Reg. Dimensions L x B x D |
225,52 x 32,26 x 20,11 m |
|
Rule Dimensions L x B x D |
222,40 x 32,26 x 14,30 m |
|
Depth |
20,11 m |
|
Speed |
Max: 20,0 knots |
|
Built |
2011 |
|
Keel laid |
02/03/2010 |
|
Launch date |
07/05/2010 |
|
Date of completion |
17/01/2011 |
|
Builder |
Hyundai Samho Heavy Industries Co., Ltd. Youngam South Korea |
|
Yard number |
S-398 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W/HHI 8S60ME-C8 - 2 stroke single acting 8 cylinder 600 x 2.400 mm combustion engine 19.040 kW - 25.533 bhp at 105,0 rpm Build: 02/2010 Manufacturer: Hyundai Heavy Industries Co., Ltd., Engine & Machinery Division, Ulsan - South Korea |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary Boiler water tube boiler - 8,8 kg/cm² 2x Economizer EGE - 11,8 kg/cm² Build: 12/2009 Manufacturer: Kangrim Heavy Industries Co., Ltd., Changzhou Works, Nanjing - China |
|
Generators |
3x Himsen 7H21/32 Main diesel generatorsets each 1.562 kVA / 450 Volt |
|
Emergency generator |
1x Doosan AD086TIS diesel generatorset 151 kW |
|
Bow thruster |
1x 1.500 kW |
|
Number of cars |
7.600 |
|
Tank capacities |
Fuel oil: 4.176,1 m³ Fresh water: 656,2 m³ Water ballast: 12.846,2 m³ |
|
Crew |
21 |
|
Manager |
Dong-A Tanker Corporation 9th Floor, Dongyang Building, 18, Gwangbok-ro 97beon-gil, Jung-gu Busan, 600-022 South Korea |
|
Technical manager |
KMARIN Ocean Services Corporation (KOSCO) 5th Floor, Kukdong Building, 67 Chungjang-daero 5beon-gil, Jung-gu Busan South Korea |
|
Registered owner |
DAT Pacific Eternity SA Care of Dong-A Tanker Corp , 9th Floor, Dongyan Building, 18, Gwangbok-ro 97beon-gil, Jung-gu Busan, 600-022, South Korea. |
|
Previous names & owners |
2011 - 05/2014 A Ladybug - A Ladybug Corporation SA (NOS Shipmanagement Pte Ltd Singapore as manager) |
|
Latest data adjustment |
19 August 2021 |
