| Westerschelde 01 February 2020 |
 |
| Westerschelde 01/02/20 |
|
Name |

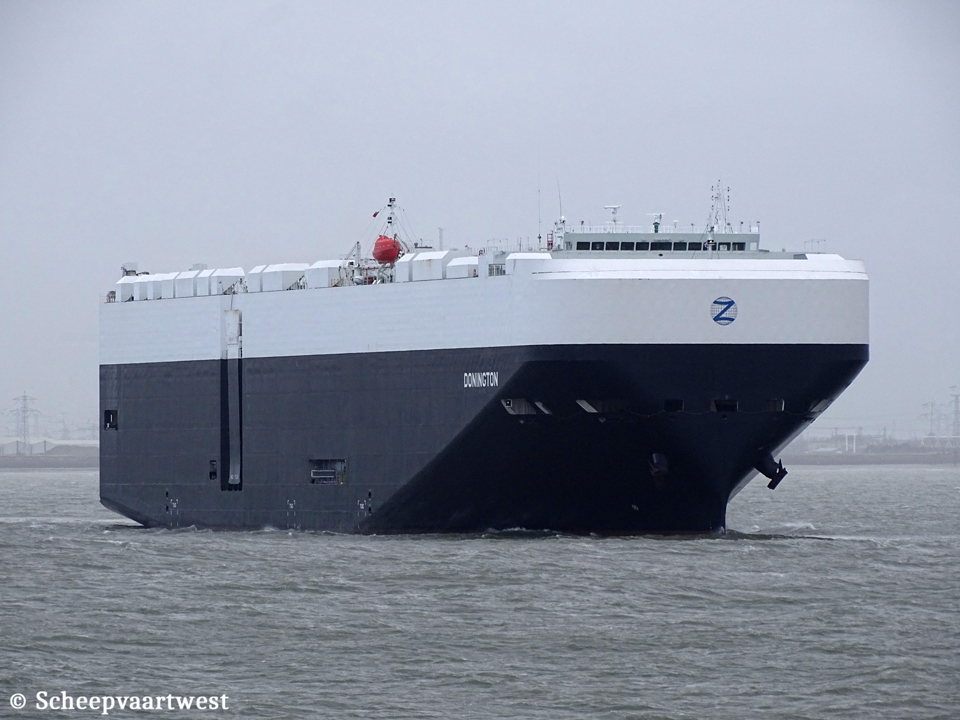

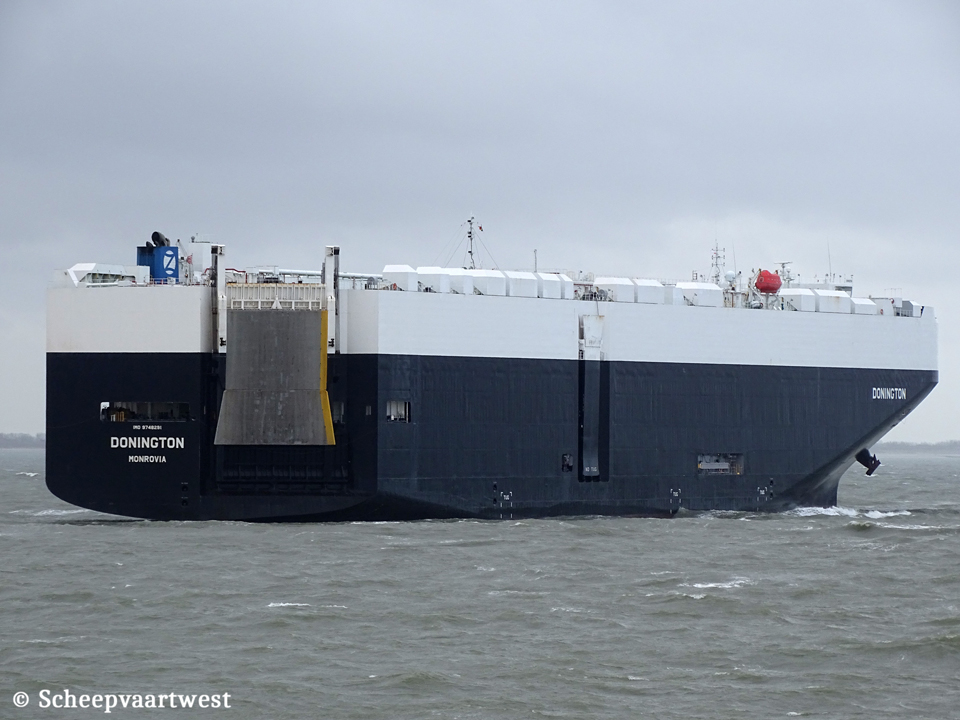

DONINGTON |
|
Type |
Roll-On/Roll-Off carrier |
|
IMO-number |
9748291 |
|
Call sign |
D5NC3 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GRT |
72.700 t |
|
DWT |
18.241 t |
|
NRT |
22.257 t |
|
Length |
199,96 m overall |
|
Breadth |
38,00 m |
|
Draught |
Summer: 9,73 m |
|
Moulded L x B x D |
196,00 x 38,00 x 14,68 m |
|
Registered L x B x D |
196,00 x 38,00 x 21,15 m |
|
Freeboard |
Summer: 4.994 mm |
|
Speed |
Service: 20,0 knots Max: 21,1 knots |
|
Built |
2017 |
|
Keel laid |
25/06/2014 |
|
Launch date |
01/11/2016 |
|
Date of completion |
22/03/2017 |
|
Builder |
Shin Kurushima Dockyard Co. Ltd. - Onishi Yard Japan |
|
Yard number |
5911 |
|
Hull material |
Steel |
|
Main engine |
1x MAN-B&W 7S60ME-C - 2 Stroke single acting 7 cylinder 600 x 2.400 mm combustion engine Mcr 13.200 kW / 17.947 hp at 104,0 rpm Manufacturer: Mitsui Engineering & Shipbuilding Co., Ltd. Tamano Works - Japan |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 660 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 104,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 0,79 MPa Evaporation: 4;48 t/h Manufacturer: Tortoise Engineering Co., Ltd. |
|
Generators |
4x Main diesel generatorset total 3.500 kW / 4.375 kVA |
|
Thrusters |
1x Tunnel thruster 1.700 kW / 2.311 bhp, forward |
|
Number of cars |
7.429 |
|
Number of decks |
12 |
|
Hoist able decks |
3 |
|
Number of ramps |
2 |
|
Tank capacities |
Ballast: 5.900 m³ |
|
Crew |
18 |
|
ISM & commercial manager |
Zodiac Maritime Limited 5th Floor, Portman House, 2, Portman Street London, W1H 6DU United Kingdom |
|
Registered owner |
Fair Wind Navigation SA Care of Mizuho Sangyo Co Ltd. 4-32, Jibori 6-chome, Imabari-shi Ehime-ken, 799-2117 Japan |
|
Latest data adjustment |
31 August 2022 |
