Prominent Ace 03
Zeebrugge 29 March 2011

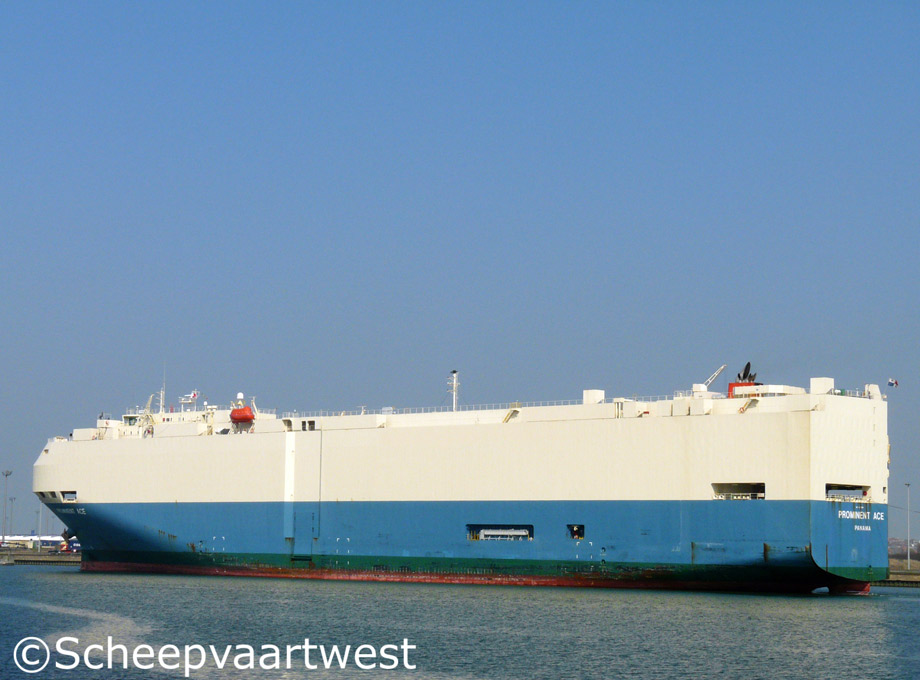

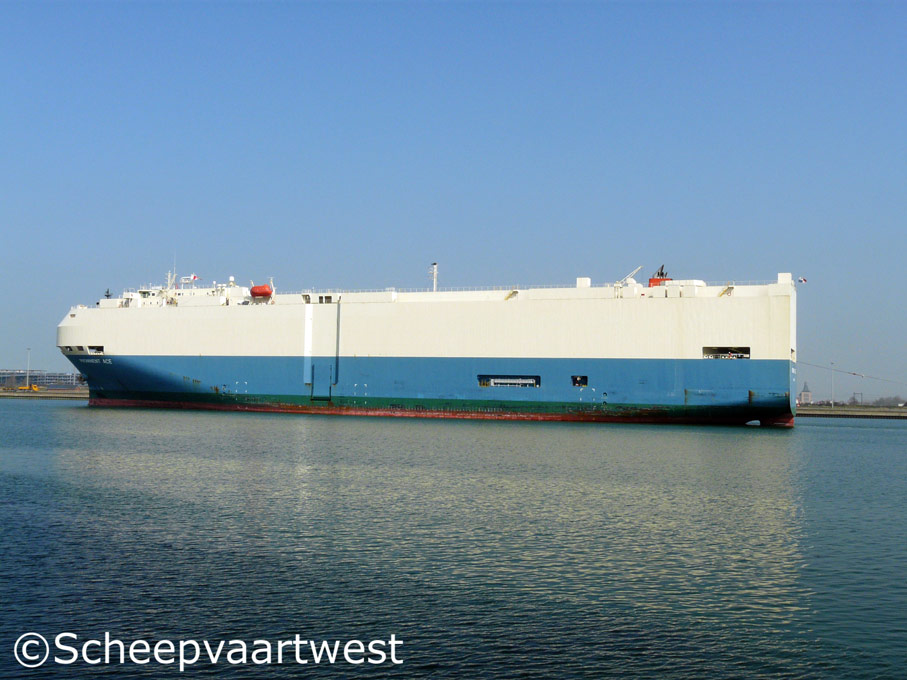

Prominent Ace 11   Prominent Ace 13
Zeebrugge 29/03/11 Zeebrugge 29/03/11



Name

PROMINENT ACE

Type

Vehicle carrier

PCTC - Pure car and truck carrier

IMO-number

9267699

Call sign

HPWB

Flag

Republic of Panama

Port of registry

Panama City

GT

57.789 t

DWT

19.550 t

NT

18.114 t

Length

199,54 m overall

Breadth

32,26 m

Draught

Summer: 9,725 m

Moulded L x B x D

190,00 x 32,26 x 14,60 m

Registered L x B x D

192,46 x 32,26 x 21,12 m

Freeboard

Summer: 4.915 mm

Depth

To main deck: 14,60 m

To upper deck: 33,70 m

Speed

Service: 20,65 knots

Trial: 21,6 knots

Built

2004

Keel laid

03.06.2002

Launch date

20.10.2003

Date of completion

26.01.2004

Builder

Toyohashi Shipbuilding Co., Ltd.
Japan

Yard number

3563

Hull type

Single hull

Main engine

1x Kobe 8UEC60LS - 2 stroke single acting 8 cylinder 600 x 2.200 mm diesel engine - 14.160 kW at 100,0 rpm

Manufacturer: Kobe Diesel Co., Ltd. Nagasaki Works

Propellers

1x Fixed pitch nickel aluminium bronze propeller

Diameter: 6,55 m

Builder: Nakashima Propeller Co.

Propeller shaft

1x Oil lubrication shaft with monitoring device

Boilers

1x Miura VWH-1600ME auxiliary vertical boiler - 6,9 bar

Evaporation: 3,44 t/h

Manufacturer: Miura Co., Ltd.

Generators

3x Daihatsu 5DK-26 engines each with an output of 1.070 kW at 720 rpm each are linked to a Nishishiba NTAKL-VE generators which have an output of 1.000 kW at a speed of 720 rpm

Bow thruster

1x Kawasaki 1.250 kW at 1.160 rpm

Car capacity

5.342

Number of decks

13

11x Fixed

2x Hoistable

Tank capacities

Fuel oil: 3.101 m³

Fresh water: 772 m³

Water ballast: 8.021 m³

Lifting equipment

2x Cranes - SWL 4,0 t each

Crew

24

Manager

MOL Ship Management Co., Ltd.

Registered owner

Prominent Maritima Shipholding SA
