Vlissingen, The Netherlands 10 August 2019 |
 |
 |
|
| Spijkenisse 12/03/19 | Spijkenisse 12/03/19 | |
|
Name |

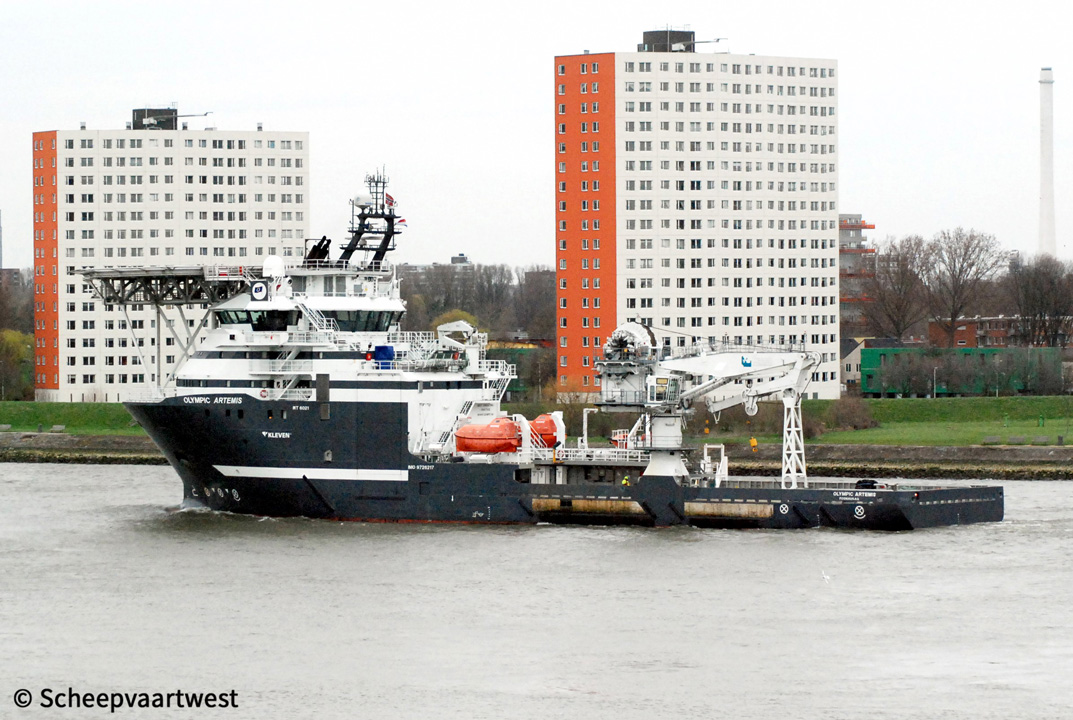

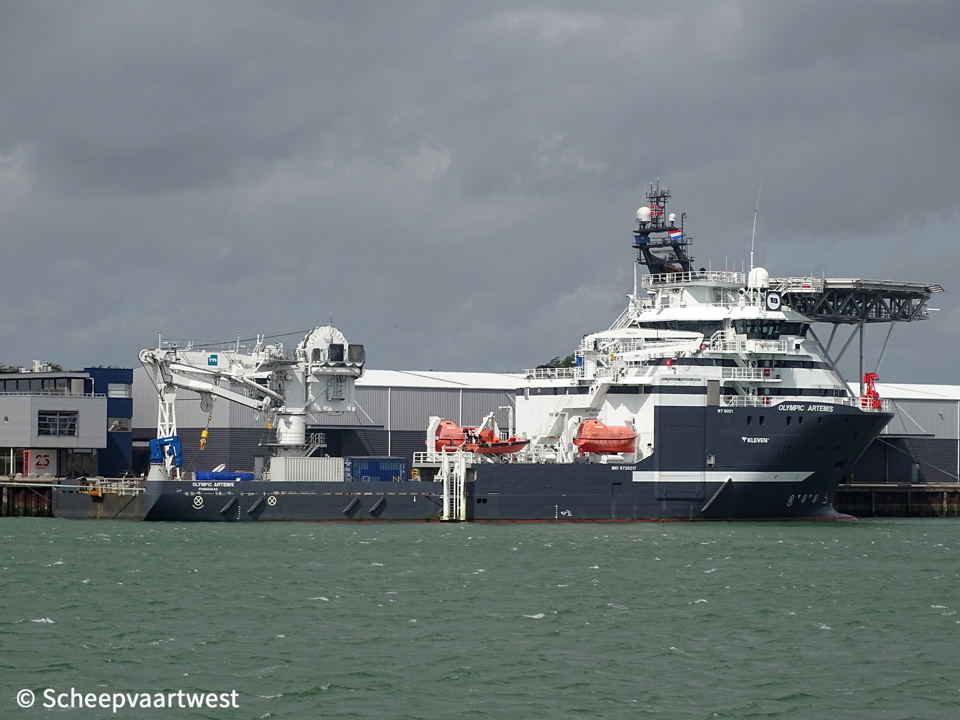

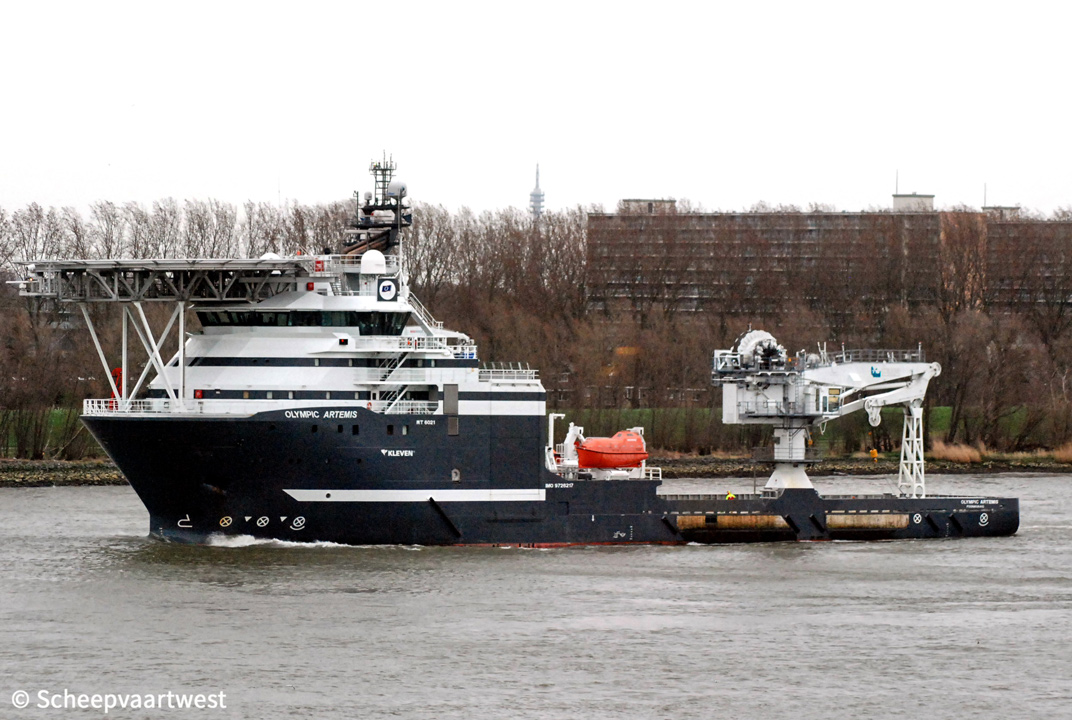

OLYMPIC ARTEMIS |
|
Previous names |
2015 - 2018 Olympic Bibby |
|
Type |
Anchor handling supply tug - Multi-purpose offshore vessel |
|
IMO-number |
9726217 |
|
Call sign |
LAFV8 |
|
Flag |
Norway |
|
Port of registry |
Fosnavåg |
|
Previous flags |
2015 - 2018 Bahamas, Nassau - Call sign: C6BX7 |
|
GT |
4.744 t |
|
DWT |
Summer: 3.100 m |
|
NT |
1.423 m |
|
Length |
87,75 m overall 79,06 m between perpendiculars |
|
Breadth |
19,20 m extreme |
|
Draught |
6,35 m |
|
Depth |
8,00 m |
|
Speed |
Max: 14,5 knots |
|
Built |
2015 |
|
Keel laid |
17/04/2014 |
|
Launch date |
01/11/2014 |
|
Date of completion |
16/04/2015 |
|
Builder |
Kleven Verft AS Ulsteinvik Norway |
|
Yard number |
371 |
|
Hull material |
Steel |
|
Hull type |
Double bottom Double side |
|
Propulsion |
2x Main azimuth thrusters: 2 x Main Azimuth thrusters each 1.500 kW |
|
Generators |
2x Caterpillar 3512C HD main diesel generatorsets each 1.700 ekW 2x Caterpillar 3516C HD main diesel generatorsets each 2.240 ekW 1x Caterpillar C32 harbour diesel generatorset 910 kW |
|
Emergency generator |
1x Volvo Penta DI3 diesel generatorset 300 kW |
|
Bow thruster |
1x Tunnel bow thrusters 790 kW 1x Tunnel 680 kW 1x Retractable Azimuth 880 kW 1x Tunnel stern thrusters 680 kW |
|
Cargo deck |
820 m² |
|
Moonpool |
4,80 x 4,80 m |
|
Tank capacities |
Marine Diesel (FO): 1.180m³ Fresh water: 760 m³ Ballast 2.500 m³ Anti heeling: 455 m³ Lub oil tanks: 38 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 48 mm |
|
Cargo gear |
1x Deck crane TTS GPOKA 1250-60-23 60T AHC subsea crane: Main hook 60 t @ 10,50 m, 2.000 m water depth Auxiliary hook 10,0 t @ 23,00 m, 500 m water depth Personnel lift capabilities 1,5 t @ 23,00 m |
|
Helicopter deck |
Aluminium for Sikorsky S92 with diameter 20,88 m |
|
Accommodation |
Total 68 persons 14x 1 man cabins 27x 2 man cabins Client Office x 2 man, OM Office, Reception Office x 2 man Control Room x 10 man, Offline x 7 man, Charterers Storage Charterers Instrument Room, Dayrooms x 2, Messroom x 30 Coffee shop, Hospital, Gymnasium, Change Room, Heli-Reception |
|
Communication system |
VHF 4x Sailor RT Inmarsat B Fleet Broadband 500 Inmarsat C Sailor Type C VSAT Marlink 6012 Sealink KU-Band (Dual Dome) MIR - 2048kbps upgradeable to 8mbits |
|
Manager |
Olympic Shipping AS Holmsildgata 12 6090 Fosnavåg Norway |
|
Registered owner |
Olympic Artemis AS |
|
Latest data adjustment |
16 March 2020 |
