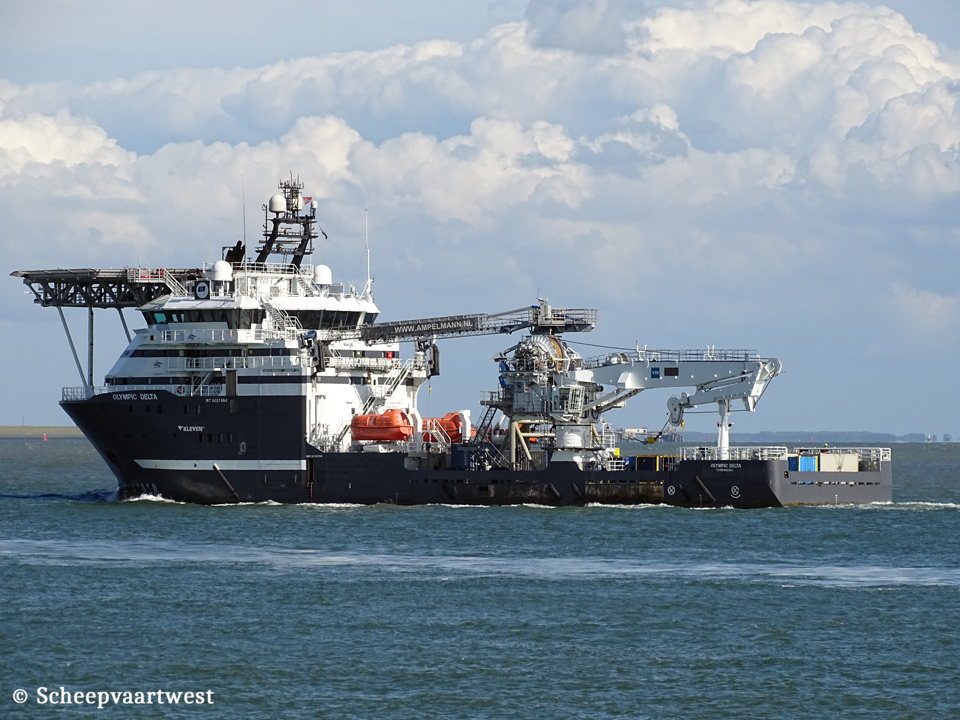

Olympic Delta IMO 9745768 01
Westerschelde 24 August 2020

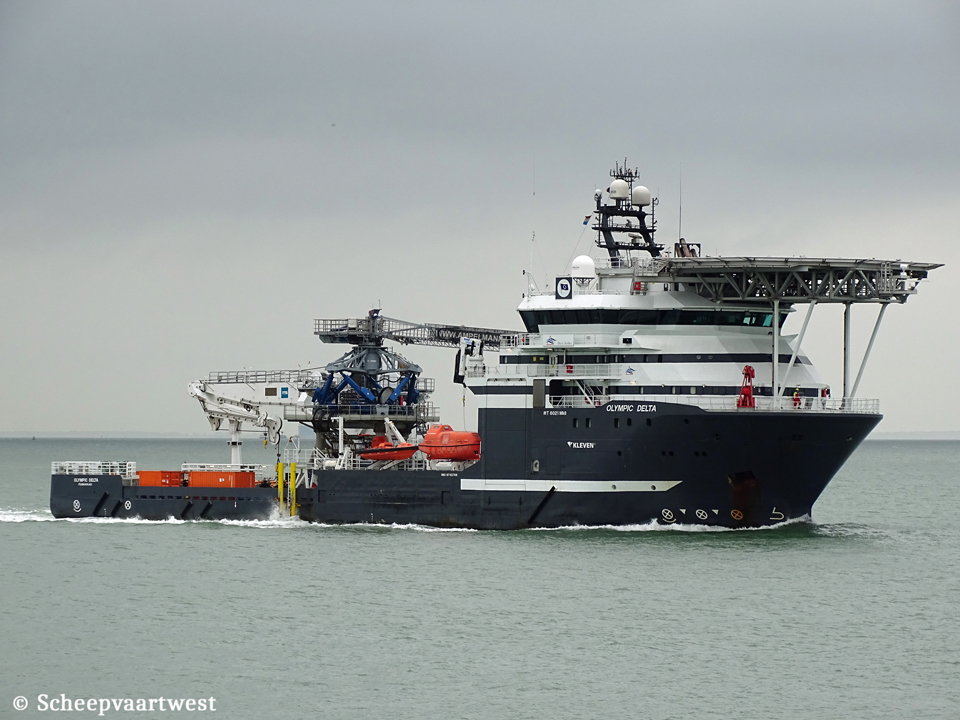

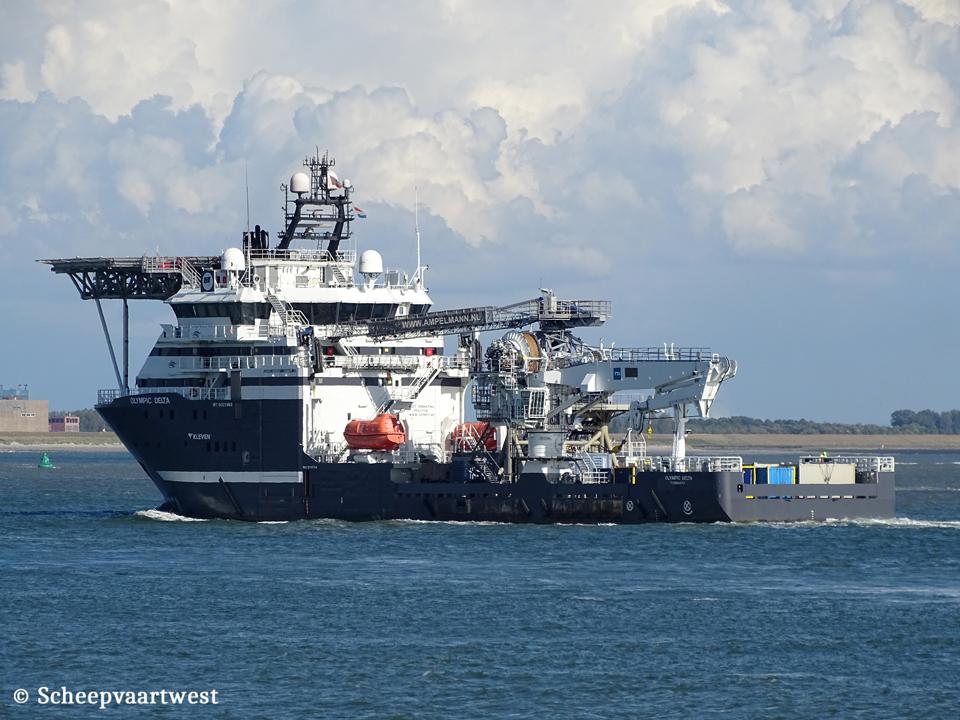

Olympic Delta IMO 9745768 02   Olympic Delta IMO 9745768 03
Westerschelde 24/08/20   Westerschelde 09/09/20


Name

OLYMPIC DELTA

Type

Offshore support vessel

IMO-number

9745768

Call sign

JWOH3

Flag

Norway

Port of registry

Fosnavåg

GT

5.395 t

DWT

3.100 t

NT

1.618 t

Length

92,55 m overall

88,90 m between perpendiculars

Breadth

19,20 m

Draught

Summer: 6,31 m

Depth

8,00 m

Speed

Max: 13,6 knots

Built

2015

Builder

Kleven Prosjekt 401 AS

Ulsteinvik Yard

Norway

Yard number

378

Hull material

Mild steel

Continuous decks

1

Main engine

Diesel electric

2x Caterpillar 3512C-HD - 4 stroke 12 cylinder 170 x 215 mm combustion engines each 1.765 kW / 2.400 hp at 1.800 rpm

2x Caterpillar 3516C - 4 stroke 16 cylinder 170 x 190 mm combustion engines each 1.492 kW / 2.029 hp at 1.800 rpm

connected to 2 electric motors driving 2 Azimuth electric drive units

Total power:

Mcr 6.514 kW / 8,858 hp

Csr 5.536 kW / 7.526 hp

Propellers

2

Emergency generator

1x Volvo Penta diesel generatorset 300 ekW

Bow thruster

2x Tunnel thruster 1.150 kW / 1.564 bhp, forward

1x Retract. directional thruster 880kW / 1.196 bhp, forward

1x Tunnel thruster 1.150kW / 1.564 bhp, aft

Moonpool

6,00 x 6,00 m

Deck area

900 m²

Tank capacities

Fuel: 1.312,46 m³

Fresh water: 720 m³

Ballast: 2.000 m³

Cargo gear

1x Crane - SWL 80,0 t

Accommodation

Cabins: 52

Berths: 80

ISM & commercial manager

Olympic Shipping AS

Fosnavaag Brygge

Holmsildgata 12

6090 Fosnavaag

Norway

Owner

Olympic Delta AS

Care of Olympic Shipping AS

Fosnavaag Brygge

Holmsildgata 12

6090 Fosnavaag

Norway

Latest data adjustment

18 January 2022
