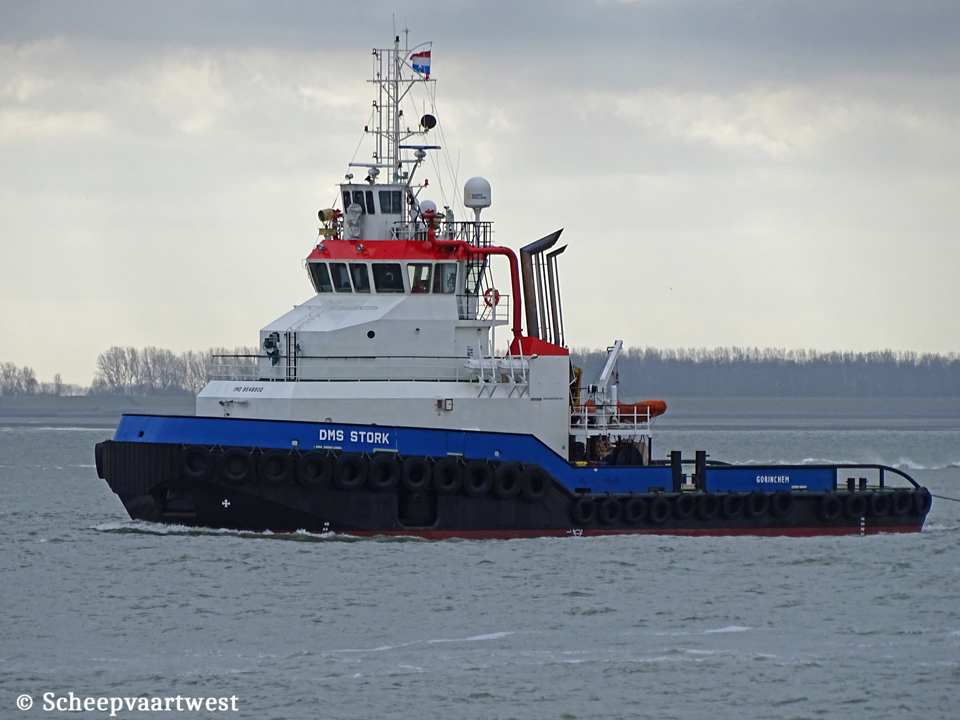

DMS Stork IMO 9548902 04

Westerschelde 11 February 2019

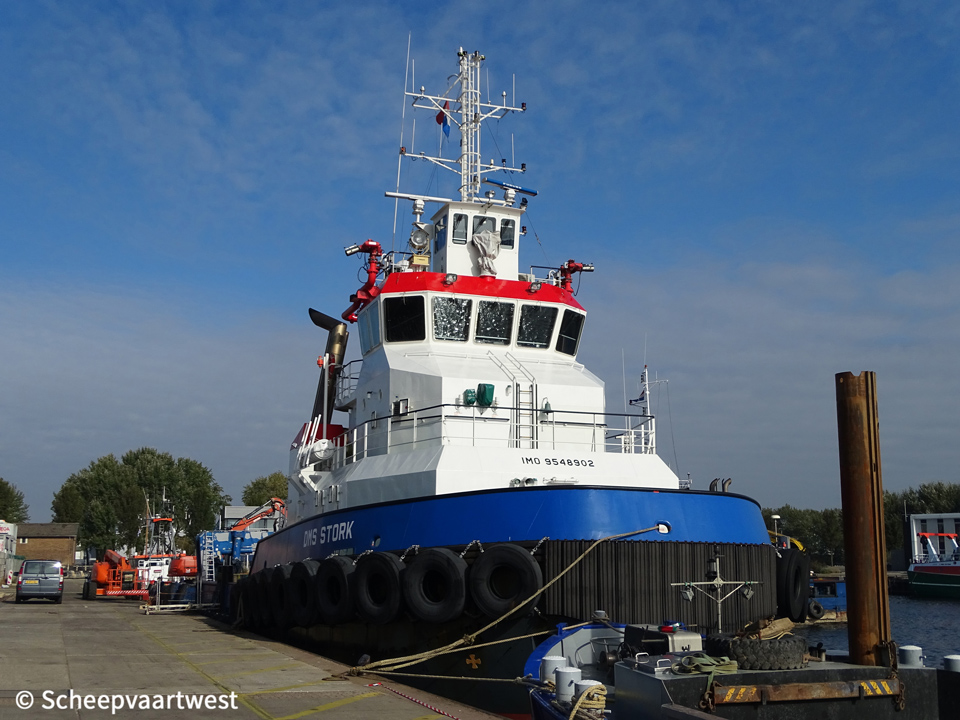

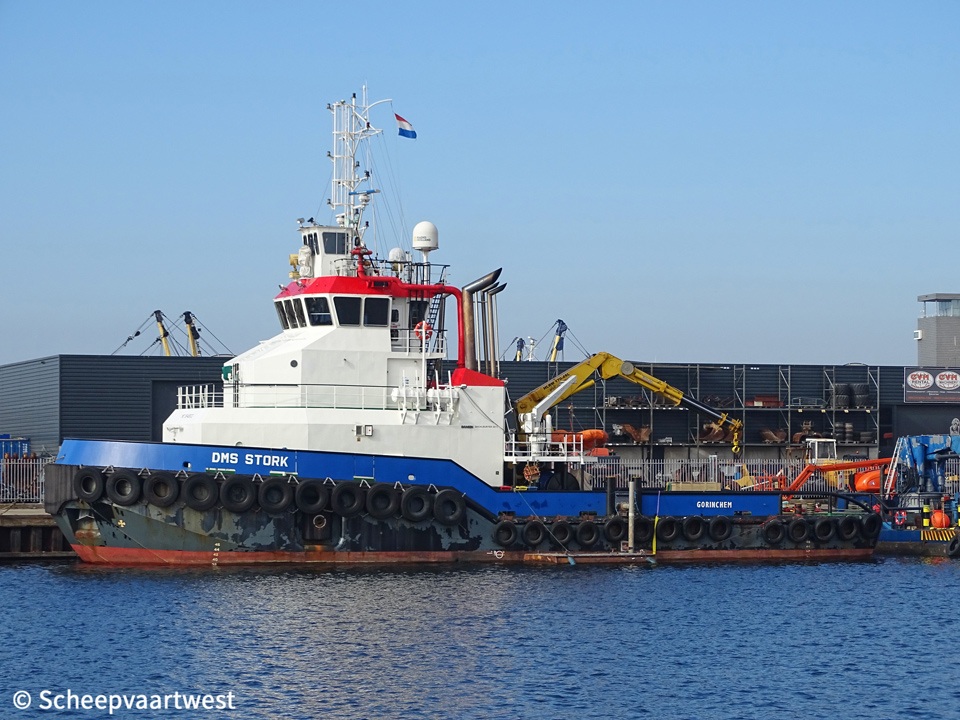

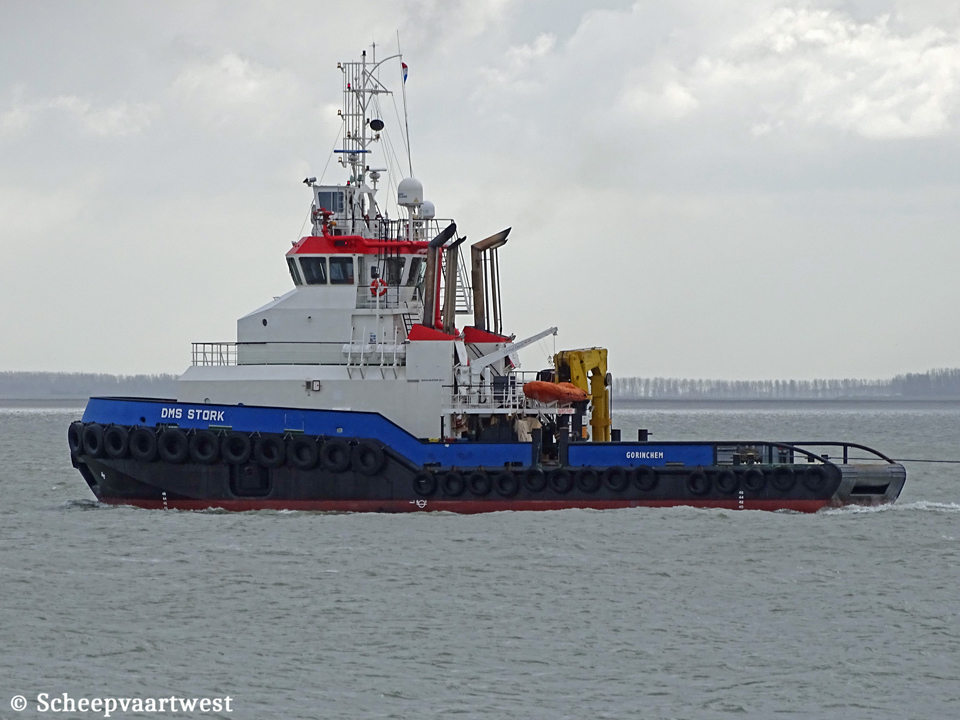

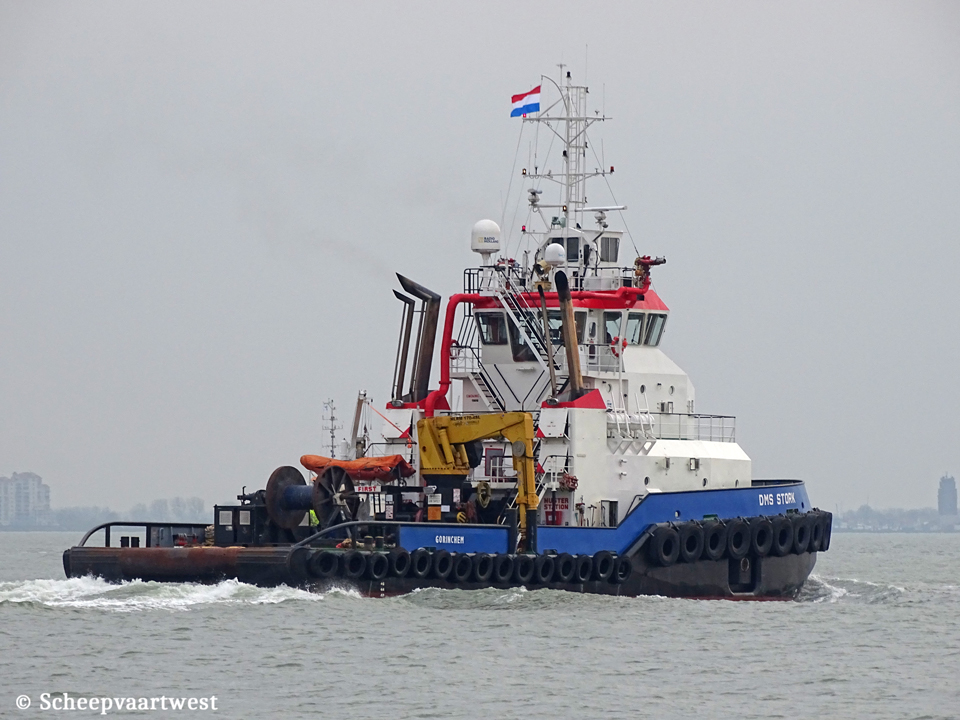

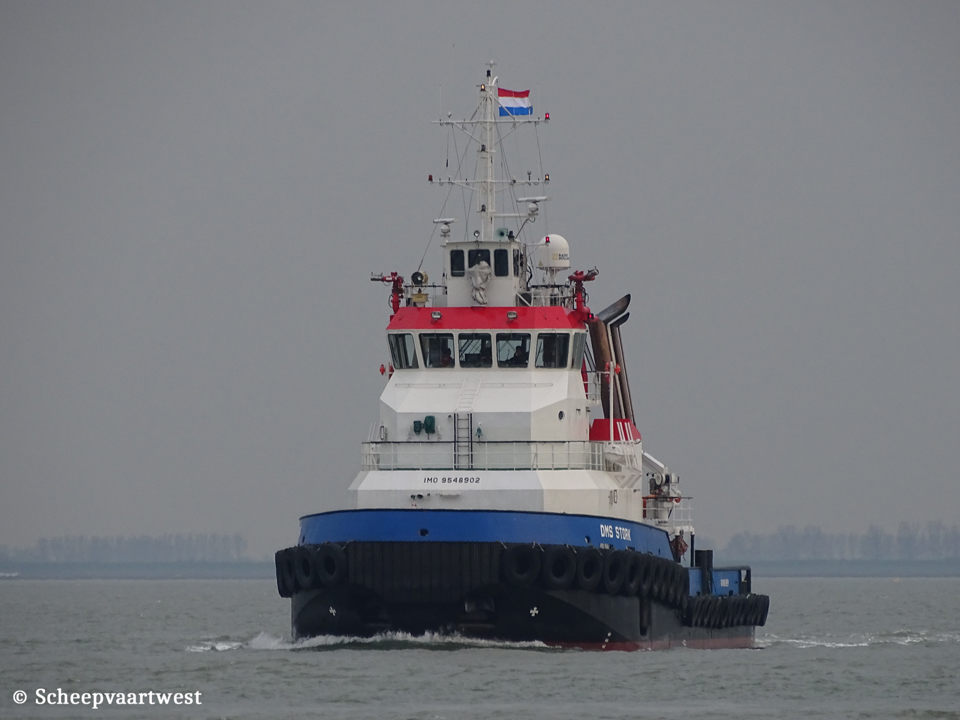

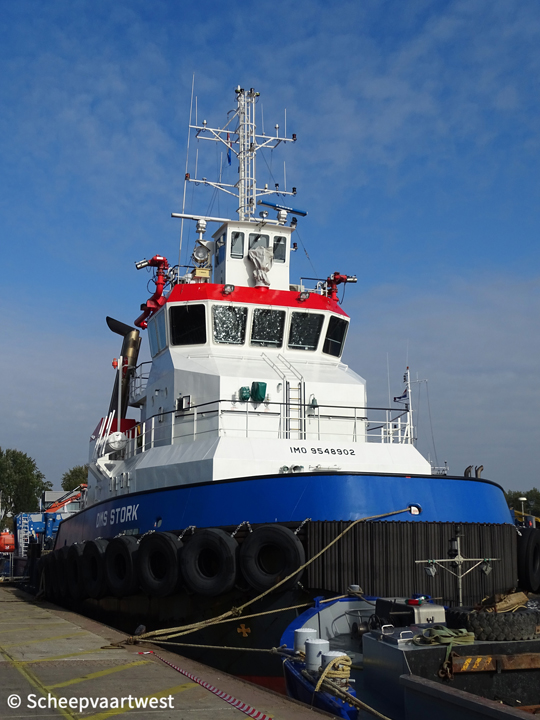

DMS Stork IMO 9548902 05   DMS Stork 01   DMS Stork 02   DMS Stork 03   DMS Stork IMO 9548902 08   DMS Stork IMO 9548902 07
Westerschelde 11/02/19 Vlissingen 21/10/18 Vlissingen 21/10/18 Vlis 21/10/18 Westerschelde 09/04/19   Westerschelde 09/04/19

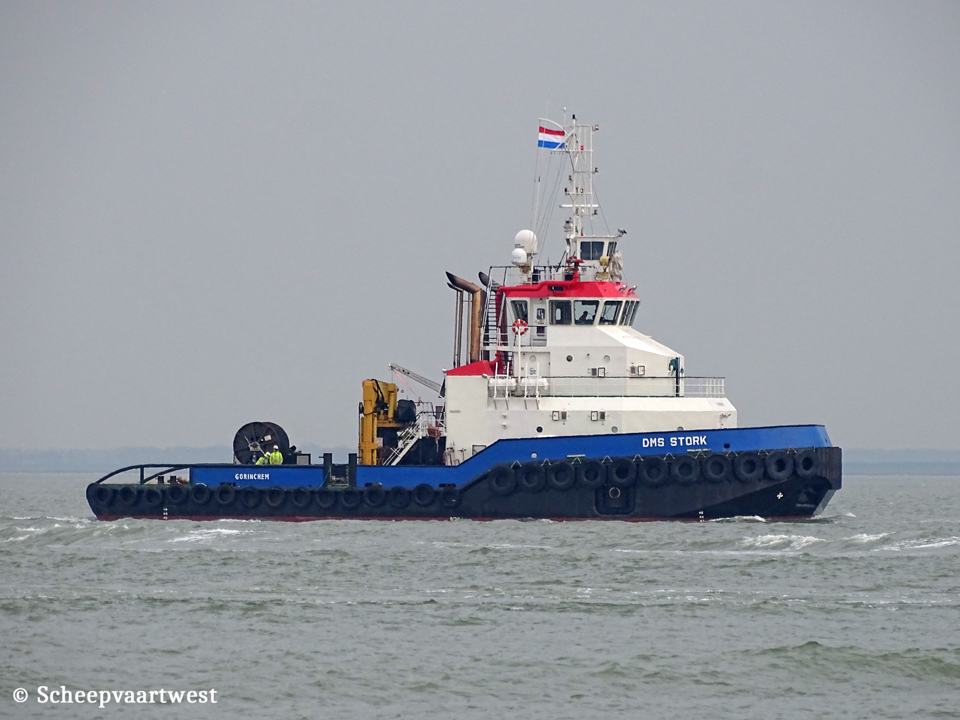

DMS Stork IMO 9548902 06
Westerschelde 09/04/19


Name

DMS STORK

Previous names

2013 build as: DMS Starling

03/2014 - 05/2015 Kaikoura

05/2015 - 2017 Waterland

Type

Anchor handling tug - Damen Shoalbuster 3511

IMO-number

9548902

Call sign

PCXA

Flag

The Netherlands

Port of registry

Gorinchem

Previous flags

2014 - 05/2015 Saint Vincent and the Grenadines, Kingstown

GT

614 t

DWT

429 t

NT

184 t

Length

35,25 m overall

34,37 m between perpendiculars

Breadth

11,60 m overall

Draught

3,64 m moulded

Air draft

958 mm

Depth

5,25 m moulded

Speed

11,6 knots

Built

2009

Launch date

01/06/2009

Date of completion

11/03/2014

Builder casco

2009 Safe Engineering Services

Gdynia

Poland

Builder completion

11/03/2014

Damen Shipyards BV

Hardinxveld

The Netherlands

Yard number

571616

Hull material

Steel

Watertight compartments

5

Continuous decks

1

Main engine

2x Caterpillar 3516 B TA/HD - 4 stroke single acting 16 cylinder 170 x 215 mm combustion engines each 1.864 kW / 2.536 hp at 1.600 rpm

Gearbox

Reintjes WAF 873 reduction 7,455:1

Propulsion

2x Fixed pitch propellers in nozzles diameter 2.700 mm at 215 rpm

Generators

2x Caterpillar C-9 TA diesel engines each 132 kW / 220 hp coupled with Leroy Somer LSAM 46.2 M5 generators each output 150 kVA / 230/400 Volt 50 Hz

Bow thruster

1x Hydraulically driven 294 kW / 400 hp

Hydraulic set

1x Caterpillar C18 TA - 500 kW at 2.100 rpm

Deck equipment

Towing winch:

Ridderinkhof AHW-H-1000:

1.010 m steel wire diameter 48 mm

P= 50 t at 10,00 m/min.

P=100 t at 5,0 m/min.

B=100 t Winch at bow

Tugger winch: Brevini, 8 t at 4,50 m/min.

Towing Pins: Karm Fork, 160 t SWL

Anchor: High Holding Power 2x 375 kg Pool

Anchor Winch: Ridderinkhof CAW-H-152

P= 5 t at 10,00 m/min.

Capstan: 5t at 15,00 m/min.

Stern Roller: 5.000 mm x 980 mm, 100 t SWL

Spark Arrestors: fitted (external)

Fire fighting

Fi-Fi Pump: 1.200 m³/h

Fi-Fi Monitor: 2x monitor Albach EL 377

Bollard pull

71 t

Transfer pumps

Fuel: 50 m³/h

Fresh Water: 50 m³/h

Tank capacities

Fuel oil: 374,4 m³

Fresh water: 42,0 m³

Hydraulic oil: 3,7 m³

Lub oil: 4,4 m³

Bilge water: 2,2 m³

Dirty oil: 4,4 m³

Sewage: 23,6 m³

Gear oil: 2,2 m³

Lifting equipment

1x Crane type Heila 170-4S-L, remote controlled

Crane capacity:

7,9 t at 15,93 m

18,2 t at 8,03 m

Accommodation

Heated and air-conditioned living spaces for 15 persons, consisting three single crew cabins and six double crew cabins, a galley, a mess room and sanitary facilities

Navigation equipment

All systems and equipment according to GMDSS Area 3 Nav.

Equipment: Magnetic compass, gyro compass, 2x radar, GPS, autopilot, echo sounder, speedlog, watch alarm, chart plotter

Communication: 3x VHF, 2x handheld VHF, Navtex, Inmarsat-C, SSB, Iridium, intercom, PA-system, LRIT, AIS, SSAS

Searchlights: 2x 1.000 W

Owner

Damen Trading & Chartering

Avelingen-West 20

4202 MS Gorinchem

The Netherlands

Latest data adjustment

01 May 2022
