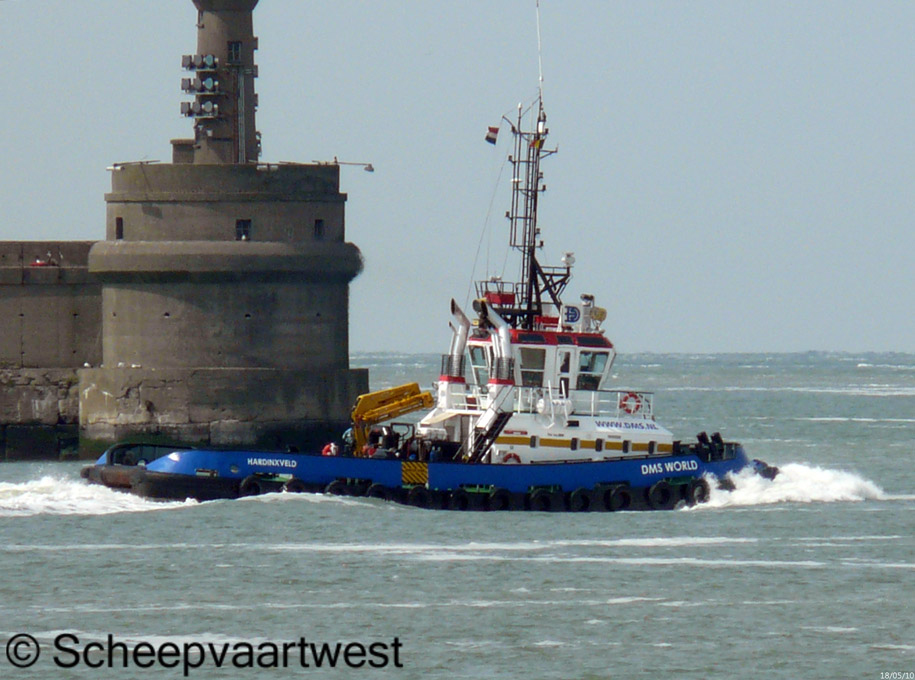

| Zeebrugge 18 May 2010 |
|
Name |
DMS WORLD |
|
Type |
Tug Damen Stan Tug 2608 |
|
IMO-number |
9342102 |
|
Call sign |
PHDP |
|
Flag |
The Netherlands |
|
Port of registry |
Hardinxveld |
|
GT |
186 t registered |
|
NT |
56 t registered |
|
Displacement |
240 t Empty tanks |
|
Length |
26,09 m overall 23,96 m between perpendiculars |
|
Breadth |
7,94 m |
|
Draught |
3,85 m |
|
Depth |
4,05 m |
|
Speed |
12,5 knots |
|
Built |
2005 |
|
Date of completion |
01.09.2005 |
|
Builder |
Damen Shipyard |
|
Yard number |
509808 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Continuous decks |
1 |
|
Main engine |
2x Caterpillar type 3512B TA HD/B - 4 stroke 12 cylinder 170 x 190 mm internal combustion engine - output 2.610 kW / 3.546 hp total at 1.600 rpm Built: 2005 Builder: Caterpillar Inc. |
|
Propulsion |
2 Screw propeller solid pitch - at 248 rpm in nozzles |
|
Gearbox |
2x Reintjes type WAF 772 - 6.44:1 |
|
Generators |
2x Caterpillar type 2204 B T diesel engines each 141 hp coupled with generator each output 125 kVA / 100 kW each, 50 Hz 230/400 V, 3 Phase |
|
Deck equipment |
Anchor winch Towing winch P=20 t at 10 m/min., B= 100,0 t Tugger winch 4,5 t at 15 m/min. Gob eye, flush in deck (max. SWL 20,0 t) Stern roller 2.000 mm, diameter 711 mm, SWL 30,0 t |
|
Free deck area |
50 m² |
|
Deck capacity |
2 t/m² |
|
Bollard pull |
48,3 t |
|
Deck crane |
1x Heila 25-4SL (remote controlled) 1,6 t at 12,94 m 2,0 t at 10,94 m 2,5 t at 8,90 m 3,3 t at 6,89 m 5,0 t at 4,89 m 9,0 t at 2,79 m |
|
Tank capacities |
Fuel oil: 80,10 m³ Fresh water: 12,20 m³ Lub oil: 1,90 m³ Dirty oil: 1,90 m³ Sewage: 1,80 m³ Water ballast: 19,40 m³ |
|
Accommodation |
Heated and air-conditioned living spaces for 7 persons, consisting of galley, mess-room, captain's cabin, 1st officer cabine on main deck. Below deck 2x double crew cabins, C.E. Cabin and sanitary facilities. |
|
Crew |
6 |
|
Manager |
Damen Marine Services |
|
Registered owner |
Damen Marine Services |
|
Renamed |
04.2011 En Avant 1 |
