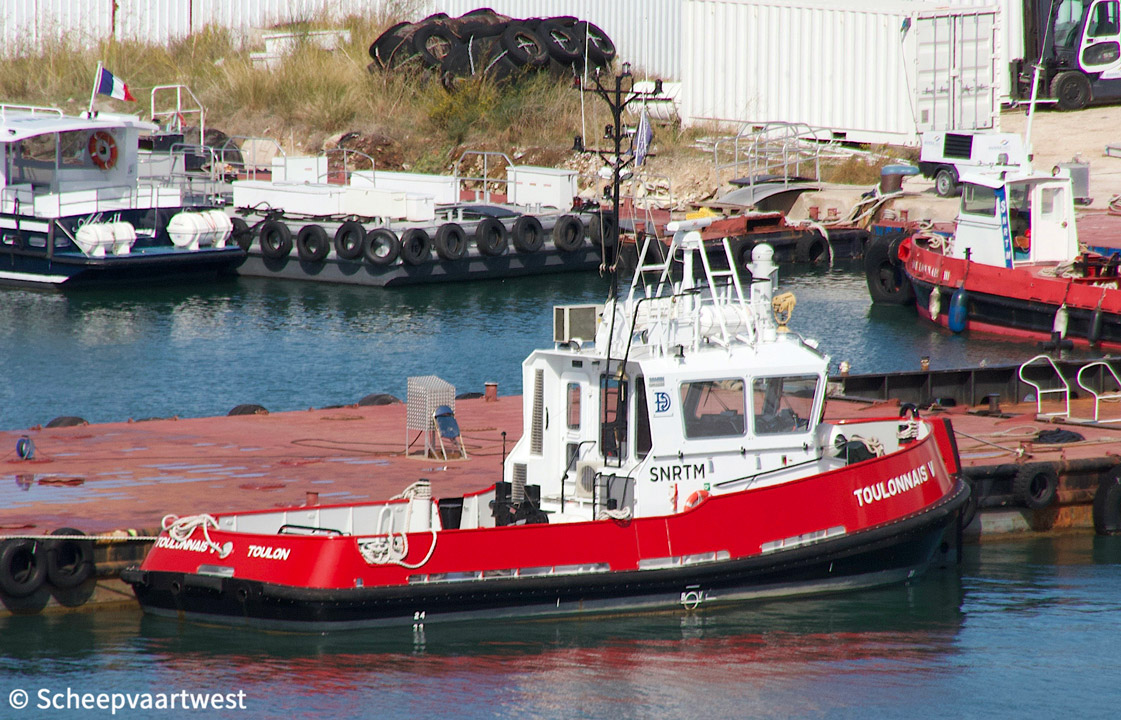

Toulonnais V 01

La Seyne Sur Mer, France 16 October 2019



Name

TOULONNAIS V

Type

Stan tug 1606 - Coastal area

Flag

France

Port of registry

Toulon

GT

47 t

DWT

21 t

NT

14 t

Displacement

90 t

Length

16,76 m overall

14,83 m between perpendiculars

Breadth

5,50 m

Draught

1,95 m

Freeboard

254 mm

Depth

2,52 m

Speed

10,9 knots

Built

2019

Date of completion

25/02/2019

Builder hull

Damen China

Builder completion

Damen Shipyards Co., Ltd.

4200 AA Gorinchem

The Netherlands

Yard number

503203

Hull material

Steel

Watertight compartments

7

Continuous decks

1

Machinery aft

Main engine

2x CatrepillarC18 - 4 stroke 6 cylinder 145 x 183 mm combustion engines total 896 kW / 1.218 hp

Propellers

2x Screw propeller solid - aft at 400 rpm

Generators

1x Caterpillar C2.2 diesel generatorset 20 kVA - 16 kW - 27 hp

Bollard pull

16,4 t

Tank capacities

Fuel oil: 14,2 m³

Fresh water: 1,10 m³

Sewage: 0,7 m³

Bilge water / Sludge: 0,5 m³

Registered owner

SNRTM - Société Nouvelle de Remorquage et de Travaux Maritimes
1247, route du Faron
83200 Toulon
France

Latest data adjustment

29 November 2019
