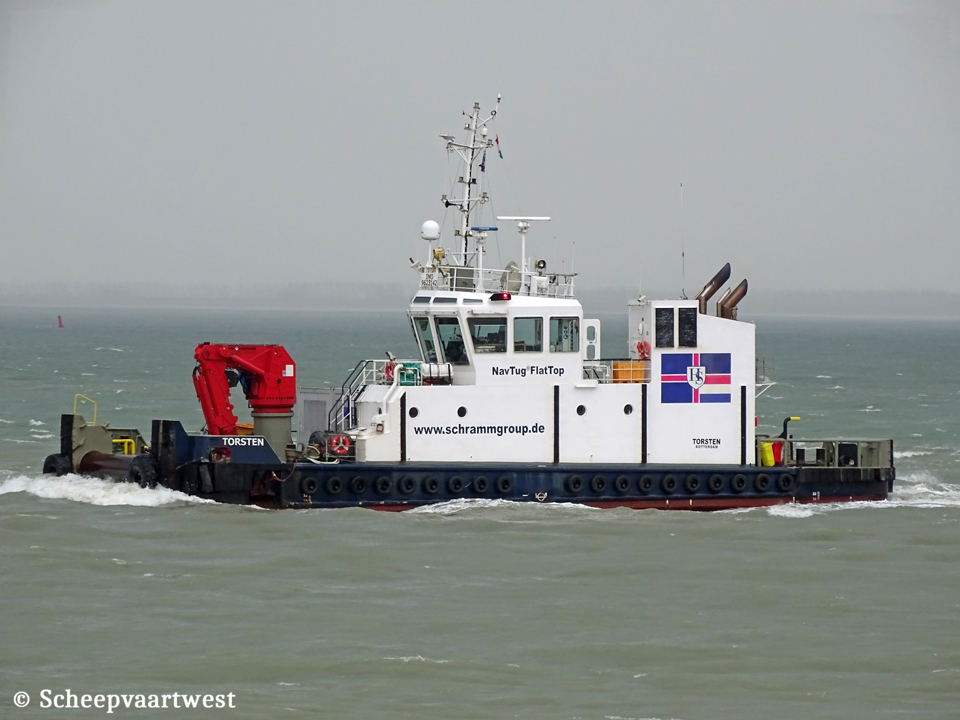

Torsten IMO 9623142 02

Westerschelde 13 February 2020

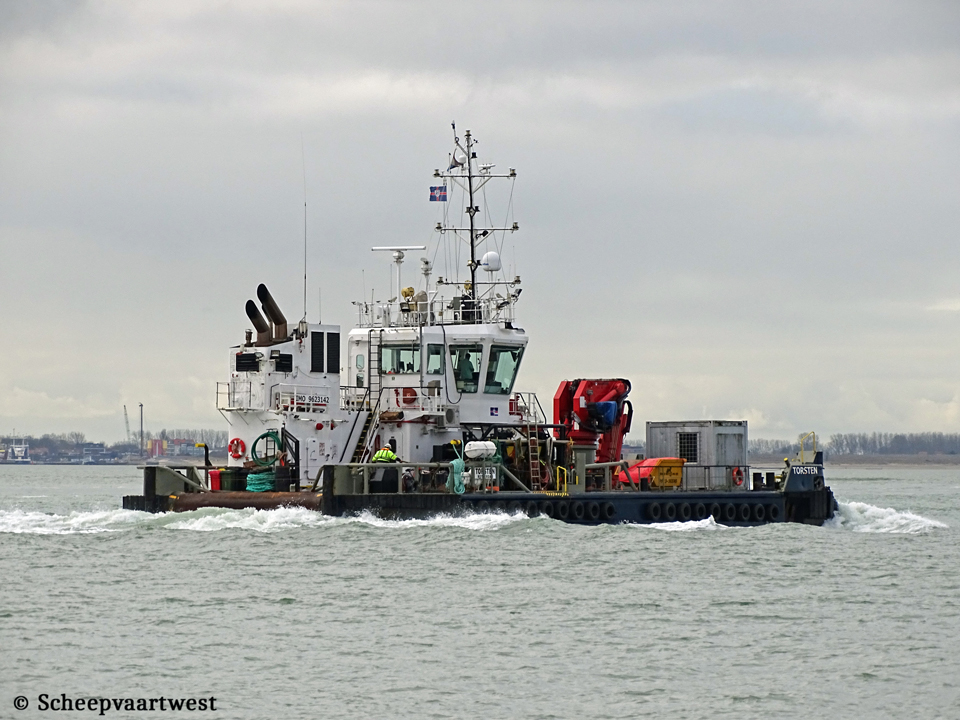

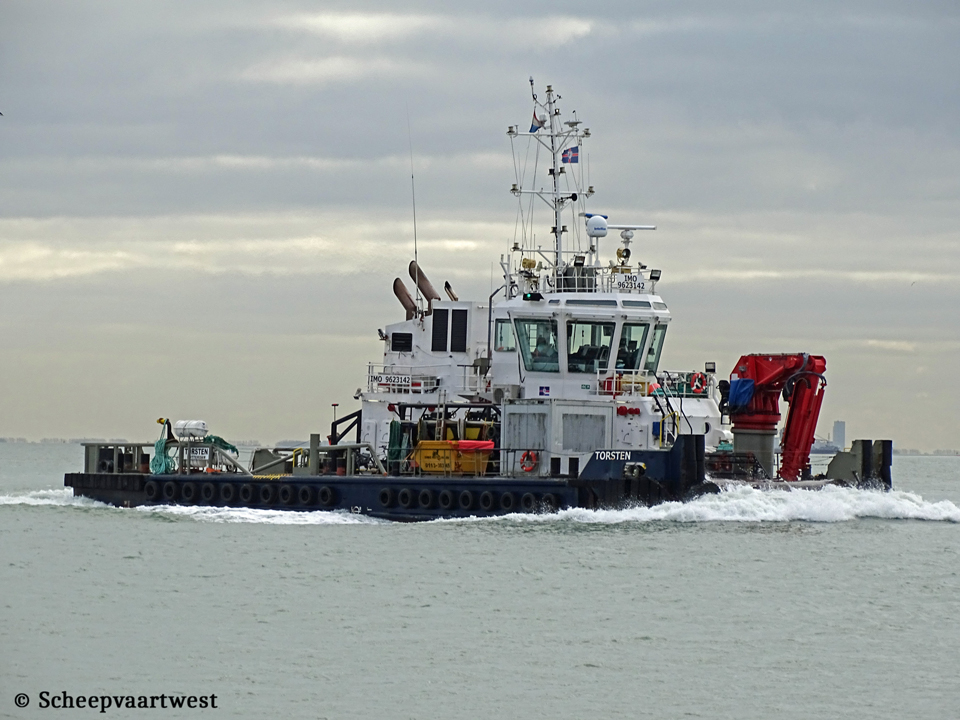

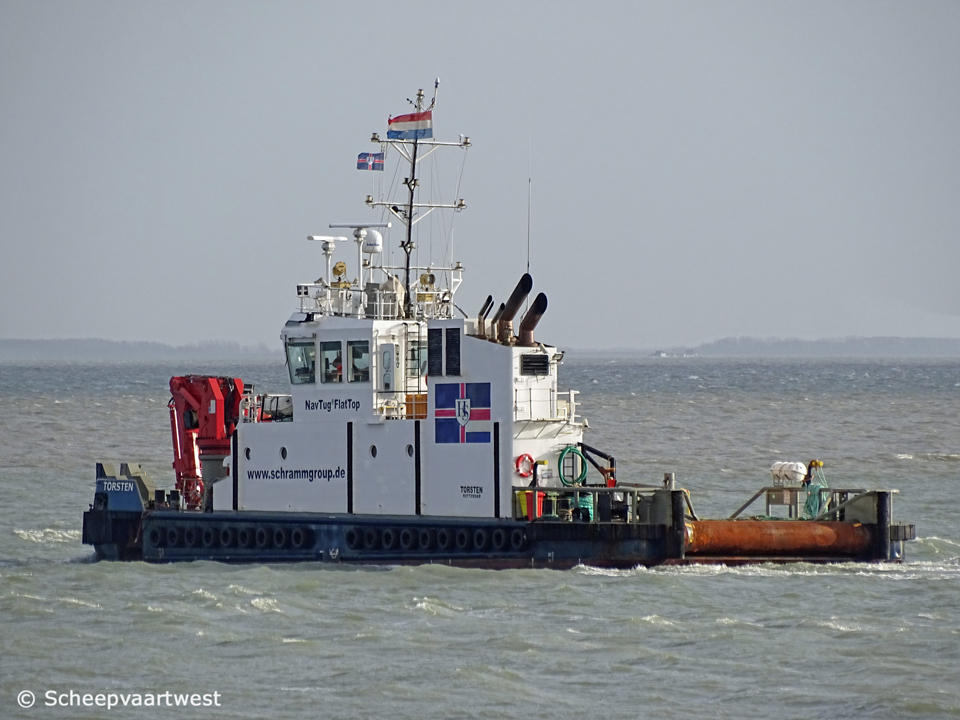

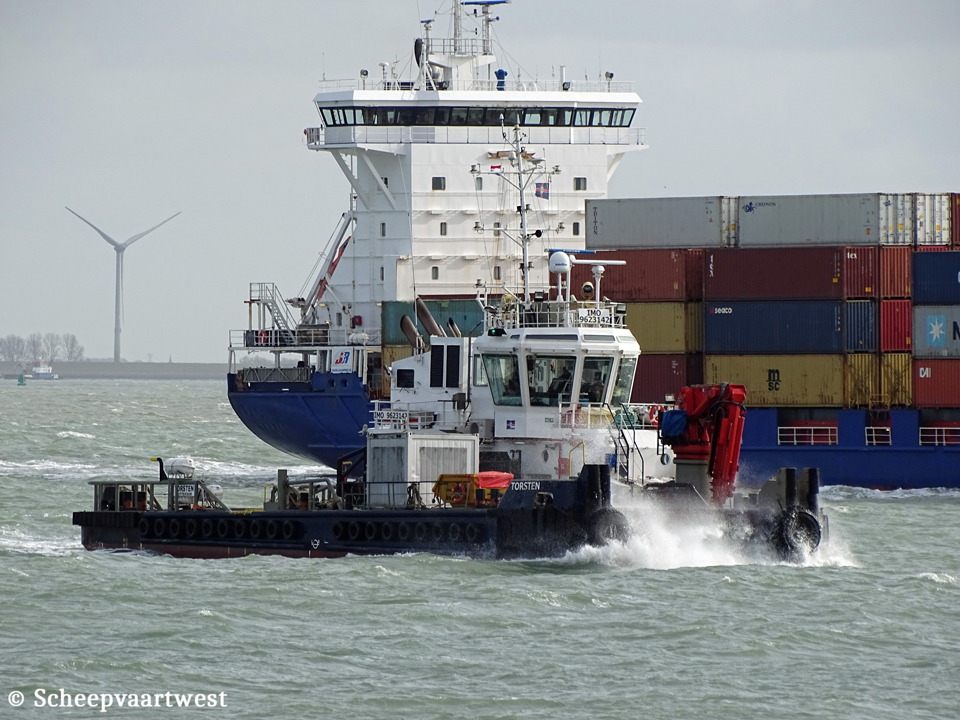

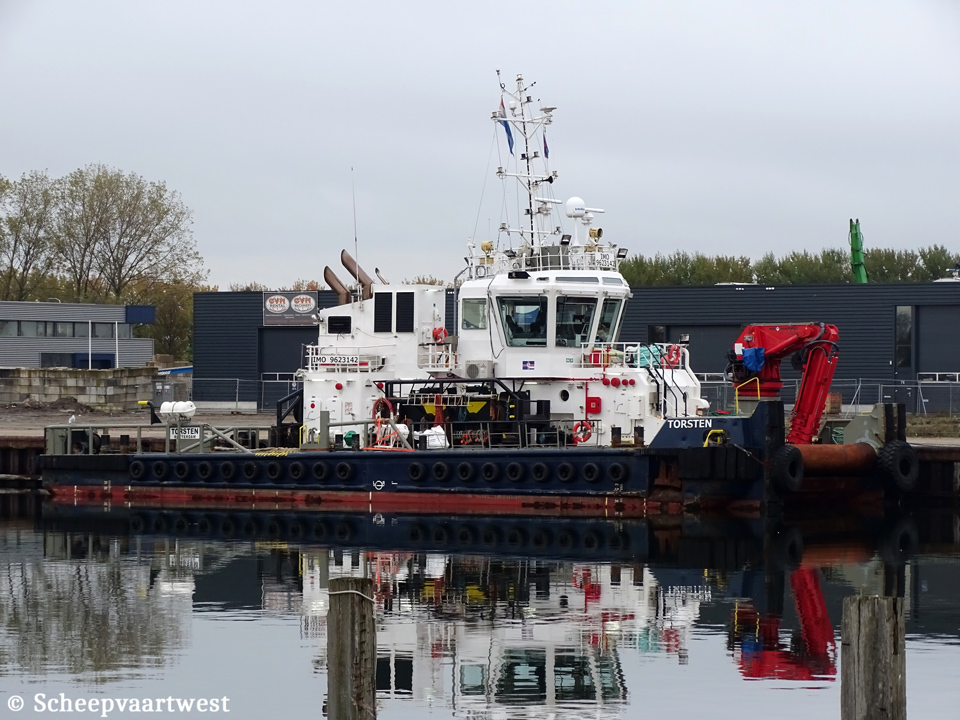

Torsten IMO 9623142 01   Torsten IMO 9623142 03   Torsten IMO 9623142 04   Torsten IMO 9623142 05   Torsten IMO 9623142 06
Vlissingen 03/11/19 Westerschelde 19/02/20   Westerschelde 14/12/19   Westerschelde 05/02/20   Westerschelde 05/02/20


Name

TORSTEN

Type

Tug / Pusher - Anchor handling/offshore service vessel

IMO-number

9623142

Classification

Lloyd’s Register of Shipping

Bureau Veritas

Call sign

PCLE

Flag

The Netherlands

Port of registry

Rotterdam

Previous flags

2012 - 2017 Saint Vincent & the Grenadines - Call sign: J8B4671

GT

364 t

DWT

Summer: 297 t

NT

109 t

Length

30,86 m overall

27,35 m between perpendiculars

Breadth

11,50 m moulded

Draught

Max: 3,00 m

Depth

4,15 m mopulded

Speed

Max: 12,7 knots

Built

2012

Keel laid

29/12/2010

Launch date

13/11/2011

Date of completion

09/03/2012

Builder

Sanmar Denizcilik Makina veTicaret A.S. (Gemsan Shipbuilding Industry)

Istanbul

Turkey

Yard number

55

Hull material

Steel

Nuber of deckls

1

Main engine

2x Caterpillar 3512 B-HD combustion engines each 1.425 kW at 1.600 rpm

Generators

2x MAN D2866LXE - 4 stroke 6 cylinder 128 x 155 mm diesel engines each 250 kW connected with generators each 245 ekW

Emergency & harbour gen.

1x Teksan 1103A-33TG diesel generatorset 36 KW

Towing equipment

  • 1x Hydraulic double drum combined AH an towing winch AH 80 t pull 250 m / 52 mm wire

  • Towing 25 t pull 750 m / 52 mm wire

  • 2x Hydraulic tugger winch 10 t pull, 100 m / 2 mm wire

  • 1x Deck crane 7,6 t @ 15,00 m

  • 1 x Hydraulic tow pin and sharkjaw unit SWL 2001

  • Bow/stern roller 7,00 m / SWL 123 t

Tank capacities

MGO: 150 m³

Fresh water: 30 m³

Technical water: 2x 25 m³

Sewage: 20 m³

Cargo gear

1x Deck crane - SWL 180 t

Navigational equipment

  • 2x Radar with ARPA + AIS overlay

  • 3x VHF/DSC

  • 1x MF/HF/DSC

  • 1x Inmarsat Mini C/DSC Gyro Compass

  • Autopilot

  • 2x DGPS Magn

  • Compass

  • Sat Compass

  • Speedlog

  • Echosounder

  • Electronical Chart System with AIS overlay

  • 1x Fleetcom

Operator

Sleepdienst H. Schramm B.V.

Nieuwe Vissershaven 7-2 I

8861 Harlingen

The Netherlands

Group

Schramm group

Manager

Hans Schramm & Sohn Schleppschifffahrt GmbH & Co. KG

Am Südufer

25541 Brunsbüttel

Germany

Registered owner

Commerz Real Mobilienleasing

2, Baudirektor-Hahn-Strasse

Cuxhaven 27472

Germany

Latest data adjustment

20 March 2022
