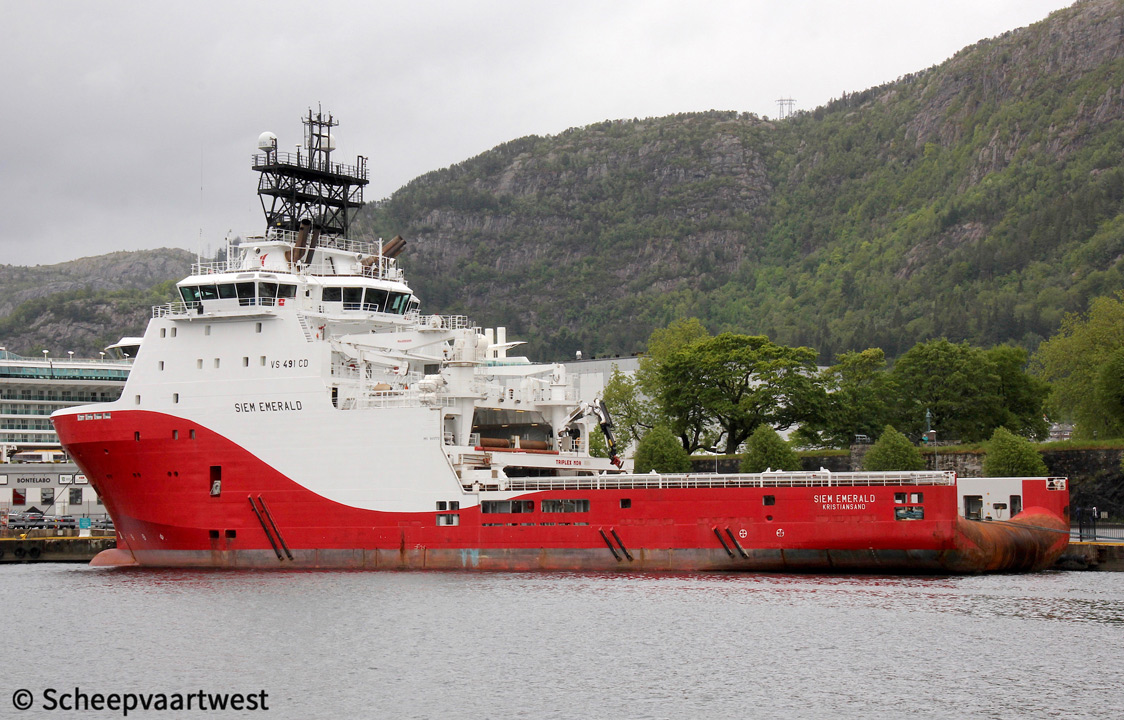

Bergen, Norway 29 May 2019 |
|
Name |
SIEM EMERALD |
|
Type |
Offshore anchor handling tug - Supply vessel Type VS 491 CD |
|
IMO-number |
9417701 |
|
Call sign |
LFAG |
|
Flag |
Norway |
|
Port of registry |
Kristiansand |
|
GT |
7.473 t |
|
DWT |
Summer: 4.250 t |
|
NT |
2.241 t |
|
Length |
91,00 m overall 79,35 m between perpendiculars |
|
Breadth |
22,04 m extreme |
|
Draught |
Max: 7,97 m |
|
Depth |
9,60 m to 1st deck 19,00 m to C-deck 24,40 m to bridge deck |
|
Speed |
Service speed economical: 10,0 knots Transit service speed - medium: 12,0 knots Transit service speed - high: 14,0 knots Transit full speed (long duration): 16,0 knots Max: 18,0 knots |
|
Built |
2009 |
|
Keel laid |
30/09/2008 |
|
Launch date |
24/07/2009 |
|
Date of completion |
10/12/2009 |
|
Builder |
Kleven Verft AS |
|
Yard number |
329 |
|
Hull material |
Steel |
|
Main engine |
2x Wärtsilä 16V32E/E2 - 16 cylinder combustion engine each 8.000 kW / 10.720 bhp at 750 rpm |
|
Electric propulsion engines |
2x AA QD 560 each 1.600 kW/ 2.144 bhp at 800 rpm |
|
Propellers |
2x Wärtsilä Lips 4E1190 controllable pitch propellers each 9.915 kW at 144,0 rpm Diameter: 4.200 mm |
|
Shaft generator |
2x Alcoza each 3.400 kW generators 720 rpm / 690 V |
|
Generators |
2x Caterpillar 3516C main diesel generatorsets each 2.100 kW / 2.814 bhp at 1.800 rpm |
|
Emergency generator |
1x Caterpillar C18 diesel generatorset |
|
Bow thruster |
2x Tunnel thruster Brunvoll each 1.000 kW / 1.340 bhp at 273 tpm 1x Azimuth Thruster Brunvoll 830 kW / 1.112 bhp at 364 rpm 2x Stern thrusters Brunvoll each 880 kW / 1.179 bhp at 280 rpm |
|
Bollard pull |
281 t |
|
Deck area |
45,20 x 18,00 m 813,6 m² |
|
Dry bulk |
291,3 m³ / 699,1 t |
|
Max deck load |
1.600 t |
|
Deck Strength |
10t /m² |
|
Equipment |
Anchor handling / towing winch: Brattvaag SL500W3 - Waterfall type AH winch: AH winch line pull: 500 t @ 16,70 m/min (1st layer) AH winch brake load: 550 t (first layer) AH winch drum capacity: 7.700 m - Diameter 76 mm AH wire on board: 2.500 m - Diameter 90 mm Tow/work winch: Tow/work winch line pull: 500 t @ 17,50 m/min (1st layer) work winch brake load: 750 t (first layer) Tow/work winch drum capacity: 2x 4.600 m - Diameter 76mm Tow wire on board: 1.500 m - Diameter 90mm Work wire on board: 300 m - Diameter 86mm Secondary winches: Secondary winch: 2x Brattvaag ALM63170U Secondary winch line pull: 170 t @ 23,00 m/min (1st layer) Secondary winch break load: 200 t Dynamic breaking at 70,00 m/min Secondary winches drum capacity: 2x 3.100 m - Diameter 160 mm synthetic or 2x 1.600 m - Diameter 203 mm synthetic or 2x 5.000m - Diameter 76 mm wire |
|
AH deck equipment |
Towing pins: RR, 2x 250 t SWL Shark jaws: RR, 2x 220 t SWL Shark Jaws: RR, 2x 800 t SWL Centering: Devise RR, 2x triangular plates in a common box. Max reach 1.00 m either side. Max 14,0 t @ 100 mm above deck Stern roller double stern roller: 2x diameter 4.000 mm x 4.000 mm 800 t SWL on each roller Tugger winches: 2x 24 t pull Capstans: 2x 14 t pull located Spooling sheave: RR, ID diameter 1.400mm, max diameter 90 mm wire, max diameter 125 mm chain. Max combined forces 100 t Pennant coiler: RR. hoist capacity: 8,0 t Pull @ 0-22,00 m/min 1st Layer |
|
Tank capacities |
Ballast Water: 2887,6 m³ Fresh Water: 1071,8 m³ Fuel Oil: 1223,8 m³ Liquid Mud :647,4 m³ Multi-purpose tanks: Brine / ORO :973,4 m³ Liquid Mud / ORO: 1296,5 m³ Base Oil (Special Product): 189,6 m³ Wax Inhibitor: 94,8 m³ |
|
Anchor equipment |
Length: 550,00 m Diameter: 54 mm |
|
Lifting equipment / Triplex MDH |
1x Gantry crane triplex MDH, travelling gantry crane 42,0 t for safe anchor handling and cargo operations - 4,75 m opening underneath 1x Triplex MDH Palfinger - SWL 27,5 t Max radius 22,50 m 2.400 kg 1x Triplex MDH manipulator crane - SWL 2,0 t @ radius 4,70 m. Max swing radius 5,50 m 1x Triplex MDH winch - SWL max 22,0 t. 72,00 m - diameter 32 mm wire 1x Triplex MDX wire clamp diameter 60 - 100 mm, clamping force 9,0 t 1x Deck crane STB Hydramarine - SWL 3,0 t @ 15,00m 1x Deck crane PS Hydramarine 10,0t @ 18,00 m |
|
Cargo discharge pumps |
Drill water / ballast water: 2x 150 m³/h Fresh water: 2x 150 m³/h Fuel oil: 2x 150 m³/h Dry bulk compressors: 2x 27 m³/min Brine / ORO: 2x 100/125 m³/h Liquid mud / ORO: 2x 100/125 m³/h Special product (base oil): 1x 75 m³/h |
|
Mob boat |
1x MP Weedo 700 FRC - 12 persons |
|
Accommodation |
Single cabins: 20 Double cabins: 20 Deck office: Yes Hospital: Yes Conference room: Yes Gymnasium: Yes Cooler room: 15,00 m² Freezer room: 13,00 m² Total: 60 persons |
|
Manager |
Siem Offshore AS |
|
Registered owner |
Siem AHTS Pool AS |
|
Previous owners |
Siem Offshore Rederi AS, Kristiansand - Norway |
|
Latest data adjustment |
08 September 2019 |
