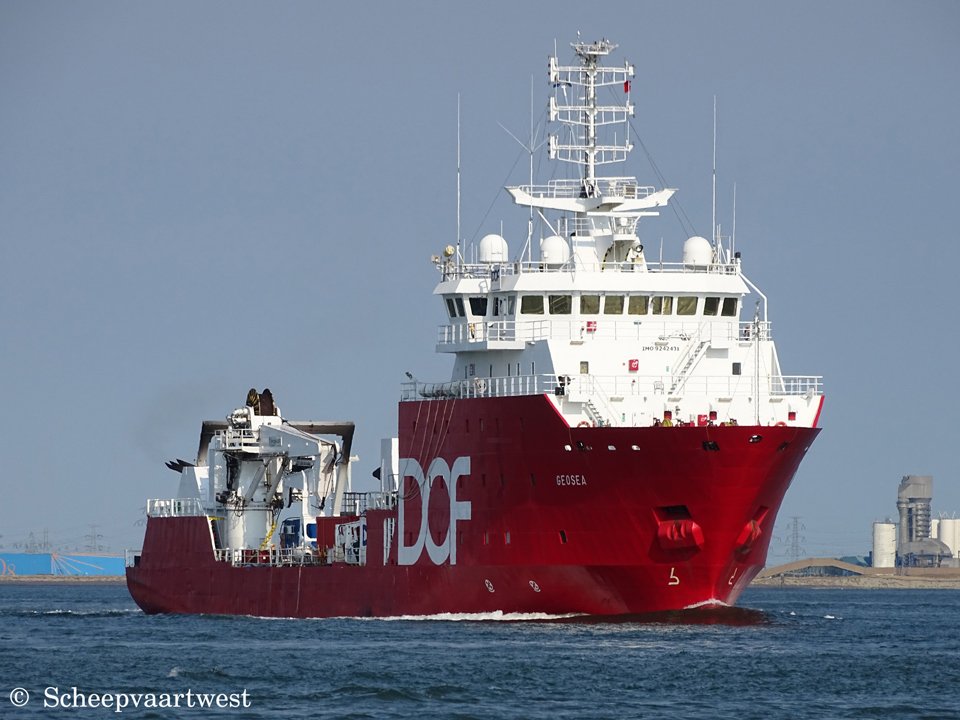

Westerschelde 01 August 2018 |
|
Name |
GEOSEA |
|
Type |
Support vessel |
|
IMO-number |
9242431 |
|
Call sign |
C6ZQ8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
Previous flags |
Republic of Singapore |
|
GT |
3.253 t |
|
DWT |
Summer: 1.853 t |
|
NT |
976 t |
|
Length |
84,80 m overall 76,23 m between perpendiculars |
|
Breadth |
15,03 m extreme |
|
Draught |
Max: 5,02 m |
|
Depth |
7,90 m |
|
Speed |
Max: 15,0 knots Service: 11,5 knots |
|
Built |
2002 |
|
Keel laid |
30/11/2000 |
|
Launch date |
20/08/2001 |
|
Date of completion |
19/04/2002 |
|
Builder |
Astilleros Gondan, S.A. |
|
Yard number |
416 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 5 |
|
Main engine |
4x Cummins KTA 50 (G3) (D) M combustion engine 1.220 kW each coupled with 4 Stamford HC-H734F1 generators 1.168 kW each - 440 Volt 60 Hz |
|
Azimuth thruster |
2x 883 kW each Rolls Royce, azimuth, variable speed |
|
Stern thruster |
2x 1.400 kW |
|
Generators |
2x Cummins KTA 19D (M) combustion engine 563 kW each at 1.800 rpm couples with 2 Stamford HCM534 E1 generators 460 kW each - 440 Volt 60 Hz |
|
Emergency generator |
1x Cummins 6CTA6,3 DM(G) diesel generatorset |
|
Deck area |
580 m² |
|
Deck strength |
5 t/m² |
|
Moonpool |
5,50 x 6,00 m optional |
|
Dynamic positioning system (DP) |
1x Kongsberg SDP 21, dual redundant DP 2x Kongsberg HiPAP (Dual mode) Tautwire (LTW) 3x DGPS (Seapath/gyroscope, Leica, CNAV) 1x Radius |
|
Helicopter deck |
19,50 x 19,50 m (Super Puma) |
|
Tank capacities |
Ballast: 6.598 m³ Fuel oil: 582 m³ Fresh water: 324 m³ |
|
Anchor equipment |
Length: 467,50 m Diameter: 38 mm |
|
Lifting equipment |
1x Hydralift knuckle boom crane - SWL 10,0 t |
|
Cargo gear |
1x Hydralift knuckle boom crane: 18,0 t / 2.000 m Anchor handling crane 40,0 t / 1.000m 30,0 t / 2.000 m |
|
Accommodation |
70 persons |
|
Number of cabins |
39 |
|
Life-saving equipment |
6x life rafts, capacity each: 25 persons 4x life rafts, capacity each: 20 persons 1x Norsafe Magnum rescue boat, inboard 240 hp diesel engine, Waterjet 1x Westdavit PL 3250 |
|
Navigation & instrumentation |
2x Furuno ARPA Radars 1x Skipper Navigation Echo Sounder 1x Simrad C-Map Electronic Chart System 1x Leica DGPS 2x SG Brown Gyroscopes 1x Simrad Autopilot AP Mk III |
|
Communications |
System in accordance with SOLAS requirements for GMDSS-A3 1x Nera Mini-M (Voice/Fax) 1x Schlumberger Rignet (V-Sat/C-band) optional 2x GSM mobile telephones |
|
Manager |
DOF Management AS |
|
Registered owner |
DOF Subsea Rederi AS 5006 Bergen |
|
Latest data adjustment |
12 January 2019 |
