Kristiansund, Norway 30 September 2017 |
 |
 |
|
| Kristiansund 30/09/17 | Kristiansund 30/09/17 | |
|
Name |

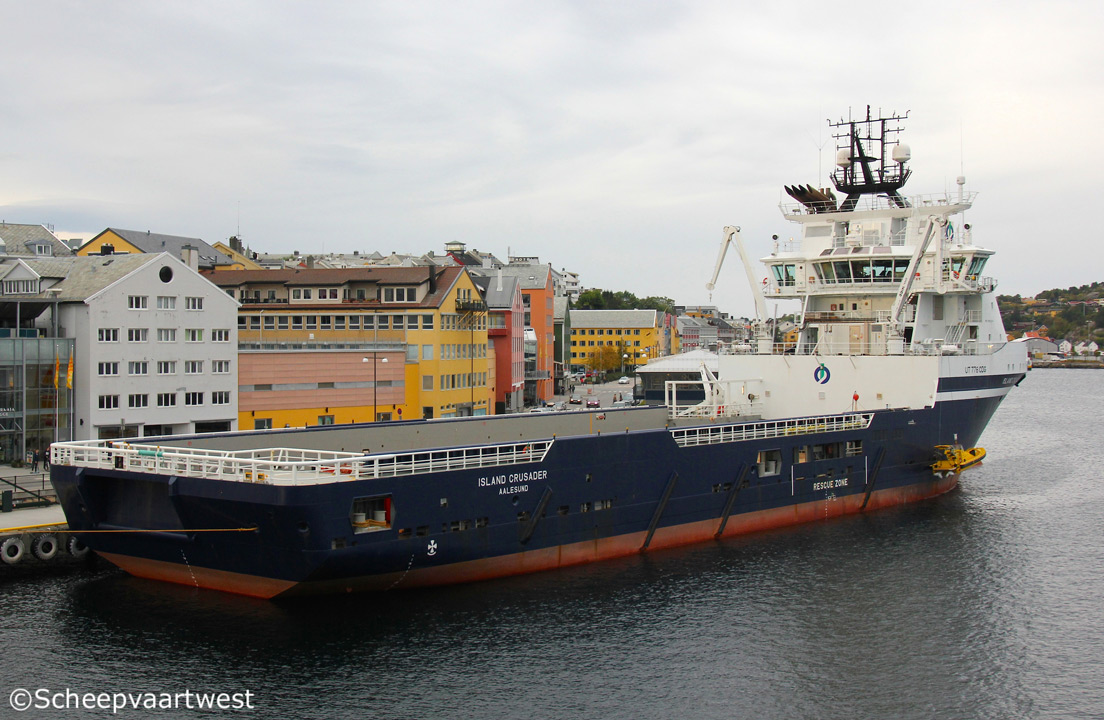

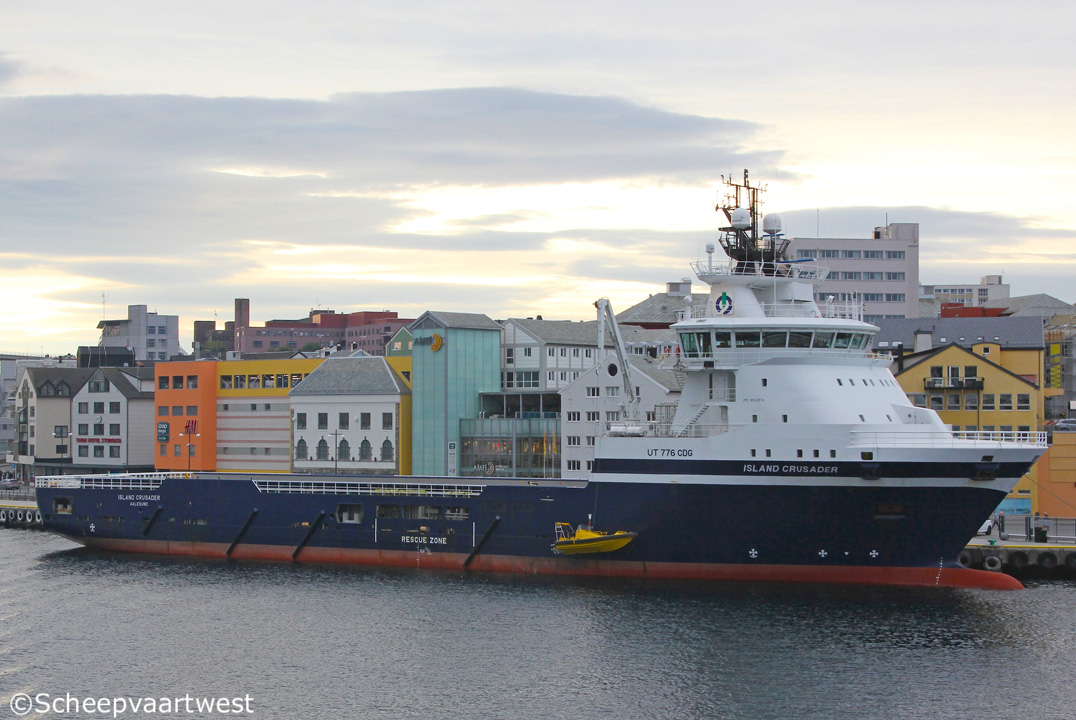

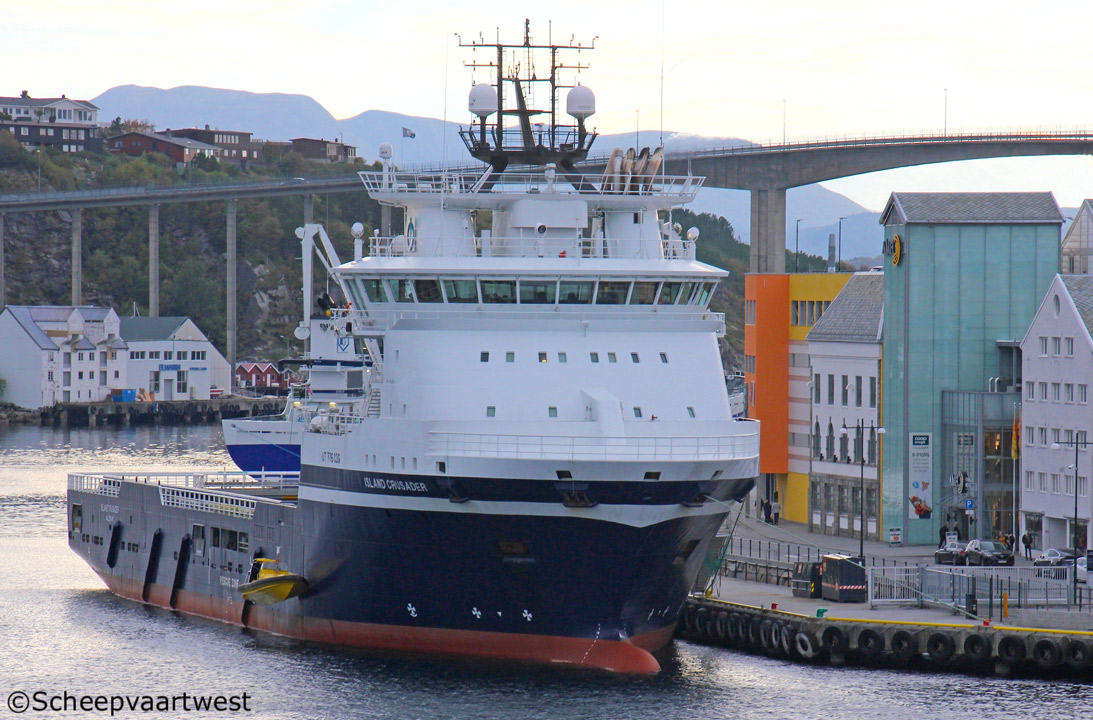

ISLAND CRUSADER |
|
Type |
Offshore supply vessel - UT 776 CDG |
|
IMO-number |
9602514 |
|
Call sign |
LCMH |
|
Flag |
Norway |
|
Port of registry |
Aalesund |
|
GT |
4.676 t |
|
DWT |
Summer: 4.750 t |
|
NT |
1.753 t |
|
Length |
96,00 m overall 82,75 m between perpendiculars |
|
Breadth |
20,00 m extreme |
|
Draught |
6,60 m |
|
Depth |
8,20 m |
|
Speed |
Max.: 16,5 knots |
|
Built |
2012 |
|
Keel laid |
28/02/2011 |
|
Launch date |
24/10/2011 |
|
Date of completion |
05/06/2012 |
|
Builder casco |
STX RO Offshore Braila SA |
|
Builder completion |
STX Norway Offshore AS |
|
Yard number |
765 |
|
Hull material |
Steel |
|
Main engine |
Diesel-/gas electric propulsion system: 2x Bergen C26:33L-9AG combustion engines (gas) each 2.190 kW coupled with 2 Marelli generators each 2.048 kVA 2x Bergen C25:33L-6ACD combustion engines (diesel) each 1.920 kW coupled with 2 Marelli generators each 2.311 kVA Builder: Bergen Engines AS |
|
Propulsion |
2x RRM Aquamaster AZP 120 controll pich propellers each 2.500 kW |
|
Boilers |
Auxiliary steam generator EO125 |
|
Emergency generator |
1x Scania DI16 55M diesel engine 405 kW coupled with Stamford generator Builder: Scania CV AB, Industrial & Marine Engines |
|
Bow thruster |
2x RRM TT2200 DPN CP each 883 kW 1x RRM Azimuth TCNS - 883 kW |
|
Deck area |
1.000 m² |
|
Deck capacity |
2.650 t |
|
Tank capacities |
Ballast: 1.932 m³ LNG: 230 m³ Diesel oil: 957 m³ Fresh water: 998 m³ Dril water: 1.857 m³ Cement: 311 m³ ORO: 2.202 m³ |
|
Anchor equipment |
Length: 522,50 m Diameter: 50 mm |
|
Lifting equipment |
2x Cranes - SWL 3,0 t at 12,00 m each |
|
Accommodation |
13 crew - 12 passengers |
|
Manager |
Island Offshore Management AS |
|
Registered owner |
Island Offshore VIII KS |
|
Latest data adjustment |
18 January 2018 |
