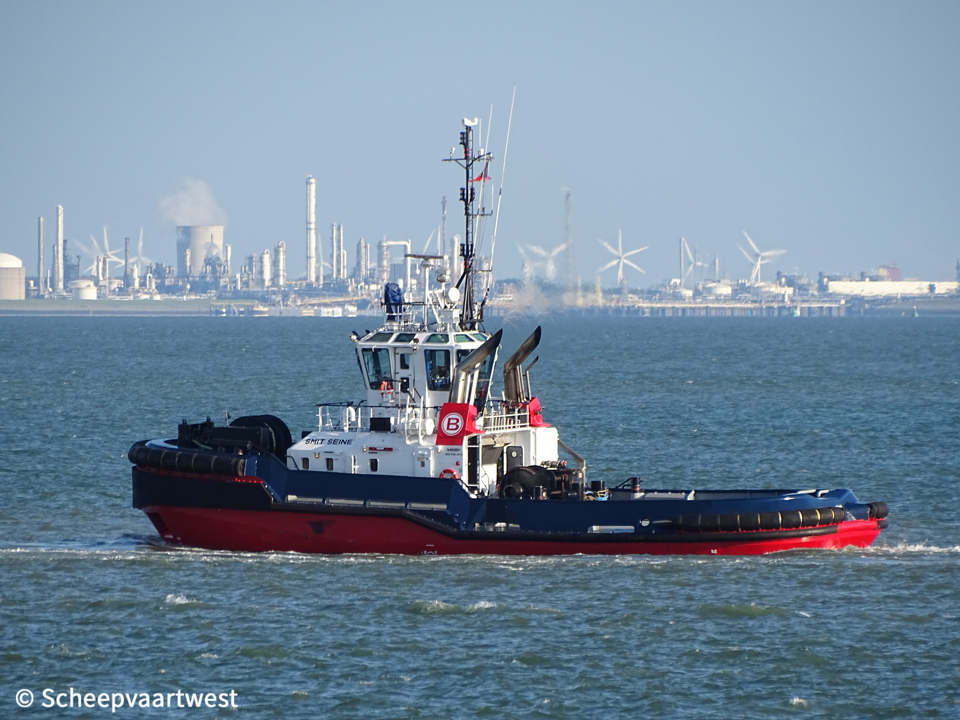

Smit Seine 03

Westerschelde 10 September 2019

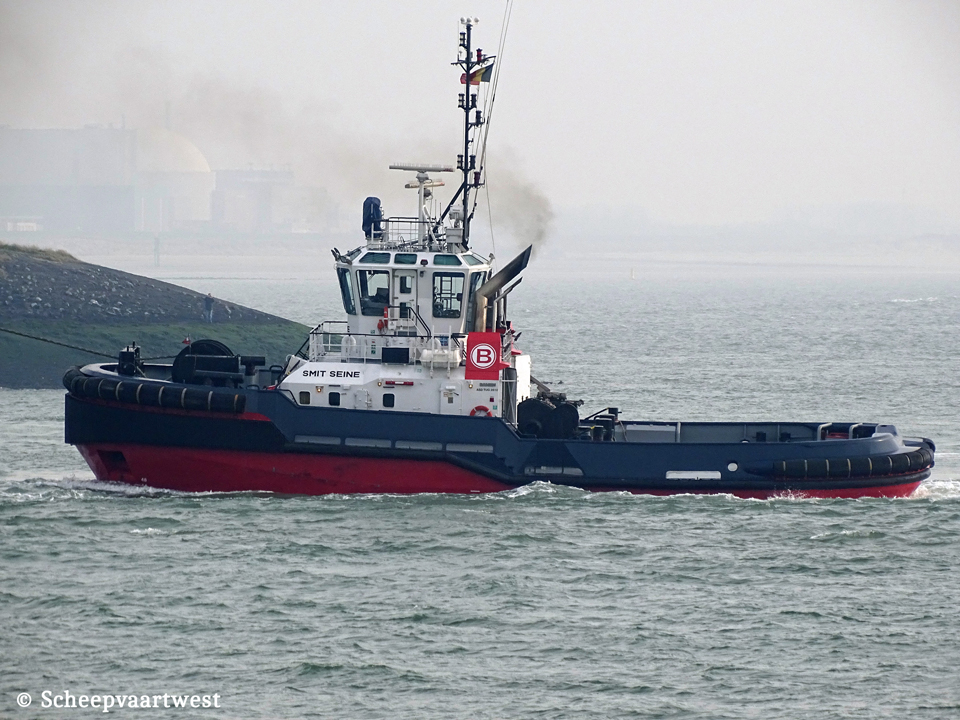

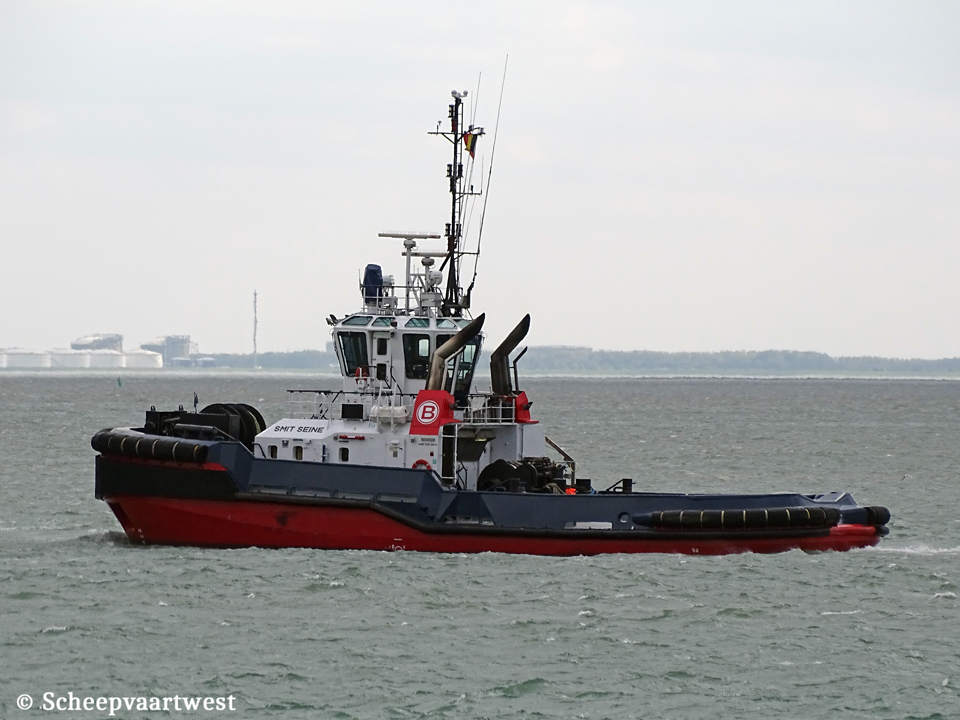

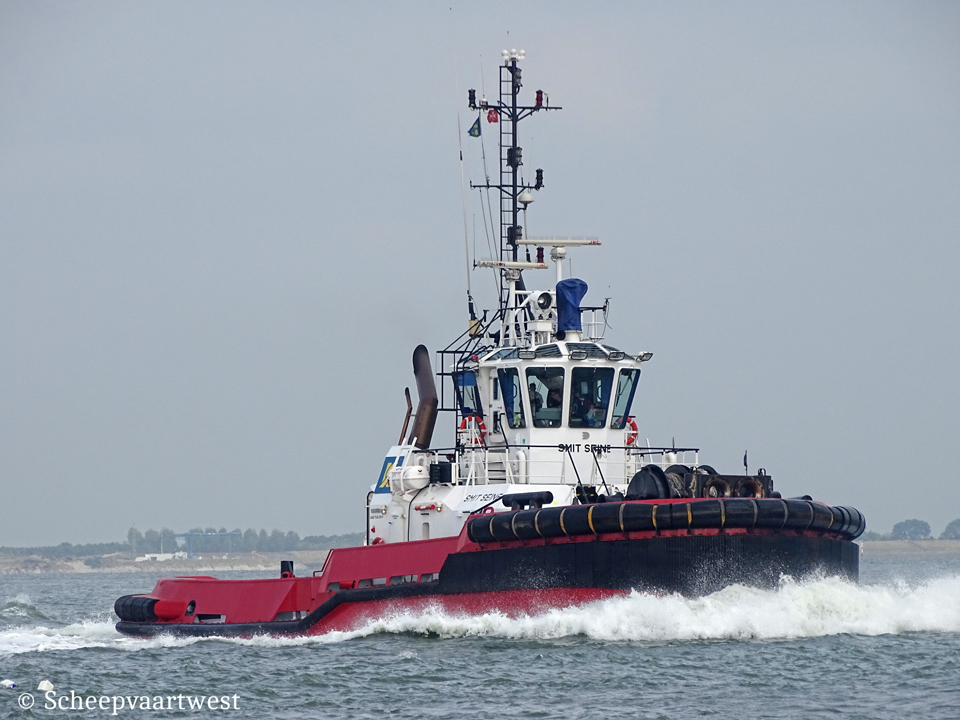

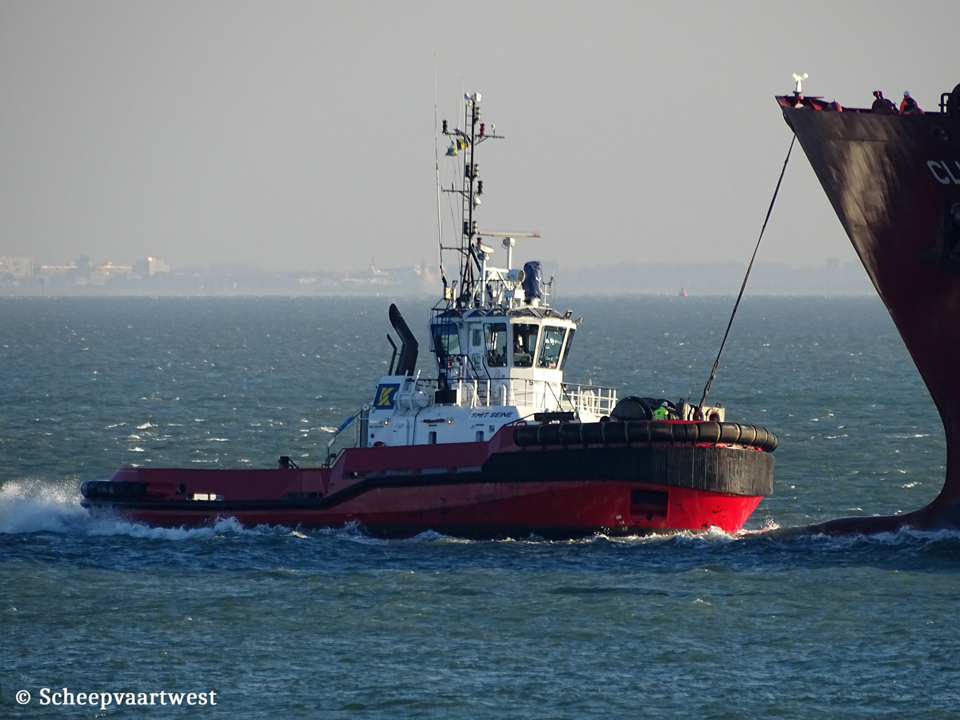

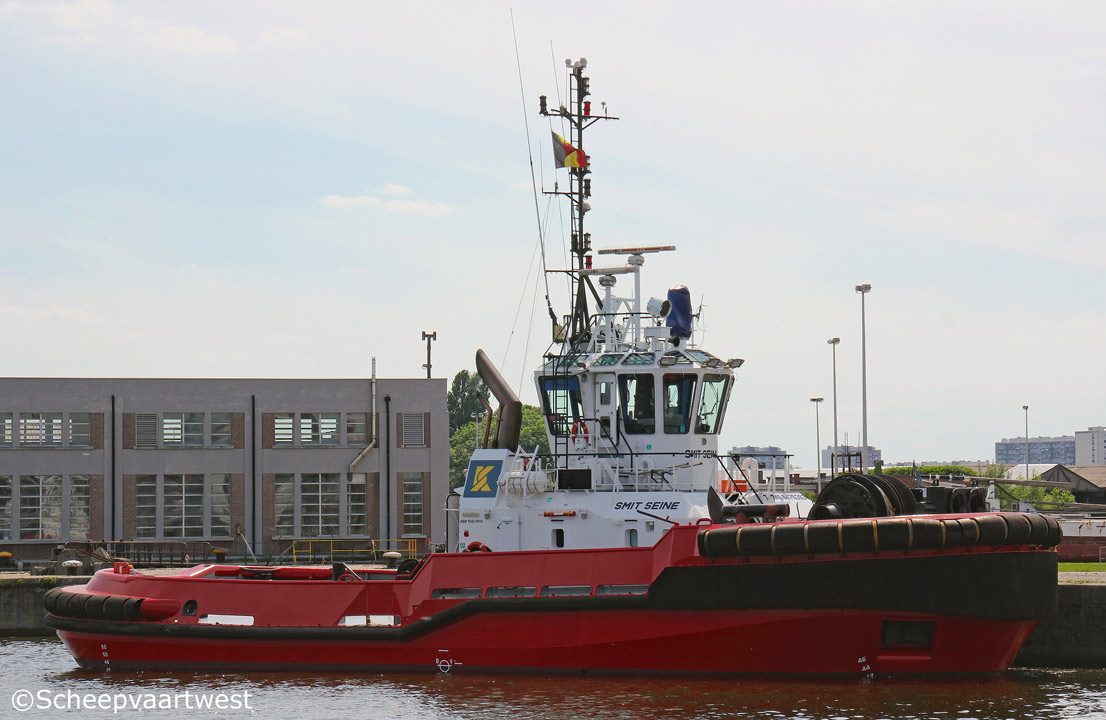

Smit Seine 02   Smit Seine 01   Smit Seine IMO 9476393 04   Smit Seine IMO 9476393 05   Smit Seine IMO 9476393 06
Westerschelde 15/08/18 Antwerpen 22/05/17 Westerschelde 13/10/19   Westerschelde 17/11/18   Westerschelde 05/12/19


Name

SMIT SEINE

Type

Harbour tug - Azimuth stern drive ASD 2810 Damen

IMO-number

9476393

Call sign

ORLP

Flag

Belgium

Port of registry

Gent

Previous flags

Bahamas, Nassau

Malta, Valletta - Call sign: 9HB4827

GT

285 t

DWT

Summer: 160 t

NT

85 t

Displacement

573 t

Length

28,67 m overall

25,78 m between perpendiculars

Breadth

10,43 m overall

Draught

Max.: 4,85 m aft

Freeboard

368 mm

Depth

4,60 m at sides

Speed

Max.: 14,0 knots

9,0 knots economic

Built

2009

Launch date

18/02/2009

Date of completion

06/07/2009

Builder

Damen Shipyards Galati

Romania

Yard number

511545

Hull material

Steel

Main engine

2x Caterpillar 3516 (C) DI-TA electronic - 4 stroke 16 cylinder 170 x 190 mm combustion engines total 3.678 kW / 4.930 bhp at 1.600 rpm

Built: 2008

Propellers

2x Rolls Royce US205 fixed pitch Azimuth Stern Drive propeller - aft at 267 rpm

Diameter: 2.400 mm

Generators

2x Caterpillar C4.4 TA main diesel generatorsets each 115 kVA - 92 kW - 150 hp / 230/400 Volt

Bollard pull

60 t ahead

57 t astern

Deck equipment

Fore winch hydraulic:

Double drum - 150 t brake load

Line pull 30 t @ 11,00 m/min. on 2nd layer

Towing hook: Mampaey, disc type, 65 t SWL

Aft winch hydraulic:

Single drum - 150 t brake load

Line pull 30 t @ 11,00 m/min. on 2nd layer

Tank capacities

Fuel oil: 100,1 m³

Potable water: 14,9 m³

Foam: 8 m³

Lub oil: 8,9 m³

Bilge water: 5,3 m³

Dispersant: 4,7 m³

Dirty oil: 3,1 m³

Sludge: 3,1 m³

Sewage: 2,2 m³

Anchor equipment

2x 360 kg Pool (High holding power)

Accommodation

Air-conditioned accommodation for 6 persons

Navigation & communication equipment

Searchlight: 2x Persh 1.000 W

Magnetic compass: Cassens & Plath Kotter

Echo sounder: JRC JFE380

VHF: DSC Sailor RT -5022

Radar: JRC JMA-5310/-6 + JMA-609

GPS: JRC NWZ-4451 JNAV 500

Operator

Boluda Towage Europe

Previous operator

Kotug Smit towage

Wilhelminakade 300

3007 GA Rotterdam

The Netherlands

Owner

SMIT Harbour Towage Division B.V.

3350 AA Papendrecht

The Netherlands

Registered owner

Smit Seine Limited

Group

Headquarters:

Boluda Corporacion Maritima

Paseo de Caro, s/n - Edificio Boluda

46024 Valencia

España

Renamed

2020 VB Seine

Belgium, Gent - Call sign: PRLP

Owner: Boluda Towage Europe

Latest data adjustment

23 January 2022
