| Spijkenisse, The Netherlands 05 March 2011 |
|
Name |

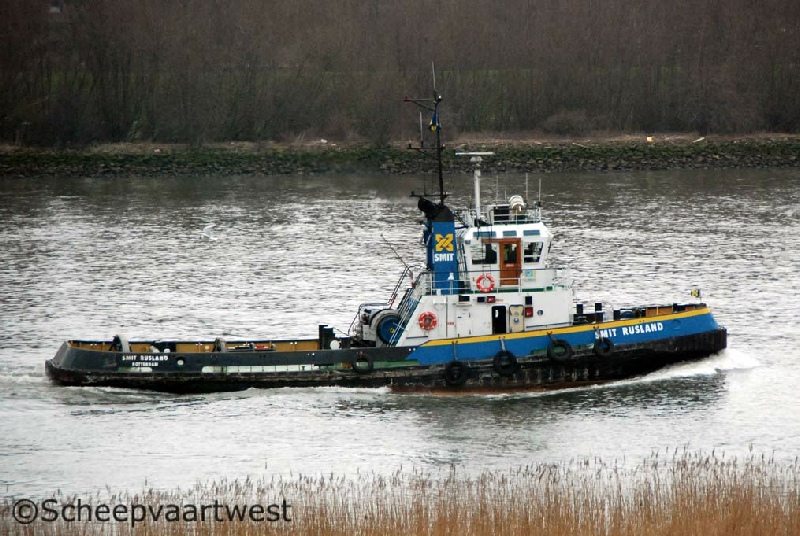

SMIT RUSLAND |
|
Type |
Tug boat - Coastal area |
|
IMO-number |
7800497 |
|
Official number |
617 |
|
Call sign |
PHNV |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
196 t |
|
NT |
58 t |
|
Length |
28,42 m overall 25,00 m between perpendiculars |
|
Breadth |
8,80 m overall |
|
Draught |
3,34 m |
|
Freeboard |
898 mm |
|
Depth |
4,20 m |
|
Speed |
12,60 knots |
|
Built |
1979 |
|
Launch date |
11.05.1979 |
|
Date of completion |
28.06.1979 |
|
Builder |
IHC Merwede Scheepswerf |
|
Yard number |
0623 |
|
Hull material |
Steel |
|
Watertight bulkheads |
5 |
|
Continuous decks |
1 |
|
Main engine |
2x Stork Werkspoor type 6FCHD240 - 4 stroke 6 cylinder 240 x 260 mm diesel engines - 1.820 hp / 1.340 kW at 1.450 rpm with nozzle Built: 1978 Manufacture: Stork Werkspoor, Zwolle - The Netherlands |
|
Gearbox |
2x Reduction gears |
|
Propelling system |
2x Promac screw propeller controllable pitch - at 250 rpm |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V |
|
Generators |
2x Volvo Penta diesel generatorsets each 38 kW - 62 hp - 47 kVA |
|
Deck equipment |
Towing winch Van der Giesen, IHC DMN, maximum pull 163 kN on third layer |
|
Bollard pull |
28,0 t ahead 16,3 t aft |
|
Tank capacities |
Fuel oil: 89 m³ Fresh water: 14 m³ |
|
Accommodation |
Accommodation for 6 people, fully air-conditioned |
|
Operator |
Smit Towage |
|
Owner |
27-03-2002 Smit Harbour Towage Rotterdam B.V. |
|
Previous owners |
03-07-1979 Smit-Vos B.V., Rotterdam - The Netherlands 22-06-1988 Smit Havensleepdiensten B.V., Rotterdam - The Netherlands |
