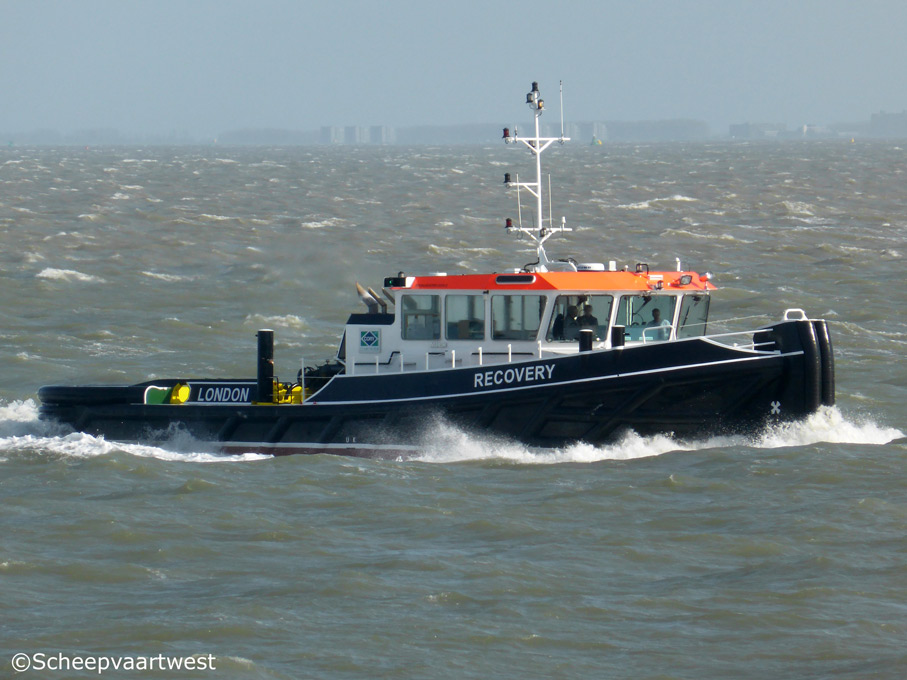

Recovery 03

Westerschelde 01 April 2015

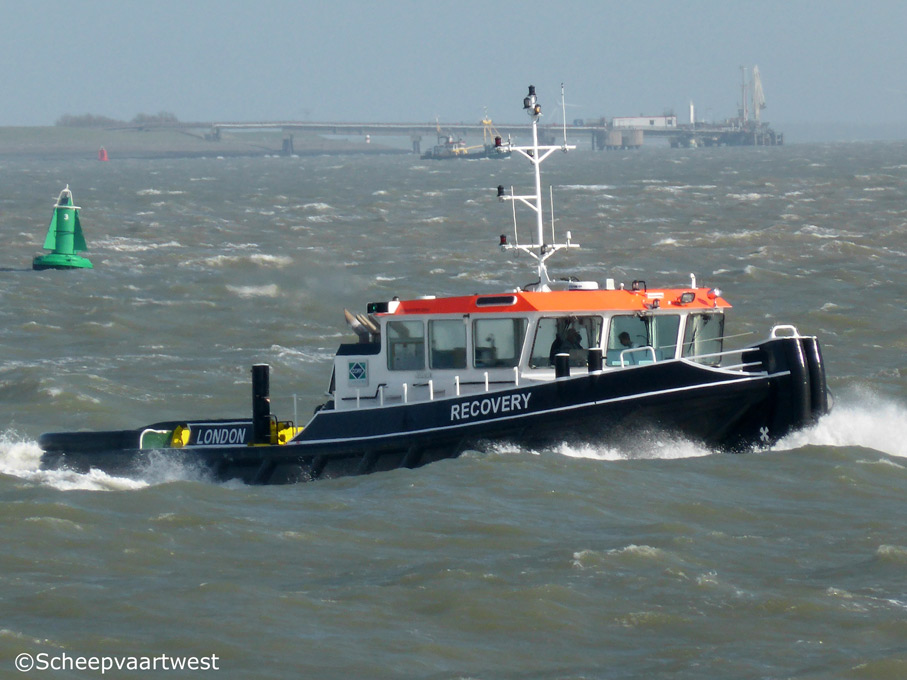

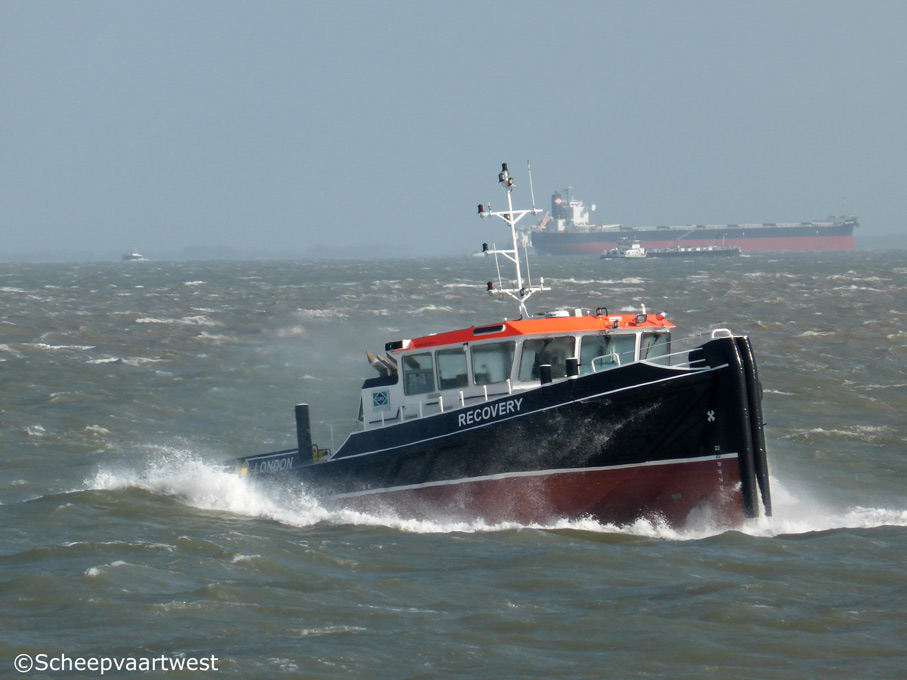

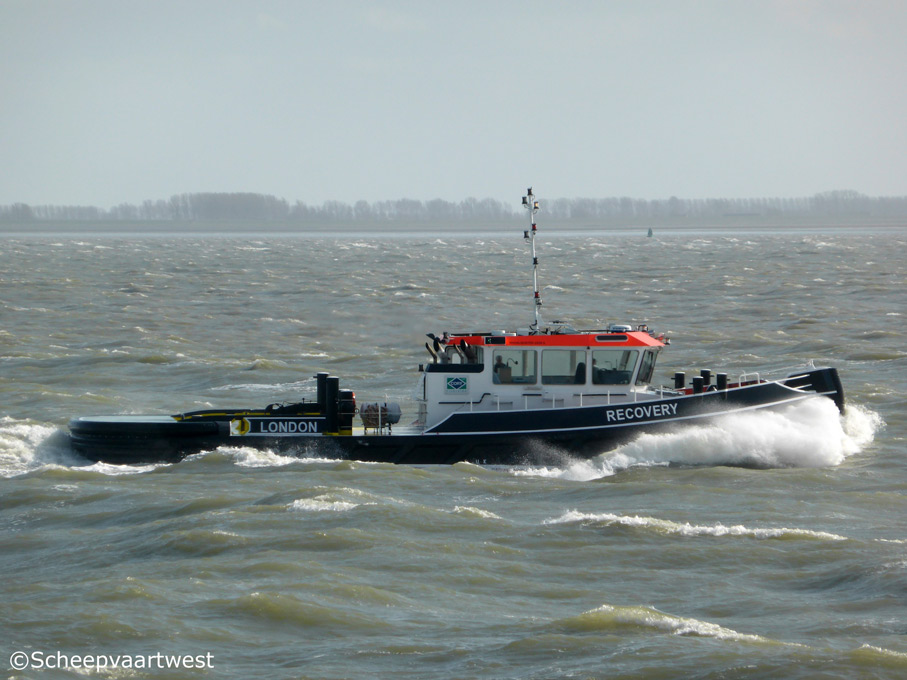

Recovery 05   Recovery 01   Recovery 02
Westerschelde 01/04/15 Westerschelde 01/04/15 Westerschelde 01/04/15


Name

RECOVERY

Type

Tug - Shoalbuster 2208S

Call sign

2DGB2

Flag

United Kingdom

Port of registry

London

Displacement

160 t

Length

22,65 m overall

Breadth

8,00 m moulded

Draught

Max.: 2,00 m aft

Air draft

4,30 m

Depth

2,99 m at sides

Speed

10,9 knots

Built

2010

Delivery date

06.2010

Builder

Damen Shipyards
Hardinxveld
The Netherlands

Yard number

571602

Hull material

Steel

Main engine

2x Caterpillar 3412E TA/A diesel engines each 896 bkW / 1.200 bhp at 1.800 rpm

Propellers

2x Promarin fixed pitch propellers diameter 1.500 mm each with Van der Giessen Optima nozzles

Gearbox

2x Reintjes WAF 364L gearboxes with a 4.29:1 reduction

Generators

2x Caterpillar C-04.4 NA diesel generatorsets each 43,75 kVA 230/400 Volt 50 Hz

Bow thruster

1x Hydraulically driven transverse bow thruster 100 bhp

Hydraulic set

1x Caterpillar 3056 TA - 118 kW at 1.800 rpm

Bollard pull

16,3 t

Deck lay-out

Anchor: 1x 150 kg Pool (HHP)

Chain: 17,5 mm stud-link anchor chain 70,00 m

Towing hook: Mampaey - SWL 25 tons

Tank capacities

Fuel oil: 44,00 m³

Dirty oil: 3,50 m³

Lubrication oil: 1,00 m³

Fresh water approx: 6,90 m³

Sewage: 2,80 m³

Bilge water: 1,00 m³

Accommodation

Heated and air-conditioned day accommodation for 6 persons, consisting of a galley, mess, changing room and sanitary facilities

Navigation equipment

Electromagnetic compas: 1x Radio Zeeland, Sigma 345

Radar: 1x Navnet Radar with 24” radome radar

sensor type DRS4D

Chart system: 1x Transas Navi Sailor 4000 ECS

Echosounder: 1x Furuno FCV-620

VHF radio telephone: 2x Furuno RT2048

Handheld VHF: 2x Motorola, GP-340

GSM: 1x Motorola, M930

Intercom: Radio Zeeland, Sigma-700

CCTV: 2x Orlaco, compact color camera

Owner

Cory Environmental

London
United Kingdom

Latest data adjustment

13 November 2016
