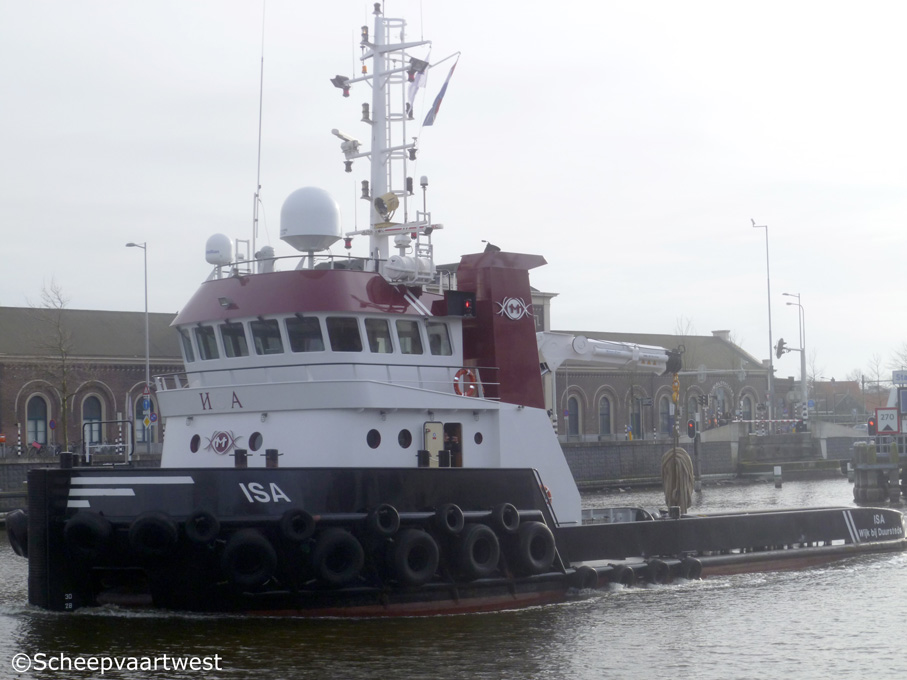

Isa 01

Middelburg, The Netherlands 07 March 2014

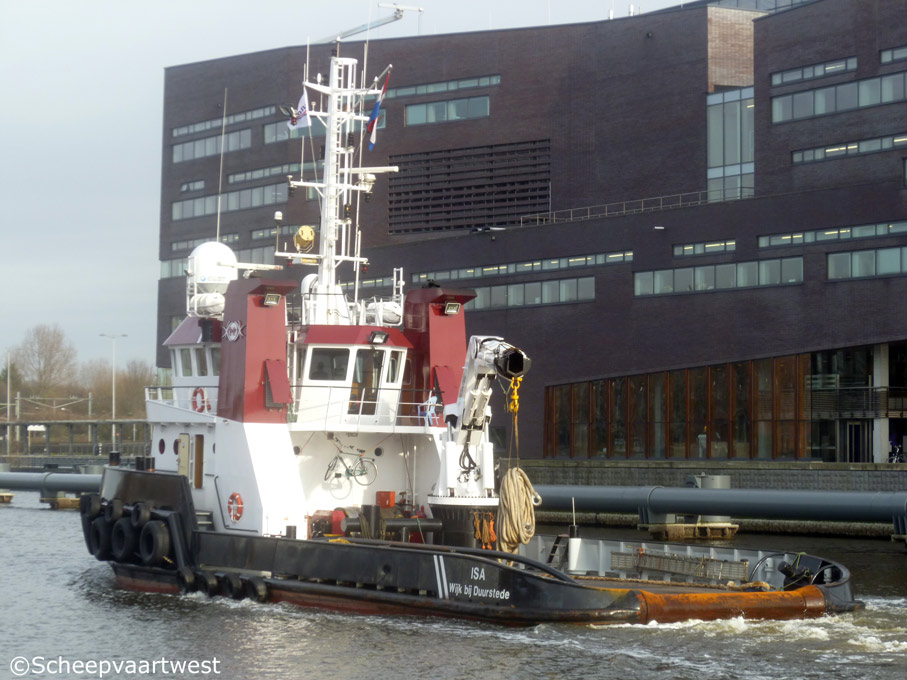

Isa 02
Middelburg 07/03/14


Name

ISA

Type

Multi purpose anchor-handling tug / Workboat

IMO-number

9394038

Call sign

PISA

Flag

The Netherlands

Port of registry

Wijk Bij Duurstede

GT

239 t

DWT

Summer: 50 t

Length

29,80 m

Breadth

9,65 m

Draught

Max.: 2,95 m

Depth

3,10 m

Built

2007

Keel laid

2006

Launch date

03.02.2007

Date of completion

19.02.2007

Builder Casco

Scheepswerf Gebroeders Kooiman
Zwijndrecht

The Netherlands

Builder completion

Scheepswerf Hoebée BV
Dordrecht
The Netherlands

Yard number

175

Hull material

Steel

Continuous decks

1

Main engine

2x Mitsubishi S16R-MPTA 4 stroke single acting 16 cylinder 170 x 180 mm diesel engines each 1.170 kW / 1.591 hp at 1.600 rpm

Built: 2006

Manufacturer: Mitsubishi Heavy Industries Ltd.

Gearbox

2x Reverse reduction gears Reintjes WAF 763 - reduction 5.750 : 1

Propellers

2x Fixed propellers + Nozzles at 278 rpm
Van Voorden diameter 2.100 mm - 4 blades

Rudders

4x Fishtail rudders - 2 fishtail rudders behind each propeller

Electric installations

380/230 Volt

Generators

2x John Deere 4045TF - 4 cylinder 160 x 127 mm diesel engine 63 kW at 1.500 rpm coupled with Stamford generator each 65 kVA

Built: 2006

1x Mitsubishi S6R-MPT - 6 cylinder 170 x 180 mm diesel engine 335 kW at 1.500 rpm coupled with Stamford generator 400 kVA

Built: 2006

Manufacturer: Mitsubishi Heavy Industries Ltd.

Bow thruster

1x Veth 165 kW /

1x Veth type VT-150 tunnel thruster 224 hp at 1.500 rpm with E-motor 160 kW

Bollard pull

45,4 t

Towing equipment

1x Maaskant hydraulic towing winch with a pulling force of approx 40 t, holding force 60 t

2x Drums one with 700 m of 38 mm steel wire - one with 400 m 38 mm steel wire

Stern roller, hydraulic towing pins SWL 30 t

Rubber fenders push bow

Free deckspace

120 m² with 20" feet container fittings, reefer plug available

Fuel transfer pump

25 m³/h

Fresh water transfer pump

25 m³/h

Fuel separator

2x Alfa-laval 5000 ltr / 24 hrs each

Fresh water maker

3.500 ltr / 24 hrs

Tank capacities

Diesel oil: 115 m³

Fresh water: 37 m³

Sewage: 12,5 m³

Dirty oil: 1,9 m³

Lub oil: 2,2 m³

Hydraulic oil: 0,8 m³

Lifting equipment

1x Heila type HLRM deck crane - SWL 9,5 ton @ 15,75 m

Crew

5 persons

Accommodation

8 Persons fully airconditioned

Navigation equipment

1x JRC JMA 5310-6 Radar
1x JRC JMA 609 Radar
1x AIS Receiver
1x Alphatron Minicourse Gyro Compass
1x Anschütz NP60 Auto Pilot
1x Alphatron Alphapilot MC River Pilot
1x Alphatron Alpharudder MC Rudder Angle Indicator
1x Alphatron Alphaturn MC Rate of Turn Indicator
1x Cassens & Plath Magnetic Compass
1x JRC JLR-10T Satellite Compass
1x Furuno Echo Sounder
1x Simrad GN-33 DGPS
1x Alphatron Alphacall Intercom
2x Sailor RT5022 VHF
1x Sailor RT2048 VHF
4x McMurdo R2 Handheld VHF
1x Sailor 4000 MF/HF Radio
2x Sailor TT3000E Inmarsat C
1x JRC NCR-333 Navtex
1x Sailor Mini-M Satellite Telephone
1x Alphatron Alphachart Electronic Nav. Chart System
1x Alphatron Alphawind Windmeasuring System

Owner

V.O.F. Sleepboot Isa

Tugboat ISA

Molenakker 16

3962 HJ Wijk bij Duurstede

The Netherlands

Latest data adjustment

15 January 2016
