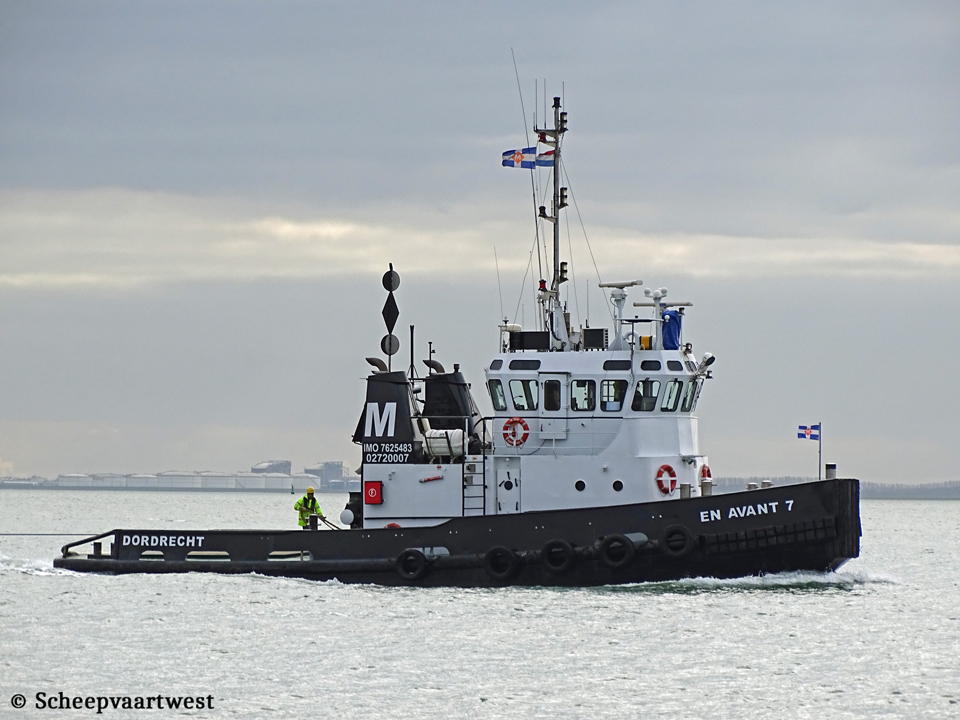

EN Avant 7 IMO 7625483 11

Westerschelde 05 February 2020

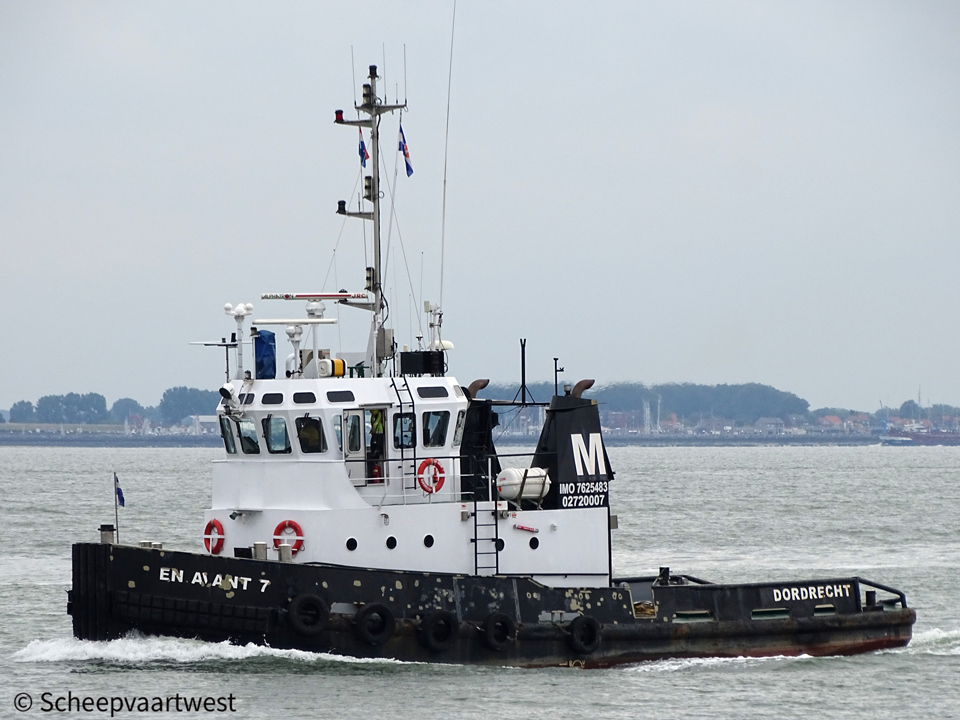

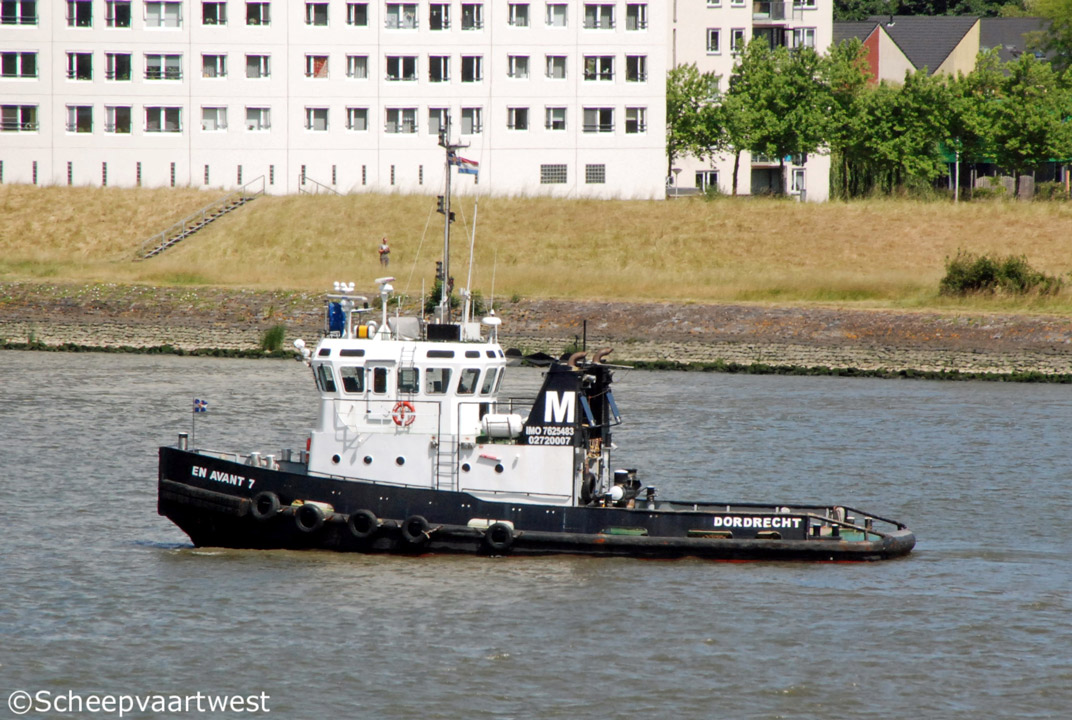

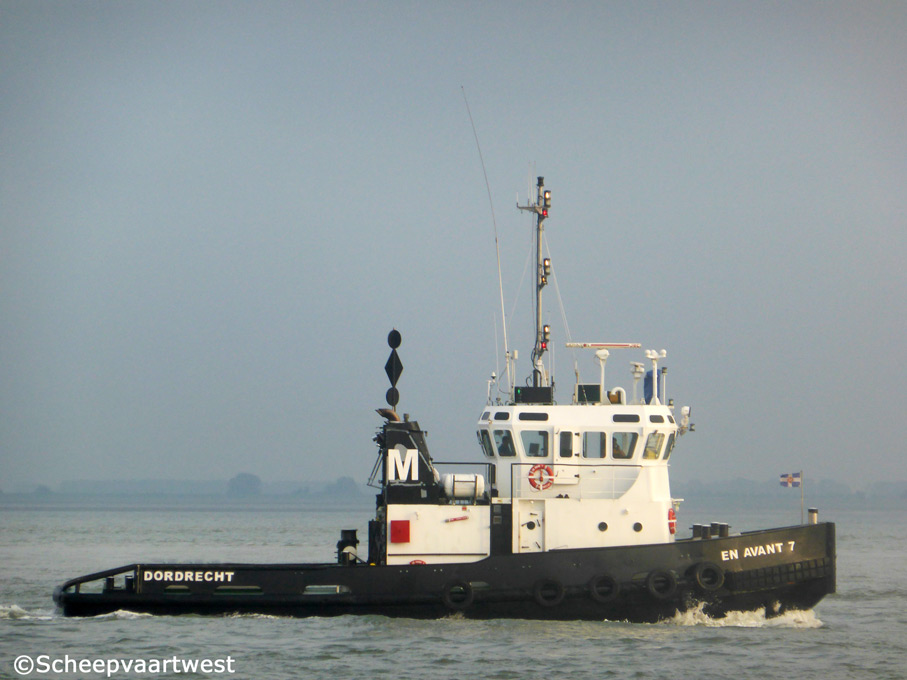

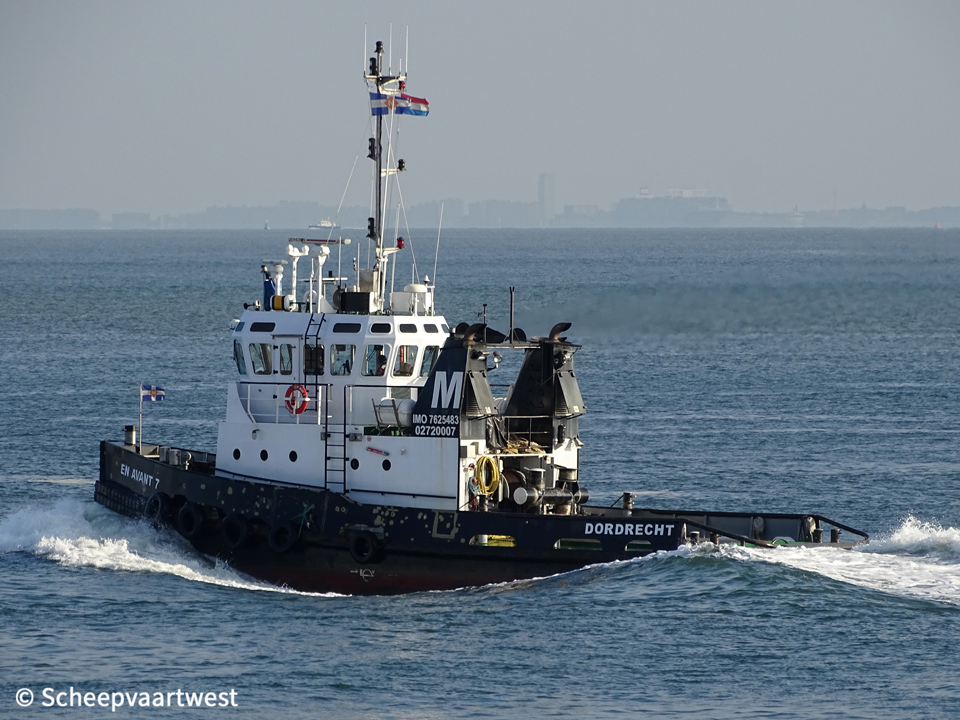

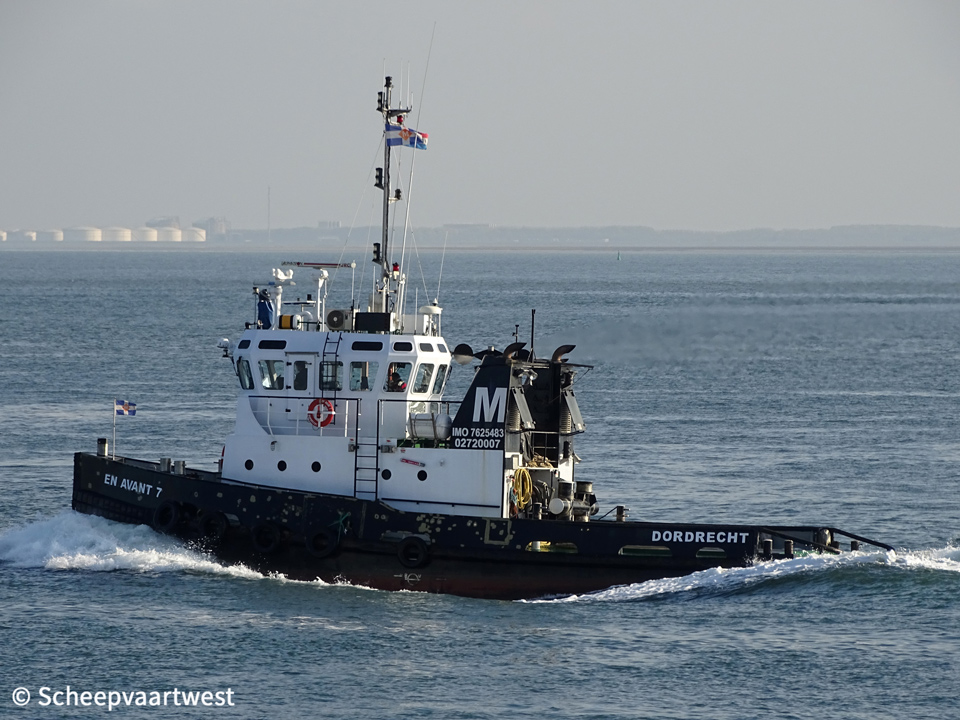

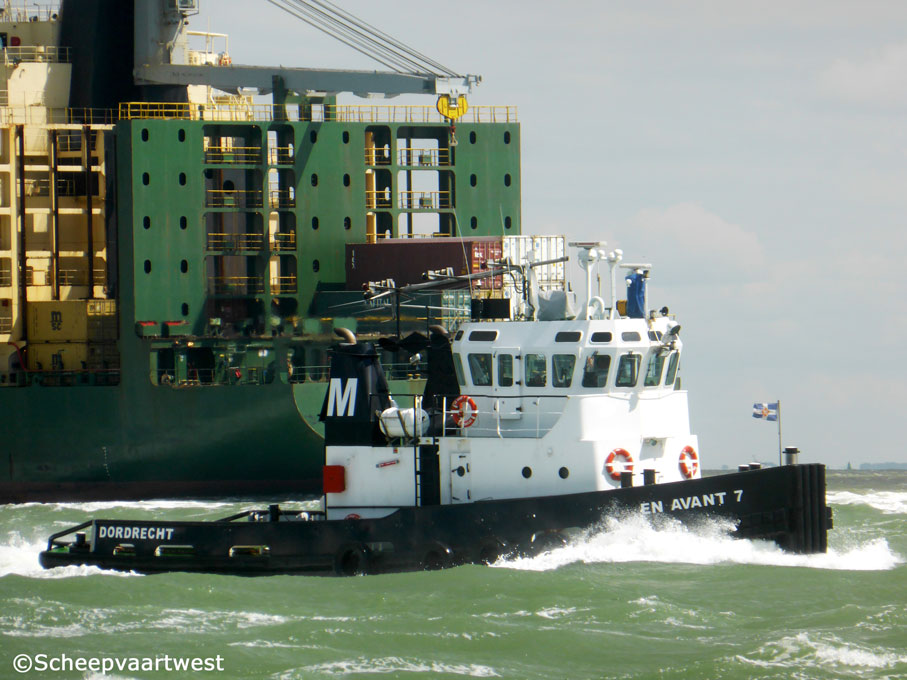

En avant 7 02   En Avant 7 03   En Avant 7 07   En Avant 7 05   En Avant 7 06   En Avant 7 04
Westerschelde 24/05/14 Westerschelde 12/07/14 Westerschelde 19/10/18 Westerschelde 20/08/18   Westerschelde 19/10/18    Spijkenisse 26/06/17

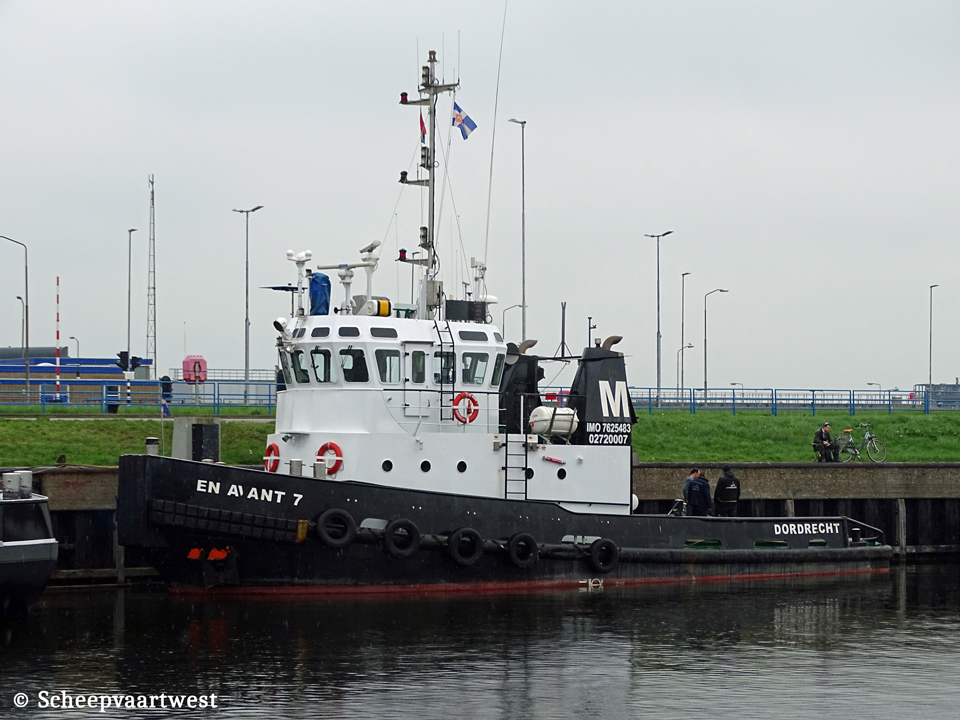

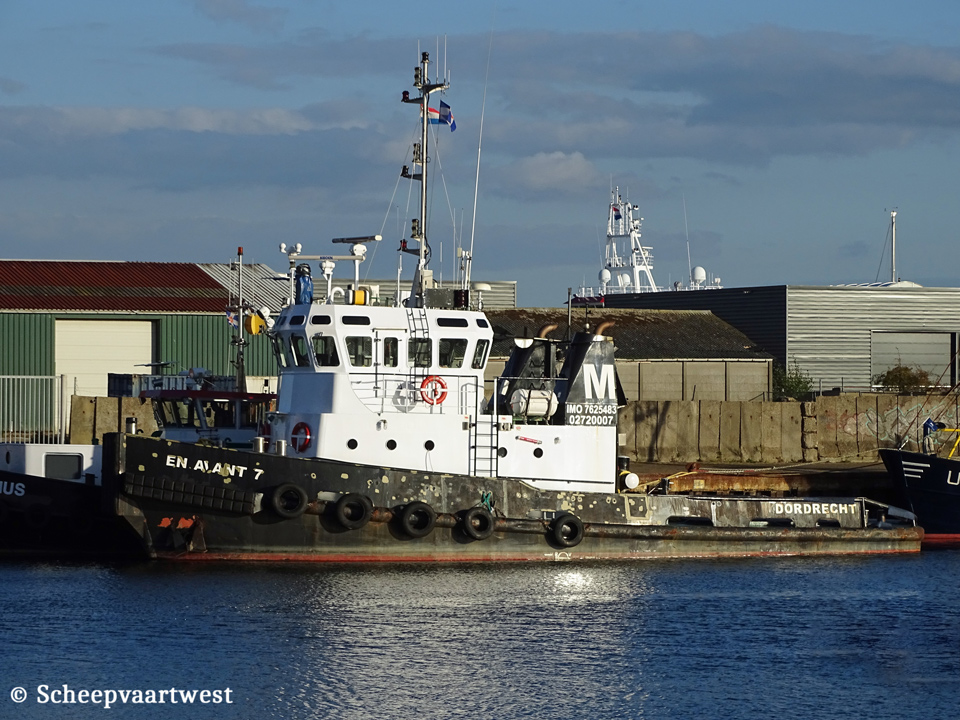

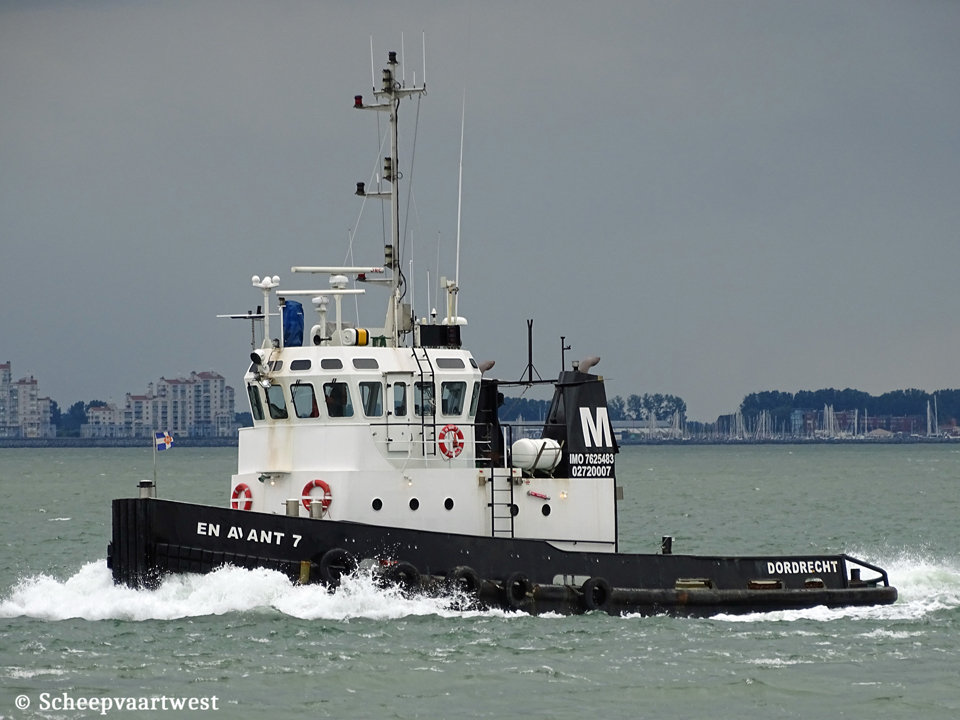

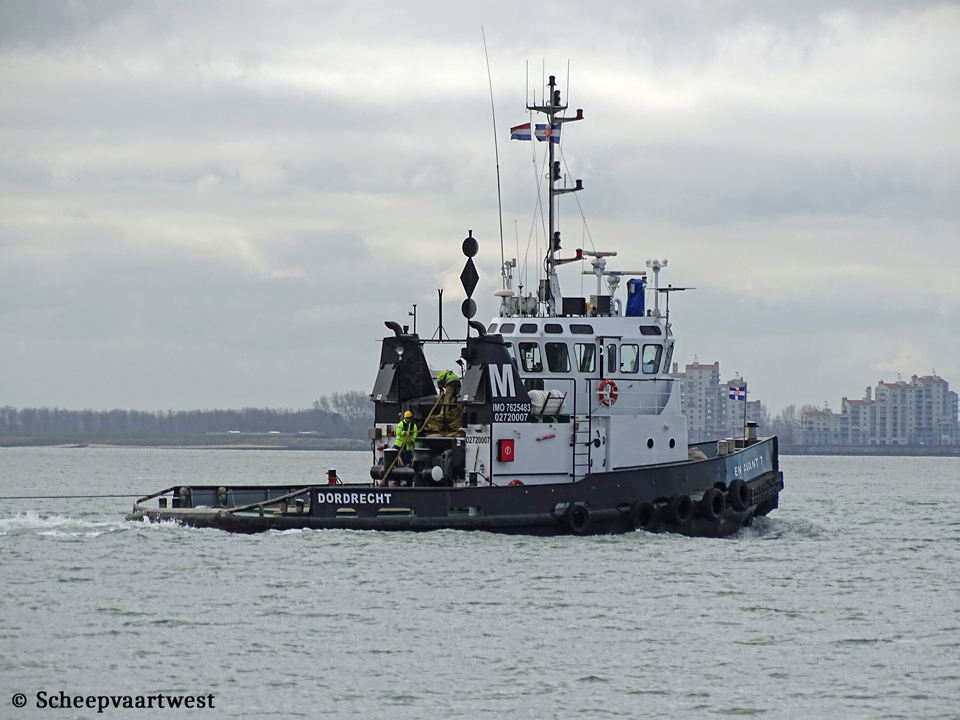

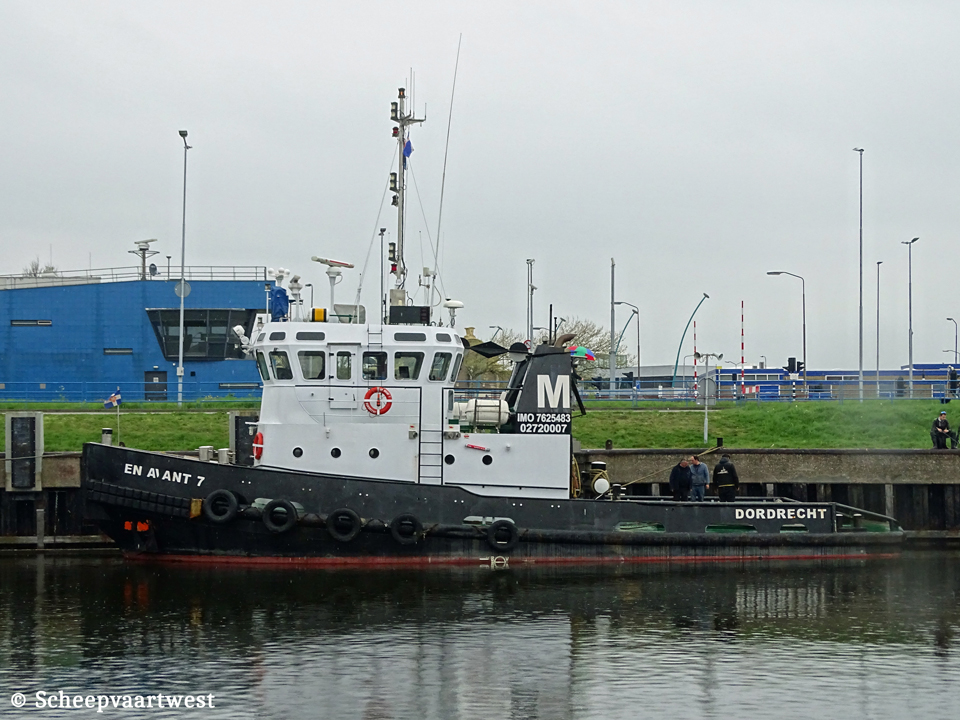

En Avant 7 IMO 7625483 08   En Avant 7 IMO 7625483 09   En Avant 7 IMO 7625483 10   EN Avant 7 IMO 7625483 12   En avant 7 01   En Avant 7 IMO 7625483 14
Vlissingen 28/09/18   Vlissingen 29/04/18   Vlissingen 29/04/18   Westerschelde 05/02/20   Westerschelde 24/05//14   Westerschelde 10/08/17

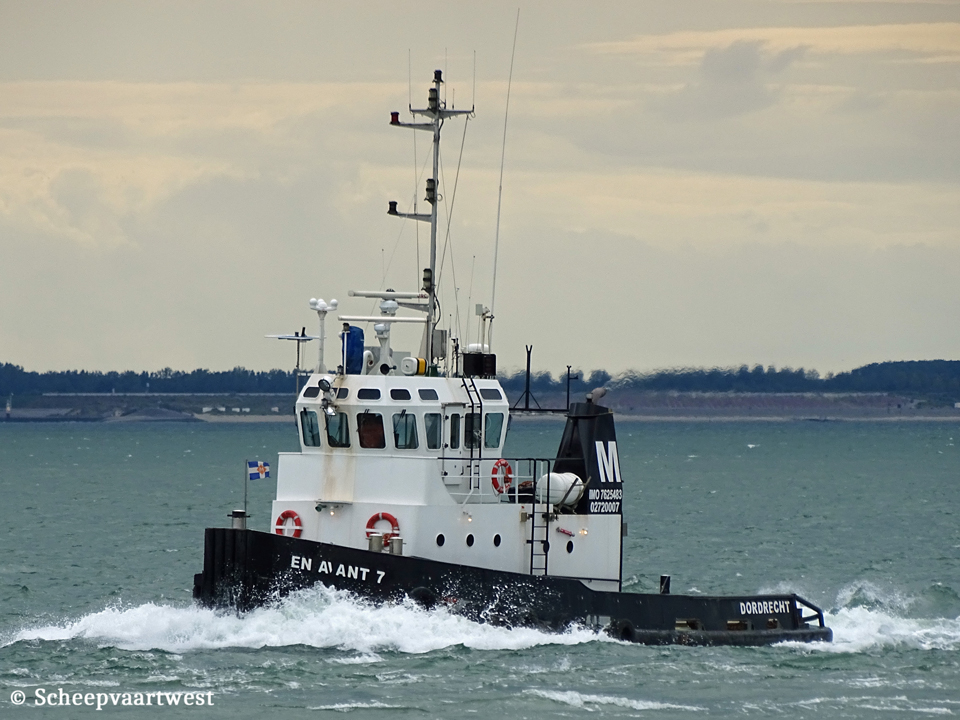

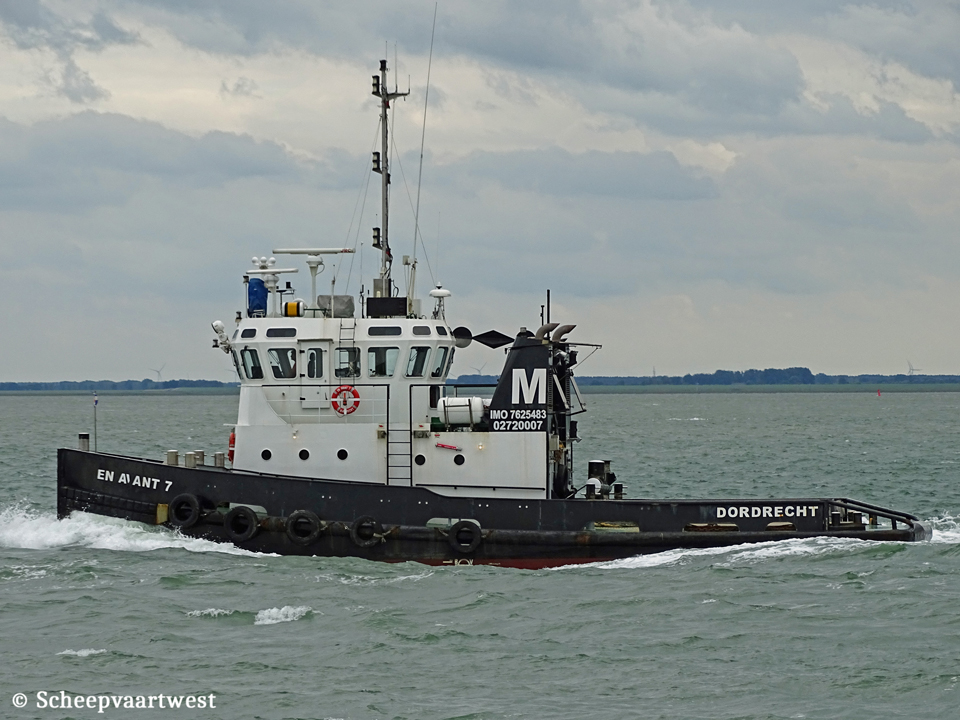

En Avant 7 IMO 7625483 15   En Avant 7 IMO 7625483 13
Westerschelde 10/08/17   Westerschelde 10/08/17


Name

EN AVANT 7

Previous names

1981 - 1982 Lamnalco Petrel

1982 - 1993 Lamnalco 24

1993 - 2000 B.K.S.286

23/12/2000 En Avant 7

Type

Harbour/Seagoing tug - Icebreaker

IMO-number

7625483

ENI-number

02720007

Call sign

PBEB

Flag

The Netherlands

Port of registry

Dordrecht

GT

108 t

DWT

66 t

NT

32 t

Length

22,40 m overall

21,30 m between perpendiculars

Breadth

6,80 m overall

Draught

Max.: 2,80 m

Min.: 2,25 m

Air draft

7,10 m

Depth

3,42 m

Speed

12,7 knots

Built

1981

2003: Completely refurbished

Date of completion

08/1981

Builder

Damen Shipyard Gorinchem

Gorinchem

The Netherlands

Yard number

2703

Hull material

Steel

Watertight compartments

6

Continuous decks

1

Main engine

2x Mitsubishi - 4 stroke single acting 6 cylinder 158 x 142 mm combustion engines total 1.210 kW / 1.644 hp at 1.800 rpm

Built: 2019

Gearbox

2x Two ZF-Masson ZFW3200

Propellers

2x Fixed pitch propellers - aft at 400 rpm with nozzles

Diameter: 1.380 mm

Electric installations

Power voltage: 380 V

Lighting voltage: 220 V

Generators

2x John Deere 4045DF158 - 4 cylinders 106 x 127 mm diesel engines each 44 kW / 60 hp at 1.500 rpm coupled with generators each 55 kVA

Deck equipment

  • Towing winch: Kraaijeveld, hydraulic, 20 t - 20 m/min

  • Brake holding force: 50 t

  • Towing wire: 650 m - diameter 30 mm - MBL 628 kN Steel wire galvanised 6x 36WS IWRC RHOL 1960 N/mm EMCE

  • Capstan: Electric 1,5 t - 14 m/min, remote controlled fixed + towing pins

Bollard pull

21 t

Salvage pumps

2x Ulex Ks532A each 120 t

Tank capacities

Potable water: 6,5 t

Fuel: 52,7 t

Navigation & Communications

1x Furuno FR-2110 Radar

1x Alphatron IMA-608 Radar

1x Observator Magnetic Compass

1x Tokimec ES-110 Gyro Compass

1x Radio Zeeland Seapilot 75 Autopilot

1x Furuno NX-500 Navtex

1x Leica MK-10 GPS

1x Fishfinder 300 Echo Sounder

1x Radio Zeeland ECO-300 Rate of Turn Indicator

2x Icom GM-1500E Handheld VHF

1x Debeg 6348 VHF

1x Sailor RI-2948 VHF

Operator

Rederij T. Muller BV

Merwekade 82 - 83

3311 TH Dordrecht

The Netherlands

Registration owner

Tebra Beheer BV

Merwekade 82

3311 TH Dordrecht

The Netherlands

Previous names & shipping companies

1981 Lamnalco Petrel - Lamnalco, United Arab Emirates

1982 Lamnalco 24 - Lamnalco, United Arab Emirates

1993 B.K.S.286 - Boskalis Baggermaatschappij B.V, Limassol - Cyprus

23/12/2000 En Avant 7 - Rederij T. Muller BV, Dordrecht - The Netherlands

Latest data adjustment

22 May 2021
