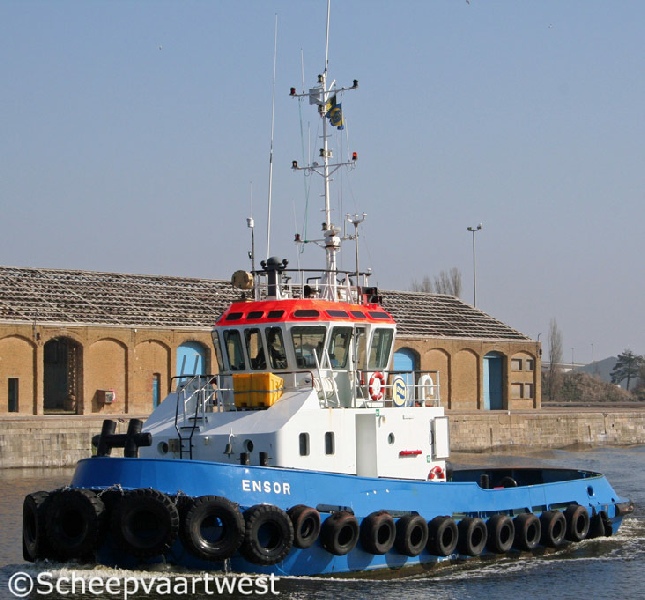

Ensor 04
Oostende, Belgium 15 March 2012

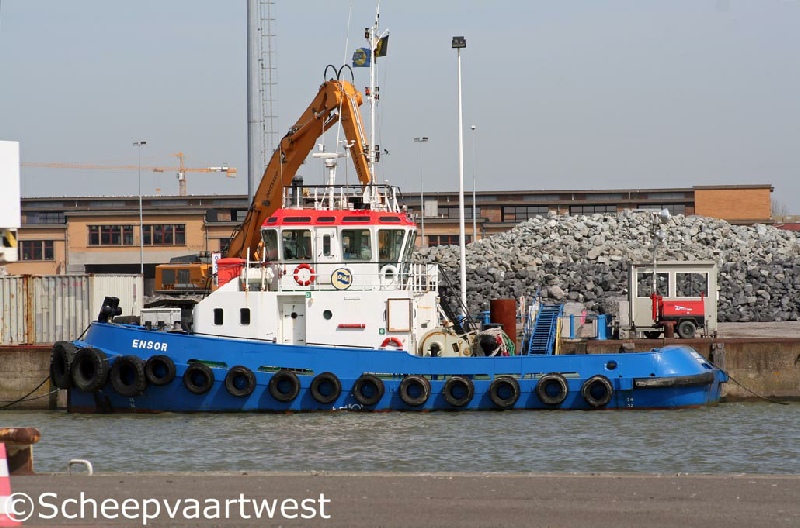

Ensor 03
Oostende 02/04/11


Name

ENSOR

Type

Coastal tug boat

IMO-number

9163910

Call sign

ORMU

Flag

Belgium

Port of registry

Oostende

GT

134 t

DWT

180 t

NT

40 t

Length

22,50 m overall

20,41 m between perpendiculars

Breadth

7,25 m overall

7,00 m moulded

Draught

Summer: 3,75 m

Speed

11,6 knots

Built

2000

Date of completion

07.09.2000

Builder casco

Brodogadiliste Brodotehnika Beograd
Beograd
Yugoslavia

Builder completion

Damen Shipyards
Gorinchem
The Netherlands

Yard number

6539

Hull material

Steel

Continuous decks

1

Main engine

2x Caterpillar type 3508B YA/B - 4 stroke 8 cylinder 170 x 190 mm diesel engine - each 1.600 bhp / 1.177 kW at 1.600 rpm

Built: 1999

Builder: Caterpillar Inc., Lafayette (Indiana) - USA

Propelling system

2x Screw Propeller solid - at 295 rpm in KORT nozzles via REINTJES gearboxes fitted with ADS-system

Electrical installation

Power voltage: 400 V

Lighting voltage: 230 V

Frequency: 50 Hz

Generators

2x Diesel generatorset each 63 kVA - 50 kW - 86 hp 3x 380 V - 50 Hz

Bollard pull

31,1 t

Deck equipment

1x Hydraulic towing winch, steel wire 590 m - diameter 32 mm max. 16 t

Accommodation

Air-conditioned accommodation for 6 men

Crew

6

Owner

URS - N.V. Unie van Reddings - en Sleepvaart
Italiƫlei 3
2000 Antwerpen
Belgium
