| Antwerpen 14 September 2013 |
 |
| Antwerpen 14/09/13 |
|
Name |

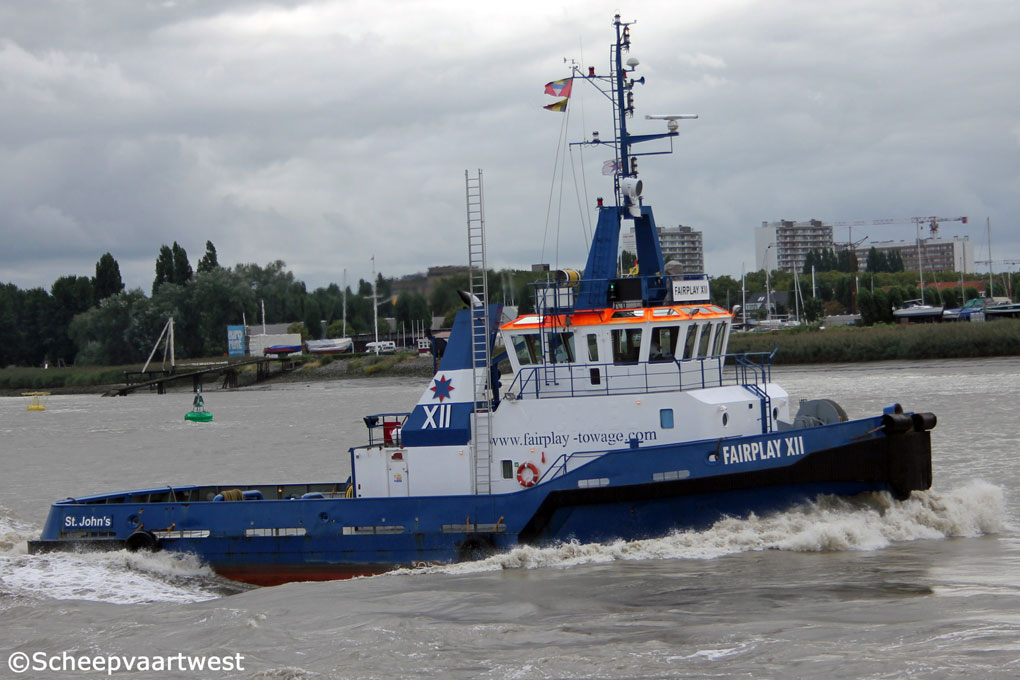

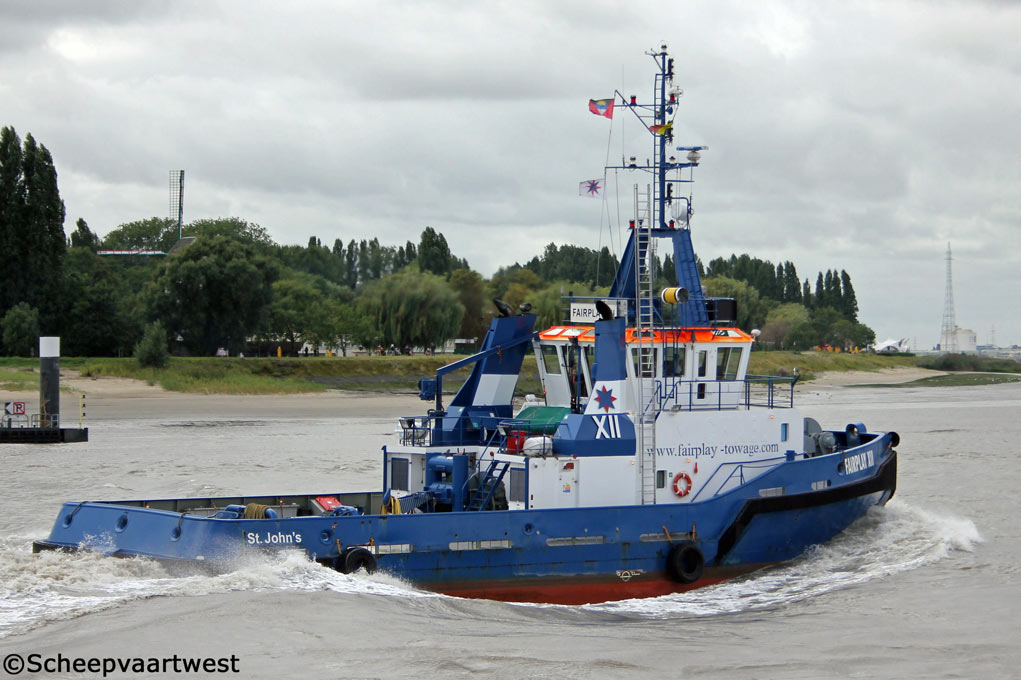

FAIRPLAY XII |
|
Previous names |
Micheal |
|
Type |
Schottel ASD Tug - Fully equipped for harbour assistance, escorting, terminal operation, coastal towage & salvage |
|
IMO-number |
9107409 |
|
Call sign |
DMJT |
|
Previous call sign |
V2CJ7 |
|
Flag |
Germany |
|
Previous flags |
Antigua & Barbuda |
|
Port of registry |
Lübeck |
|
Previous port of registry |
St. John's |
|
GT |
306 t |
|
DWT |
220 t |
|
NT |
92 t |
|
Length |
29,86 m overall 27,89 m registered |
|
Breadth |
9,50 m overall |
|
Draught |
4,00 m |
|
Freeboard |
1.088 mm |
|
Depth |
5,00 m moulded |
|
Speed |
12,5 knots |
|
Built |
1994 |
|
Keel laid |
24.05.1994 |
|
Launch date |
22.11.1994 |
|
Date of completion |
12.1994 |
|
Builder |
J.G. Hitzler Schiffswerft und Maschinenfabrik GmbH & Co. KG |
|
Yard number |
808 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
3 |
|
Continuous decks |
1 |
|
Main engine |
2x Deutz SBV 6 M 628 - 4 stroke 6 cylinder 240 x 280 mm diesel engines each 1.235 kW totao 2.470 kW / 3.358 hp at 1.000 rpm Year of manufacture: 1994 Manufacturer: Deutz MWM Motoren-Werke Mannheim AG |
|
Propellers |
2x Schottel rudder propeller SRP 1010 in Kort nozzles at 307 rpm |
|
Boilers |
1x Water heater, oil fired Year of manufacture: 1994 |
|
Electric installations |
2x Plants each 380/220 V - 49,5 kVA |
|
Generators |
2x Deutz D 226-6 engines each coupled with generators 49,5 kVA |
|
Compressed air receivers |
2x Receivers each 250 litres - 30,0 bar 1x Receiver 30 litres - 30,0 bar 3x Receivers each 60 litres - 10,0 bar |
|
Bollard pull |
42 t aft |
|
Towing winch |
1x Hitzler single drum towing winch load 76 t |
|
Towing hook |
NTP Techno Product GmbH - 50 tons |
|
Bunker capacity |
Gasoil: 140 m³ |
|
Anchor equipment |
2x Anchors weight each 570 kg Chain length: 302,50 m |
|
Manager |
Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH |
|
Registered owner |
J. Johannsen & Sohn e.K. |
|
Last data update |
05 December 2014 |
