| Antwerpen 17 August 2016 |
 |
 |
 |
 |
 |
||||
| Antwerpen 18/08/16 | Antwerpen 18/08/16 | Antwerpen 18/08/16 | Antwerpen 07/07/16 | Antwerpen 13/09/11 | ||||
|
Name |

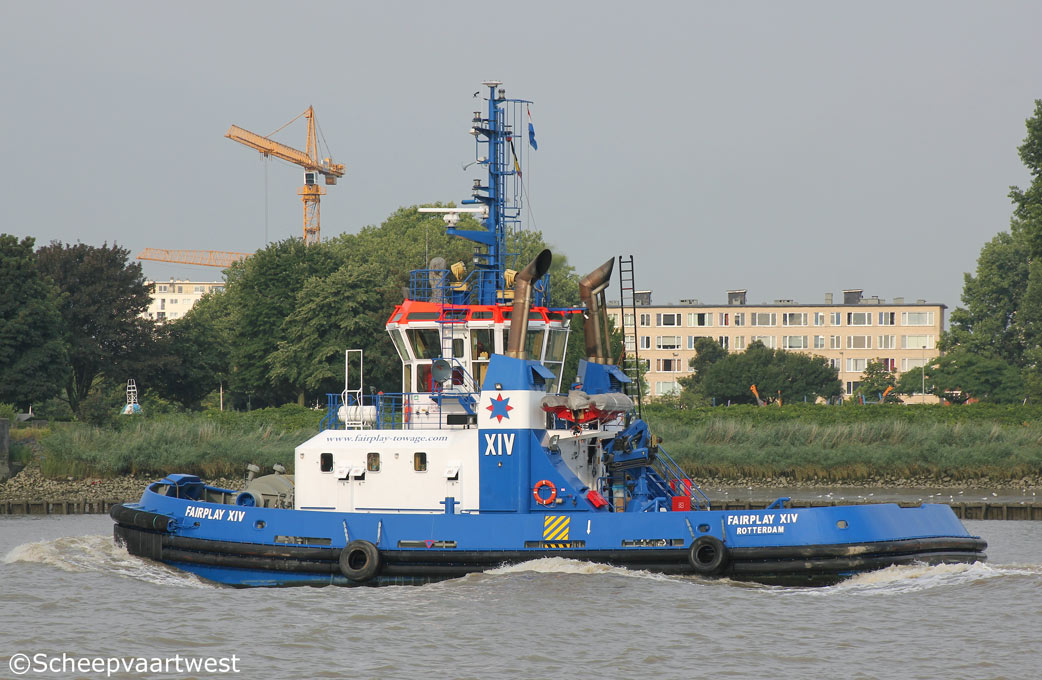

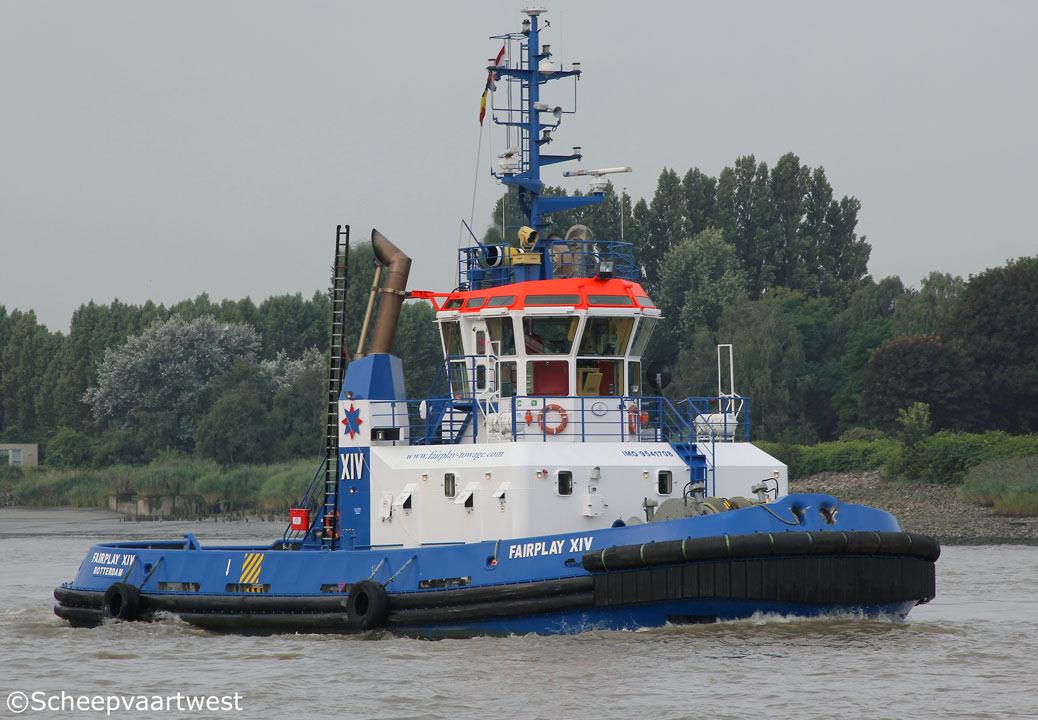

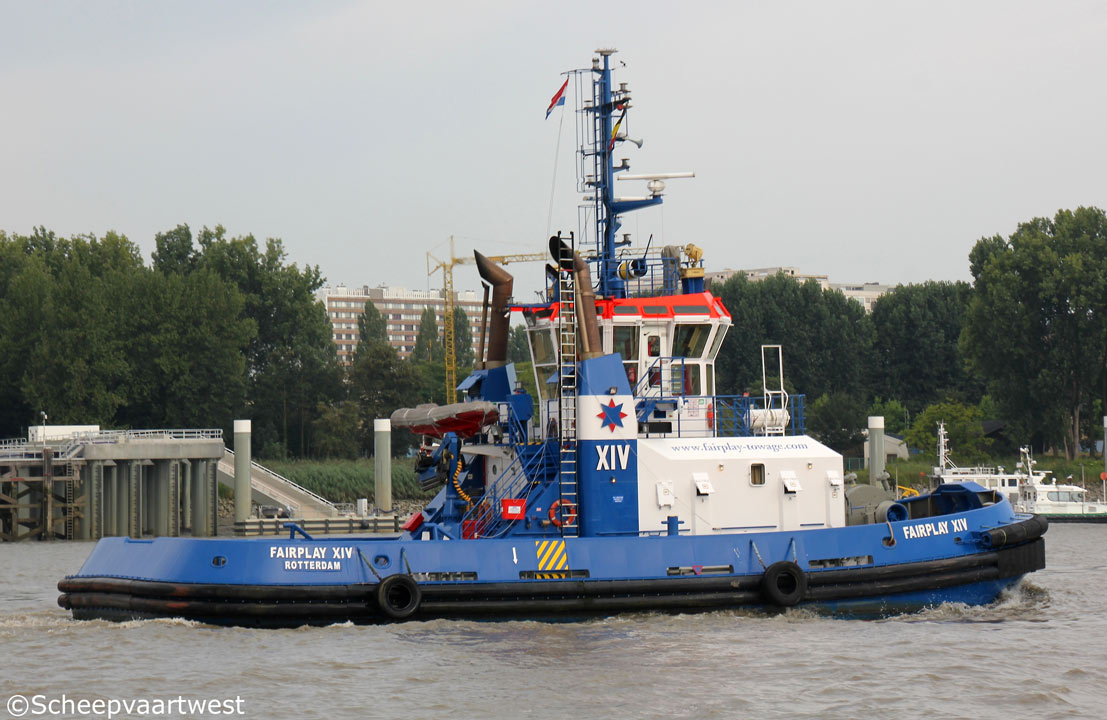

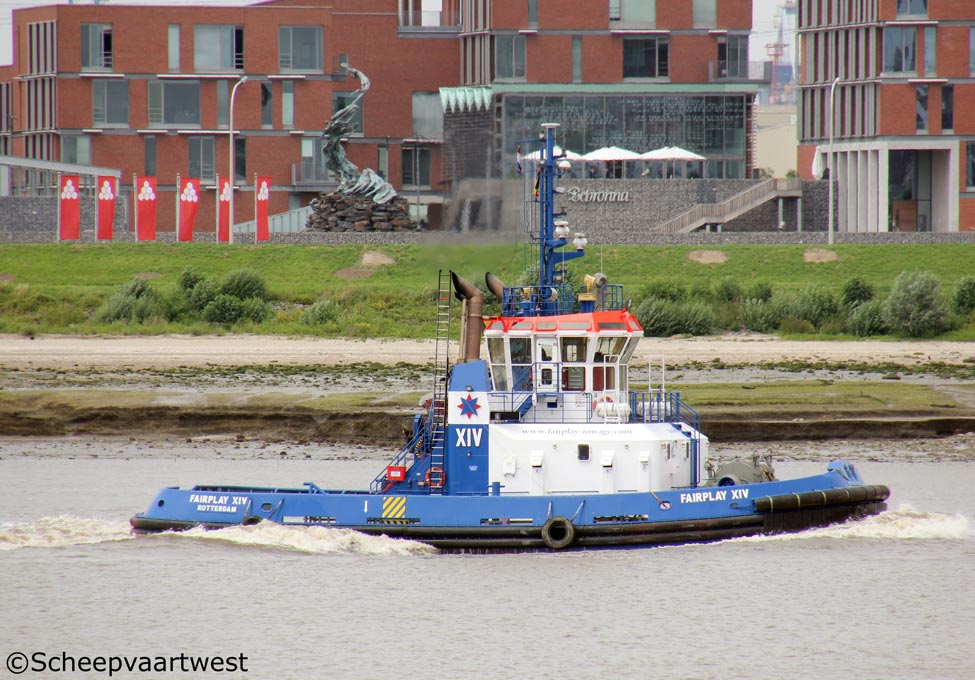

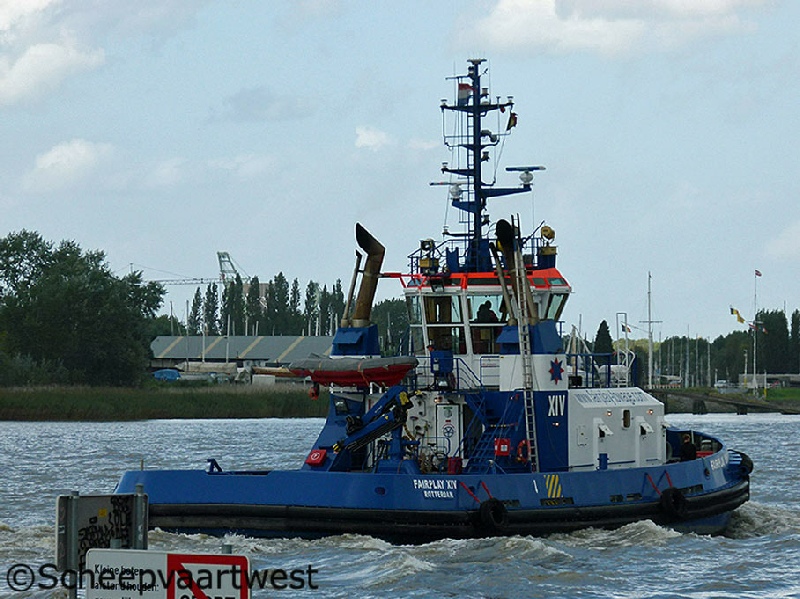

FAIRPLAY XIV |
|
Type |
Harbour tug Antwerpen Schottel ASD Tug fully equipped for harbour assistance, coastal towage & salvage |
|
IMO-number |
9541708 |
|
Call sign |
PBXM |
|
Flag |
The Netherlands |
|
Port of registry |
Rotterdam |
|
GT |
308 t |
|
DWT |
188 t |
|
NT |
92 t |
|
Length |
25,00 m overall 23,70 m registered |
|
Breadth |
11,20 m registered |
|
Draught |
Min.: 5,00 m Max.: 5,35 m |
|
Depth |
5,25 m |
|
Speed |
12,3 knots |
|
Built |
2009 |
|
Keel laid |
11.03.2009 |
|
Launch date |
06.08.2009 |
|
Date of completion |
27.11.2009 |
|
Builder |
Astilleros Armon, S.A. |
|
Yard number |
691 |
|
Hull material |
Shipbuilding steel (standard) |
|
Watertight bulkheads |
4 |
|
Continuous decks |
1 |
|
Main engines |
2x ABC 8MDZC-100-172A - 4 stroke 8 cylinder 256 x 310 mm diesel engines - each 1/850 kW total 5.028 bhp / 3.700 kW at 1.000 rpm Builder: Anglo Belgian Corporation N.V. |
|
Propulsion |
2x Schottel rudder propeller SRP 1515 CP in Kort nozzles - aft at 223 rpm |
|
Electric installations |
2x Plant 400 V - 200 kVA |
|
Generators |
2 Scania D995 M diesel generatorsets each 200 kVA |
|
Compressed air receivers |
2x Receivers each 200 litres - 30,0 bar |
|
Towing winch |
1x Brusselle hydraulic towing winch 2x 120,00 m Dyneema towing |
|
Bunker capacity |
Gas oil: 164 m³ |
|
Manager |
Fairplay Towage B.V. |
|
Owner |
Fairplay Schleppdampfschiffs Reederei Richard Borchard GmbH |
|
Registered owner |
Fairplay B.V. |
|
Latest data adjustment |
12 February 2017 |
