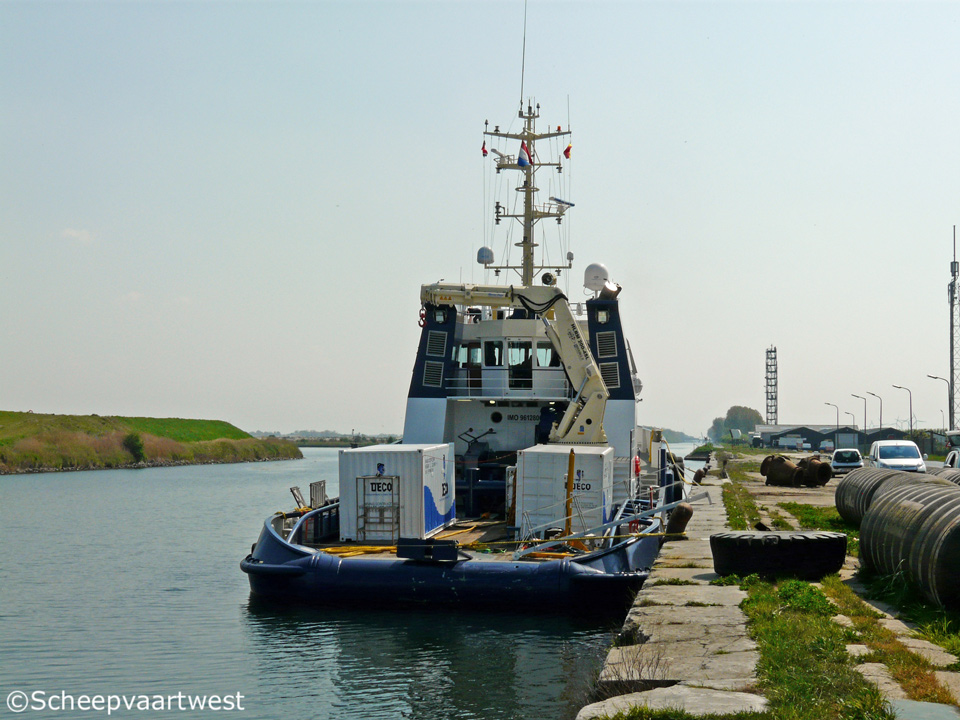

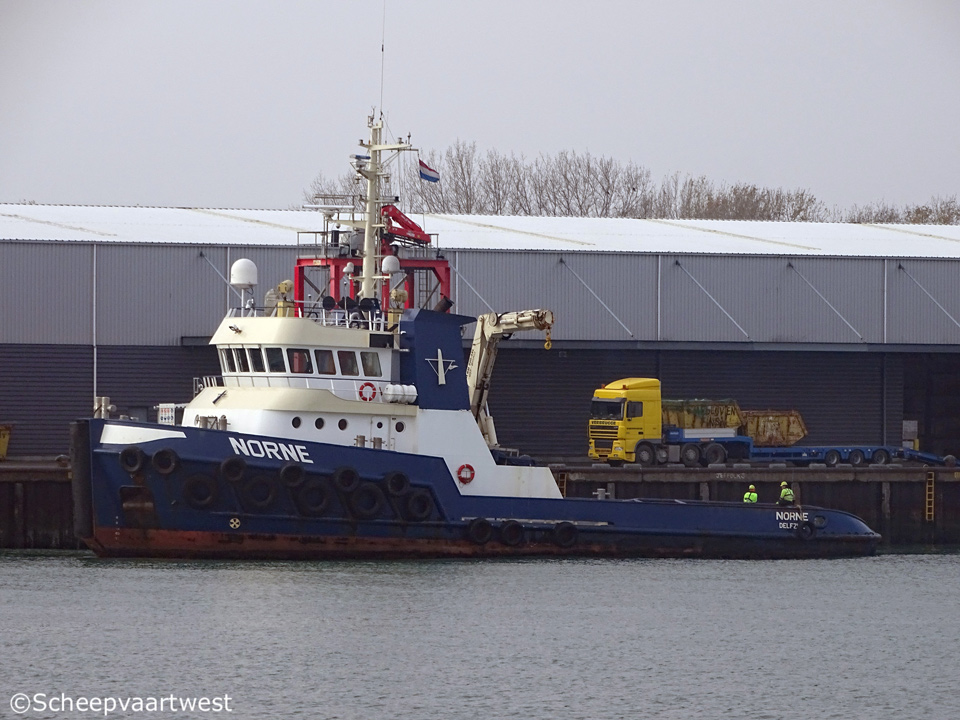

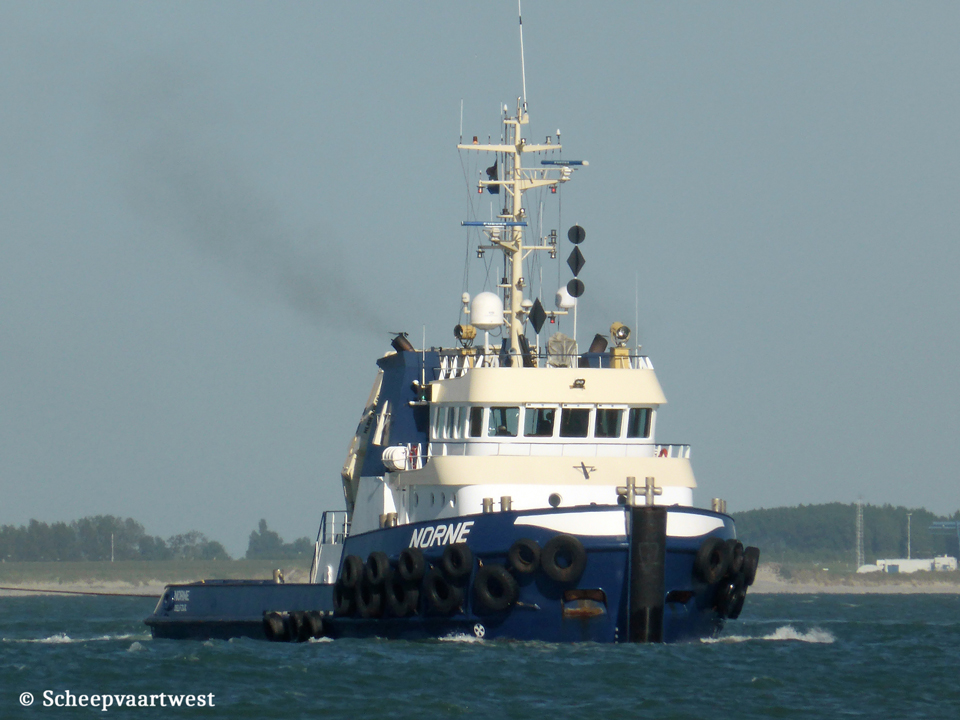

Norne - IMO 9612806

Name

NORNE

Type

Anchor handling tug supply vessel (AHTS)

Tug is designed for offshore, dredging assistance, anchor handling and (deep-sea) towage activities

IMO-number

9612806

Call sign

PCJR

Flag

The Netherlands

Port of registry

Delfzijl

GT

422 t

DWT

580 t

NT

126 t

Length

34,10 m overall

30,20 m between perpendiculars

Breadth

11,50 m overall

Draught

Max: 4,25 m

Min: 3,90 m

Air draft

Min: 9,65 m

Max: 28,50 m

Freeboard

626 mm

Depth

5,00 m at sides

Speed

Max: 13,5 knots

Economic: 10,0 knots

Built

2011

Launch date

12/03/2011

Delivery date

28/03/2011

Builder

Scheepswerf Gebroeders Kooiman

Zwijndrecht

The Netherlands

Yard number

191

Watertight compartments

5

Number of continuous decks

1

Main engine

2x Mitsubishi S12-U-MPTK - 4 stroke 12 cylinder 240 x 260 mm combustion engines each 3.041 bhp at 1.100 rpm

Total 4.476 kW / 6.098 bhp

Built: 06/04/2009

Builder: Sagamihara machinery Works Mitsubishi heavy industries, Sagamihara - Japan

Gearboxes

ZF Masson type W 20500 1/5 red

Propulsion

2x Fixed pitch propellers in short nozzles - Diameter 2,80 m

Generators

2x Mitsubishi 6D16T diesel generatorsets each 133 kVA - 106 kW - 144 hp

Hydraulic set

1x Mitsubishi type S6R MPTK - 605 kW

Bow thruster

1x Hydraulic drive 440 kW / 590 bhp

Deck equipment

Free deckspace: 103, m²

Deck strength: 6,0 t/m²

Deck lay-out

• Deck crane: HEILA 200-4SL - SWL 9,0 t @ 16,30 m

• Anchor handling/ Towingwinch: Kraaieveld main drum 1.000 m 58 mm 2nd drum 700 m 58 mm

• Towing pins : Karmoy fork and towing pins - 130 t

• Pushbow: 1x 1.050 mm

• Stern Roller: 6,00 m x diameter 1,20 m

• Tuggerwich: Pull 12 t wire 24 mm 68 m

Transfer pumps

Water and fuel 2x 50 m³/h

Fresh watermaker

3.500 ltr / 24 h

Bollard pull

83,1 t

Tank capacities

Fuel oil: 293 m³

Fresh water: 24 m³

Lub oil: 3,8 m³

Hydraulic oil: 2,0 m³

Sewage: 16 m³

Dirty oil: 4,8 m³

Crew

4

Accommodation

8 persons

Single cabins: 2

Double cabins: 4

Air Conditioned

Nautical & communication equipment

GMDSS: Epirb tron-40 S tronsart 2x VHF handsets

Radar system: 2x Furuno 2117 with Arpa

SSB: Furuno FS 2570 250 watt pep Electronic

Electronic equipment

• Chart system: 2x Furuno type FEA 2107

• System: 2x Transas Navisallor

• Autopilot: RZ Seapilot 75

• Inmarsat C: 2x Furuno Falcon 15

• Echo sounder: Furuno FE 700

• GPS: 2x Furuno GP 150 with SSAS facility

• AIS: Furuno FA 150

• Gyro Compass: Tokimec ES 150

• Navtex: Furuno NX 700 + 701

• Dopplerlog: Furuno DS 80

Previous manager

Sea Contractors B.V.

Visserijkade 95

4382 Za Vlissingen

The Netherlands

Owner

Koole BV

Vijfhuizerdijk 110

2141 BD Vijfhuizen

The Netherlands

Previous owner

2011 - 2022 Koerts International Towing Service "Kits"

Afwateringskanaal 91

9936 AV Farmsum

The Netherlands

Latest data adjustment

21 October 2023
