| Zeebrugge 14 April 2010 |
 |
| Zeebrugge 14/04/10 |
|
Name |

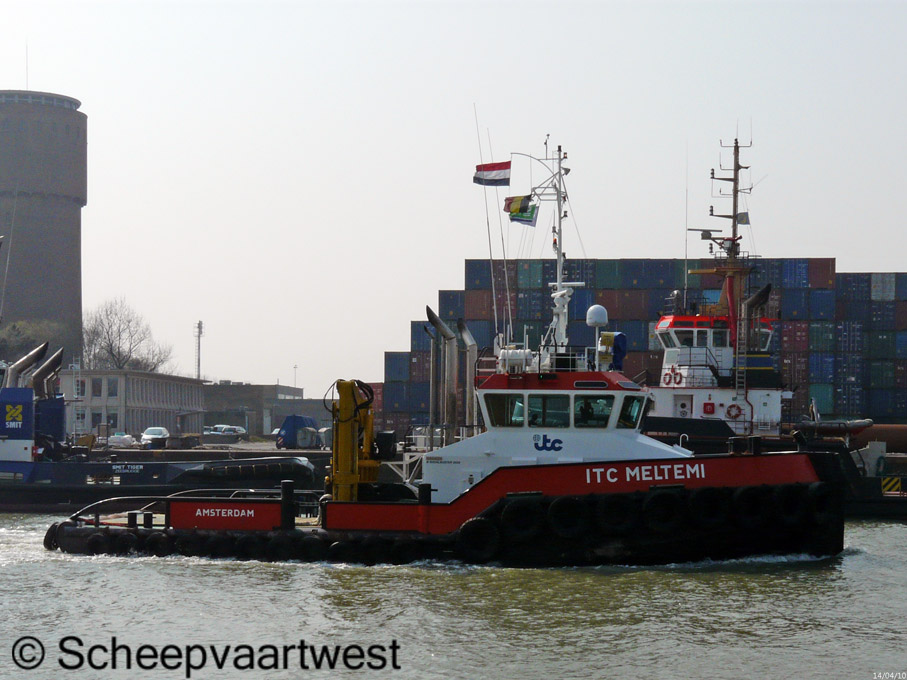

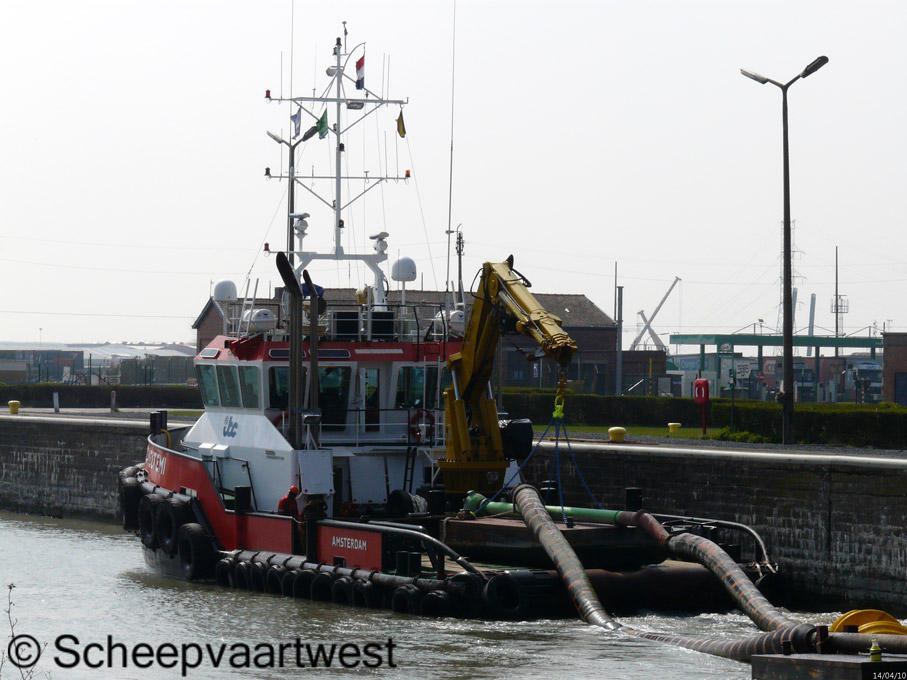

ITC MELTEMI |
|
Type |
Tug - Anchor handling vessel - Multi-purpose support vessel - Damen Shoalbuster 2609 |
|
IMO-number |
9531624 |
|
Call sign |
PBPR |
|
Flag |
The Netherlands |
|
Port of registry |
Amsterdam |
|
GT |
212 t |
|
DWT |
821 t |
|
NT |
63 t |
|
Displacement |
270 t |
|
Length |
26,02 m overall 23,36 m between perpendiculars |
|
Breadth |
9,10 m overall |
|
Draught |
2,63 m |
|
Freeboard |
950 mm |
|
Depth |
3,60 m |
|
Speed |
Max speed: 11,5 knots Econ. Speed: 9,0 knots |
|
Built |
2009 |
|
Date of order |
01.01.2008 |
|
Date of completion |
01.2009 |
|
Builder casco |
Kozle Shipyard |
|
Builder completion |
Damen Shipyards B.V. Yard number: 1596 |
|
Hull type |
Single hull |
|
Main engine |
2x Caterpillar 3508B TA diesel engines - Max. Output 1.100 bhp each, totalling 2.200 bhp |
|
Propellers |
2x Fixed pitch propellers in optima nozzles |
|
Generators |
2x John Deere 4045 TF 258 diesel generatorsets each 87 kVA 220 / 380 volt |
|
Bow thruster |
Hydraulic driven - 100 bhp |
|
Hydraulic set |
1x Caterpillar C9 - 269 kW |
|
Anchor winch |
Ridderinkhof, hydraulic |
|
Anchor handling |
47 t – 2,5 m/min 5 t – 17,5 m/min |
|
Towing winches |
Drum 1 capacity 600 m wire at 36 mm diam Drum 2 capacity 300 m wire at 36 mm diam |
|
Tugger winch pull |
8 t – 4,5 m/min 0,5 t – 20 m/min |
|
Deck crane |
Heila HLRM 140- SWL max.: 16,8 t |
|
Stern roller |
SWL 50 T in 45 degrees angle downwards |
|
Towing pins |
Triple pin type, SWL - 60 t |
|
Deck area |
Free deck area 60 m² - 15 t/m² |
|
Tank capacities |
Fuel oil: 126,5 m³ Hydraulic oil: 1,7 m³ Fresh water: 30,3 m³ Bilge water: 3,8 m³ Lubricating oil: 1,7 m³ sewage 2,2 m³ |
|
Bollard pull |
Max.: 34 t |
|
Accommodation |
Suitable for 7 persons, standard crew is 5 including master |
|
Crew |
5 |
|
Manager |
Int. Transport Contractors B.V. |
|
Owner |
Meltemi International B.V. |
|
Registered owner |
International Tpt Contractors Holland BV Amsterdam |
