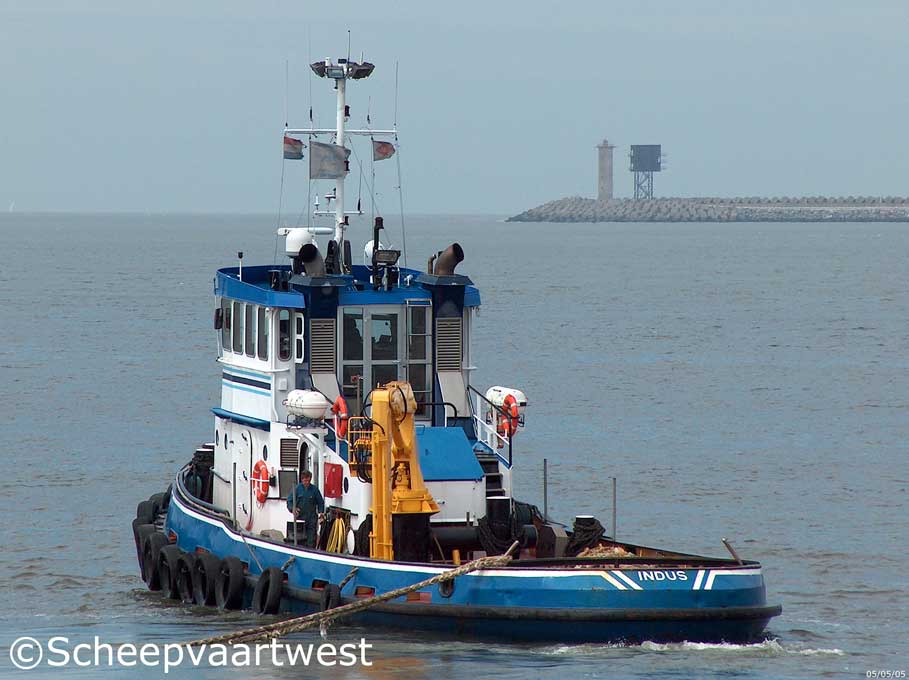

| Zeebrugge 08 May 2005 |
|
Name |
INDUS |
|
Previous names |
1964 Drydock 1984 Smit Azië 1988 Azië Tug 1889 Indus |
|
Type |
Multi-purpose tug - Coastal waters |
|
Basic functions |
Towing, mooring, barge handling, dredging support |
|
IMO-number |
8884830 |
|
EU-number |
02718071 |
|
Flag |
The Netherlands |
|
GT |
97 t 102,3 t registered |
|
Length |
25,26 m overall |
|
Breadth |
6,85 m |
|
Draught |
3,30 m Aft: 3,50 m |
|
Air draft |
7,10 m |
|
Freeboard |
580 mm |
|
Speed |
12,5 knots |
|
Built |
1964 |
|
Builder |
Wilton Fijnoord Machinefabriek & Scheepswerf |
|
Yard number |
784 |
|
Hull material |
Steel |
|
Hull type |
Single hull |
|
Watertight compartments |
8 |
|
Continuous decks |
1 |
|
Main engine |
1x Caterpillar type 3512B T/HD - 4 stroke 12 cylinder diesel engine - 1.775 hp / 1.306 kW at 1.600 rpm Built: 2003 Builder: Caterpillar Tractor Corp. - USA |
|
Previous main engine |
1x MAN diesel engine 890 hp |
|
Propulsion |
1x 4 blade fixed pitch propeller diameter 2.500 mm in Kort nozzle |
|
Rudders |
3x Hi-lift rudders |
|
Electrical installation |
Power voltage: 380 V Lighting voltage: 220 V |
|
Generators |
1x Perkins diesel generatorset 40 kVA 50 Hz 220/380 V 1x John Deere diesel generatorset 35 kVA 50 Hz 220/380 V |
|
Bow thruster |
250 hp hydraulically driven |
|
Bollard pull |
24,4 t |
|
Coupling winch |
2x 40 t |
|
Deck lay-out |
Towing winch: 28 t on de first layer and 14 t on de last layer - 600 metres 34 mm wire and 80 metres 36 mm wire |
|
Deck crane |
1x 22 t hydraulic crane |
|
Stern deck |
Hard wood protected |
|
Tank capacities |
Fuel: 41 m³ Fresh water 14 m³ |
|
Accommodation |
Heated living spaces for 4 persons, mess room, gallery and sanitary facilities, large wheelhouse |
|
Company |
W. Bouwman Marine Service BV |
|
Owner |
BMS Holding BV |
|
Previous names & owners |
1964 Drydock - Wilton Fijenoord N.V., Schiedam - The Netherlands 1984 Smit Azië - Smit Internationale Havensleepdiensten B.V., Rotterdam - The Netherlands 1988 Smit Azië Smit - Havensleepdiensten, B.V., Rotterdam - The Netherlands 1988 Azië Tug - Coastal Charters Holland B.V. (Damen), Gorinchem - The Netherlands 1989 Indus - M.Hubregtse, Scharendijke - The Netherlands 1996 Indus - W.Bouwman Marine Service B.V., Noordgouwe - The Netherlands 2003 Indus - B.M.S. Holding B.V. W.Bouwman, Noordgouwe - The Netherlands |
|
Renamed |
2008 MTS Indus |
