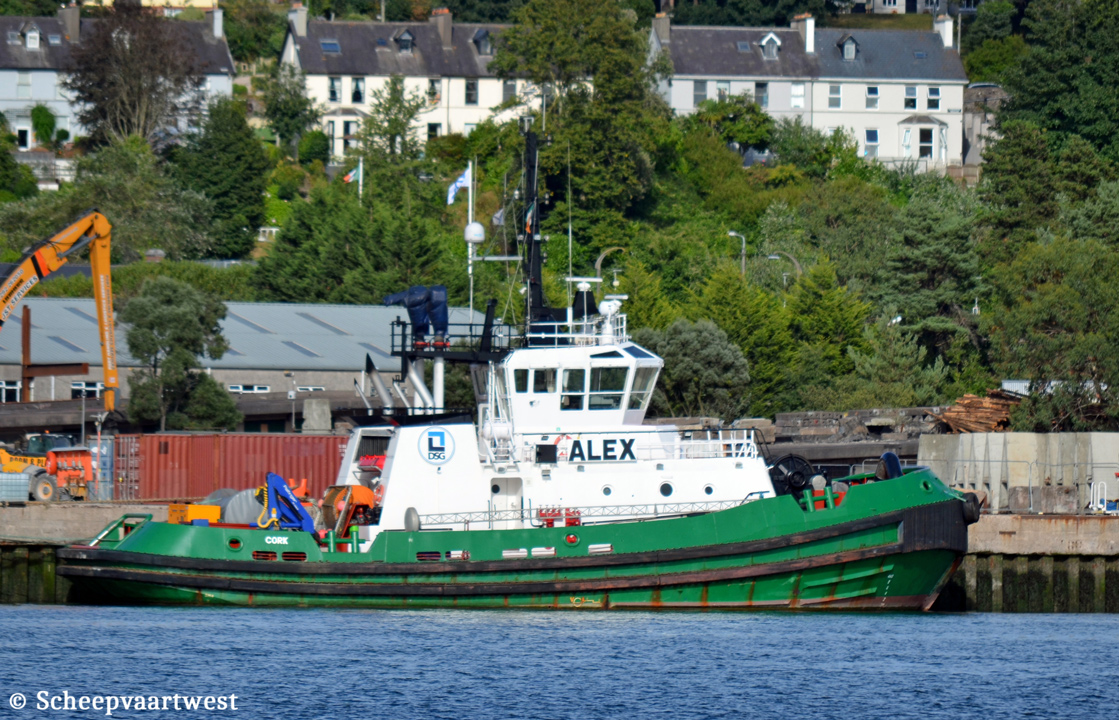

DGS Alex - IMO 9112741

Name

DGS ALEX

Previous names

1995 - 09/1997 Atlantic Fir

Alex

Type

Azimuth reverse tractor tug - Pusher

Fire-fighting

IMO-number

9112741

Call sign

EIDK

Flag

Ireland

Port of registry

Cork

GT

397 t

DWT

580 t

NT

119 t

Length

30,80 m overall

29,00 m between perpendiculars

Breadth

11,65 m extreme

11,14 m moulded

Draught

Summer: 3,72 m

Keel to mast end

22,00 m

Air draft

19,50 m

Depth

5,21 m

Speed

11,5 knots

Economic: 10,0 knots

Built

1995

Keel laid

31/03/1995

Date of completion

24/08/1995

Builder

East Isle Shipyard Ltd.

Georgetown

Canada

Yard number

63

Hull material

Steel

Movable bulkheads

Transverse: 4

Main engine

2x caterpillar 3516TA - 4 stroke combustion engine total 2.946 kW / 4.004 bhp at 1.800 rpm

Propulsion type

Aquamaster Z-Azimuth

Generators

2x Caterpillar 3306DITA diesel generatorsets each 165 kW / 440/110 Volt 60 Hz

Bollard pull

50 t ahead

47 t astern

Towing equipment

• Main towing winch: Burrard iron Works. HF Single Drum with Auto Spooling

• Towing winch forward: Burrard iron Works. HF Single Drum with Auto Spooling

• Towing winch aft: No Aft Towing Winch

• Pull/Brake force: 108 t brake

• Escort line: 1x 150 m 76 mm Bridon Superline used in conjunction with a 1x 20 m 48 mm Dextron 12 Plus Pennant (Dyneema SK-75 Fibre)

• Spare tow/escort line: 1x 150 m x 10" Circ Spectron Multiplait

Capstans

1

Fire fighting equipment

• Fire pumps: 2xKumera NKUH 7500 - 1.500 m³/h, each incl. spraying system

• Fire monitors: 2x Water/foam (FFS) 300 m³/h foam dispersants

• Foam: 300 m³/h foam dispersants

Tank capacities

Ballast: 40 m³

MGO: 224 m³

Potable water: 4,0 m³

Foam; 8,5 m³

Oil recovery: 60 m³

Lifting equipment

1x Palfinger crane - SWL 1,8 t

Accommodation

Single cabins: 1

Double cabins : 2

Messroom, Dayroom, Galley, Washroom, Laundry

Navigation equipment

• Radar: 2x Furuno 3cm type RDP 150

• Electronic chart system: 1x Raymarine C120

• Compass: 1x Furuno THD Satellite Compass

• Autopilot: 1x Comnav 2001 GAC

• Echo sounder: 1x SI-Tex CVS-106

• Navtex: 1 x Lokata Navtex 2

• AIS: 1x JRC Model JHS 182

Communication equipment

• General: GMDSS installation in accordance with IMO regulations for vessels operating within Sea Area A2

• Radio MF/HF Transceivers & DSC: 1x Furuno FS-1562-15

• VHF with DSC: 1x Sailor Compact VHF RT 2048 with DSC RM 2042

• VHF portable: 2 x ICOM,Type IC-GM1600E

• VHF: 1x Sailor Compact VHF RT 2048 with DSC RM2042 - 1x Sailor Compact VHF RT 2048

• EPIRB: 1x Jotron Tron 60S (serial no 03548)

• SART: 1x Jotron Tron

Manager

DSG - Doyle Shipping Group Unlimited Co.

Berth 32, Ocean Pier, Alexandra Road, Dublin Port

Dublin 1

Ireland

Registered owner

DSG - Doyle Shipping Group Unlimited Co.

Berth 32, Ocean Pier, Alexandra Road, Dublin Port

Dublin 1

Ireland

Latest data adjustment

23 August 2022
