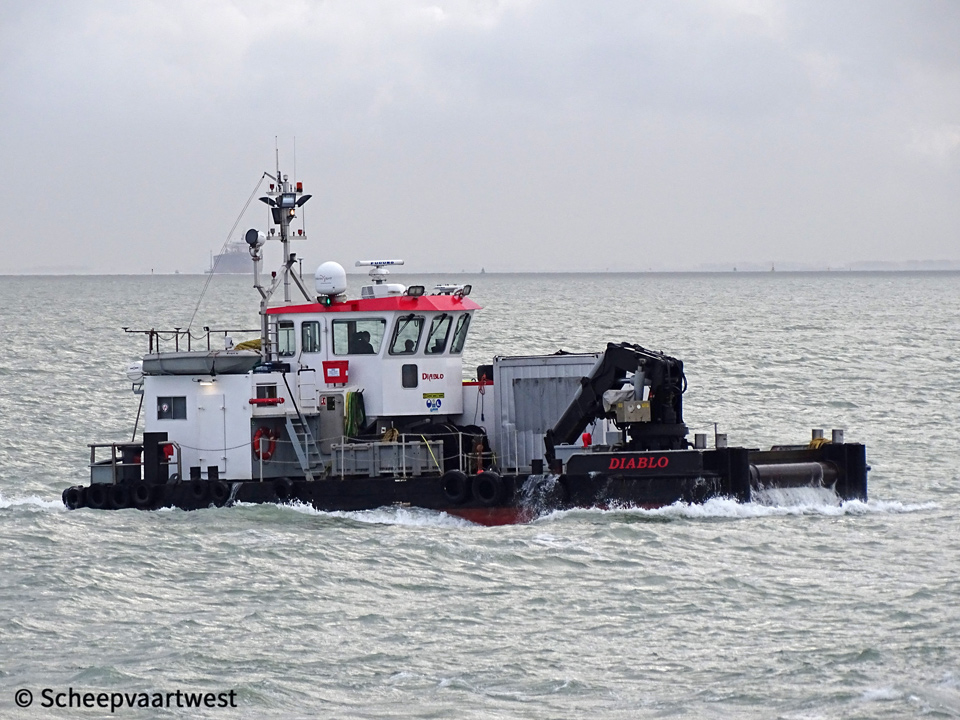

Diablo 01

Westerschelde 23 December 2019

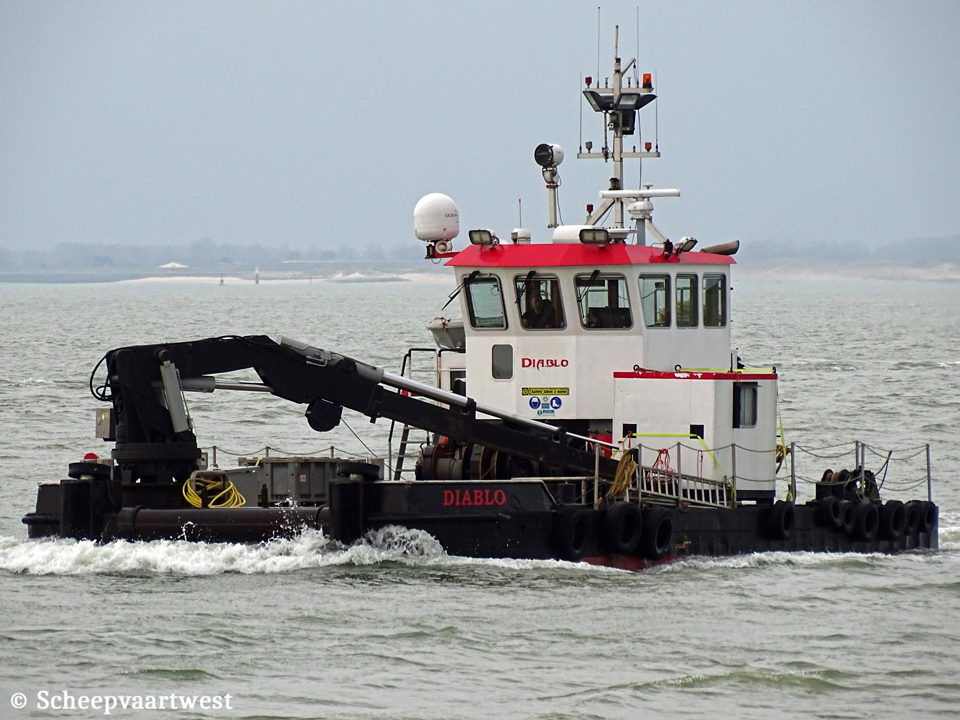

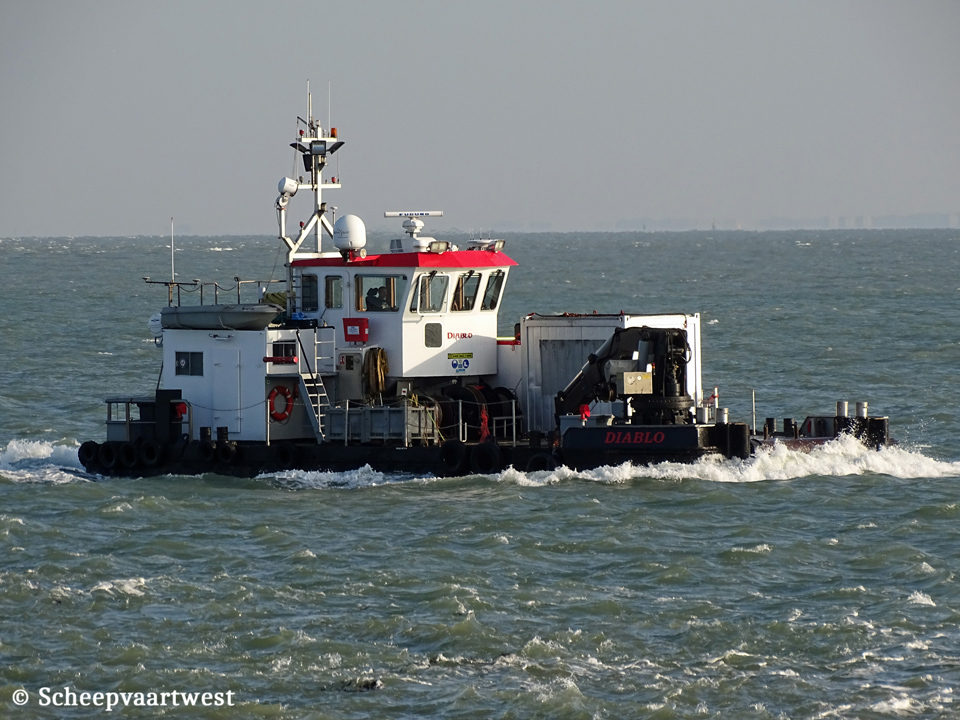

Diablo 02   Diablo 03   Diablo 04
Westerschelde 30/10/19   Westerschelde 08/02/20   Westerschelde 08/02/20













Name

DIABLO

Type

Multi-cat - Tug pusher

Call sign

PBCV

Flag

The Netherlands

Port of registry

Urk

Length

17,61 m overall

Breadth

8,00 m

Draught

1,10 m

1,60 m loaded

Speed

7,0 knots

Hull material

Steel

Main engine

2x GM 8V71 combustion engines 500 hp

Propellers

2x Fixed propellers

Generators

1x Generators 65 kVA

1x Generators 12,5 kVA

Compressed air receivers

Atlas Compressor 15 m³/min

Max permitted loads

5,0 t/m²

Deck area

75,0 m²

Deck load

60,0 t

Anchor handling

30,0 t winch

Tugger winch

10,0 t + 2,0 t

Tank capacities

Fuel: 56 m³

Fresh water: 20 m³

Lifting equipment

1x Crane - SWL 65,0 t

Accommodation

Heated and air conditioned for 3 persons

Navigation equipment

Magnetic Compass

Daylight radar

Echo sounder

Wind gauge

Electronic Chart

AIS

GPS Navigation

Intercom

Autopilot

Speed log

Plotter

Navtex

Other equipment

Posh bow

Bow roller

Fuel supply pump: 40 m³/h

Fresh water pump

Anchor Handling Equipment

Welding Equipment

Spudpoles: 8,00 m

Owner

TB Waterwerken

Griend 22a

8321 MN Urk

The Netherlands

Latest data adjustment

30 August 2020
