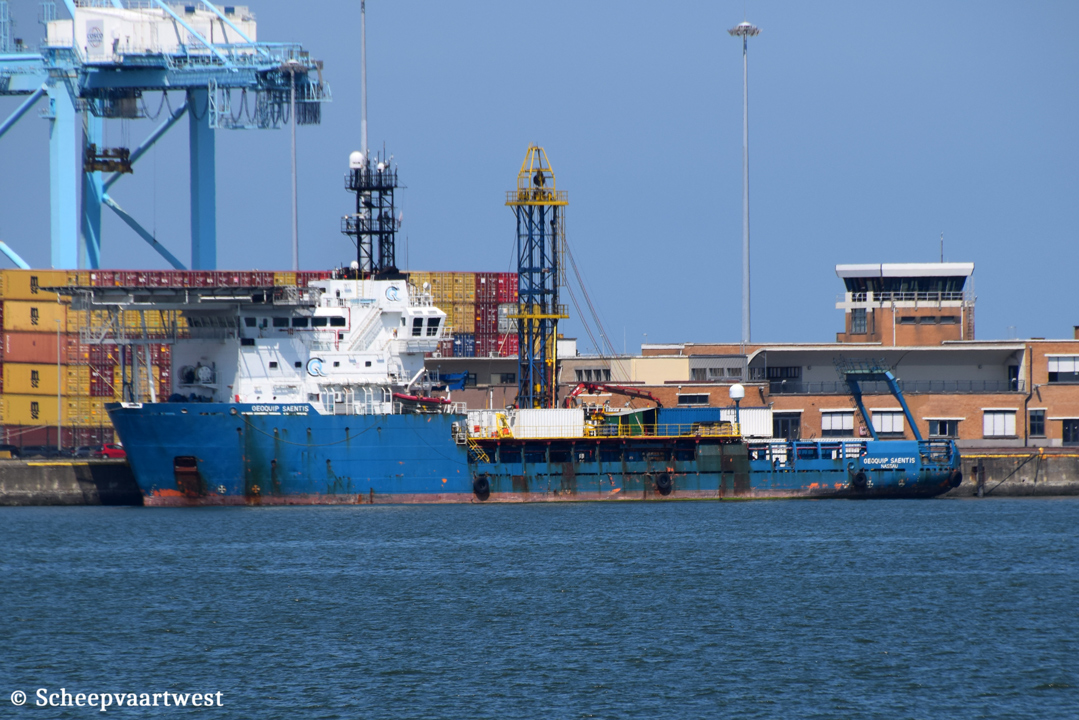

| Zeebrugge 29 July 2022 |
|
Name |
GEOQUIP SAENTIS |
|
Previous names |
12/2005 - 03/2009 Toisa Vigilant |
|
Type |
Offshore supply vessel |
|
IMO-number |
9282132 |
|
Call sign |
C6UM8 |
|
Flag |
Bahamas |
|
Port of registry |
Nassau |
|
GT |
3.404 t |
|
DWT |
3.500 t |
|
NT |
1.131 t |
|
Length |
80,50 m overall 70,22 m between perpendiculars |
|
Breadth |
17,96 m moulded 19,99 m extreme |
|
Draught |
Summer: 6,11 m |
|
Depth |
7,42 m |
|
Speed |
10,0 knots |
|
Built |
2005 Converted 2019 |
|
Keel laid |
05/08/2003 |
|
Launch date |
17/04/2004 |
|
Date of completion |
19/12/2005 |
|
Builder |
Wuhu Xinlian Shipbuilding Co., Ltd. Wuhu China |
|
Yard number |
W0212 |
|
Hull material |
Steel |
|
Bulkheads |
Transverse: 7 |
|
Main engine |
2x MaK 8M25 - 8 cylinder combustion engines 3.217 bhp at 750rpm Total developed power 4.800 kW Builder: Caterpillar Motoren GmbH & Co. KG |
|
Propellers |
2x Controllable pitch propellers Builder: Rolls-Royce Marine AS |
|
Shaft generator |
2x 1.600 kW |
|
Generators |
2x Caterpillar 3408 DITA diesel generatorsets each 350 kW 1x Diesel generatorset 190 kW |
|
Thrusters |
Bow thrusters: each 610 kW Stern thruster: each 610 kW |
|
Deck space |
720 m² |
|
Moon pool |
Main deck: 4,00 x 3,80 m |
|
Tank capacities |
Fuel oil: 1.000 m³ Fresh water: 933 m³ Ballast: 900,5 m³ |
|
Anchor equipment |
Length: 495,00 m Diameter: 42 mm |
|
Accommodation |
11x Single berth cabins 23x Double berth cabins (ensuite) 3x Offices 1x Messroom / duty mess 1x Conference room 1x Dayroom / lounge 1x Recreation room 1x Hospital dedicated survey area fully air-conditioned |
|
Manager |
Geoquip Marine Operations AG St Gallen Switzerland |
|
Registered owner |
Geoquip Marine Asset AG |
|
Latest data adjustment |
11 August 2022 |
