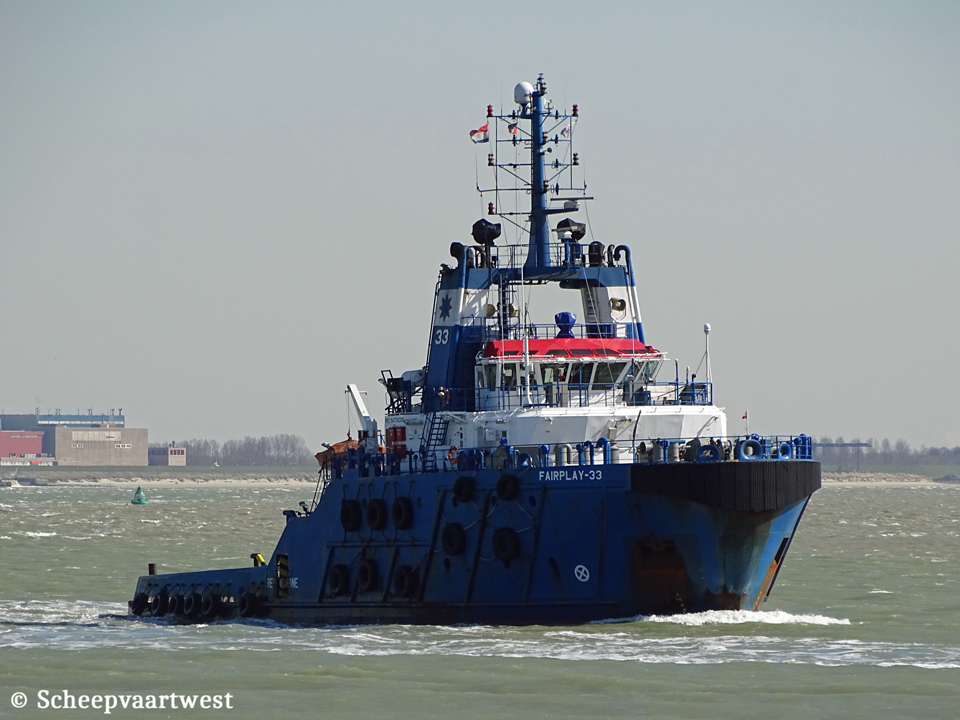

Fairplay 33 IMO 9476006 01

Westerschelde 23 March 2020



Name

FAIRPLAY-33

Previous names

2011 build as: Triton Commander

04/2011 - 06/2011 Aeolus

Type

Anchor handling and salvage ocean going tug - Fire fighting

IMO-number

9476006

Call sign

V2QG6

Flag

Antigua & Barbuda

Port of registry

St. John’s

GT

1.374 t

DWT

Summer: 1.000 t

NT

412 t

Length

48,88 m overall

43,17 m between perpendiculars

Breadth

14,06 m extreme

13,80 m moulded

Draught

Max: 6,20 m

Min: 5,20 m

Depth

7,00 m

Speed

Service: 13,8 knots

Built

2011

Keel laid

14/12/2009

Launch date

07/08/2010

Date of completion

07/06/2011

Builder

Daewoo Mangalia Heavy Industries S.A.

Mangalia

Romania

Yard number

6003

Hull material

Steel

Main engine

2x MAN-B&W 6L32/40 - 6 cylinder combustion engines each 3.000 kW @ 750 rpm with Jet-Assist-System

Total: 8.160 hp / 6.000 kW

Propellers

2 x Controllable pitch propeller type Lips diameter 3.200 mm each in Kort-Nozzle

Rudders

2x Flap type high performance rudders

Boilers

2x Thermal oil heater, oil fired

Shaft generator

2x 640 kW each

Generators

2x STX/Cummins KTA 19 DM1GA main diesel generatorsets each 370 kW

Emergency generator

1x STX/Cummins 6BT5.9-D(M) diesel generatorset 80 kW

Bow thruster

1x 400 kW

Bollard pull

103 t

Towing equipment

  • 1x Hatlapa AH 1000 Double Drum

  • Towing Winch in Waterfall design electrically driven 100 tons pull @ 15 m/min

  • Main wire 1.200 m diameter 64 mm

  • Spare wire 950 m diameter

  • Grapnel 150 tons SWL, GobEye 100 tons SWL

  • Tug is equipped with all necessary Stretchers, Forerunners, Shackles, Pennant wires, Floating lines, Socket tools and spares

Deck equipment

  • 2x Tugger winches 10 tons @ 15 m/min

  • 1x Hydraulic crane 4,5 tons @ 12 m outreach

  • 2x Container fittings

  • Karmoy towing pins 100 tons SWL

  • Chain fork 100 tons SWL

  • Stern roller 250 tons SWL (1.800 x 3.800 mm)

Deck capacities

Free deck space abt. 155 m²

Deck load 10 t/m² - 15 t/m² on cross-beams

Fire fighting

2x Seaplus Co. monitors each 1.200 m³/h @ 12,0 bar

2x Fire fighting pumps each 1.500 m³ /h

Water spray system 9.600 l/min capacity

15 m³ Foam liquid tank available

Tank capacities

HFO: 490 m³

MGO: 93 m³

Sludge: 17 m³

Fresh water: 180 m³

Ballast: 141,6 m³

Anchor equipment

Length: 410,70 m

Diameter: 34 mm

Salvage equipment

1x Portable gasoline driven pump, stripping ejectors

1x portable generator

1x Workboat/Rescueboat & 40 hp outboard engine

Communication

1x InmarSat C Terminal

1x Telex Terminal

InmarSat Fleet Broadband 250 Terminal

Email, Fax, Telephone System, Data Transfer

Irridium Sat Telephone(Spare Set)

All other equipment according to GMDSS Area 4

Bridge equipment

AIS, DGPS Navigator, Gyro Compass, Echo Sounder, Log Speed, Weather Facsimile, Navtex, Joystick Position Control

Accommodation

Max: 20 persons

7x Officer single berth cabin

1x Owner’s single berth cabin

6x Crew single berth cabin

3x Crew double berth cabin

1x Hospital single berth fully air-conditioned

Manager

Fairplay Schleppdampfschiffs-Reederei Richard Borchard GmbH

Ludwig-Erhard-Str. 22

20459 Hamburg

Germany

Registered owner

Fairplay Schleppdampfschiffs-Reederei Richard Borchard GmbH

Germany

Group

Fairplay Towage Group

Latest data adjustment

13 April 2021
