Valletta, Malta 12 April 2017 |
|
Name |

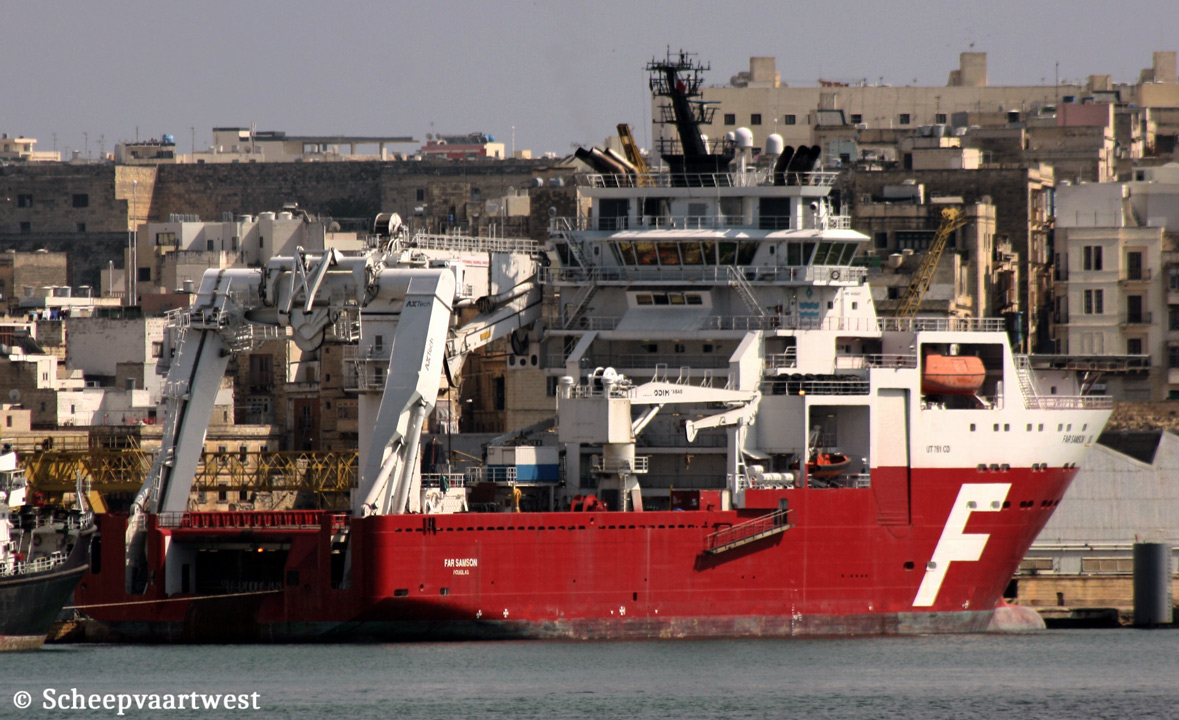

FAR SAMSON |
|
Type |
Multi-purpose offshore vessel - Support vessel UT 761 CD |
|
IMO-number |
9400497 |
|
Call sign |
LADT8 |
|
Flag |
Norway |
|
Port of registry |
Aalesund |
|
Previous flags |
Isle of Man, Douglas - Call sign: 2BXM3 |
|
GT |
14.740 t |
|
DWT |
Summer: 9.000 t |
|
NT |
4.423 t |
|
Length |
121,50 m overall 105,00 m between perpendiculars |
|
Breadth |
26,00 m moulded |
|
Draft |
Summer: 8,50 m + 0,97 m Skeg/Nozzle |
|
Depth |
10,50 m |
|
Speed |
Max: 15,8 knots |
|
Built |
2009 |
|
Keel laid |
23/04/2007 |
|
Launch date |
14/05/2008 |
|
Date of completion |
24/03/2009 |
|
Builder casco |
STX RO Offshore Tulcea SA Romania |
|
Builder |
STX Norway Offshore AS Langsten (vard group AS) Tomrefjord Norway |
|
Yard number |
704 |
|
Hull material |
Steel |
|
Hull type |
Single hull - Double bottom |
|
Main engines |
4x Bergen B32:40V12 - 12 cylinder combustion engine each 6.000 kW at 750 rpm |
|
Propulsion reduction gear |
2x Brunvoll Volda EACG TS 1400 |
|
Propellers |
2x Controllable pitch propeller |
|
Auxiliary engines |
4× Bergen C25:33L-9A - combustion engine each 2.755 kW at 750 rpm connected with AVK generators each 4.000 kW |
|
Emergency generator |
1X Mitsubishi S6R-M(P)TA Builder: Mitsubishi Turbocharger and Engine Europe B.V. |
|
Thrusters |
1x Bow thrusters - 2.450 bhp 2x Stern thrusters - 1.632 bhp 2x Azimuth thrusters (bow) - 2.450 bhp |
|
Bollard pull |
423 t |
|
Cargo deck area |
1.450 m² |
|
Deck strength |
Main deck: 10,0 t/m² A-deck: 15,0 t/m² |
|
Moonpool |
49 m² (7,00 x 7,00 m) |
|
A-frame |
350 t |
|
Rope / reel storage |
1x 2x 1500 / 1 x 3.000 m of 103 mm |
|
Shark jaws |
1x 800 SWL - Rolls Royce |
|
Stern rollers |
1x 6,00 m x diameter 4,50 m - SWL 1.000 t |
|
Tow pins |
2x 450 SWL - Rolls Royce |
|
Tank capacities |
Fuel Oil: 3.160m³ Pot Water: 1.145m³ Drill Water / WB: 4.628m³ Ballast: 5.747,6 m³ |
|
Anchor equipment |
Length: 605,00 m Diameter: 66 mm |
|
Lifting equipment |
1x Crane - SWL 250,0 t @ 14,00/max 36,00 m 1x Crane - SWL 20,0 t @ 20,00 m |
|
Accommodation |
22x 1 Person 39x 2 Persons Total 100 persons |
|
Manager |
Solstad Shipping AS Nesavegen 39 4280 Skudeneshavn Norway |
|
Registered owner |
Farstad Construction AS Skansekaia 4a 6002 Ålesund Norway |
|
Latest data adjustment |
20 December 2020 |
