Westerschelde 10 April 2020 |
|
Name |

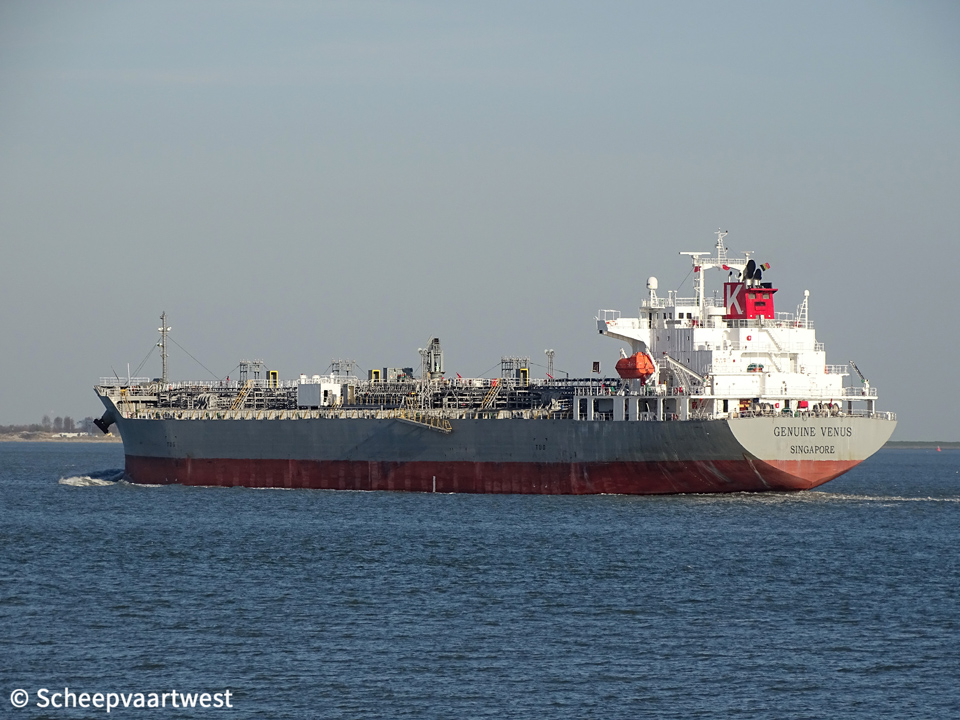

GENUINE VENUS |
|
Type |
Chemical & oil product carrier |
|
IMO-number |
9613965 |
|
Call sign |
9V9469 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
19.899 t registered Suez: 20.696,26 t |
|
DWT |
Summer: 33.552,02 t Winter: 32.568,90 t |
|
NT |
9.762 t registered Suez: 18.687,61 t Panama: 16.615 t |
|
Displacement |
Summer: 42.433,0 t Winter: 41.450,1 t |
|
Length |
170,17 m overall |
|
Breadth |
26,63 m extreme |
|
Draught |
Summer: 11,52 m Winter: 11,28 m |
|
Moulded L x B x D |
162,00 x 26,60 x 16,30 m |
|
Registered L x B x D |
162,98 x 26,60 x 16,30 m |
|
Keel to masthead |
39,24 m |
|
Air draft |
Summer deadweight: 27,72 m normal ballast: 32,29 m Lightship: 36,44 m |
|
Freeboard |
Summer: 4.817 mm Winter: 5.057 mm |
|
Depth |
16,30 m moulded |
|
Speed |
Max: 16,5 knots |
|
Built |
2013 |
|
Keel laid |
26/11/2012 |
|
Launch date |
27/03/2013 |
|
Date of completion |
16/07/2013 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. |
|
Yard number |
535 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Main engine |
1x Akasaka-Mitsubishi - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 6.783 kW at 120,0 rpm Manufacturer: Akasaka Diesels Limited |
|
Propeller shaft |
1x Oil lubrication shaft with monitor device Diameter: 460 mm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 11,22 t/h 1x Auxiliary vertical boiler - 9,0 bar Evaporation: 10,30 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Yanmar main diesel generatorsets each 660 kW |
|
Bow thruster |
510,83 hp |
|
Number of cargo tanks |
18 |
|
Cargo tank capacity 98% |
Seg#1: 1.848,930 m³ (1P) Seg#2: 1.846,965 m³ (1S) Seg#3: 2.408,281 m³ (2P) Seg#4: 2.426,458 m³ (2S) Seg#5: 2.410,629 m³ (3P) Seg#6: 2.408,674 m³ (3S) Seg#7: 1.926,056 m³ (4P) Seg#8: 1.927,028 m³ (4S) Seg#9: 2.901,471 m³ (5P) Seg#10: 2.900,436 m³ (5S) Seg#11: 952,377 m³ (6P) Seg#12: 952,377 m³ (6S) Seg#13: 2.783,061 m³ (7P) Seg#14: 2.764,099 m³ (7S) Seg#15: 2.799,830 m³ (8P) Seg#16: 2.795,334 m³ (8S) Seg#17: 553,181 m³ (9P) Seg#18: 556,751 m³ (9S) Total: 37.161,68 m³ |
|
Pumps |
14x Centrifugal cargo pumps each 330 m³/h 4x Centrifugal cargo pumps each 220 m³/h |
|
Manifolds |
Distance bridge front to centre of manifold: 58,70 m Bow to centre manifold: 85,42 m Stern to centre manifold: 84,75 m Distance between cargo manifold centres: 500 mm Distance ships rail to manifold: 5.790 mm Distance manifold to ships side: 5.790 mm Top of rail to centre of manifold: 1.650 mm Distance main deck to centre of manifold: 3.450 mm Spill tank grating to centre of manifold: 1.350 mm |
|
Tank capacities |
Fuel oil: 1.790,06 m³ Diesel oil: 179,12 m³ Fresh water: 401 m³ |
|
Lifting equipment |
1x Crane - SWL 10,0 t 2x Derricks - SWL 0,9 t |
|
Manager |
"K" Line Ship Management (Chemical) Pte Ltd. |
|
Technical operator |
"K"Line Ship Management (Chemical) Pte Ltd 105 Cecil Street, #19-00 The Octagon Singapore 069534 Republic Singapore |
|
Commercial operator |
Hansa Tankers SA Kalfarveien 57A 5022 Bergen Norway |
|
Registered owner |
K-Line Pte Ltd. 1 Wallich Street #07-01 Guoco Tower Singapore 078881 Republic of Singapore |
|
Latest data adjustment |
07 May 2020 |
