Westerschelde 29 October 2016 |
 |
| Westerschelde 27/10/16 |
|
Name |

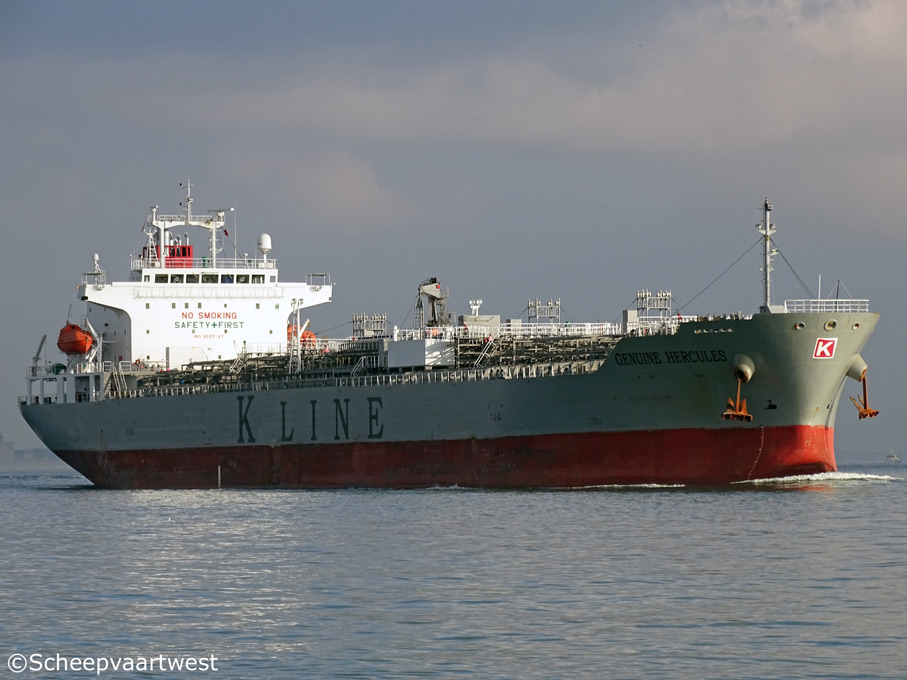

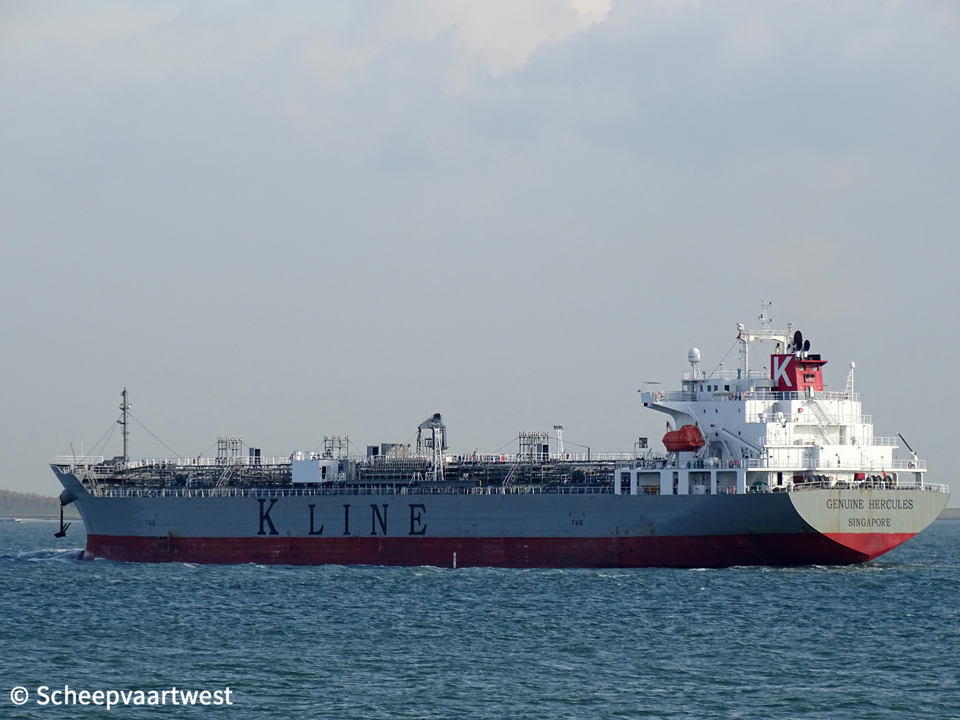

GENUINE HERCULES |
|
Type |
Oil / Chemical carrier |
|
IMO-number |
9597147 |
|
Call sign |
9V9468 |
|
Flag |
Republic of Singapore |
|
Port of registry |
Singapore City |
|
GT |
19.899 t registered |
|
DWT |
Summer: 33.559,24 t |
|
NT |
9.762 t registered |
|
Length |
170,17 m overall |
|
Breadth |
26,60 m moulded |
|
Draught |
Summer: 11,52 m |
|
Moulded L x B x D |
162,00 x 26,60 x 16,30 m |
|
Registered L x B x D |
162,98 x 26,60 x 16,30 m |
|
Freeboard |
Summer: 4.817 mm |
|
Depth |
16,30 m moulded |
|
Speed |
16,4 knots |
|
Built |
2013 |
|
Keel laid |
11/09/2012 |
|
Launch date |
28/12/2012 |
|
Date of completion |
28/03/2013 |
|
Builder |
Kitanihon Shipbuilding Co., Ltd. Hachinohe Japan |
|
Yard number |
532 |
|
Hull material |
Double hull |
|
Main engine |
1x Mitsubishi-Akasaka 6UEC52LS - 2 stroke single acting 6 cylinder 500 x 1.950 mm combustion engine 7.980 kW at 120,0 rpm Manufacturer: Akasaka Diesels Limited |
|
Propeller shaft |
1x Oil lubrication shaft with monitoring device Diameter: 460 mm |
|
Propellers |
1x Fixed propeller |
|
Boilers |
1x Auxiliary vertical boiler - 9,0 bar Evaporation: 11,22 t/h 1x Auxiliary vertical boiler - 9,0 bar Evaporation: 10,30 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Main diesel generatorsets each 620 kVA |
|
Bow thruster |
695 kW |
|
Number of tanks |
16 |
|
Cargo tank capacity |
37.904 m³ |
|
Pumps |
14x Cargo pumps each 330 m³/h 2x Cargo pumps each 220 m³/h |
|
Tank capacities |
Fuel oil: 1.969 m³ Fresh water: 401 m³ |
|
Manager |
"K" Line Ship Management (Chemical) Pte Ltd. |
|
Registered owner |
"K" Line Pte Ltd. |
|
Latest data adjustment |
15 September 2020 |
