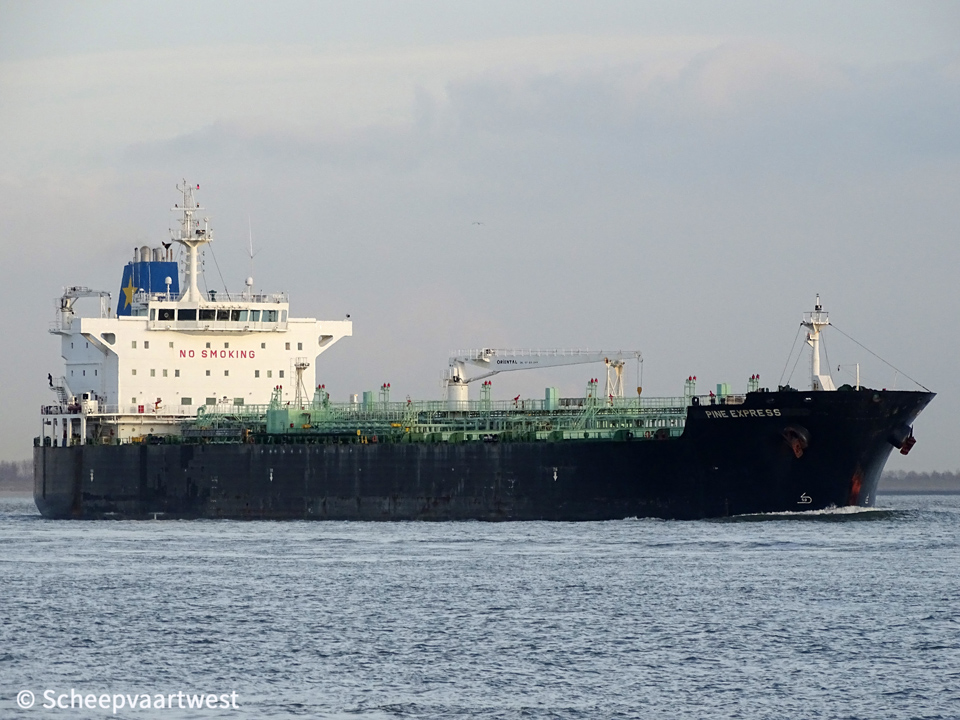

Westerschelde 12 February 2019 |
|
Name |
PINE EXPRESS |
|
Previous names |
2010 - 2016 Pacific Marchioness |
|
Type |
VRQJ3 |
|
IMO-number |
9405928 |
|
Classification |
Chemical and oil product tanker |
|
Flag |
Hong Kong - China |
|
Port of registry |
Hong Kong |
|
Previous flags |
2010 - 2016 Republic of Panama, Panama City - Call sign: 3FEN6 |
|
GT |
28.952 t Suez: 30.331,08 t |
|
DWT |
Summer: 46.710 t |
|
NT |
12.241 t Panama: 24.763 t Suez: 26.211,9 t |
|
Displacement |
56.880 t |
|
Length |
183,00 m overall 174,00 m between perpendiculars |
|
Breadth |
32,20 m moulded |
|
Draught |
Max: 12,32 m |
|
Freeboard |
6.512 mm |
|
Depth |
18,80 m moulded |
|
Speed |
14,8 knots |
|
Built |
2010 |
|
Keel laid |
18/11/2009 |
|
Launch date |
21/01/2010 |
|
Delivery date |
17/03/2010 |
|
Builder |
Hundai Mipo Dockyard Co Ltd. 100 Bangeojinsunhwan-Doro Dong-Gu Ulsan South Korea |
|
Yard number |
2083 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Bulkheads |
Non Tight: 1 Water Tight: 3 Oil Tight: 10 |
|
Continuous decks |
1 |
|
Main engine |
1x HHI-EMD/Man-B&W 6S50MC-C - 2 stroke 6 cylinder 500 x 2.000 mm combustion engine 8.600 kW at 123,0 rpm |
|
Propellers |
1x Fixed pitch propeller |
|
Boilers |
1x Unfired exhaust gas boiler - 12 MPa 1x Water Tube Boiler - 9 Mpa Manufacturer: Kangrim Heavy Industries Co., Ltd. |
|
Generator |
3x Hyundai/MAN-B&W 6L23/30H - 6 cylinder 230 x 300 mm diesel engine each 780 kW at 720 rpm coupled with 3 generators HFC7 506-14K each 730 kW |
|
Number of cargo tanks |
14 |
|
Cargo tank capacity |
54.445 m³ |
|
Pumps |
14 x Cargo pumps each 600 m³/h |
|
Number of tanks |
Ballast: 14 Fuel Oil: 9 Lubricating Oil: 9 Diesel Oil: 4 Fresh Water: 3 Chain: 2 Sludge: 2 Waste Water: 1 Slop: 1 |
|
Tank capacities |
Fresh water: 291 m³ Lub oil: 123,8 m³ Diesel oil: 209 m³ Fuel oil: 1.427,5 m³ Ballast: 22.245,8 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t Manufacturer: Oriental Prec & Eng'g Co 1x Provision crane - SWL 2,0 t Manufacturer: Dongnam Marine Crane Co.,Ltd. |
|
Crew size |
20 |
|
Operator |
Bernhard Schulte Shipmanagement (Singapore) Pte. Ltd. |
|
Previous operator |
Ishima Pte Ltd. - Republic of Singapore |
|
Registered owner |
Success Full Shipping Ltd. |
|
Previous names & shipping companies |
2010 - 2016 Pacific Marchioness - Libero Panama SA |
|
Latest data adjustment |
08 February 2020 |
