Westerschelde 19 May 2018 |
|
Name |

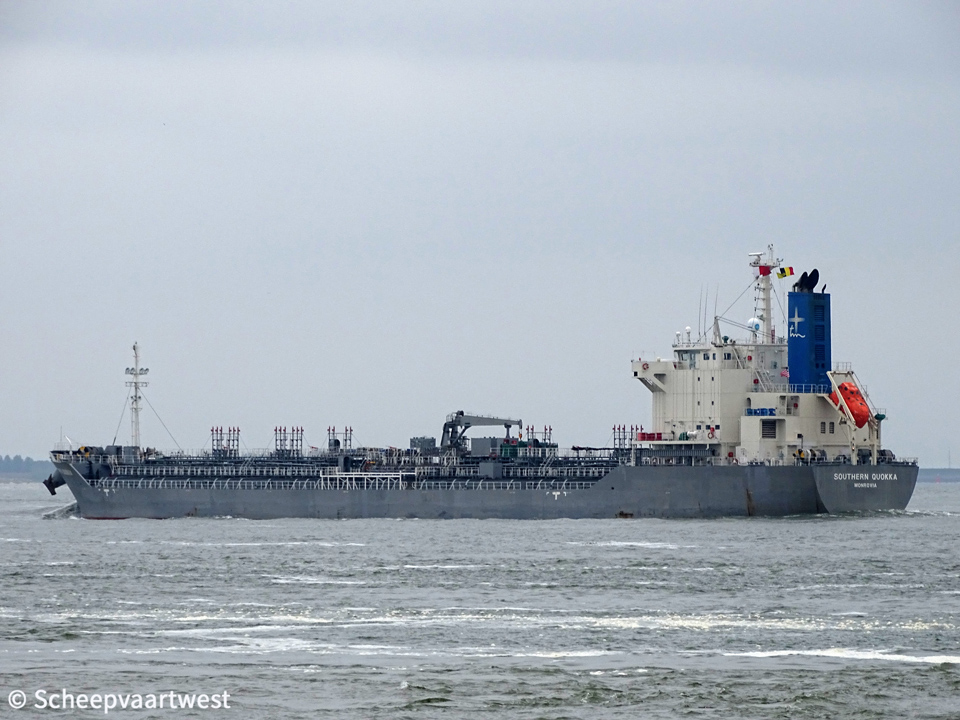

SOUTHERN QUOKKA |
|
Type |
Chemical and oil product tanker |
|
IMO-number |
9792010 |
|
Call sign |
D5MN2 |
|
Flag |
Liberia |
|
Port of registry |
Monrovia |
|
GT |
14.965 t registered |
|
DWT |
26.077 t |
|
NT |
8.108 t registered |
|
Length |
156,53 m overall |
|
Breadth |
25,00 m moulded |
|
Draught |
Max: 10,61 m |
|
Moulded L x B x D |
149,00 x 25,00 x 14,00 m |
|
Registered L x B x D |
149,07 x 25,00 x 14,00 m |
|
Freeboard |
Summer: 3.417 mm |
|
Depth |
14,00 m moulded |
|
Speed |
Service: 13,5 knots Max: 15,3 knots |
|
Built |
2017 |
|
Keel laid |
28/10/2015 |
|
Launch date |
14/12/2016 |
|
Date of completion |
22/03/2017 |
|
Builder |
Asakawa Shipbuiding Co., Ltd. Imabari Japan |
|
Yard number |
618 |
|
Hull material |
Steel |
|
Hull type |
Double hull |
|
Continuous decks |
1 |
|
Main engine |
1x Hitachi/Man-B&W 6S46ME-B8 - 2 stroke single acting 6 cylinder 460 x 1.932 mm combustion engine 5.640 kW / 7/668 hp at 110,0 rpm Manufacturer: Hitachi Zosen Corporation Innoshima Works - Japan |
|
Propeller shaft |
1x Sea water lubrication shaft Diameter:450 mm |
|
Propellers |
1x Fixed pitch propeller - aft at 110,0 rpm |
|
Boilers |
1x Auxiliary vertical boiler - 9,8 bar Evaporation :18,42 t/h Manufacturer: Miura Co., Ltd. |
|
Generators |
3x Yanmar 6EY18ALW - 4 stroke 6 cylinder 180 c 280 mm diesel engine each 615 kW coupled with generators each 550 kW |
|
Bow thruster |
1x Tunnel thruster 690 kW / 938 bhp, forward |
|
Number of cargo tanks |
26 |
|
Cargo tank capacity 98% |
Liquid: 27.104 m³ |
|
Pumps |
8x cargo pumps each 200 m³/h 16x cargo pumps each 300 m³/h |
|
Tank capacities |
Fuel oil: 1.528,58 m³ Fresh water: 367,89 m³ |
|
Lifting equipment |
1x Hose handling crane - SWL 10,0 t |
|
Crew size |
19 |
|
Manager |
Sansho Korea Co.,Ltd. #303 New Airport Office, 118 Yeongjong-Daero Jung-Gu, Incheon, 22371 South Korea |
|
Registered owner |
Southern Dragon Chemical SA |
|
Latest data adjustment |
16 January 2020 |
